Mercusys MS105GP 5-Port Gigabit Ethernet 4-Port 65W PoE Unmanaged Desktop Switch
R380

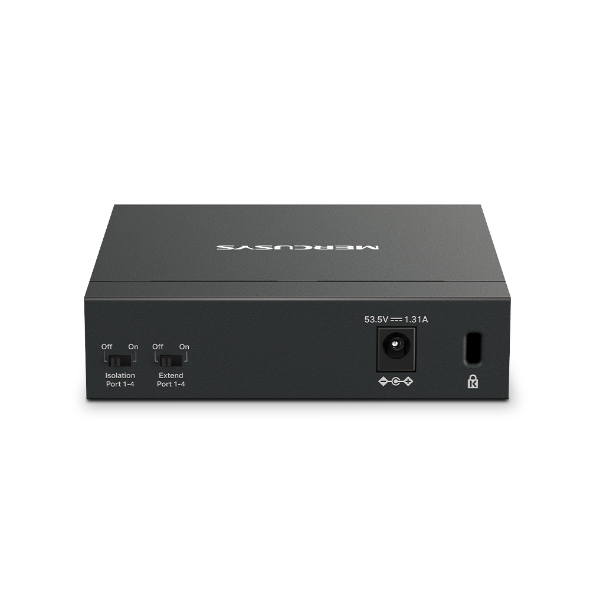

The Mercusys MS105GP has 5× 10/100/1000 Mbps RJ45 ports, with 4 PoE+ ports. PoE Power up to 30 W for each PoE port and 65 W for all PoE ports. Increases PoE transmission distance to 250 m by Extend Mode. Durable Metal Casing. Key Features:PoE Ports (802.3 af/at) : Port 1- Port 4 PoE Budget: 65 W Desktop Steel Case Desktop and Wall Mounting Isolation Mode Long-Range up to 250m
In stock
Description
FEATURES
5-Port Gigabit Ethernet with 4-Port 65W PoE Switch
Implements IEEE 802.3af & IEEE 802.3at Standards
30W Per Port, 65W Shared Power Budget
Extend Mode Supports 250-Meter Cable Lengths
Dedicated Port Prioritisation
1x Gigabit Ethernet RJ-45 Port
4x Gigabit Ethernet PoE RJ-45 Ports
Passive Cooling
One-Click Traffic Separation Function Switch
Durable Metal Construction
Wall Mount Option
TECHNICAL SPECIFICATIONS
Brand: MERCUSYS
Series: PoE Desktop Switch Series
Model: MS105GP 5-Port Gigabit Ethernet 4-Port 65W PoE
Hardware
Dimensions: 99.8 x 98 x 25mm (W x D x H)
PoE Ports: RJ45 Standard
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Interfaces: 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply: Output: 53.5V/1.31A
Installation: Desktop
Wall Mount
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates: 10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
Jumbo Frame: 9 KB
LED: Ethernet Ports (1, 2, 3, 4, 5), Power
Mac Address Table: 2K
Max Power Consumption: 3.13W（220 V / 50 Hz, no PD connected）
75.15W（220 V / 50 Hz, with 65W PD connected）
Max Heat Dissipation: 10.64 BTH/h （no PD connected)
255.51 BTH/h（with 65W PD connected）
Software
Transfer Method: Store and Forward
Management: Plug and Play
Advanced Features: 802.3x Flow Control
IGMP Snooping V1/V2/V3
Isolation Mode
Extend Mode
General
Package Contents: 5-Port Gigabit Desktop Switch with 4-Port PoE (MS105GP)
Power Adapter
Quick Installation Guide
Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
Additional information
| Weight | 0,4 kg |
|---|---|
| Dimensions | 13,6 × 12,5 × 8,5 cm |
| Condition |
