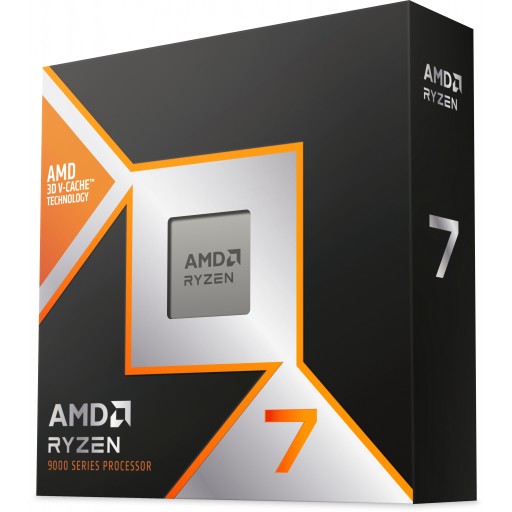

AMD Ryzen 7 9850X3D 5.6GHz 8-Core Zen 5 Socket AM5 Desktop CPU – Cooler Not Included
R10250
Designed for gaming and built with Zen 5 architecture, the Ryzen 7 9850X3D 4.7 GHz 8-Core AM5 Processor from AMD is a CPU built for motherboards with an AM5 socket. It features 8 cores and 16 threads with a base clock speed of 4.7 GHz and a max boost speed of 5.6 GHz, although this CPU is unlocked for overclocking. Other technical features include support for up to 192GB of 5600 MHz DDR5 memory, a 96MB L3 cache, integrated AMD Radeon Graphics, and more. Supported connectivity options include USB 3.2 Gen 2, USB 2.0, and PCIe 5.0.
In stock
Description
FEATURES
AMD’s Latest Next-Gen 8-Core Gaming Processor
AMD Ryzen 7 9850X3D Processor with 96MB 3D V-Cache
Up to 5.6GHz Boost Clock
8x Zen 5 Cores
8 Cores, 16 Threads
AMD 4nm Zen 5 Architecture
TSMC 6nm IO Die
Advanced 3D Chip Stacking Technology
640KB L1 Cache
8MB L2 Cache
96MB L3 Cache
Integrated Radeon RDNA 2 Graphics
Supports AMD 800 & 600 Series Chipsets
Dual-Channel DDR5 Memory Architecture Up to 192GB
Up to DDR5-5600 Dual-Rank Memory Supported
PCI Express Version 5.0 Supported
AMD EXPO Memory Overclocking Profiles
AMD Precision Boost 2.0 & Precision Boost Overdrive
AMD StoreMI Technology
Enhanced AI Performance
120W TDP
Socket AM5 Compatible
Supports Windows 11, Linux x86_64
TECHNICAL SPECIFICATIONS
Brand: AMD
Series: Ryzen 7 (6th Gen, Zen 5) 3D V-Cache
Model: 9850X3D (100-100001973WOF)
CPU
Core Arrangement: 8x Zen 5 Cores
Number of CPU Cores: 8 Cores
Number of Threads: 16 Threads
Base Clock: 4.70GHz
Boost Clock: Up to 5.6GHz
Total L1 Cache: 640KB
Total L2 Cache: 8MB
Total L3 Cache: 96MB
Default TDP: 120W
Lithography Process: Zen 5 Cores – TSMC 4nm FinFET
Zen 5 IO Die – TSMC 6nm FinFET
Memory
System Memory Type: DDR5
Maximum Memory: 192GB (4x48GB)
Memory Channels: Dual-channel DDR5 memory architecture
System Memory Specification: 5600MHz supported
Overclocking Support: Yes, Up to 8000MHz with AMD EXPO memory profiles
Supported Memory Speeds: 2x1R 5600MHz
2x2R 5600MHz
4x1R 3600MHz
4x2R 3600MHz
ECC Support: Yes (check with your motherboard vendor for support)
Graphics
Integrated: AMD RDNA 2 Graphics
Execution Units: 2 EU, 128 Shaders
Base Clock: 400MHz
Boost Clock: 2200MHz
Supported Video Outputs DisplayPort
HDMI
USB Type-C DisplayPort Alternate Mode
Platform
Unlocked Multiplier: Yes
CPU Socket: AM5
Socket Count: 1P
Thermal Solution: N/A
Maximum Operating Temperature (Tjmax): 95°C
Connectivity
USB Type-C Support: Yes
Native USB 3.2 Gen 2 (10Gbps) Ports: 4
Native USB 2.0 (480Mbps) Ports: 1
Native CPU PCIe Lanes: 28 Total
24 Usable
Supported Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B850, B840
NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
Operating System Support: Windows 11 64-bit Edition
Windows 10 64-bit Edition
RHEL x86 64-bit
Ubuntu x86 64-bit
*Operating System (OS) support will vary by manufacturer.
General
Advanced Features: AMD StoreMI Technology
AMD Ryzen VR-Ready Premium
PCI Express Gen 5 support
AMD EXPO Memory Overclocking Profiles
AMD Precision Boost 2.0
AMD Precision Boost Overdrive
Curve Optimizer Voltage Offsets
AMD Ryzen Master Support
CPU Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Additional information
| Weight | 0,2 kg |
|---|---|
| Dimensions | 14,2 × 13,2 × 3,6 cm |
| Condition | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| CPU Series | AMD Ryzen 7 |
Frequently Asked Questions
Q: What processor line does this model belong to?
A: This is an AMD AMD Ryzen 7 processor, designed for gaming, multitasking, and heavy workloads.
Q: What socket motherboard do I need for this CPU?
A: This processor requires a motherboard with a matching AM5 socket layout.
