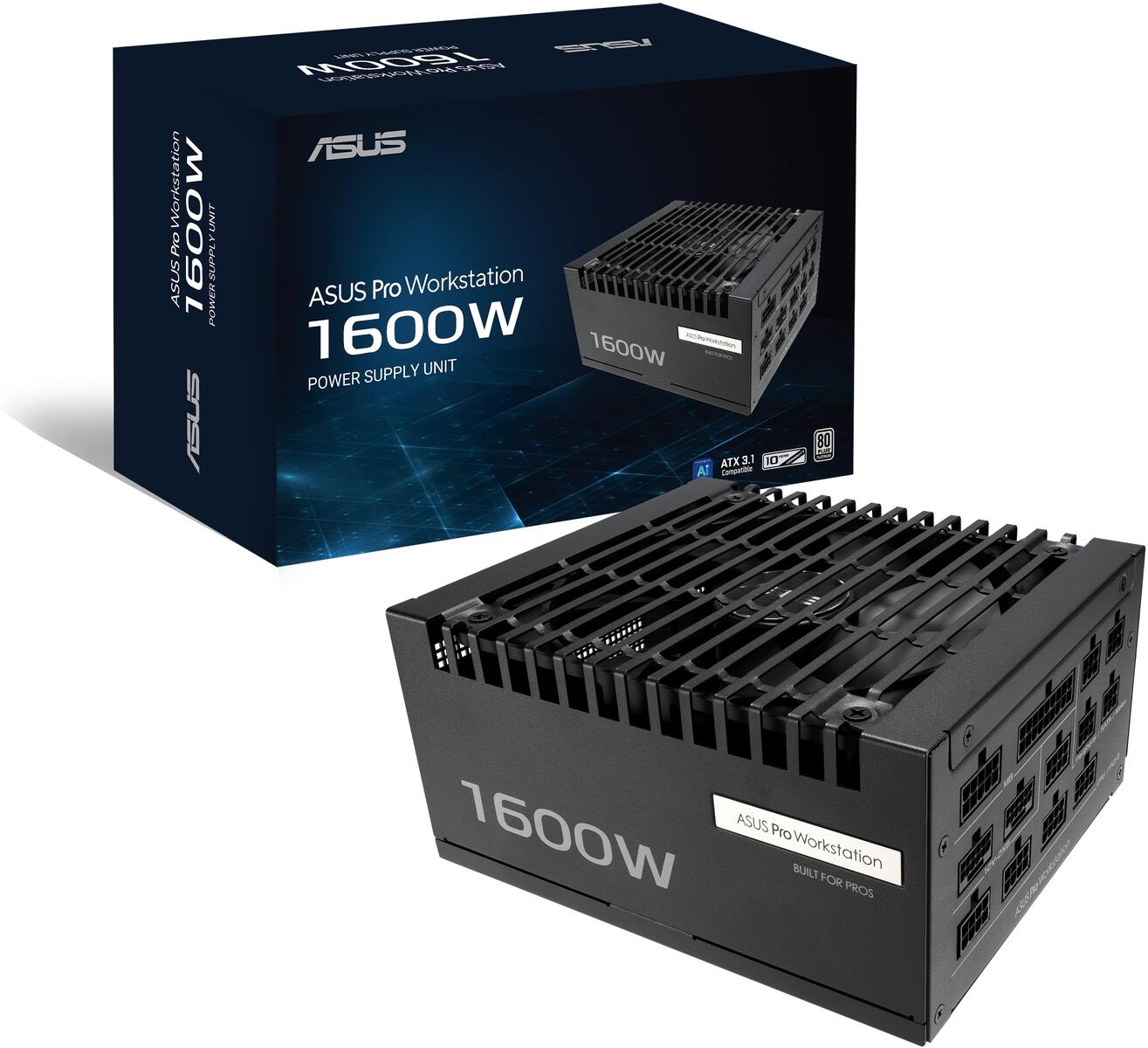

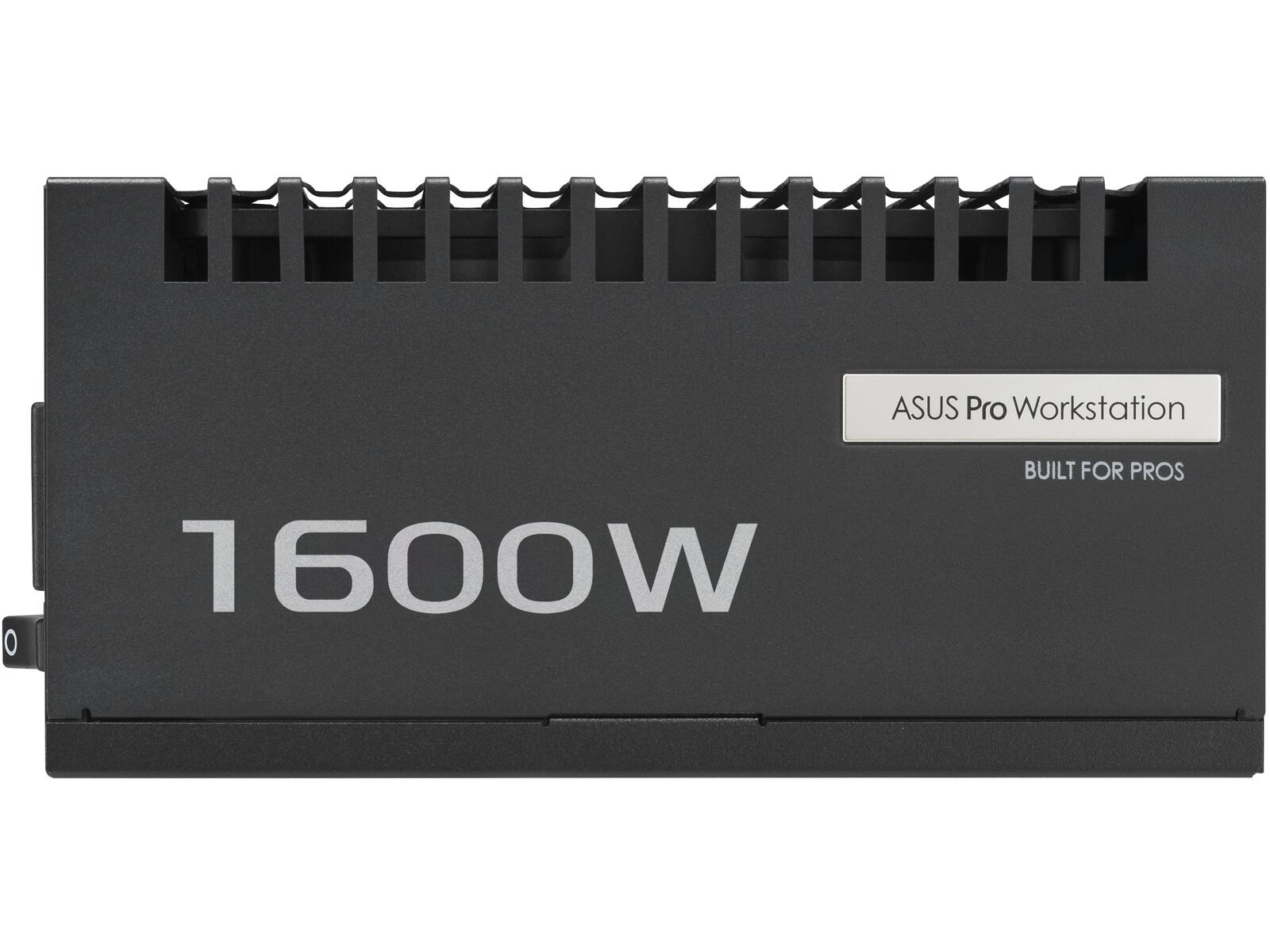

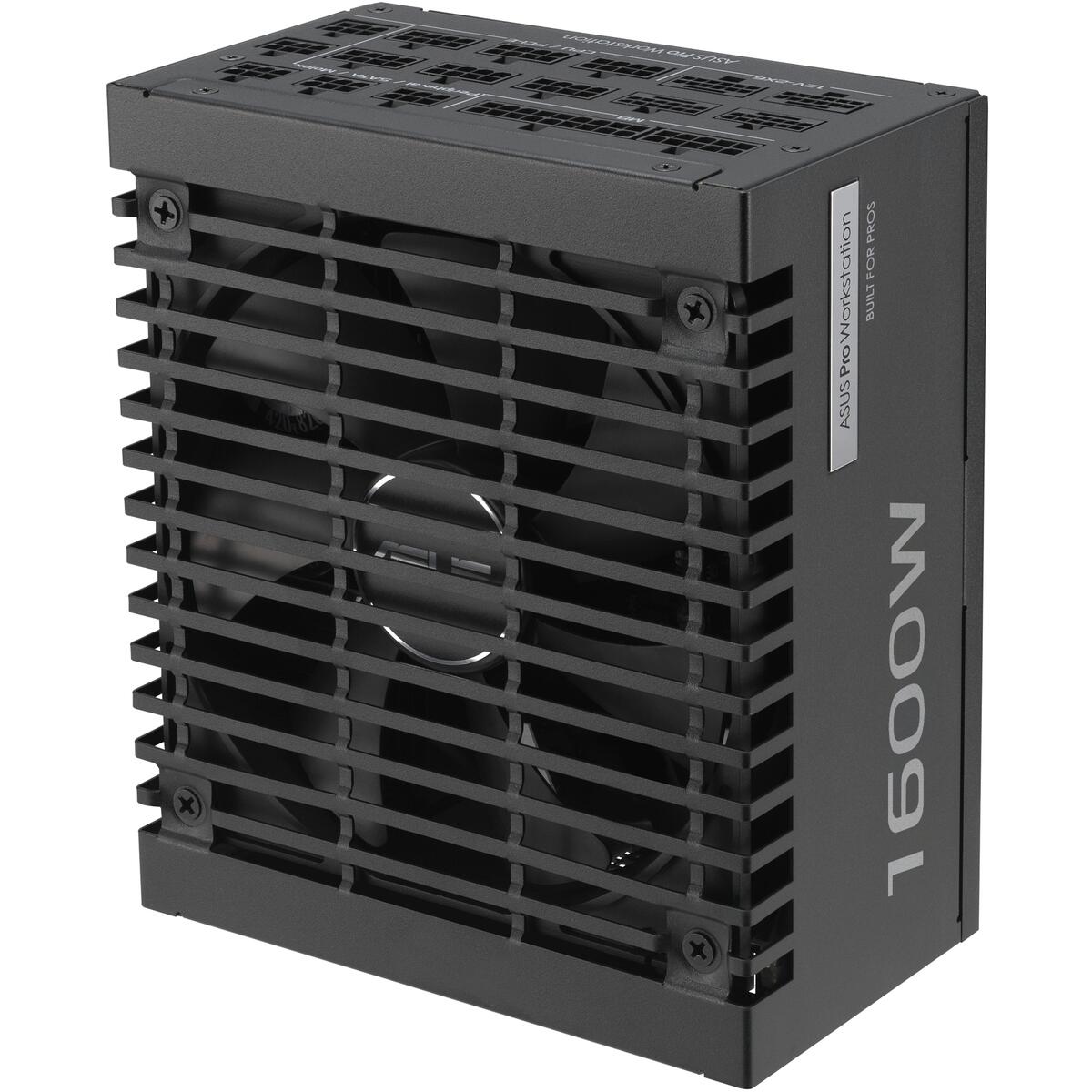

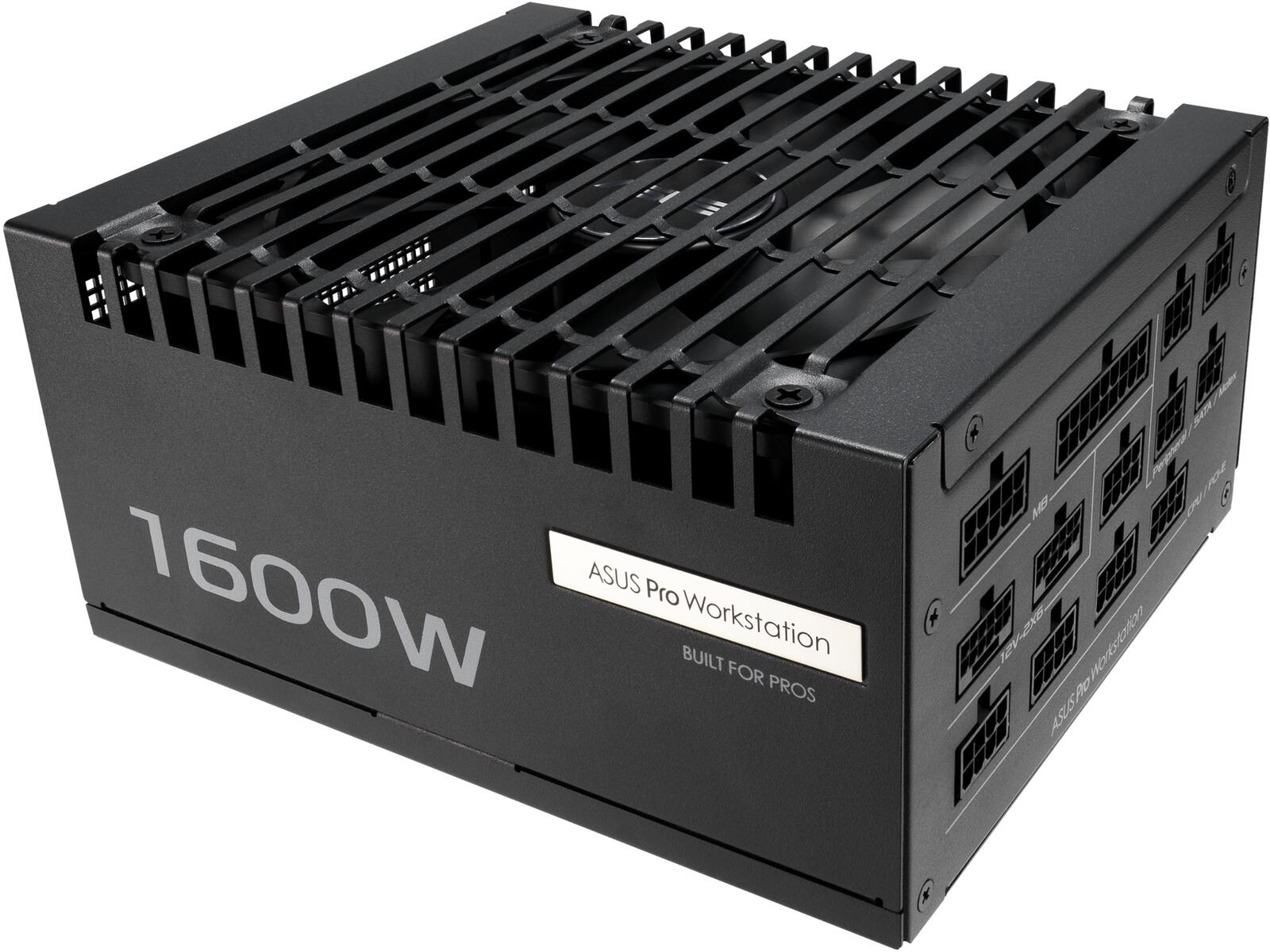

Asus Pro WS 1600W Platinum Fully Modular 80 Plus Platinum ATX Desktop Power Supply

R10115

The ASUS Pro WS 1600W Platinum is a fully modular workstation power supply designed for demanding computing environments. Its heavy-duty power delivery can support configurations with up to two NVIDIA GeForce RTX 5090 graphics cards, making it well suited to AI workloads, deep learning, content creation, professional applications and advanced IT systems.

In stock

Description

FEATURES
1600W-class ASUS Pro WS Platinum power supply
ATX 3.1 compatible design
80 PLUS Platinum efficiency
Active PFC
1x motherboard 24/20-pin connector
2x CPU 4+4-pin connectors
4x PCIe 5.1 16-pin connectors
4x PCIe 6+2-pin connectors
9x SATA power connectors
3x peripheral connectors
Fully modular cabling
Supports up to two GeForce RTX 5090 graphics cards

TECHNICAL SPECIFICATIONS

Brand: ASUS
Model: ASUS-PRO-WS-1600P
Intel Form Factor: ATX12V
PFC Type: Active PFC
ATX Standard: ATX 3.1
80 PLUS Efficiency: 80Plus Platinum
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials: ROHS
AC Input Range: 200-240Vac
DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
Maximum Load: 25A 25A 133.3A 0.8A 3A
Combined Load: 130W 130W 1600W 9.6W 15W
Total Output: 1600W

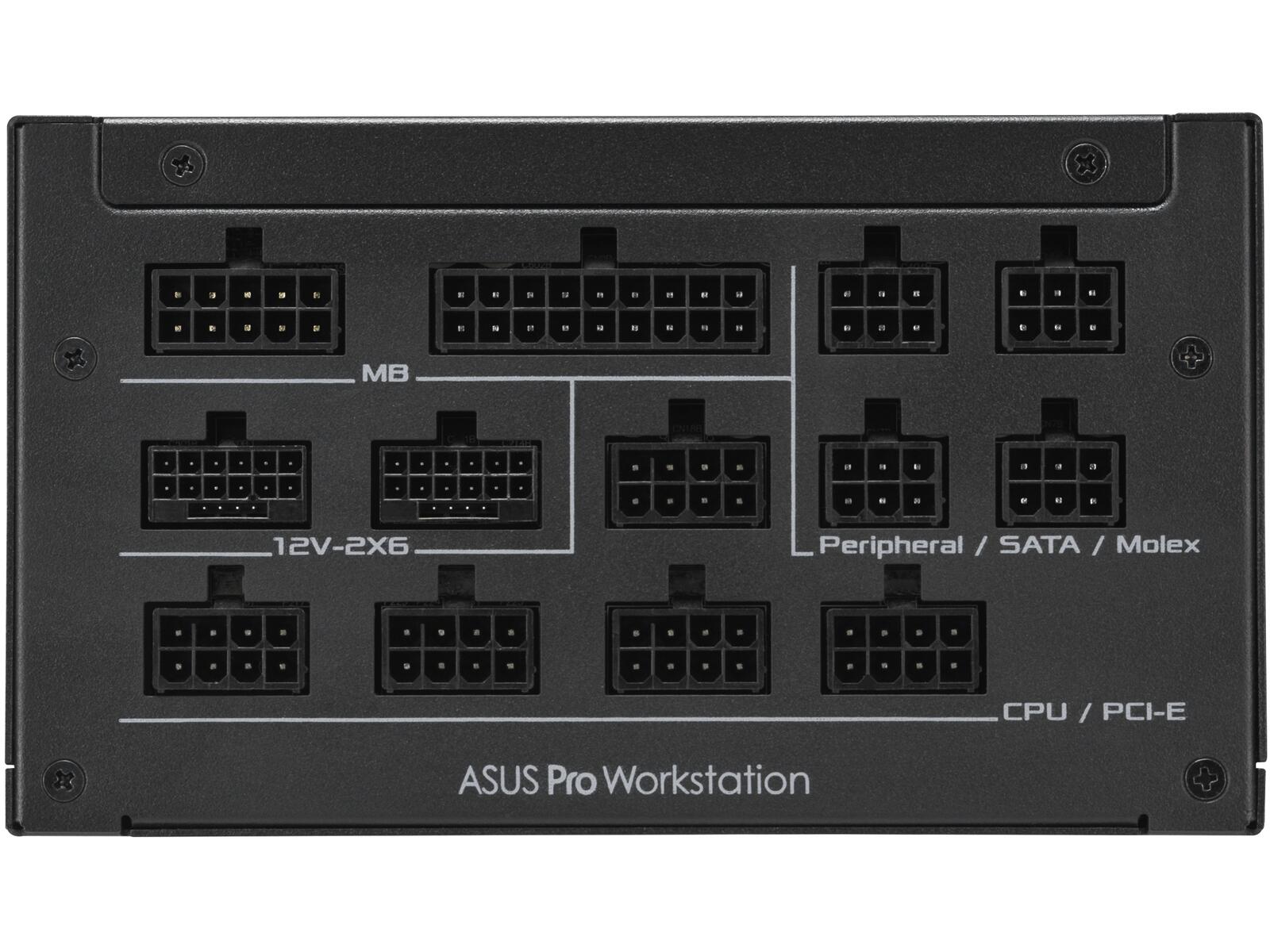

Cable Connectors: MB 24/20-pin x 1
CPU 4+4-pin x 2
PCIE 5.1 16-pin x 2
PCIE 6+2-pin x 4
SATA x 9
PERIPHERAL x 3
Package Contents: Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 2 (750mm)
PCI-E 1-to-1 Cable x 2 (750mm)
PCI-E 1-to-2 Cable x 1 (750+100mm)
SATA 1-to-3 Cable x 3 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
Chassis Screws Package x 1
Cable Tie x 6
User Manual x 1
Dimensions: 175 x 150 x 86 mm
Weight: 2.0 kg (single PSU)
AURA SYNC: No
0dB Fan Button: No, this product is without 0dB technology.
