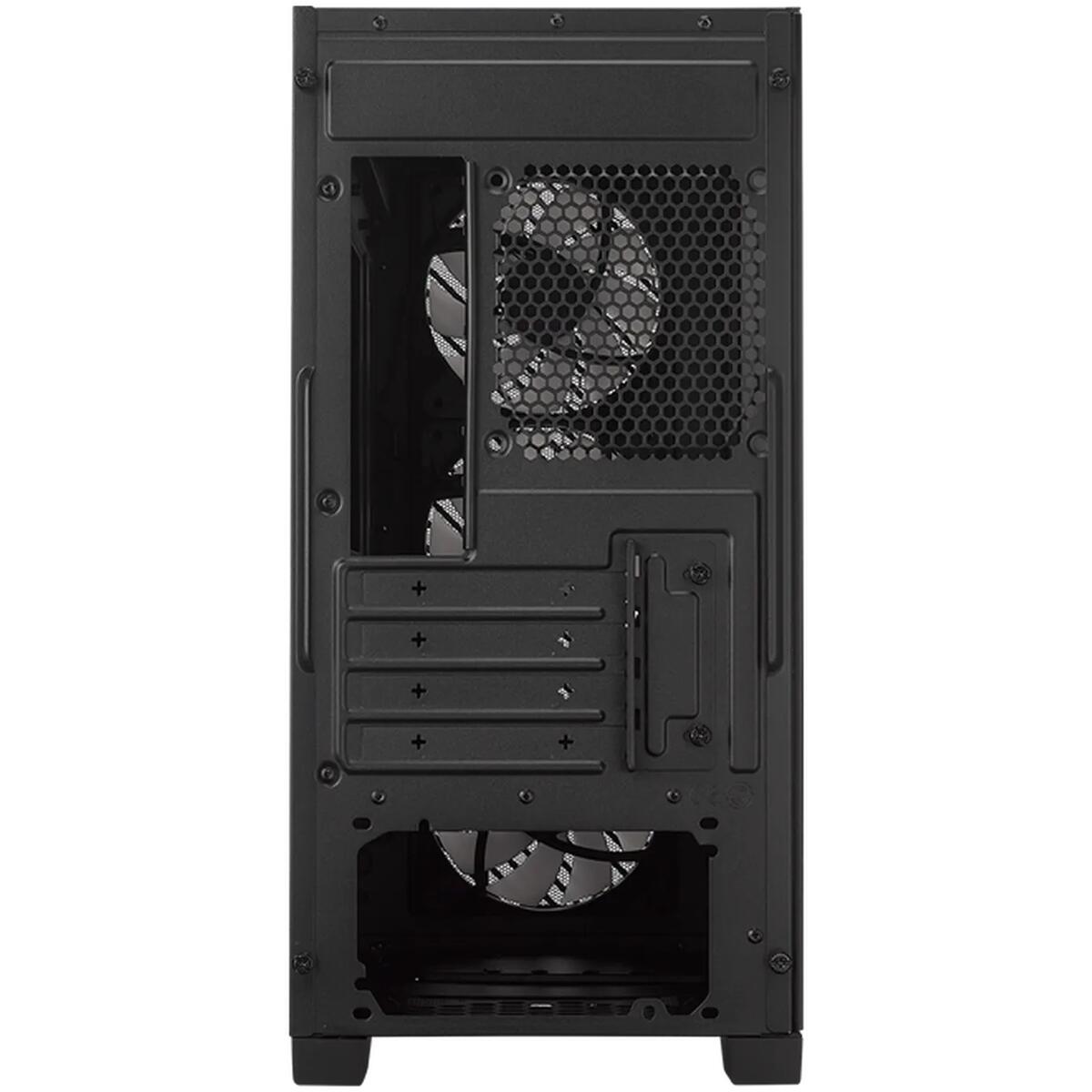

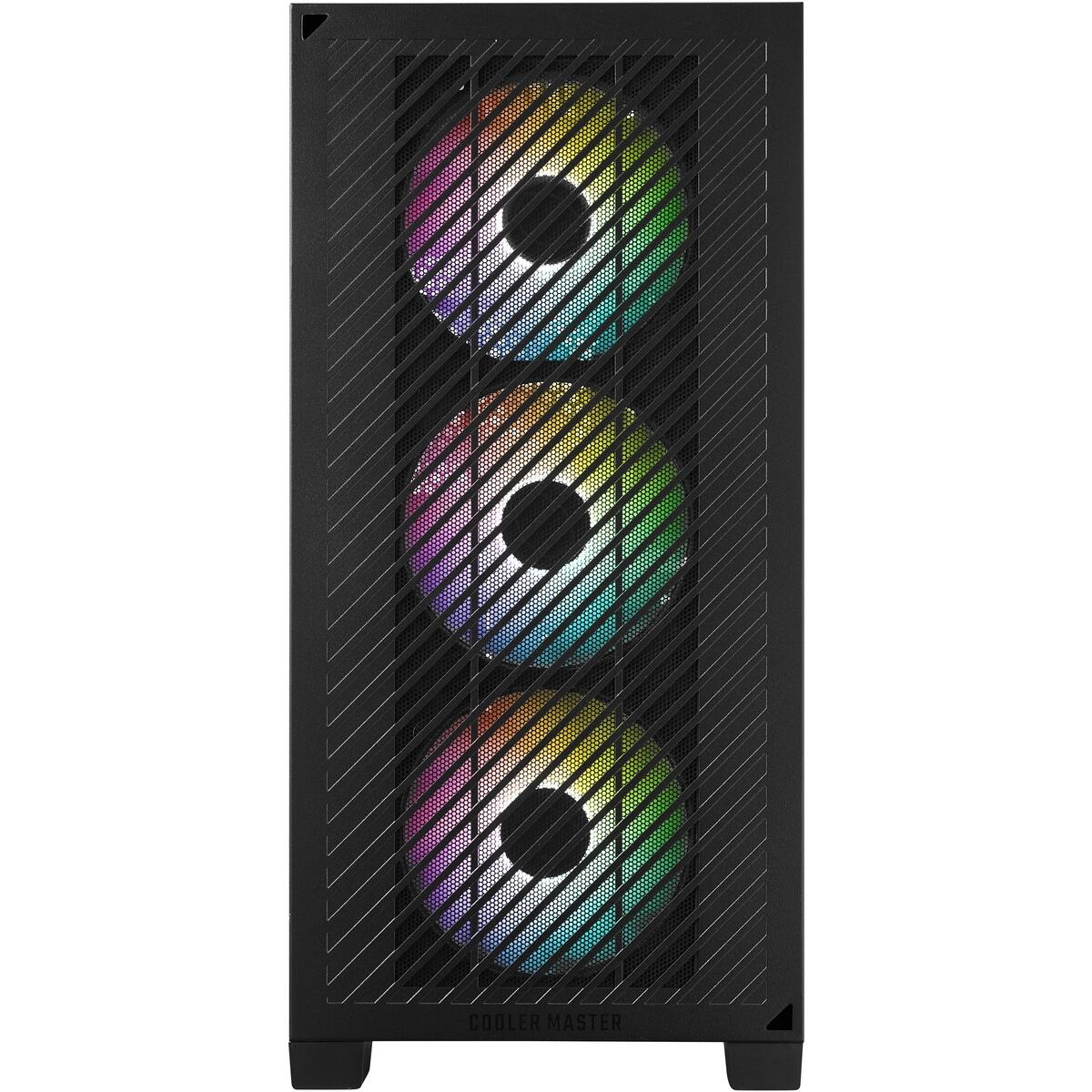

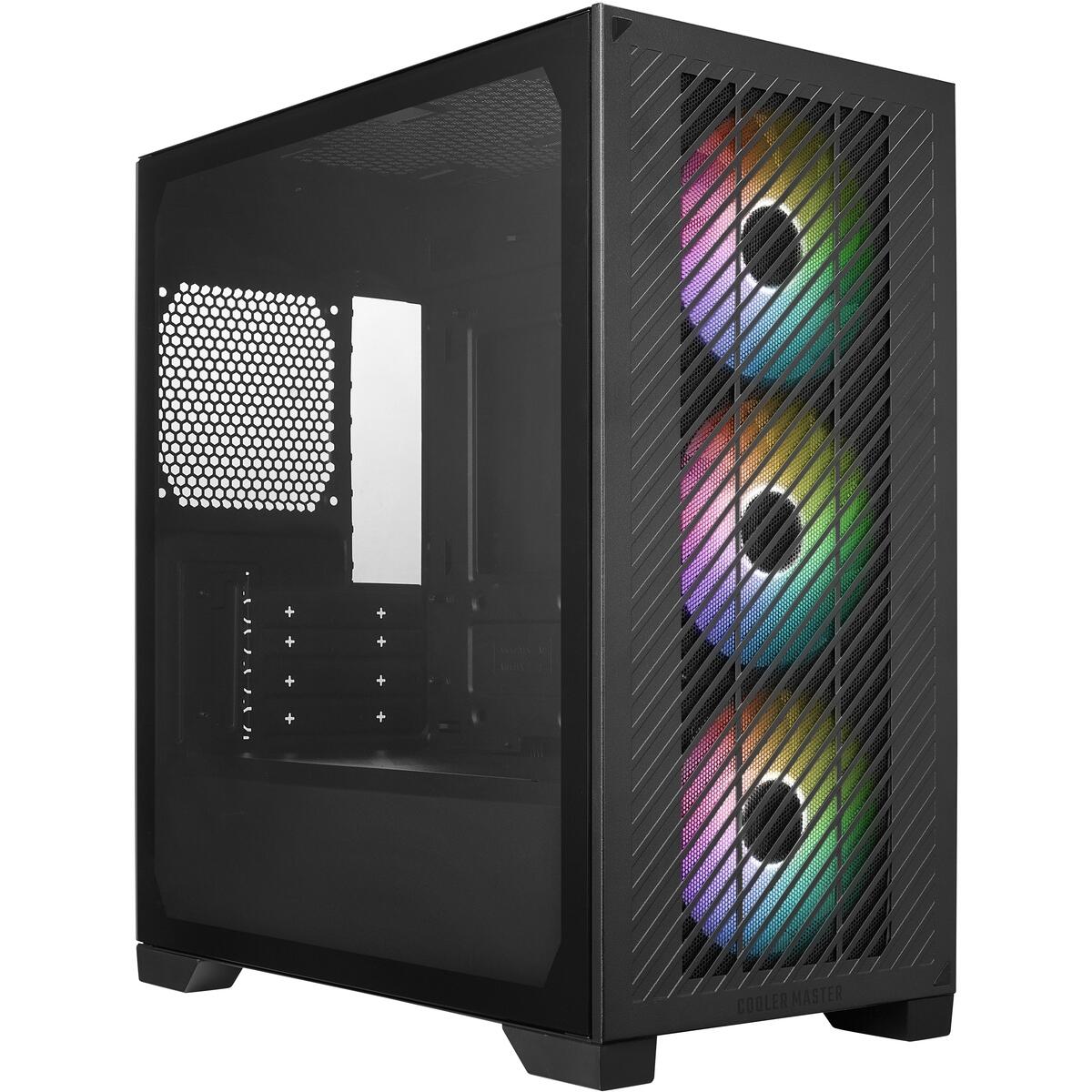

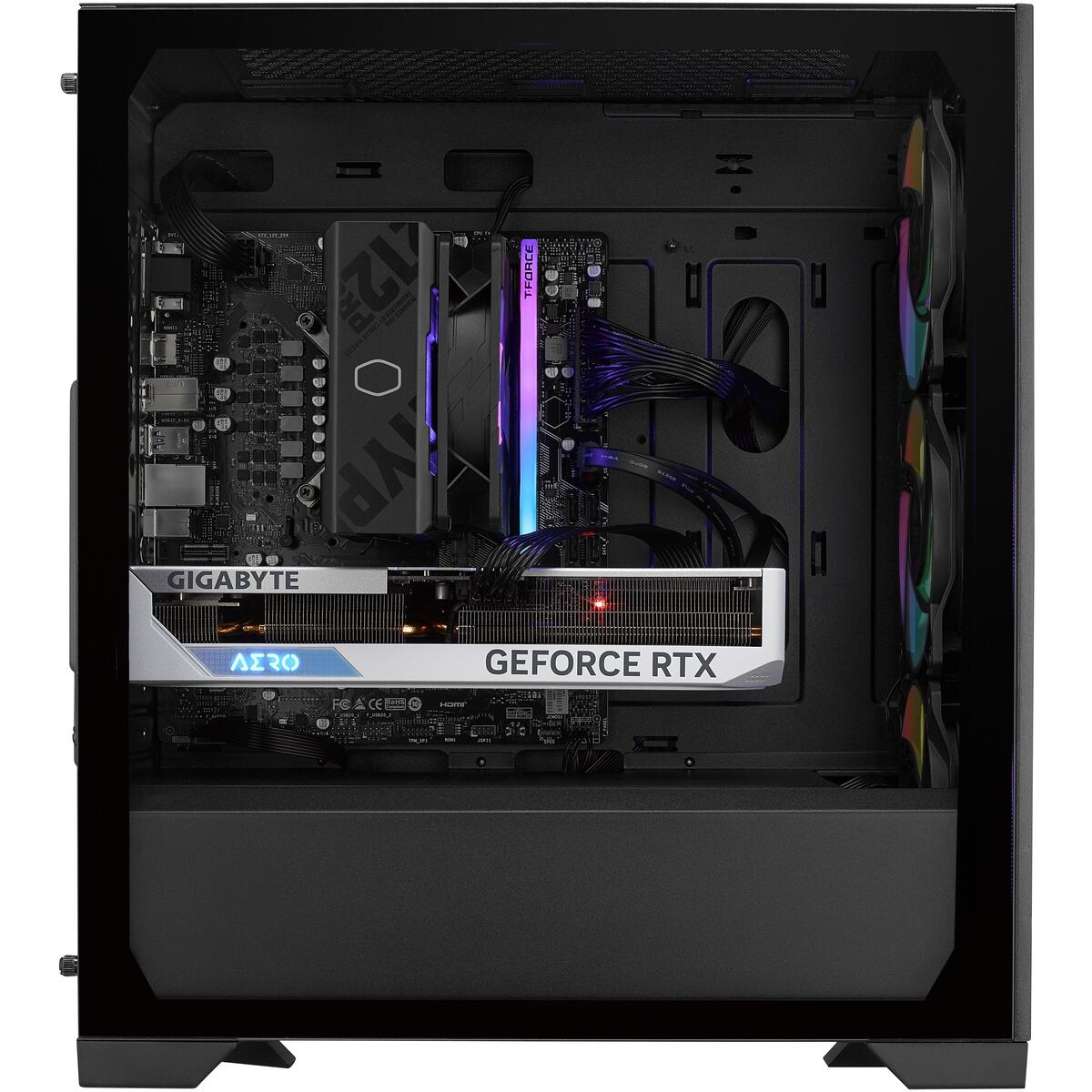

Cooler Master Elite 302 Micro-ATX Mini-Tower Chassis with 600W PSU
R1005
High in value and attention to detail, Cooler Master’s Elite 302 offers users a cost effective, space conscious solution to gaming and computing needs.Elite 302 features a large intake grill and 3x 120mm ARGB fans to ensure a smooth, and efficient running system. The fully black coating and included PSU cover allows for clean builds that are visually appealing as well as functional.
In stock
Description
FEATURES
READY FOR HIGH-PERFORMANCE COOLING
Accommodates up to 6 fans and supports 280mm or 360mm radiators to keep your system performing at its peak.
COMPACT SIZE, MAXIMUM COMPATIBILITY
Supports up to 365mm GPUs and 163.5mm CPU coolers – ideal for powerful setups without the bulk.
ARGB STYLE MEETS PERFORMANCE
Three pre-installed 120mm ARGB fans deliver strong airflow while adding a touch of vibrant lighting to your build.
TECHNICAL SPECIFICATIONS
Exterior Color: Black
Materials
Exterior: Steel
Side panel (Right / Left): Tempered Glass / Steel
Dimensions (LxWxH): 390 x 203.5 x 430mm (Incl. Protrusions)
Motherboard Support: Mini-ITX, Micro-ATX
Expansion Slots: 4
Drive Bays
3.5″: 1
2.5″: 1 (Max. 2)
I/O Panel
1x USB 3.2 Gen1 Type A
1x USB 3.2 Gen1 Type C
1x 3.5mm Combo (Audio + Mic)
Fan Support
Front: 3x 120mm
Top: 2x 120mm / 2x 140mm
Rear: 1x 120mm
Pre-installed Fans: 3x 120mm ARGB Black (Front)
Radiator Support
Front: 120 / 240 / 360* mm (* – Support up to 60mm thickness)
Top: 120 / 140 / 240 / 280mm
Rear: 120mm
Clearance
CPU Cooler: 163.5mm
PSU: 160mm
GFX: 365mm (without front fans & radiator)
Cable Routing: 18.5mm
Dust Filters: Top / Bottom / Front
Power Supply
Supported Format: ATX
Elite NEX White W600 600W PSU
ATX Version: ATX 12V Ver. 2.41
80 Plus Efficiency: White
Additional information
| Weight | 6,5 kg |
|---|---|
| Dimensions | 44 × 27,3 × 48 cm |
| Condition | |
| Form Factor | Micro ATX, Mini ITX |
| Side Panel | Windowed Side Panel |
| PSU Form Factor Support | ATX |
| Chassis Max GPU Length | 365mm |
| Chassis Max CPU Cooler Height | 164mm |
| Chassis Max Radiator Length | 360mm |
Frequently Asked Questions
Q: What motherboard sizes fit in this case?
A: This case supports Micro ATX, Mini ITX motherboard form factors.
Q: What is the maximum graphics card length this case supports?
A: This case can accommodate graphics cards up to 365mm in length.
Q: What is the maximum CPU cooler height this case supports?
A: This case has clearance for air coolers up to 164mm tall.
Q: What size liquid cooling radiator can I install in this case?
A: This case supports radiators up to 360mm in length.
Q: What power supply form factor does this case support?
A: This case is designed to fit ATX power supplies.
Q: Does this case have a windowed side panel?
A: This case features a Windowed Side Panel, so you can show off the internal components.
