Corsair AIR 5400 LX-R iCUE LINK ARGB Tempered Glass White Steel E-ATX Mid-Tower Desktop Chassis
R5030
The Corsair AIR 5400 LX-R Black RGB iCUE LINK is a premium mid-tower PC case designed for enthusiasts seeking peak thermal performance. Featuring a triple-chamber layout, dedicated CPU cooling chamber, dual airflow ducts, and dual curved glass French doors, it ensures superior airflow, efficient cable management, and stunning RGB lighting with three included iCUE LINK LX-R fans and System Hub.
In stock
Description
FEATURES
Novel Three-Chamber Design with Hinged Access Doors
Panoramic French Tempered Glass Front Panels
Corsair RapidRoute 2.0 Cable Management
Corsair iCUE ARGB Lighting with iCUE LINK System Hub
Integrated GPU Support Arm with Airflow Guide
Mid-Tower ATX Form Factor
Supports E-ATX (277mm), ATX, Micro-ATX, Mini-ITX Motherboards
Supports Reverse Hidden Connector Motherboards
2x 2.5″ Drive Bays (Removable)
1x 3.5″ Drive Bay (Removable)
1x USB 20Gbps Type-C Port
2x USB 5Gbps Type-A Ports
1x 3.5mm Combination Audio Jack
Integrated LED-Lit Power Button
7x Horizontal PCI Slots
Supports Up to 10x 120mm Fans
Supports Dual 360mm Radiators (Top, Front)

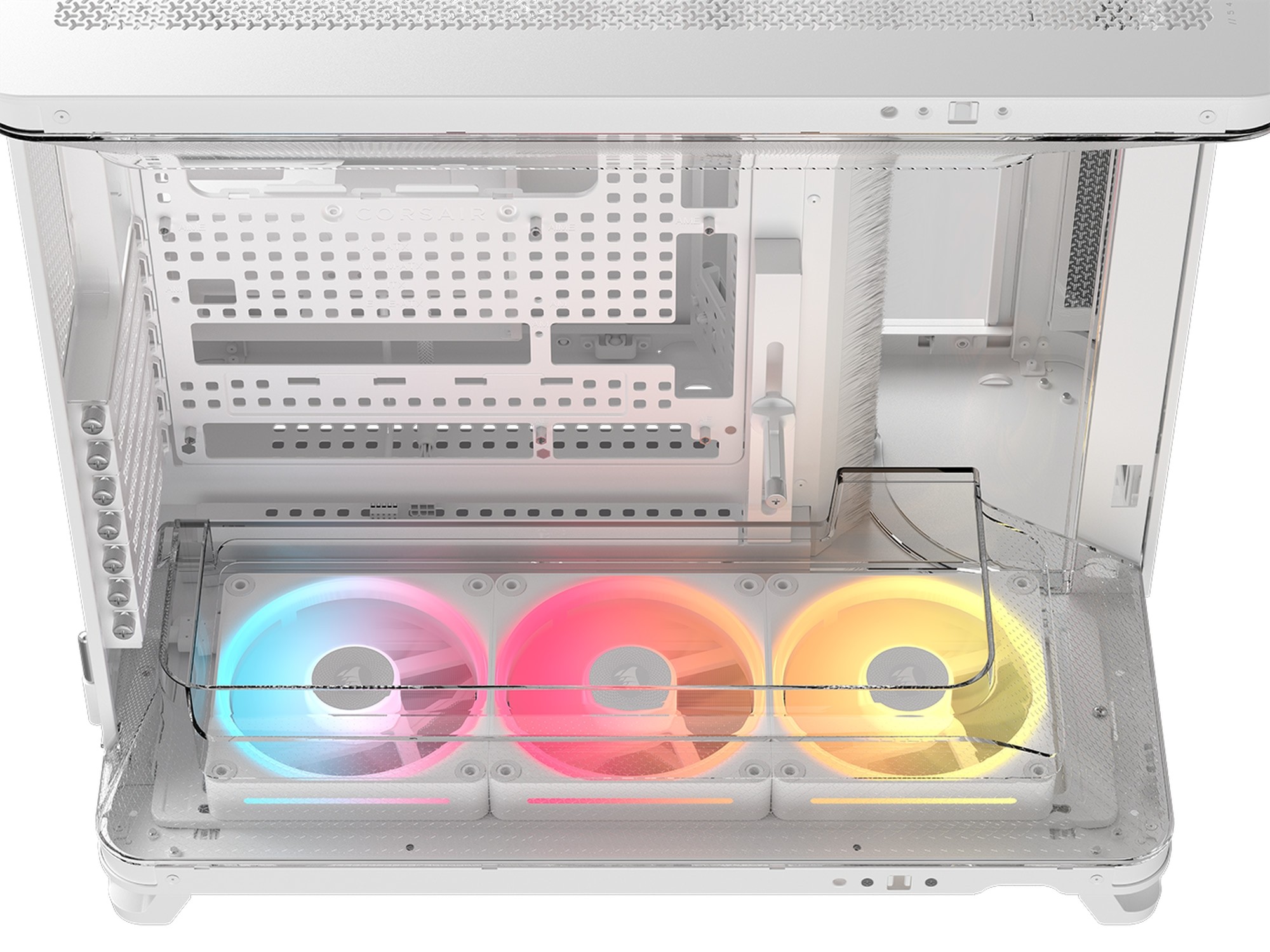

3x Pre-Installed Corsair iCUE LINK LX-R ARGB PWM Reversed Fans (Bottom Intake)
GPU Clearance: Up to 360mm
CPU Cooler Clearance: Up to 180mm
PSU Depth Clearance: Up to 200mm
Compatible with Corsair Shift PSU Series
Colour: White
TECHNICAL SPECIFICATIONS
Brand: Corsair
Series: AIR 5400 Series
Model: AIR 5400 LX-R White (CC-9011321-WW)
Physical Details
Colour: White
Materials: Aluminium
Steel
Tempered Glass
Side Panel: Panoramic Hinged Tempered Glass, bottom mesh vented intake, mesh right side panels
Front I/O: 1x USB 20Gbps Type-C Port
2x USB 5Gbps Type-A Ports
1x 3.5mm Combination Audio Jack
Motherboard Support: E-ATX (305 x 277mm), ATX, Micro-ATX, Mini-ITX
Expansion Slots: 7x Horizontal PCI Slots
Drive Bays: 1x 3.5″ Drive Bay
2x 2.5″ Drive Bays
PSU Support: ATX
Dimensions: 470 x 340 x 467mm (D x W x H)
Weight: 13.92kg
Pre-Installed Fans
Front: N/A
Side: N/A
Top: N/A
Bottom: 3x Pre-Installed Corsair iCUE LINK LX-R ARGB PWM Reversed Fans (Bottom Intake)
Rear: N/A
Fan Support
Front: 3x 120mm Fans
Side: N/A
Top: 3x 120mm Fans
Bottom: 3x 120mm Fans
Rear: 1x 120mm Fan
Radiator Support
Front: 360mm, 240mm support
Side: N/A
Top: 360mm support
Bottom: 360mm, 240mm support
Rear: 120mm support
Clearance
CPU Cooler Height Limitation: Up to 180mm
GPU Length Limitation: Up to 360mm
PSU Length Limitation: Up to 200mm
Cable Management: Yes, Corsair RapidRoute 2.0 Cable Management with 134mm clearance
General
Dust Filters: Front, bottom, top dust filters
Chassis Lighting: Yes, Corsair iCUE LINK LX-R ARGB PWM fans support Corsair iCUE LINK ecosystem.
Pre-Installed iCUE LINK System Hub supports Corsair iCUE Software controls (Windows Only).
Additional information
| Weight | 17 kg |
|---|---|
| Dimensions | 48 × 58 × 62 cm |
| Condition | |
| Form Factor | ATX, Extended ATX, Micro ATX, Mini ITX |
| Side Panel | Windowed Side Panel |
| PSU Form Factor Support | ATX |
| Chassis Max GPU Length | 360mm |
| Chassis Max CPU Cooler Height | 180mm |
| Chassis Max Radiator Length | 360mm |
Frequently Asked Questions
Q: What motherboard sizes fit in this case?
A: This case supports ATX, Extended ATX, Micro ATX, Mini ITX motherboard form factors.
Q: What is the maximum graphics card length this case supports?
A: This case can accommodate graphics cards up to 360mm in length.
Q: What is the maximum CPU cooler height this case supports?
A: This case has clearance for air coolers up to 180mm tall.
Q: What size liquid cooling radiator can I install in this case?
A: This case supports radiators up to 360mm in length.
Q: What power supply form factor does this case support?
A: This case is designed to fit ATX power supplies.
Q: Does this case have a windowed side panel?
A: This case features a Windowed Side Panel, so you can show off the internal components.
