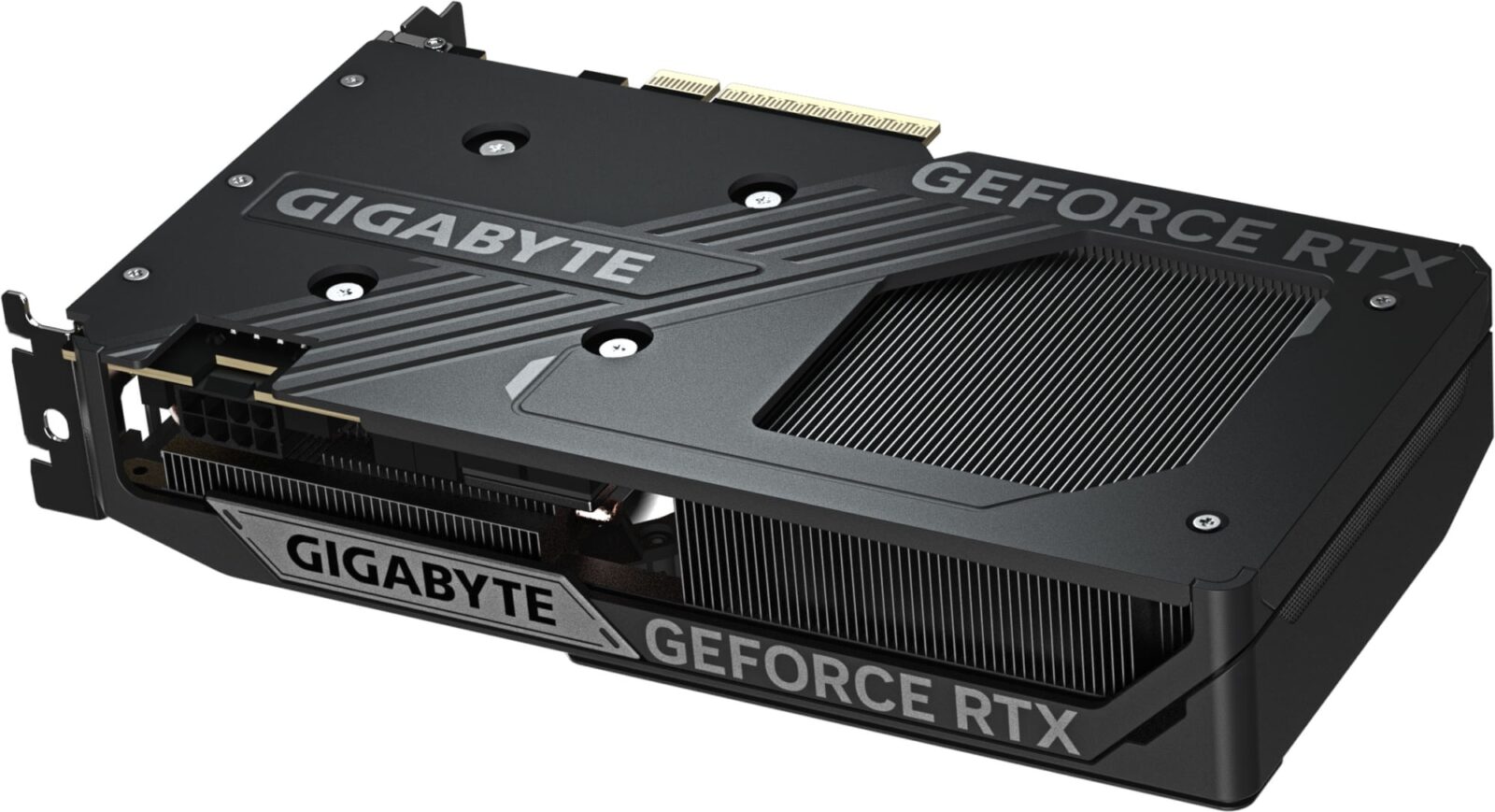

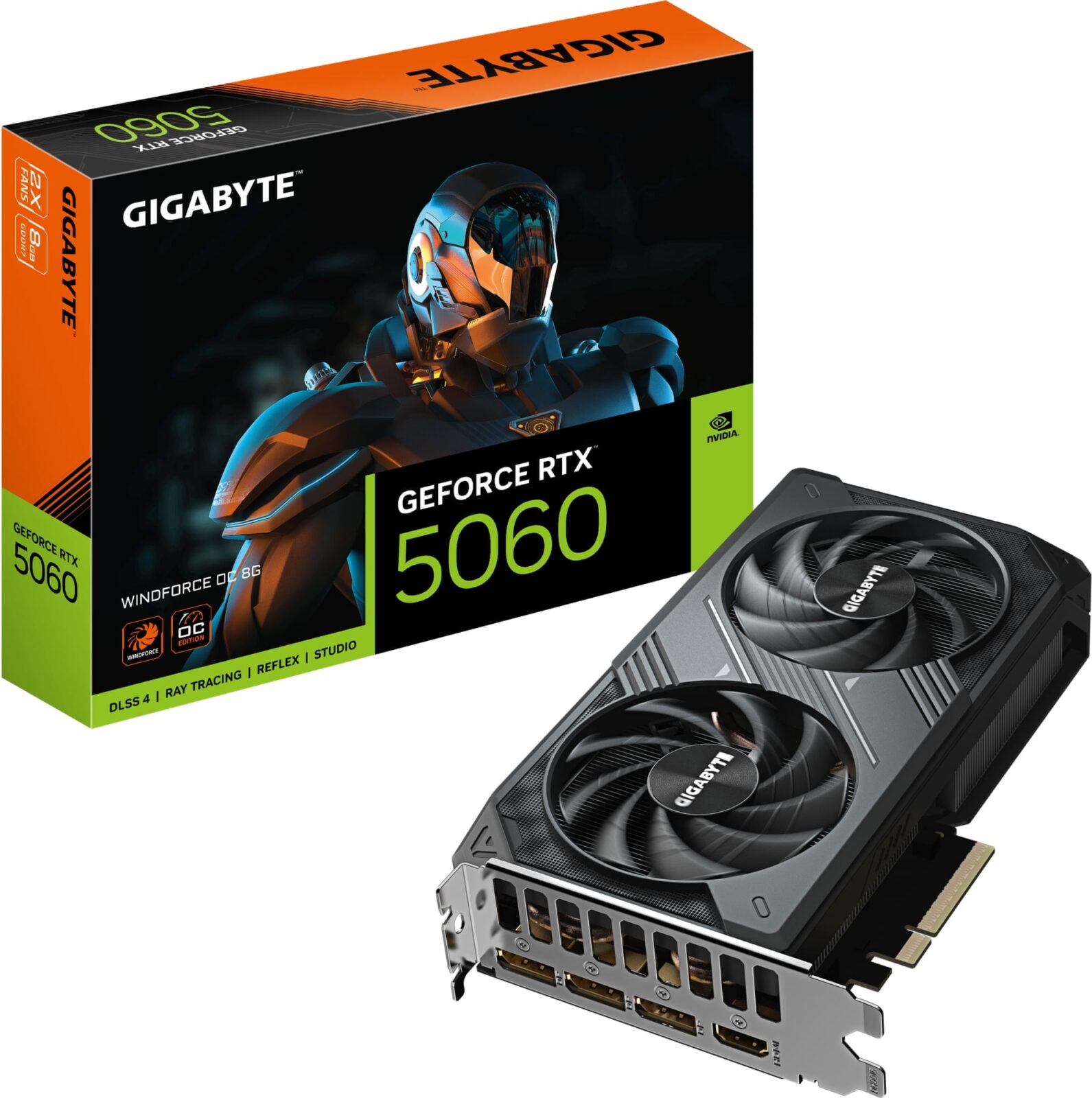

Gigabyte GeForce RTX 5060 WINDFORCE OC 8G 8GB GDDR7 128-bit PCIe 5.0 Desktop Graphics Card
R11090
Ahead of its time, ahead of the game is the GIGABYTE GeForce RTX 5060 WINDFORCE OC 8G Graphics Cards. Powered by NVIDIA’s new RTX architecture, the GIGABYTE GeForce RTX 5060 WINDFORCE OC 8G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 8 GB of GDDR7 memory.
In stock
Description
FEATURES
Boost Clock: Up to 2512 MHz
CUDA Cores: 3840 Cores
4th Gen Ray Tracing Cores
5th Gen Tensor Cores
NVIDIA Blackwell Architecture
NVIDIA RTX Real-Time Ray Tracing Technology
NVIDIA Optical Flow Accelerator Technology
NVIDIA DLSS 4.0 AI Upscaling Technology
NVIDIA Reflex 2.0 & Frame Warp Technology
NVIDIA G-Sync Ultimate VRR Technology
NVIDIA GeForce Game Ready & Studio Drivers
AV1 Decode / Encode Engines
Video Memory: 8GB GDDR7
Memory Clock: 28Gbps
Memory Bus Width: 128-bit
3x DisplayPort 2.1a, 1x HDMI 2.1b Ports
Multi-Display Capability: 4x Displays
Server-Grade Thermal Conductive Gels
Gigabyte WINDFORCE 2X Cooling System with Hawk Fans
Gigabyte Control Center Software
Gigabyte AI TOP Utility
Supports Windows 11, Linux
TECHNICAL SPECIFICATIONS
Brand: Gigabyte
Series: WINDFORCE Series
Model: GeForce RTX 5060 WINDFORCE OC 8G (GV-N5060WF2OC-8GD)
Chipset
GPU: GeForce RTX 5060
Chipset Manufacturer: NVIDIA
Interface: PCIe 5.0 x8
Boost Clock: Up to 2512 MHz
CUDA Cores: 3840 Cores
GPU Architecture: NVIDIA Blackwell
Memory
Effective Memory Clock: 28Gbps
Memory Size: 8GB
Memory Interface: 128-bit
Memory Type: GDDR7
3D API
DirectX: Microsoft DirectX 12.1 Ultimate
OpenGL: OpenGL 4.6
Vulkan: Vulkan 1.4 API
Connectivity
Ports: 1x HDMI 2.1b
3x DisplayPort 2.1a
HDCP Support: Yes, 2.3
Multi-Monitor Support: Up to 4x simultaneous
Maximum Digital Resolution: 7680 x 4320
VR Ready: Yes
General
Features: Gigabyte WINDFORCE 2X Cooling System with Hawk Fans
Gigabyte AI TOP Utility
Server-Grade Thermal Conductive Gels & Composite Metal Grease
Gigabyte Control Center
NVIDIA Optical Flow Accelerator Technology
4th Gen Ray Tracing Cores
5th Gen Tensor Cores
PCI Express Gen 5
Real-Time Ray Tracing Technology
NVIDIA DLSS 4.0 with Frame Generation and Frame Warp
NVIDIA GeForce Game Ready & Studio Drivers
NVIDIA G-Sync Premium
NVIDIA Reflex 2
NVIDIA Broadcast
NVIDIA AV1 Encoder
NVIDIA Omniverse 3D Design
NVIDIA Canvas
NVIDIA GPU Boost
NVIDIA Encoder, 9th Generation
NVIDIA Decoder, 6th Generation
Power Requirements
Recommended Power Supply: 450W
Power Connector: 1x 8-pin PCI PEG Connector
Physical Aspects
Form Factor: ATX
Slot Width: 2 Slot
Dimensions: 199 x 116 x 40mm (L x W x H)
RGB: N/A
Boxed Accessories: Quick guide
Additional information
| Weight | 0,8 kg |
|---|---|
| Dimensions | 21,6 × 31,2 × 5,3 cm |
| Condition | |
| GPU Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU Memory Size | 8 GB |
| GPU Length | 199mm |
| GPU Recommended PSU Wattage | 500W |
Frequently Asked Questions
Q: What GPU chipset does this graphics card use?
A: This graphics card is powered by the NVIDIA GeForce RTX 50 Series graphics processor.
Q: How much video memory (VRAM) does this graphics card have?
A: It features 8 GB of dedicated high-speed video memory, making it a high-performance option ideal for modern gaming at high settings, content creation, and smooth performance.
Q: How long is this graphics card?
A: This card has a physical length of 199mm. Check your case's maximum GPU length clearance before buying to make sure it fits.
Q: What power supply wattage is recommended for this graphics card?
A: The manufacturer recommends a power supply of at least 500W to run this card reliably.
