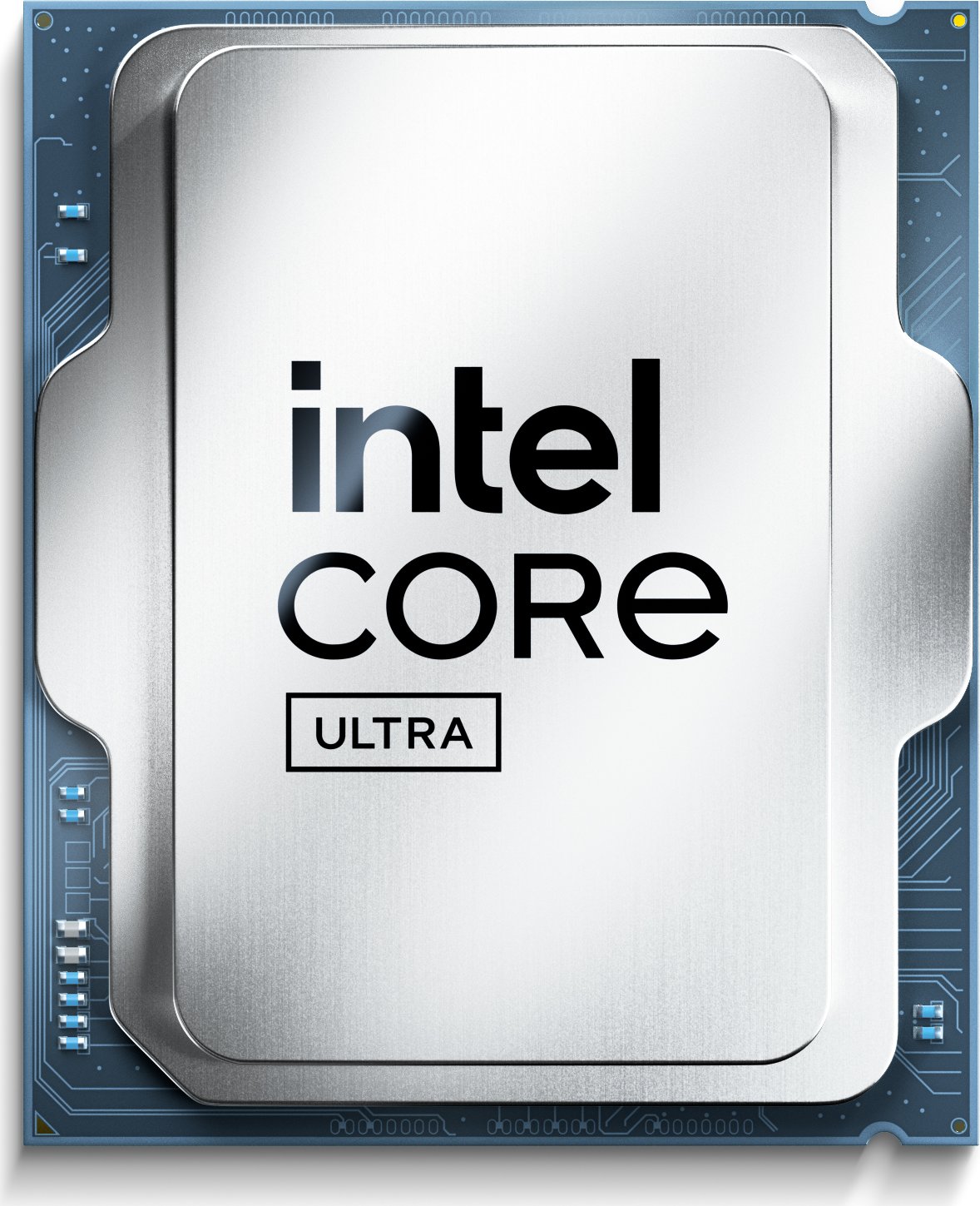

Intel BX80768285K Core Ultra 9 285K 24-Core 5.70GHz Arrow Lake-S Socket LGA1851 Desktop CPU – Cooler Not Included
R14550
Take your productivity, gaming, and content creation experiences to a new level with the Intel Core Ultra 9 285K 24-Core LGA 1851 Processor. Designed for professionals and enthusiasts, this desktop processor fits LGA 1851 socket motherboards and delivers improved power efficiency, stability, and performance with its optimized Hybrid Core Architecture, single-thread cores, and integrated NPU. Eight 3.7 GHz Performance-cores power demanding applications while the 16 low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
In stock
Description
FEATURES
Intel 15th Generation Arrow Lake-S Processor
8 P-Cores, 16 E-Cores
24 Cores, 24 Threads
36MB Intel Smart Cache
Intel Integrated Graphics
Intel AI Boost AI Accelerator NPU
Intel Thermal Velocity Boost Frequency: 5.7GHz
P-Core Max Turbo Clock: Up to 5.60GHz
E-Core Max Turbo Clock: Up to 4.60GHz
P-Core Base Clock: 3.7GHz
E-Core Base Clock: 3.2GHz
Socket LGA 1851 Compatible
Intel Stock Cooler Not Included
Base Power: 125W
Turbo Power: Up to 250W
TECHNICAL SPECIFICATIONS
Brand: Intel
Series: 15th Gen Arrow Lake S
Model: Core Ultra 9 285K (BX80768285K)
CPU Specifications
Total Cores: 24
Number of Performance-cores: 8
Number of of Efficient-cores: 16
Total Threads: 24
Max Turbo Frequency: 5.7GHz
Intel Thermal Velocity Boost Frequency: 5.7GHz
Intel Turbo Boost Max Technology 3.0 Frequency: 5.6GHz
Performance-core Max Turbo Frequency: 5.5GHz
Efficient-core Max Turbo Frequency: 4.6GHz
Performance-core Base Frequency: 3.7GHz
Efficient-core Base Frequency: 3.2GHz
Cache: 36 MB Intel Smart Cache
Total L2 Cache: 40 MB
Processor Base Power: 125W
Maximum Turbo Power: 250 W
Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography: TSMC N3B
Memory Specifications
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 6400 MT/s
Maximum Memory Speed: 6400 MHz
Max # of Memory Channels: 2
ECC Memory Supported ‡ Yes
GPU Specifications
GPU Name‡ Intel Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 2 GHz
GPU Peak TOPS (Int8): 8
Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Xe-cores: 4
Max Resolution (HDMI)‡ 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP)‡ 8K @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ 4K @ 60Hz
DirectX* Support: 12
OpenGL* Support: 4.5
OpenCL* Support: 3
Intel Quick Sync Video: Yes
# of Displays Supported ‡ 4
Device ID: 0x7D67
Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes
NPU Specifications
NPU Name‡: Intel AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel Thunderbolt 4: Yes
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations ‡ Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
Max # of PCI Express Lanes: 24
Package Specifications
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2020A
Max Operating Temperature: 105 °C
General
Intel Gaussian & Neural Accelerator: 3.5
Intel Turbo Boost Technology ‡ 2.0
Instruction Set: 64-bit
Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
Intel vPro Eligibility ‡ Intel vPro Enterprise, Intel vPro Platform
Advanced Technologies: Intel Volume Management Device (VMD)
Intel Thread Director
Intel Speed Shift Technology
Intel Thermal Velocity Boost
Intel Turbo Boost Max Technology 3.0
Intel 64
Idle States
Enhanced Intel SpeedStep Technology
Thermal Monitoring Technologies
Security & Reliability Intel Threat Detection Technology (TDT)
Intel Active Management Technology (AMT)
Intel Standard Manageability (ISM)
Intel Remote Platform Erase (RPE)
Intel One-Click Recovery
Intel Hardware Shield Eligibility
Intel Control-Flow Enforcement Technology
Intel Total Memory Encryption – Multi Key
Intel AES New Instructions
Secure Key
Intel Trusted Execution Technology
Execute Disable Bit
Intel OS Guard
Intel Boot Guard
Mode-based Execute Control (MBEC)
Intel Stable IT Platform Program (SIPP)
Intel Virtualization Technology with Redirect Protection (VT-rp)
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel VT-x with Extended Page Tables (EPT)
Additional information
| Weight | 0,3 kg |
|---|---|
| Dimensions | 17,5 × 14,7 × 6,4 cm |
| Condition | |
| CPU Manufacturer | Intel |
| CPU Socket | LGA 1851 |
| CPU Series | Intel Core Ultra 9 |
| CPU has integrated GPU | Yes |
| CPU TDP | 250W |
Frequently Asked Questions
Q: What processor line does this model belong to?
A: This is an Intel Core Ultra 9 processor, designed for gaming, multitasking, and heavy workloads.
Q: What socket motherboard do I need for this CPU?
A: This processor requires a motherboard with a matching LGA 1851 socket layout.
Q: How much power does this processor draw (TDP)?
A: This CPU has a thermal design power (TDP) of 250W. Pair it with a CPU cooler rated to dissipate at least this much heat.
Q: Does this processor have integrated graphics?
A: Yes, this processor includes an integrated GPU, so it can output video without a separate graphics card.
