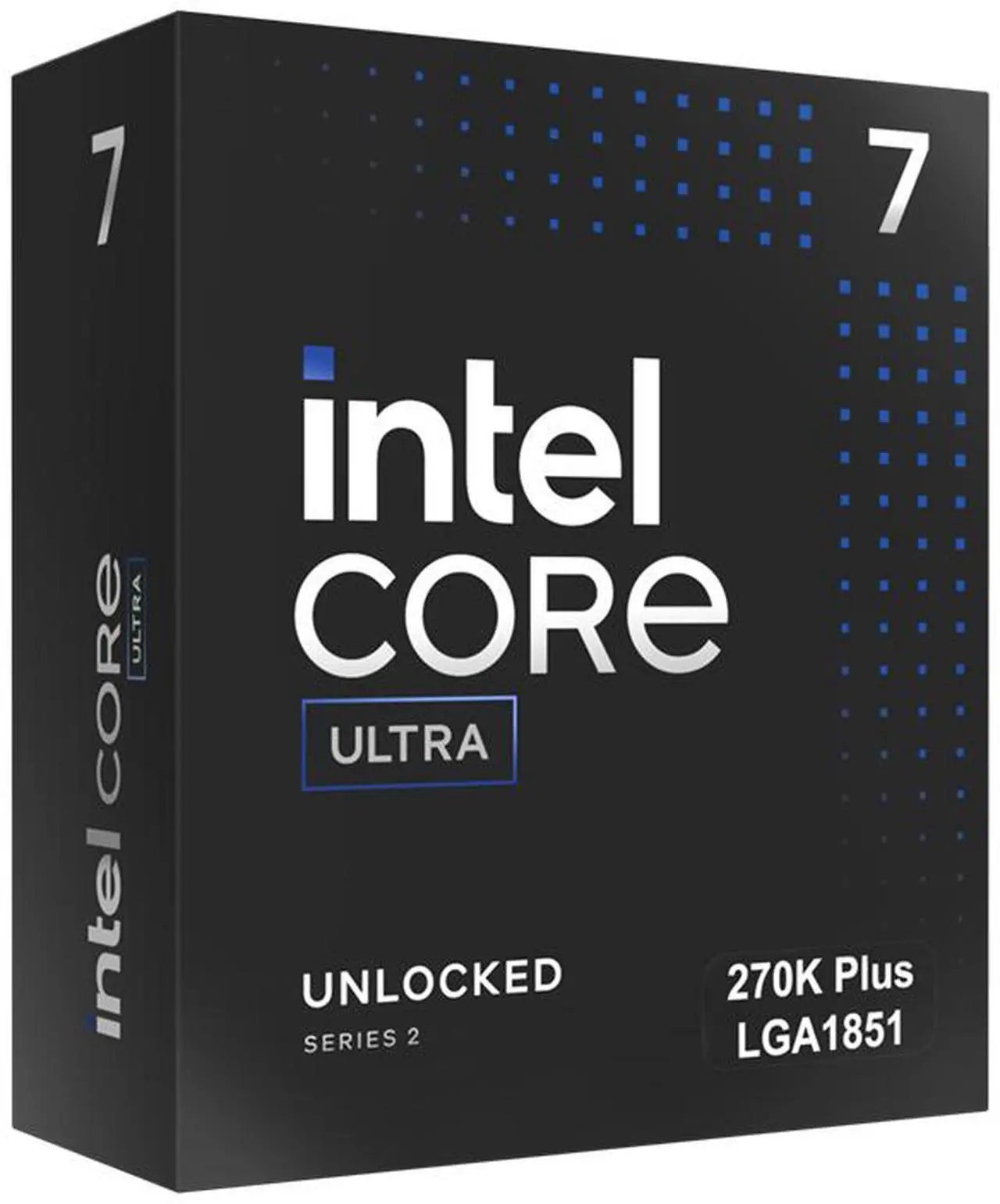

Intel Core Ultra 7 270K Plus 24-Core 5.50GHz Arrow Lake-S Socket LGA1851 Desktop CPU – Cooler Not Included
R7720
This is not merely a component; it is the strategic heart of your workstation, designed for professionals, creators, and power users who require uncompromising performance and intelligent processing. Whether you are rendering complex 3D models, compiling large codebases, or engaging in high-fidelity content creation, this Intel CPU is built to meet and exceed those demands. It provides the raw power necessary to tackle intensive tasks, ensuring that your workflow remains fluid and your productivity is maximised.
In stock
Description
FEATURES
Intel 15th Generation Arrow Lake-S Processor
Intel AI Boost AI Accelerator NPU
Up to 13 TOPs AI Performance (NPU)
8x Performance Cores
16x Efficient Cores
24 Cores, 24 Threads
36MB Intel Smart Cache
Intel Graphics
P-Core Max Turbo Clock: Up to 5.50GHz
E-Core Max Turbo Clock: Up to 4.70GHz
Socket LGA 1851 Compatible
Up to DDR5-7200 Dual-Channel Memory Supported
Up to 256GB (4x64GB) DDR5 Memory Supported
PCI Express Version 5.0 Supported
Intel eXtreme Memory 3.0 Overclocking Profiles
Intel Turbo Boost Max Technology 3.0
Intel Deep Learning Boost on CPU
Intel Stock Cooler Not Included
Base Power: 125W
Turbo Power: Up to 250W
Socket LGA 1851 Compatible
Supports Windows 11, Linux
TECHNICAL SPECIFICTIONS
Brand: Intel
Series: 15th Gen Arrow Lake S
Model: Core Ultra 5 270K Plus (BX80768270K)
CPU Specifications
Cores: 24 cores
Number of Performance-cores: 8 cores
Number of of Efficient-cores: 16 cores
Total Threads: 24 threads
Max Turbo Frequency: 5.50 GHz
Performance-core Max Turbo Frequency: 5.50 GHz
Efficient-core Max Turbo Frequency: 4.70 GHz
Performance-core Base Frequency: 3.70 GHz
Efficient-core Base Frequency: 3.20 GHz
Cache: 36MB Intel Smart Cache
Total L2 Cache: 40MB
Processor Base Power: 125W
Maximum Turbo Power: 250W
Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes, supported
AI Software Frameworks Supported by CPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography: TSMC N3B
Memory Specifications
Max Memory Size (dependent on memory type): 256GB
Memory Types: DDR5
Maximum Memory Speed: 7200 MT/s
Max # of Memory Channels: 2, dual-channel
ECC Memory Supported: Yes
GPU Specifications
GPU Name: Intel Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 2.0 Ghz
GPU Peak TOPS (Int8): 8
Graphics Output: eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores: 4
Max Resolution (HDMI):
4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)
7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP): 7680 x 4320 @ 60Hz
DirectX* Support: Direct3D 12
OpenGL* Support: 4.5
OpenCL* Support: 3.0
H.264 Hardware Encode/Decode: Yes, supported
H.265 (HEVC) Hardware Encode/Decode: Yes, supported
AV1 Encode/Decode: Yes, supported
Intel Quick Sync Video: Yes, supported
Simultaneous Displays Supported: 4x simultaneous
Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes, supported
NPU Specifications
NPU Name: Intel AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel Thunderbolt 4: Yes, supported
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1×16 2×4, 2×8 2×4, 1×8 4×4
Max # of PCI Express Lanes: 24
Package Specifications
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2020A
Max Operating Temperature: 105 °C
General
Platform Support: Windows 11 64-bit
Linux
Additional information
| Weight | 0,2 kg |
|---|---|
| Dimensions | 12,2 × 12 × 4,6 cm |
| Condition | |
| CPU Manufacturer | Intel |
| CPU Socket | LGA 1851 |
| CPU Series | Intel Core Ultra 7 |
| CPU has integrated GPU | Yes |
| CPU TDP | 250W |
Frequently Asked Questions
Q: What processor line does this model belong to?
A: This is an Intel Core Ultra 7 processor, designed for gaming, multitasking, and heavy workloads.
Q: What socket motherboard do I need for this CPU?
A: This processor requires a motherboard with a matching LGA 1851 socket layout.
Q: How much power does this processor draw (TDP)?
A: This CPU has a thermal design power (TDP) of 250W. Pair it with a CPU cooler rated to dissipate at least this much heat.
Q: Does this processor have integrated graphics?
A: Yes, this processor includes an integrated GPU, so it can output video without a separate graphics card.
