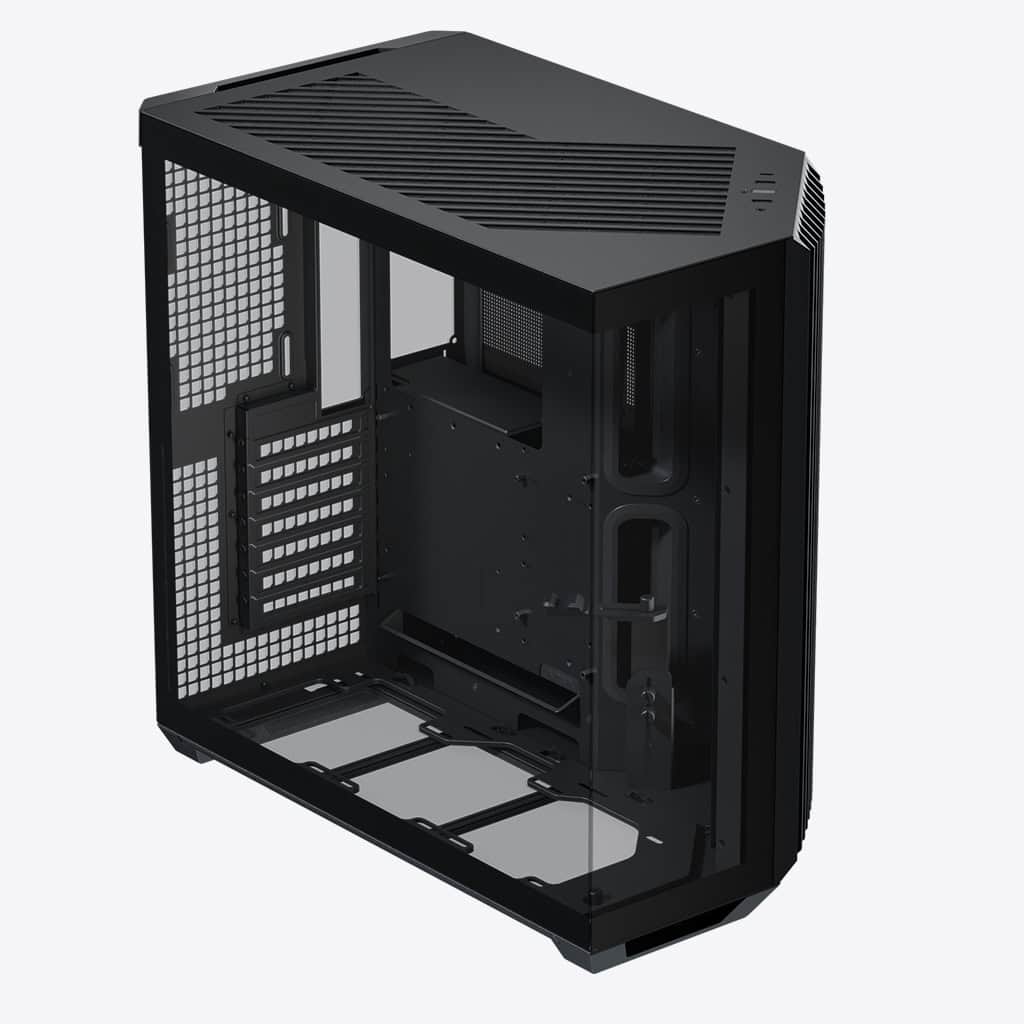

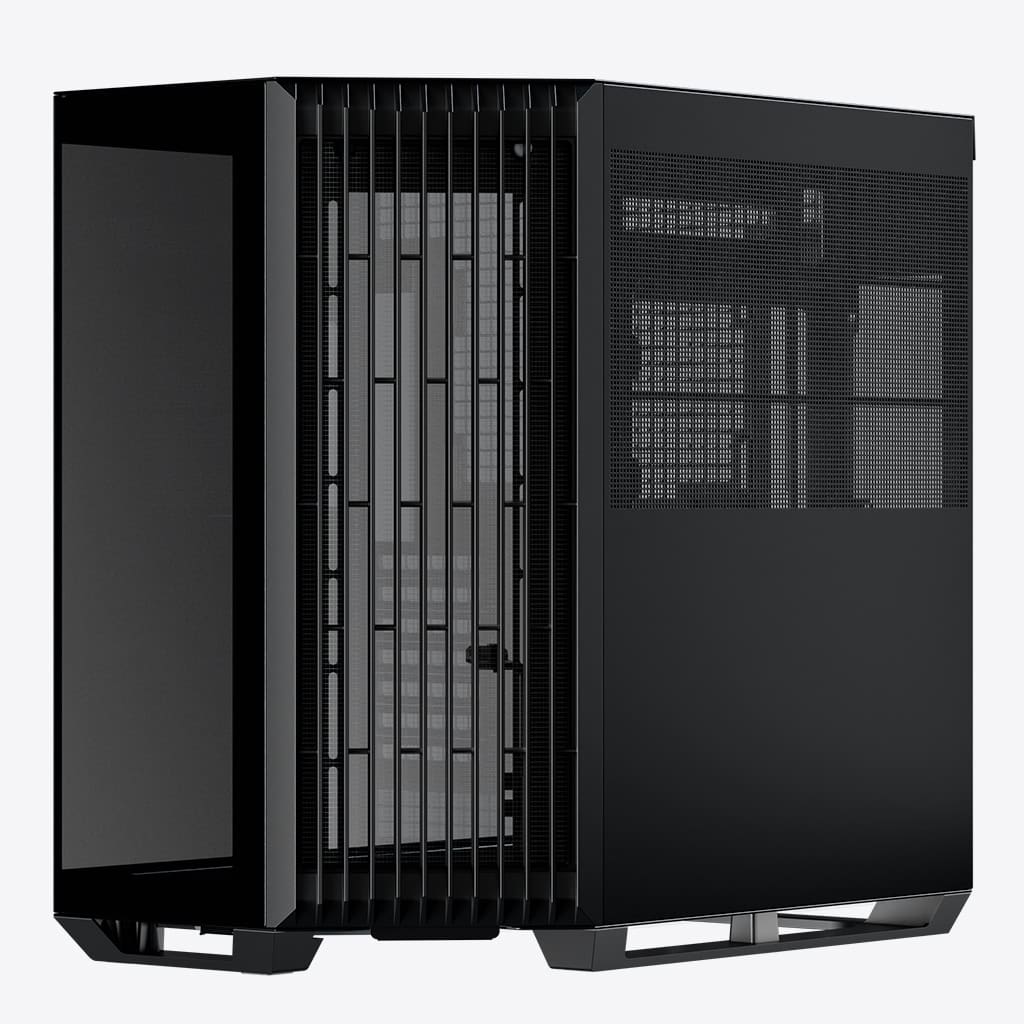

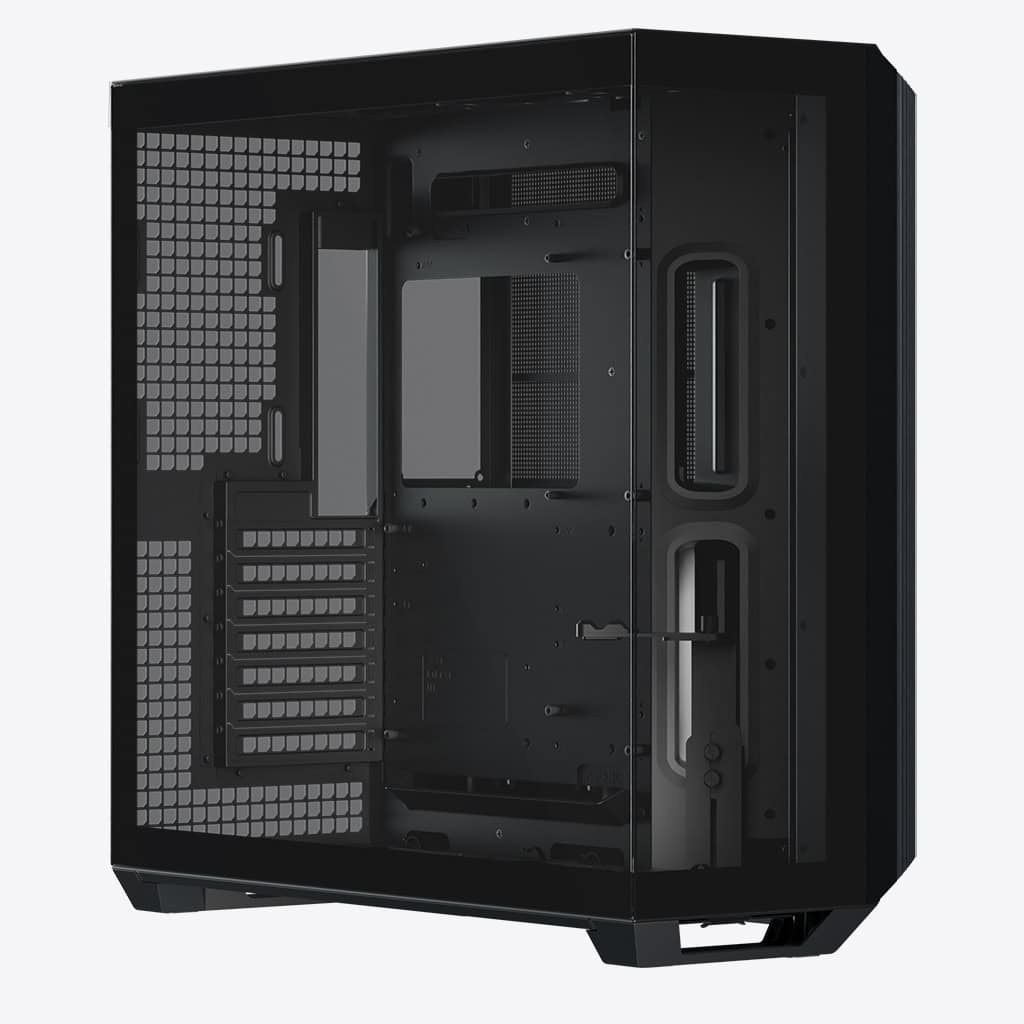

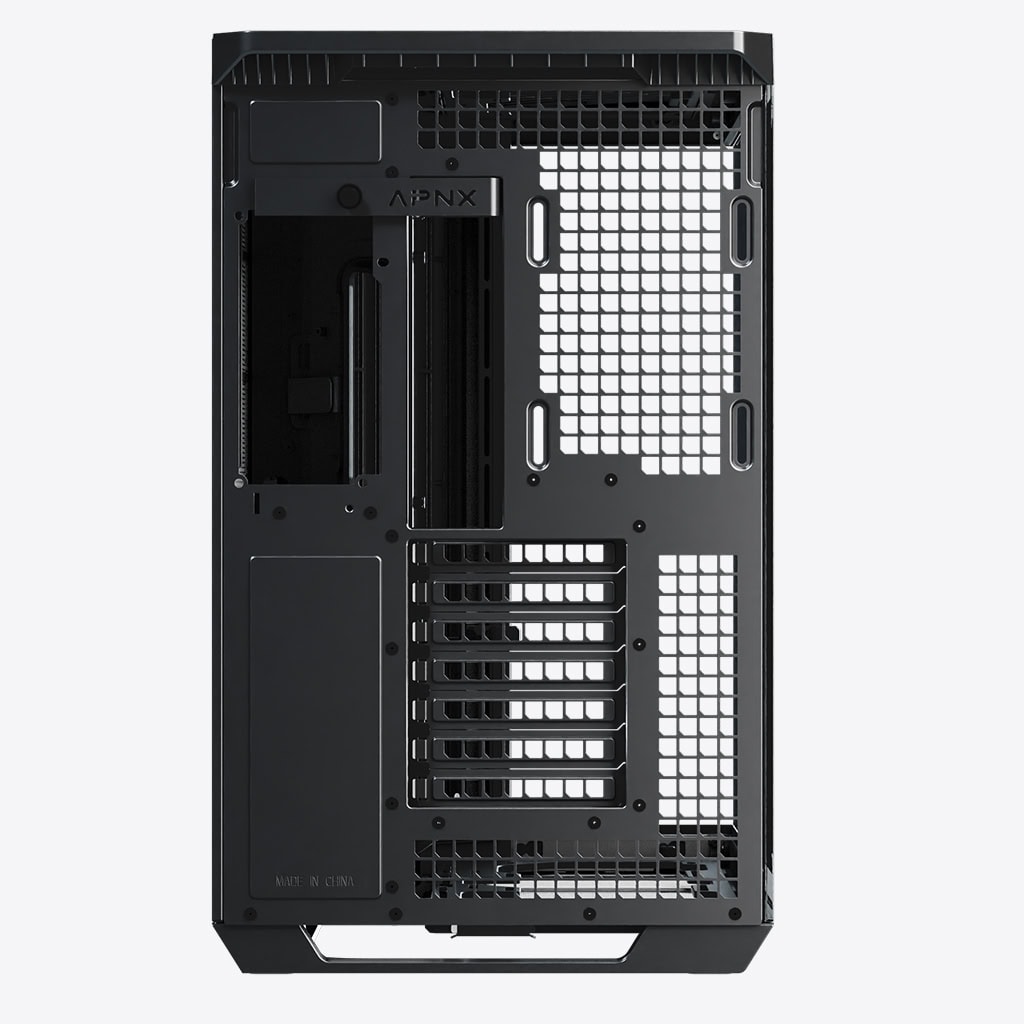

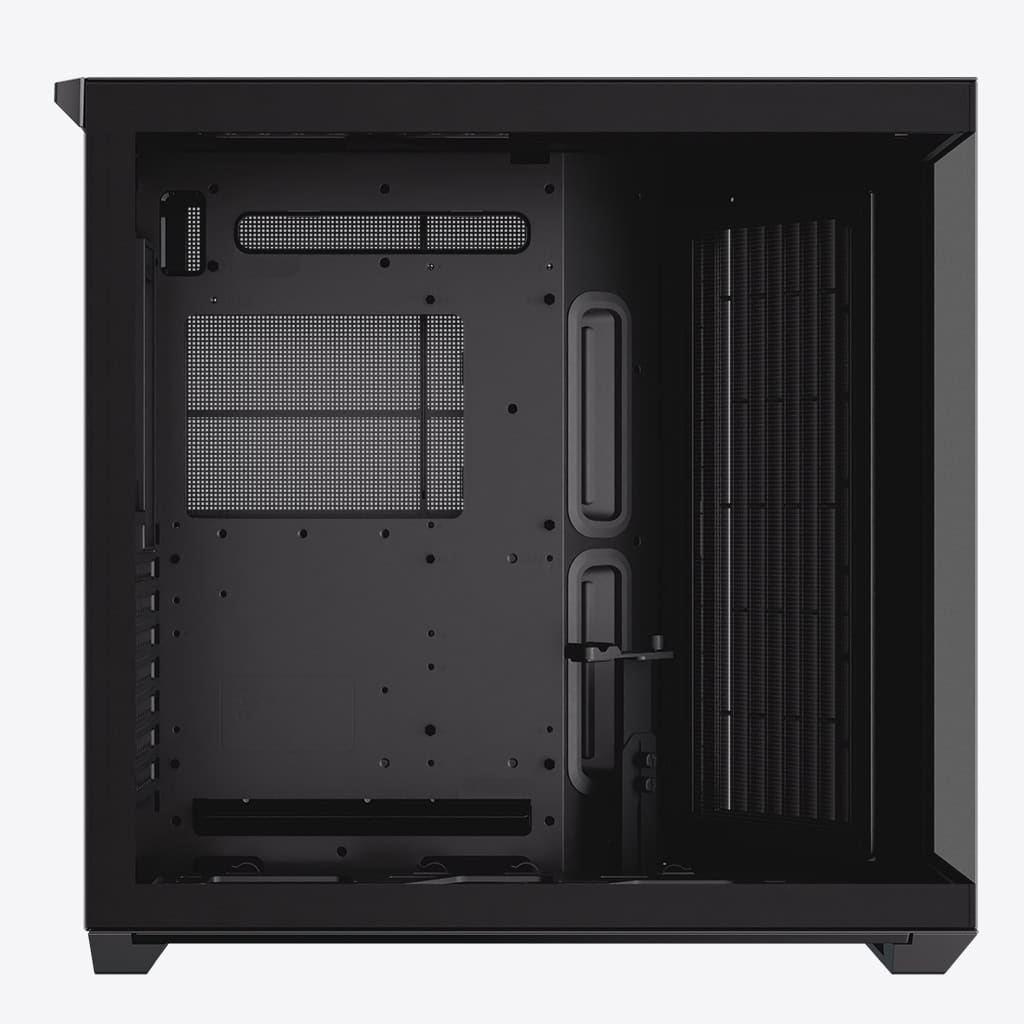

AeroCool APNX V1 Black ATX Mid Tower PC Case

Description

FEATURES
Unique thermal design
This innovative design within a dual chamber panoramic case structure features a 45° angular intake which enhances overall airflow and thermal efficiency for both the GPU and CPU, all while preserving the hallmark full tempered glass view. The angular intake panel supports three 12cm, two 14cm, or up to two 16cm fans.

Form follows function
The top mesh ventilation pattern visualizes the unique path of the airflow within, intuitively demonstrating the cooling dynamics of the angular intake while improving top airflow.

Adjustable motherboard position mechanism
The V1 offers two motherboard installation positions to grant more space for enhancing GPU airflow and cooling performance or for a comfortable installation of thicker radiators/fans to prioritize CPU cooling.

Take control of your cooling
Enjoy a wide array of potential cooling configurations with ten fan slots plus support for liquid coolers up to 360mm and CPU coolers up to 170mm.

Redesigned storage bracket
The user-friendly, hinged storage brackets allow for a streamlined setup and the installation of many storage devices. Supports 2x 3.5” HDD and 4x 2.5” SSD or up to 6x 2.5” SSD.

GPU structural support
A GPU mount with adjustable height and swivel angle is included so your heavy graphics card (up to 395mm in length) is in good hands.

Neat and tidy cable management
V1 is designed for intuitive cable management. Clear cable channels with included velcro ties and rubber pathways in the side panel ensure a super-clean appearance for your build.

TECHNICAL SPECIFICATIONS

Case Type: Mid Tower
Color: Black
Body Material: SGCC
Front Panel Material: ABS
Steel Thickness: 0.8 mm
Motherboard Support: ATX/Micro ATX/mini-ITX
Dimensions (WxHxD): 290 x 485.5 x 500 mm
3.5” Drive Bays 2 Max.: (2x 3.5”/2.5″)
2.5” Drive Bays 6 Max.: (4x 2.5” and 2x 2.5″/3.5”)
Expansion Slots: 7
GPU Clearance: Supports GPU up to 395mm (W/O radiator in the front-right position)
CPU Cooler Clearance: Supports CPU cooler up to 170mm

Air Cooling
Front-Right: 120mm x3 or 140mm x2 or 160mm x2 (Max.)
Top: 120mm x3 or 140mm x2 (Max.)
Bottom: 120mm x3 (Max.) or 140mm x2 (Max.)
Rear: 120mm x1 (Max.)

Liquid Cooling Support
Front-Right:120/140/240/280/360mm
Top: 120/140/240/280/360mm
Bottom: 120/140/240/280/360 mm (140/280: When M/B is at upper position; It’s not recommended to install a liquid cooling at the bottom)
Rear: 120mm
Filters Top (Built-in)
Front-Right (Removable)
Side (Removable)
Bottom (Removable)
I/O Ports: USB3.2 Gen 2×2 Type-C x1
USB3.2 Gen 1 Type -A x2
Audio & Mic.
Internal Cable Management Depth: 90mm
Power Supply Support: ATX PSU (Including cables, up to 220mm)
