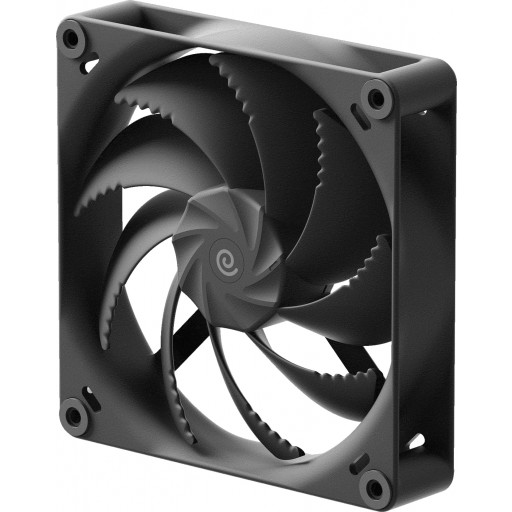

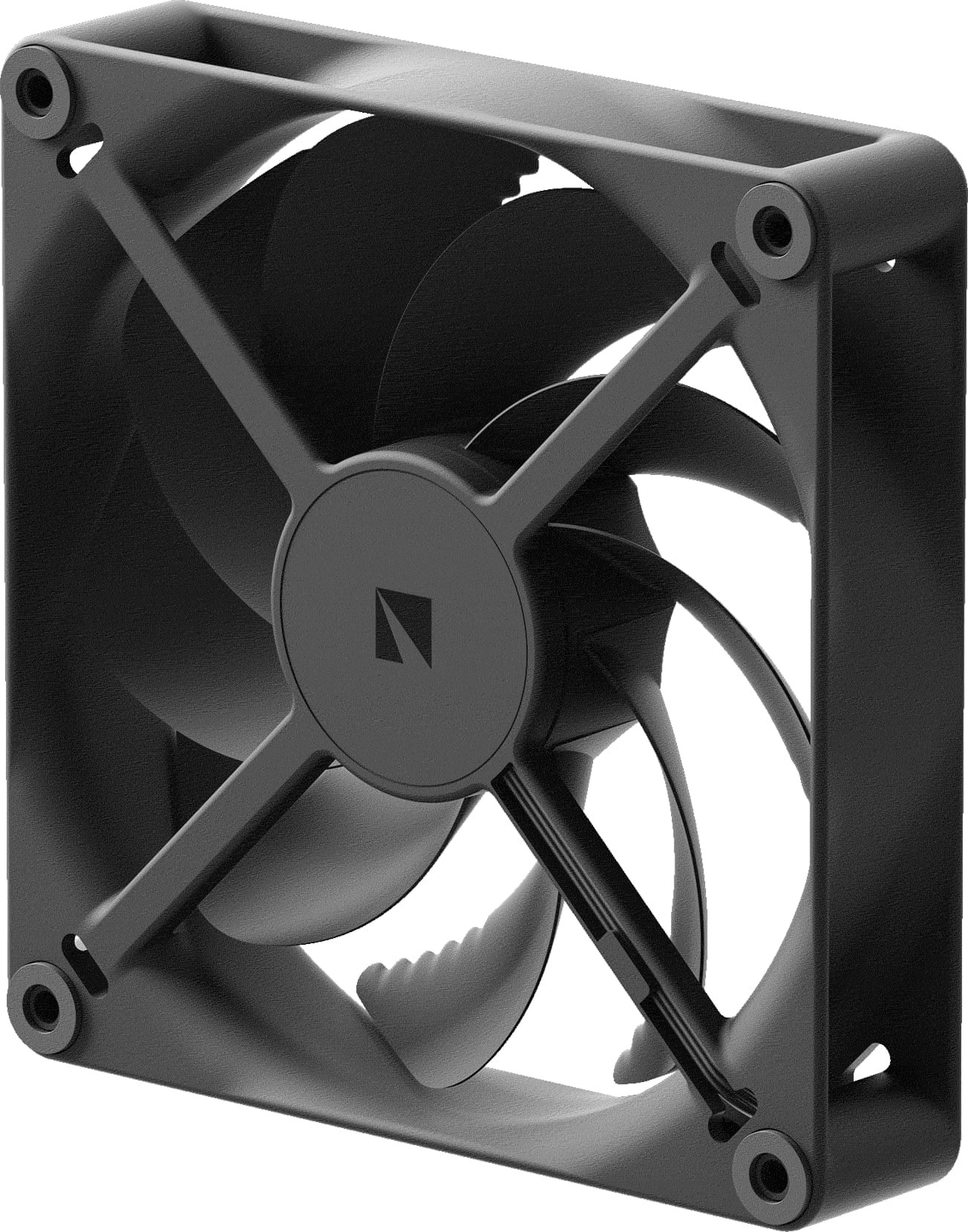

AeroCool HAVN H14 140mm PWM Black Case Fan
R310
The HAVN H14 is a 140 mm PWM fan that combines high cooling performance with low noise generation. With up to 1600 rpm, it generates 144.72 m³/h air flow at 2.19 mm H2O static pressure and remains pleasantly quiet at 30.8 dB(A). The corrugated fan blade design reduces turbulence and provides even airflow – ideal for radiators and mesh fronts.
In stock
Description
FEATURES
HAVN H14 Series 140mm Fan
Single Pack
Fluid Dynamic Bearing for Quiet & Reliable Operation
Speed Range: 0RPM – 1600RPM
Airflow: Up to 85.18 CFM
Static Pressure: 2.19 mmH₂O
Noise Level: 30.8 dBA
Rated Voltage: DC 12V
Rated Current: 0.25A
Frame & Blade Material: PBT + 30% Glass Fibre
MTTF: Over 150,000 hours
TECHNICAL SPECIFICATIONS
Brand: HAVN
Series: H14
Model: HVN-FS-H1430-02
Dimensions: 140mm x 140mm x 30mm
Colour: Black
Bearing Type: Fluid Dynamic Bearing
Speed: 0RPM (0-20%) – 1600RPM (100%)
Airflow: 85.18CFM
Static Pressure: 2.19mmH₂O
Noise Level: 30.8dBA
Rated Voltage: DC 12V
Rated Current: 0.25A
Frame & Blade Material: PBT + 30% Glass Fiber
Net Weight (Fan): 230g
MTTF: > 150,000h
Additional information
| Weight | 0,3 kg |
|---|---|
| Dimensions | 14 × 14 × 3 cm |
| Condition |
