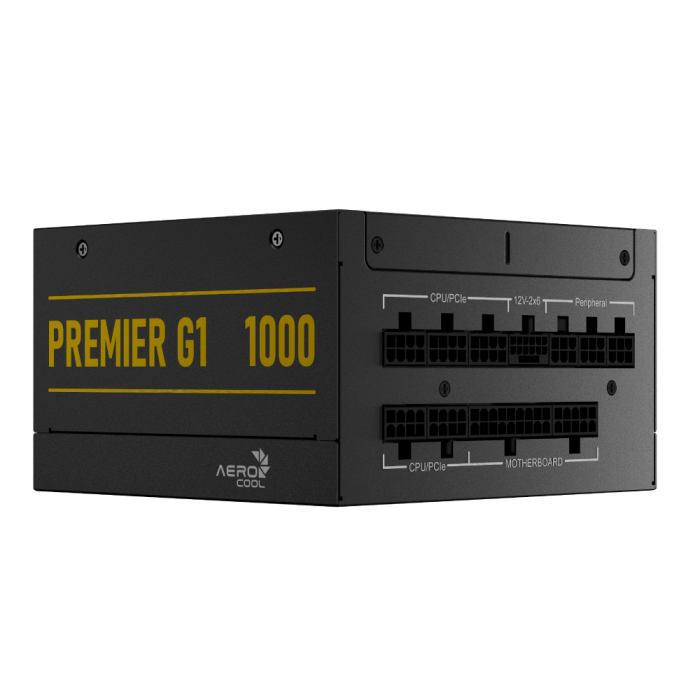

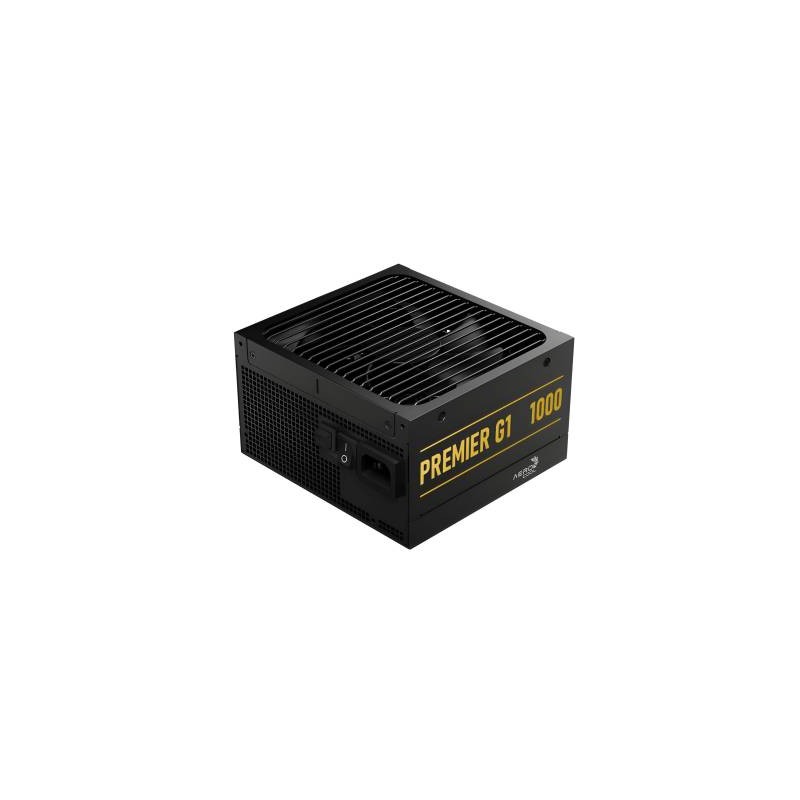

AeroCool Premier G1 Gold 80 Plus Gold 1000W ATX Desktop Power Supply
R2805
The AeroCool PREMIER G1 is a high-performance, 80 PLUS Gold and Cybenetic Platinum certified ATX 3.1 power supply, engineered for next-gen gaming and workstation builds. With a secure 12V-2×6 PCIe 5.1 connector, APFC, and DC-to-DC conversion, it delivers stable, efficient power with ultra-low standby consumption. A 135mm fluid dynamic bearing fan with Zero RPM mode ensures silent operation at low loads, while the fully modular design streamlines cable management.
In stock
Description
FEATURES
Compliant with the latest ATX 3.1 and PCIe 5.1 standards, featuring a more secure 12V-2×6 connector
Equipped with 100% high-grade 105°C capacitors, ensuring long-term durability, stability, and consistent performance over time
The compact 140mm shell facilitates easier installation in cases with limited space.

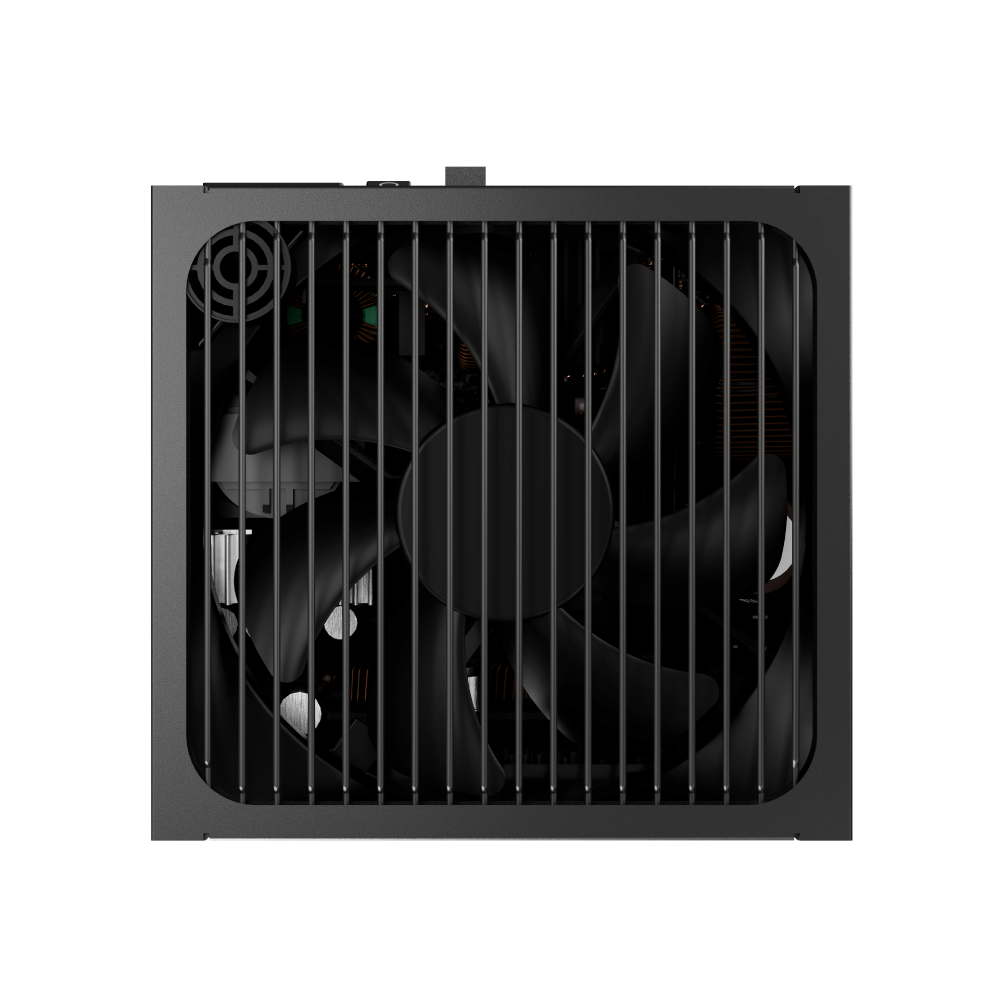

Featuring a custom 135mm fluid dynamic bearing fan with Zero Fan Mode, the PSU operates silently at light loads for an uninterrupted experience
Seven different protection mechanisms ensure your PC’s resilience against potential issues: OVP, UVP, OPP, SCP, OCP, OTP, and Input Surge & Inrush Protection
Compliant with ErP 2013 Lot 6 and ErP 2014 Lot 3 and Vampire Power below 0.25W
Fully Modular Design: Connect only the cables you need to reduce clutter, enhance airflow, and create a cleaner, more organized build
Certified 80 PLUS Gold and Cybenetics Platinum for outstanding real-world efficiency and ultra-low standby power draw, combining top-tier performance with eco-conscious design
TECHNICAL SPECIFICATIONS
General
Model Number: ACPS-2501
Series: Premier G1 1000
Power Input
AC Input Rating:
100–240 V~, 13 A (Not For China)
200–240 V~, 6.5 A (Only For China)
Input Frequency: 50–60 Hz
DC Output
Output Voltages:
+3.3 V
+5 V
+12 V
-12 V
+5 VSB
Maximum Output Current:
+3.3 V: 20 A
+5 V: 20 A
+12 V: 83.3 A
-12 V: 0.3 A
+5 VSB: 3 A
Total Power Output: 1000 W
Total Combined Power
+3.3 V And +5 V: 100 W
+12 V: 999.6 W
-12 V: 3.6 W
+5 VSB: 15 W
Cable Configuration
24-Pin ATX Power Cable
Cable Length: 600 mm
Output Connectors: 1
4+4-Pin CPU Power Cable
Cable Length: 700 mm
Output Connectors: 1
8-Pin CPU Power Cable
Cable Length: 700 mm
Output Connectors: 1
PCIe Power Cable (3 × 6+2-Pin)
Cable Length: 650 mm
Output Connectors: 3
12V-2×6 PCIe Cable
Cable Length: 650 mm
Output Connectors: 1
SATA Power Cable (2 × SATA Cable)
Cable Length: 500 + 150 mm
Output Connectors: 6
SATA And Peripheral Power Cable
Cable Length: 500 + 150 mm
Output Connectors:
2 × SATA
2 × Peripheral
Additional information
| Weight | 2,7 kg |
|---|---|
| Dimensions | 14 × 15 × 8,6 cm |
| Condition |
