AeroCool Premier G1 Gold 80 Plus Gold 850W ATX 3.1 Desktop Power Supply

Description

FEATURES
Compliant with the latest ATX 3.1 and PCIe 5.1 standards, featuring a more secure 12V-2×6 connector
Equipped with 100% high-grade 105°C capacitors, ensuring long-term durability, stability, and consistent performance over time
The compact 140mm shell facilitates easier installation in cases with limited space.

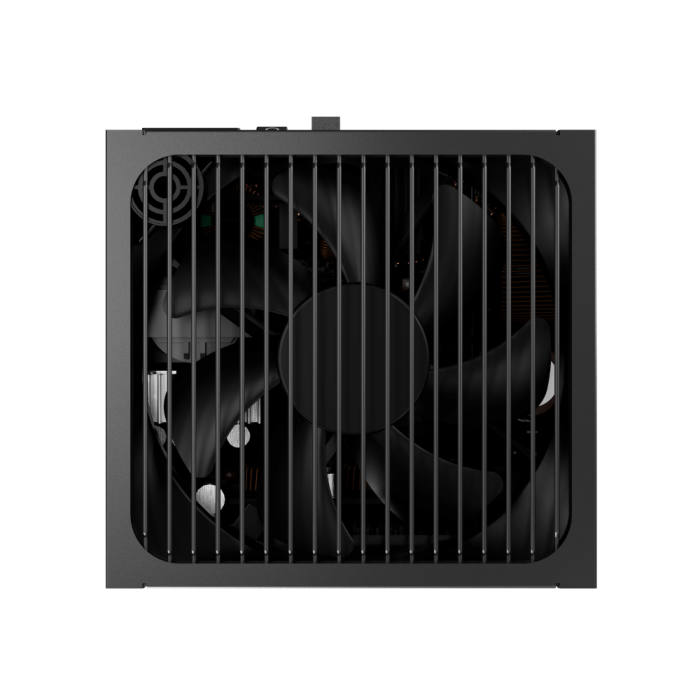

Featuring a custom 135mm fluid dynamic bearing fan with Zero Fan Mode, the PSU operates silently at light loads for an uninterrupted experience
Seven different protection mechanisms ensure your PC’s resilience against potential issues: OVP, UVP, OPP, SCP, OCP, OTP, and Input Surge & Inrush Protection
Compliant with ErP 2013 Lot 6 and ErP 2014 Lot 3 and Vampire Power below 0.25W
Fully Modular Design: Connect only the cables you need to reduce clutter, enhance airflow, and create a cleaner, more organized build
Certified 80 PLUS Gold and Cybenetics Platinum for outstanding real-world efficiency and ultra-low standby power draw, combining top-tier performance with eco-conscious design

TECHNICAL SPECIFICATIONS

Brand / Model: AeroCool PREMIER G1 850W (ACPG-PR85FXC.71)
Form Factor: ATX
ATX Standard: ATX 3.1
Total Power: 850W
Efficiency Rating: 80 PLUS Gold, Cybenetics Platinum
PCIe Standard: PCIe 5.1 (12V-2×6 connector)
Input Voltage: 100–240V AC
Input Current: Up to 12A
Frequency: 50–60Hz
Power Factor Correction: Active PFC (APFC)
Topology: Full-Bridge LLC + DC-to-DC
Capacitors: 100% high-grade 105°C capacitors
Cooling: 135mm Fluid Dynamic Bearing fan
Fan Mode: Zero RPM mode
Modular Fully Modular
PCIe Connectors: 4 × 6+2-pin + 1 × 12V-2×6
CPU Connectors: 2 × 4+4-pin
SATA Connectors: Up to 12 × SATA
Peripheral Connectors: 2 × Molex
Cabling Fully modular flat cables
Protections: OVP, UVP, OPP, SCP, OCP, OTP, surge/inrush
Operating Temperature: Up to 40°C full load
Dimensions: ~140mm length
