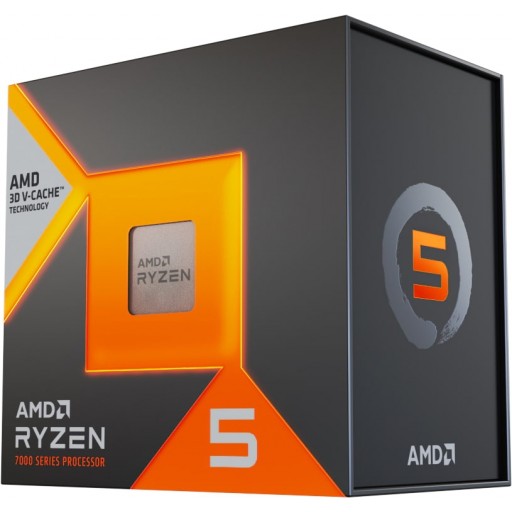

AMD Ryzen 5 7500X3D 4.50GHz 6-Core Zen 4 Socket AM5 Desktop CPU – Cooler Not Included
R5580
AMD is seemingly planning yet another 3D V-Cache-infused processor for AM5 users, offering six cores and 96MB of L3 cache. Dubbed the Ryzen 5 7500X3D, the chip was listed by a UK retailer under the OPN code 100-000001904. This confirms that it is indeed a new model, which is likely to be officially announced during CES 2026.
In stock
Description
FEATURES
AMD Ryzen 5 7500X3D Processor with 102MB 3D V-Cache
Up to 4.5GHz Boost Clock
6 Cores, 12 Threads
AMD 5nm Zen 4 Architecture
TSMC 6nm I/O Die
Advanced 3D Chip Stacking Technology
384KB L1 Cache
6MB L2 Cache
96MB L3 Cache
Integrated Radeon RDNA 2 Graphics
Supports AMD X870E, X870, B850, B840, X670E, X670, B650E, B650, A620 Chipsets
Dual-Channel DDR5 Memory Architecture Up to 128GB
Up to DDR5-5200MHz Supported
PCI Express Version 5.0 Supported
AMD EXPO Memory Overclocking Profiles
AMD Precision Boost 2.0 & Precision Boost Overdrive
AMD StoreMI Technology
65W TDP
Socket AM5 Compatible
TECHNICAL SPECIFICATIONS
Brand: AMD
Series: Ryzen 5 (5th Gen, Zen 4)
Model: 7500X3D (100-100001904WOF)
CPU
Core Arrangement: 6x Zen 4 Cores
Number of CPU Cores: 6
Number of Threads: 12
Base Clock: 4.00GHz
Maximum Boost Clock: Up to 4.50GHz
Total L1 Cache: 384KB
Total L2 Cache: 6MB
Total L3 Cache: 96MB
Default TDP: 65W
Lithography Process: Zen 4 Cores – TSMC 5nm FinFET
Zen 4 IO Die – TSMC 6nm FinFET
Memory
System Memory Type: DDR5
Maximum Memory: 128GB
Memory Channels: 2, Dual-channel DDR5 memory architecture
Supported Memory Speeds: 2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support: Yes (check with your motherboard vendor for support)
Graphics
Integrated: AMD Radeon Graphics
Graphics Core Count: 2
Graphics Frequency: 2200 MHz
Platform
CPU Socket: AM5
Thermal Solution: N/A
Maximum Operating Temperature (Tjmax): 89°C
Connectivity
USB Type-C Support: Yes
Native USB 3.2 Gen 2 (10Gbps) Ports: 4
Native USB 2.0 (480Mbps) Ports: 1
Native CPU PCIe Lanes: 28 Lanes Total
24 Lanes Usable
NVMe Support: Boot, RAID0, RAID1, RAID10
Operating System Support: Windows 11 64-bit Edition
Windows 10 64-bit Edition
RHEL x86 64-bit
Ubuntu x86 64-bit
*Operating System (OS) support will vary by manufacturer.
General
Advanced Features: AMD StoreMI Technology
AMD Ryzen VR-Ready Premium
PCI Express Gen 5 support
AMD EXPO Memory Overclocking Profiles
AMD Precision Boost 2.0
AMD Precision Boost Overdrive
AMD StoreMI Technology
Curve Optimizer Voltage Offsets
AMD Ryzen Master Support
CPU Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Additional information
| Weight | 0,4 kg |
|---|---|
| Dimensions | 14 × 13,7 × 14 cm |
| Condition | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| CPU Series | AMD Ryzen 5 |
