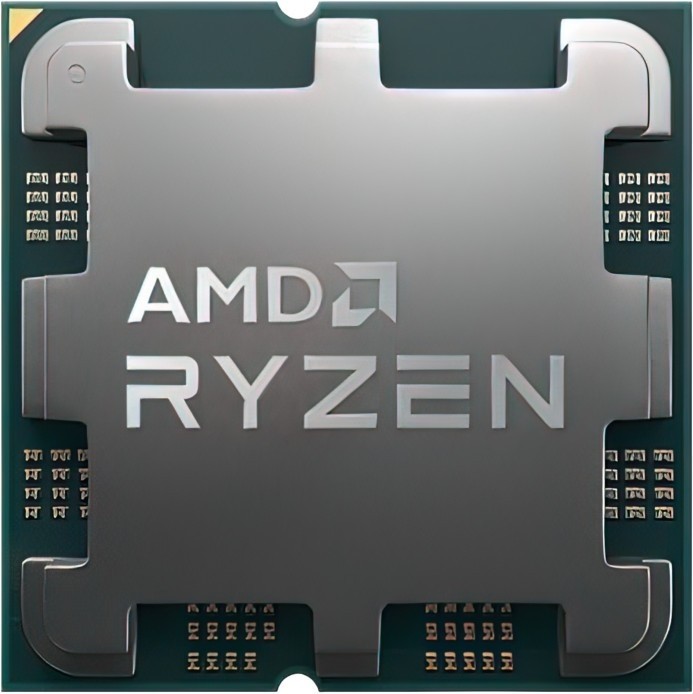

AMD Ryzen 7 7800X3D 5.0GHz 8-Core Zen 4 Socket AM5 Desktop CPU – Cooler Not Included
R8065
Take your gaming performance to the next level with the AMD Ryzen 7 7800X3D 4.2 GHz Eight-Core AM5 Processor. Designed primarily for enthusiasts, this eight-core, 16 thread processor features AMD 3D V-Cache technology, which allows it to include 96MB of L3 cache for boosted game performance while still fitting socket AM5 motherboards. Built with the powerful Zen 4 architecture with a base clock speed of 4.2 GHz and a 5 GHz max boost clock speed, the Ryzen 7 7800X3D delivers up to 14% better performance than the previous generation, giving you the power to create content and multitask demanding applications with ease. You can enhance performance further by overclocking this unlocked processor.
In stock
Description
FEATURES
AMD’s Fastest 8-Core Gaming Processor
AMD Ryzen 7 7800X3D Processor with 104MB V-Cache
Up to 5.0GHz Boost Clock
8 Cores, 16 Threads
AMD 5nm Zen 4 Architecture
TSMC 6nm IO Die
Advanced 3D Chip Stacking Technology
512KB L1 Cache
8MB L2 Cache
Integrated Radeon RDNA 2 Graphics
Supports AMD X670E, X670, B650E, B650 Chipsets
Dual-Channel DDR5 Memory Architecture Up to 128GB
Up to DDR5-5200MHz Supported
PCI Express Version 5.0 Supported
AMD EXPO Memory Overclocking Profiles
AMD Precision Boost 2.0 & Precision Boost Overdrive
AMD StoreMI Technology
120W TDP
Socket AM5 Compatible
TECHNICAL SPECIFICATIONS
Brand: AMD
Series: Ryzen 7 (5th Gen, Zen 4) 3D V-Cache
Model: 7800X3D (100-100000910WOF)
CPU
Core Arrangement: 8 Zen 4 cores
Number of CPU Cores: 8
Number of Threads: 16
Base Clock: 4.50GHz
Boost Clock: Up to 5.40GHz
Total L1 Cache: 512KB
Total L2 Cache: 8MB
Total L3 Cache: 96MB
Default TDP: 120W
Lithography Process: Zen 4 Cores – TSMC 5nm FinFET
Zen 4 IO Die – TSMC 6nm FinFET
Memory
System Memory Type: DDR5
Maximum Memory: 128GB
Memory Channels 2, Dual-channel DDR5 memory architecture
System Memory Specification: 5200MHz supported
Overclocking Support: Yes, Up to 6400MHz with AMD EXPO memory profiles
Supported Memory Speeds: 2x1R 5200 MT/s
2x2R 5200 MT/s
4x1R 3600 MT/s
4x2R 3600 MT/s
ECC Support: Yes (check with your motherboard vendor for support)
Graphics
Integrated: AMD RDNA 2 Graphics
Execution Units: 2 EU, 128 Shaders
Base Clock: 400MHz
Boost Clock: 2200MHz
Supported Video Outputs: DisplayPort
HDMI
USB Type-C DisplayPort Alternate Mode
Platform
Unlocked Multiplier: Yes
CPU Socket: AM5
Socket Count: 1P
Thermal Solution: N/A
Maximum Operating Temperature (Tjmax): 89°C
Connectivity
USB Type-C Support: Yes
Native USB 3.2 Gen 2 (10Gbps) Ports: 4
Native USB 2.0 (480Mbps) Ports: 1
Native CPU PCIe Lanes: 28 lanes total
16x PCIe lanes for graphics
4x PCIe lanes for NVMe storage
4x PCIe lanes for AMD 600 series chipset
Additional Motherboard Chipset PCIe Lanes: AMD X670E: 12x PCIe 4.0 lanes
AMD X670: 12x PCIe 4.0 lanes
AMD B650E: 8x PCIe 4.0 lanes
AMD B650: 8x PCIe 4.0 lanes
NVMe Support: Boot, RAID0, RAID1, RAID10
Operating System Support: Windows 11 64-bit Edition
Windows 10 64-bit Edition
RHEL x86 64-bit
Ubuntu x86 64-bit
*Operating System (OS) support will vary by manufacturer.
General
Advanced Features: AMD StoreMI Technology
AMD Ryzen VR-Ready Premium
PCI Express Gen 5 support
AMD EXPO Memory Overclocking Profiles
AMD Precision Boost 2.0
AMD Precision Boost Overdrive
AMD StoreMI Technology
Curve Optimizer Voltage Offsets
AMD Ryzen Master Support
CPU Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX( ), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Additional information
| Weight | 0,3 kg |
|---|---|
| Dimensions | 13,5 × 13 × 9,4 cm |
| Condition | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| CPU Series | AMD Ryzen 7 |
