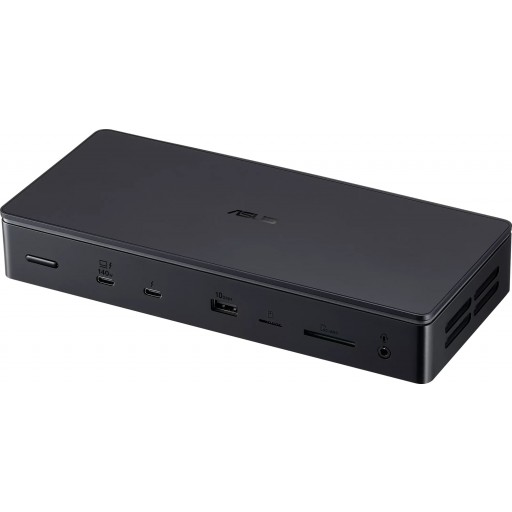

ASUS Master DC510 Thunderbolt 5 USB Type-C Triple Display 13-Port 140W Black Docking Station
R7690
The ASUS Master Thunderbolt 5 Dock DC510 is a premium 13-in-1 docking station designed for creators, professionals and power users who need high-speed connectivity through a single cable. With Thunderbolt 5 bandwidth, multi-display support, integrated M.2 NVMe SSD expansion and up to 140W power delivery, it transforms a compatible laptop into a powerful desktop workstation.
In stock
Description
FEATURES
Thunderbolt 5 USB Type-C Multiport Dock
Integrated Power Button
140W Power Delivery Pass-Through (Requires Power Delivery 3.1)
96W Universal Power Delivery Pass-Through
Thunderbolt 3 & 4 Backwards Compatible

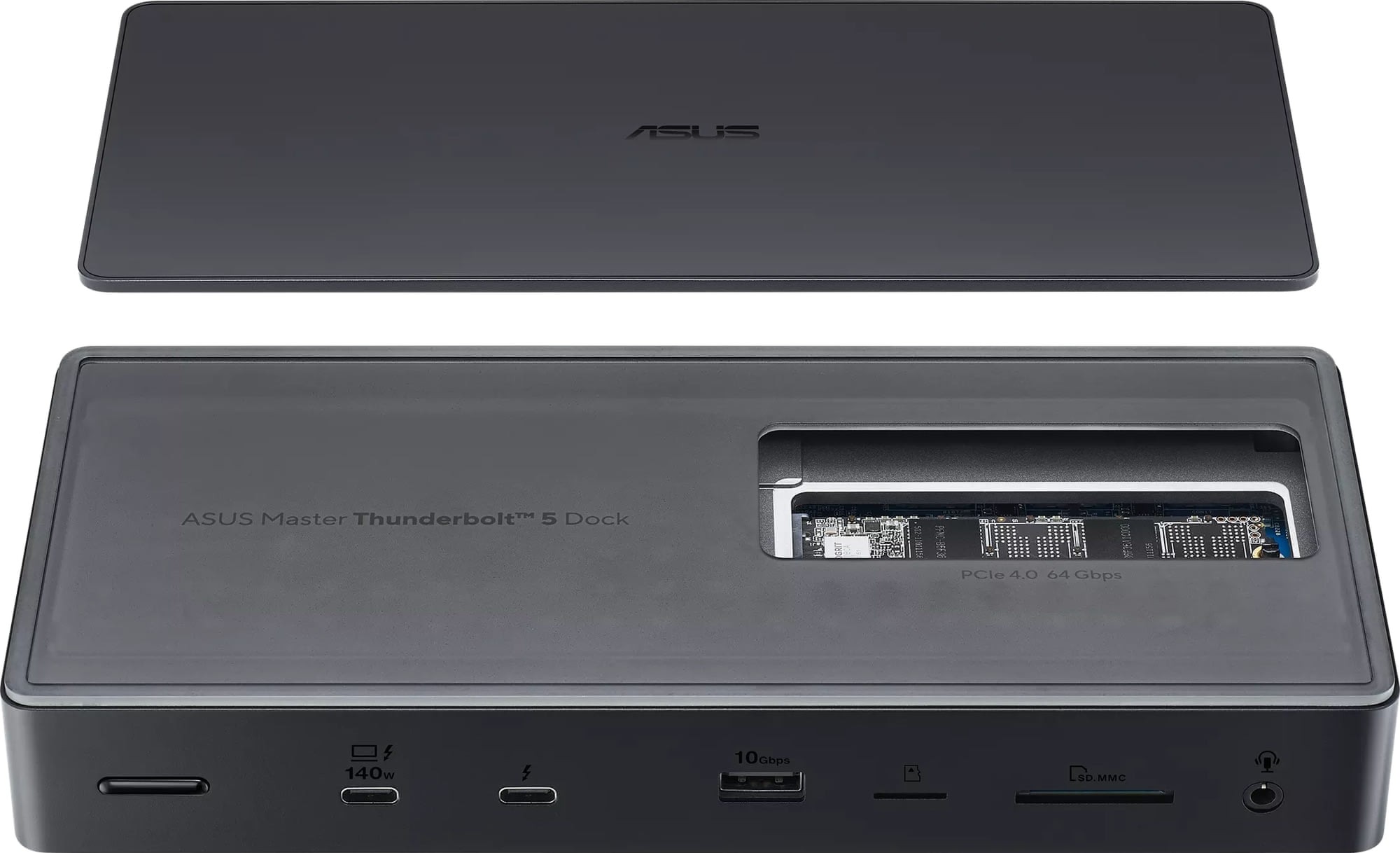

Integrated M.2 2280 PCIe 4.0 NVMe SSD Slot
1x Thunderbolt 5 USB Type-C Connector (Upstream, DisplayPort, Power Delivery)
3x Thunderbolt 5 USB Type-C Ports (Downstream, DisplayPort 2.1)

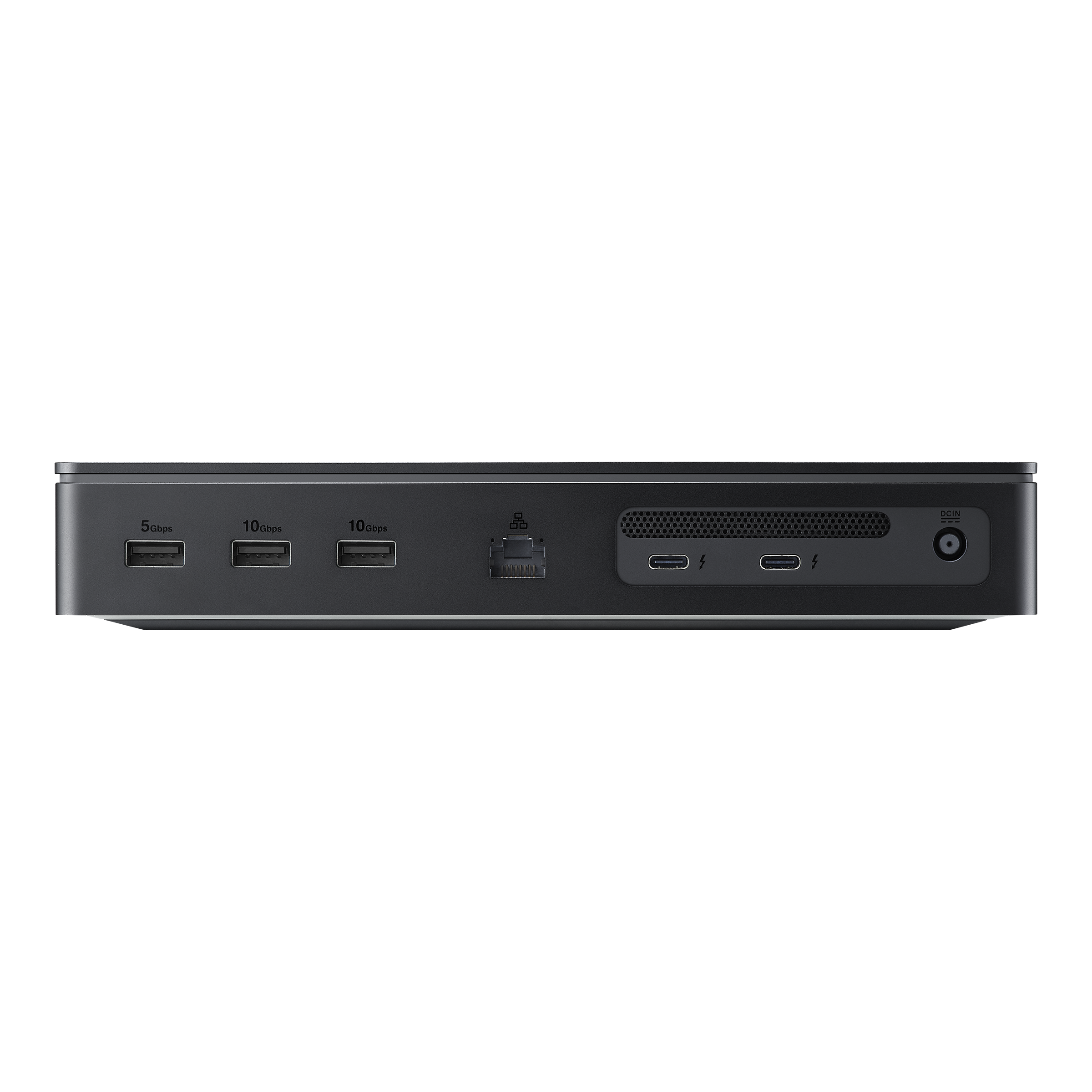

3x USB 10Gbps Type-A Ports (Downstream)
1x USB 5Gbps Type-A Port (Downstream)
1x MicroSD Card Slot Reader
1x SD 4.0 Card Slot Reader
1x 3.5mm Combination Audio Jack
1x ASUS Power Port (180W)
1x 2.5 Gigabit Ethernet RJ-45 Port (Downstream)
Plug-And-Play Operation, AC Powered
Supports Windows 11, macOS
Multi-Display Support: Up to 3x Displays (Limitations Apply)
Requires DisplayPort Alt Mode MST Support
Colour: Black
TECHNICAL SPECIFICATIONS
Brand: ASUS
Series: Thunderbolt USB Type-C Docks
Model: Master DC510 Thunderbolt 5 140W Dock (90XB09NN-BDS010)
Connectivity
Upstream Port: 1x Thunderbolt 5 USB Type-C Connector (DisplayPort 2.1, 96W – 140W Power Delivery)
Downstream Ports: 3x Thunderbolt 5 USB Type-C Ports (DisplayPort 2.1)
3x USB 10Gbps Type-A Ports (Downstream)
1x USB 5Gbps Type-A Port (Downstream)
1x MicroSD Card Slot Reader
1x SD 4.0 Card Slot Reader
1x 3.5mm Combination Audio Jack
1x ASUS Power Port (180W)
1x 2.5 Gigabit Ethernet RJ-45 Port (Downstream)
Power Source: AC Adapter, 180W (supplied in box)
Cable Length: 1.0m, Removable
Video Output
Thunderbolt: 3x Thunderbolt 5 Ports with DisplayPort 2.1, supports up to 8K @ 60Hz, supports HDCP & HDR
Notes: Computers with Thunderbolt 3, Thunderbolt 4 ports may have lower maximum supported resolutions. Please consult your product manual and the ASUS Thunderbolt 5 dock user’s guide for support.
Display Support (Thunderbolt 5)
Single Display: Up to 8K (7680×4320) @ 60Hz Monitor (HDMI, DisplayPort, Thunderbolt/USB-C)
Dual Displays: Up to 8K (7680×4320) @ 60Hz Monitors (HDMI, DisplayPort, Thunderbolt/USB-C)
Triple Display: Up to 3x 4K (3840×2160) @ 144Hz Monitors (HDMI, DisplayPort, Thunderbolt/USB-C)
Apple Multi-Display Support: Multi-Display support is possible on Macbook Air, Macbook Pro, Mac Mini, Mac Studio, iMac displays, but support may vary between Apple silicon versions and SKUs.
Multi-Display on Macbook Neo is not supported.
SSD
Interface: M.2 2280 PCIe
Supported Sizes: 2280, Single-Sided
Protocol: NVMe 1.4, NVMe 2.0
Ethernet
Bandwidth: 2.5 Gigabit Ethernet, Up to 2500 Mbps
Protocol Support: IPv4, IPv6, IEEE 802.3
General
Dimensions: 220 x 96.7 x 38.1mm (D x W x H)
Weight: 0.765kg
Colour: Black
Power Button: Integrated, for ASUS Expertbook laptops only
Operating Systems Supported: Windows 10
Windows 11
macOS
