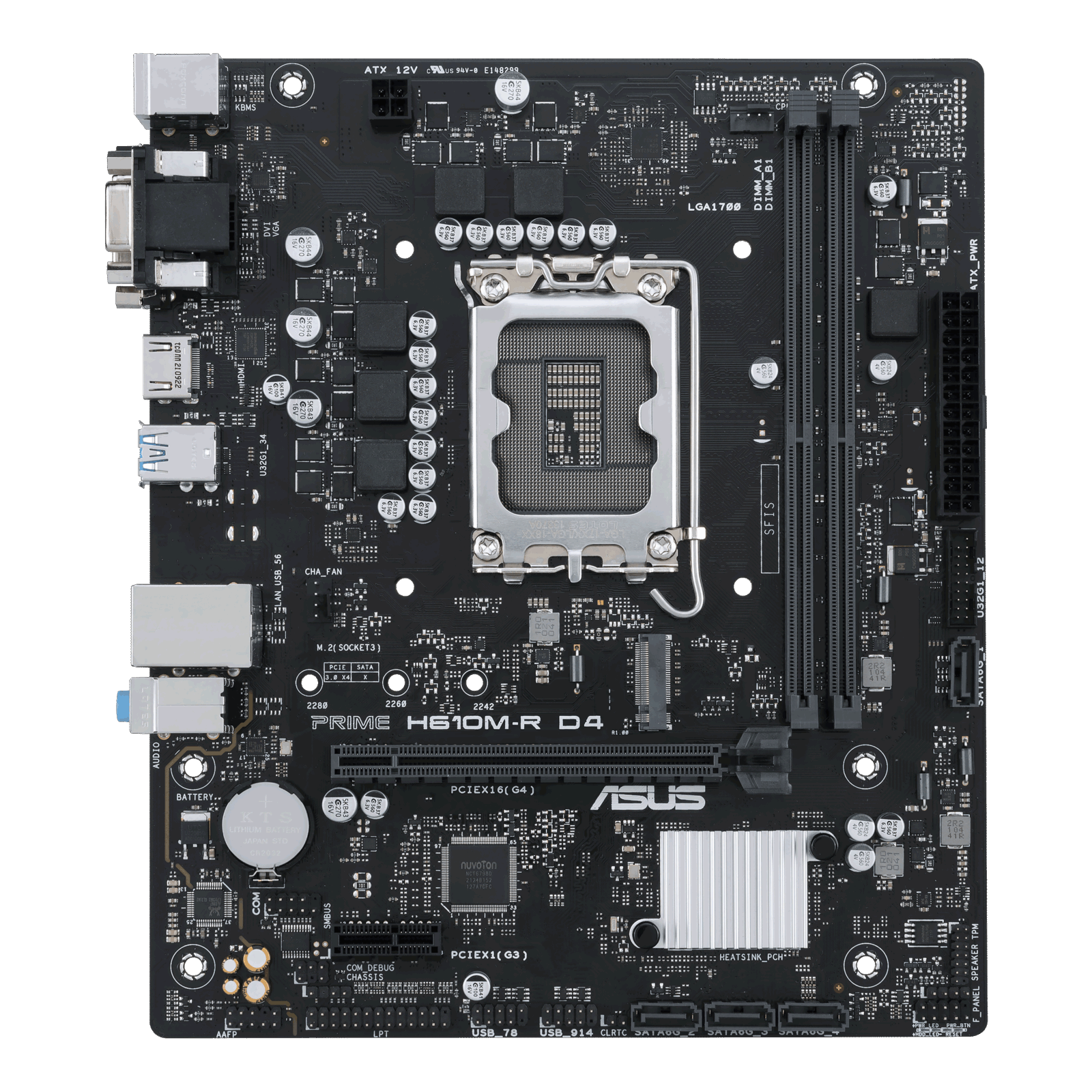

ASUS Prime H610M-R D4 Intel LGA 1700 micro ATX Motherboard
R1730
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
In stock
Description

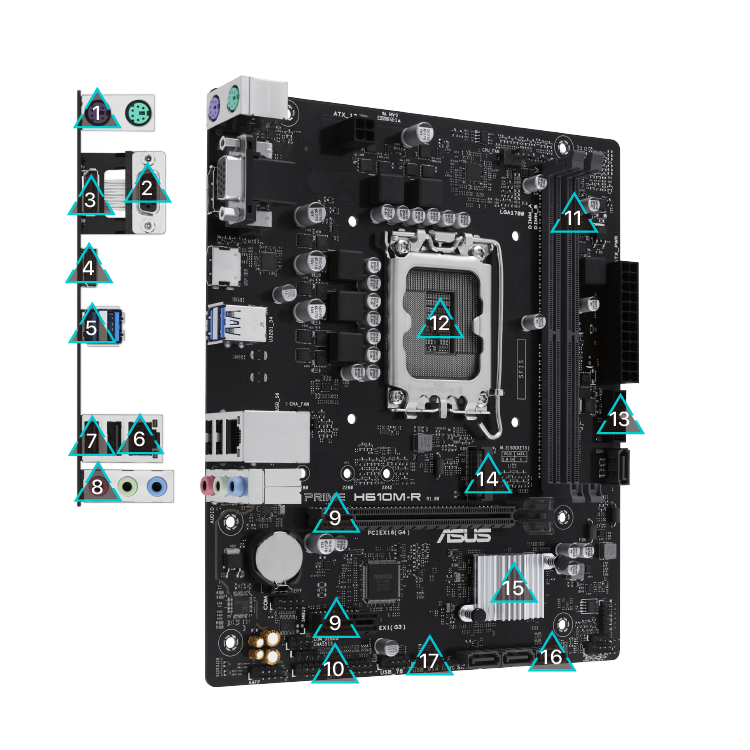

FEATURES
Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
Comprehensive cooling: PCH heatsink
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
5X Protection III: Multiple hardware safeguards for all-round protection
TECHNICAL SPECIFICATIONS
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports up to Intel® 65W CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to ASUS for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset: Intel® H610 Chipset
Memory
2 x DIMM Slots
Max. 64GB
DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to ASUS for memory support list.
Graphics
1 x D-Sub
1 x DVI-D
1 x HDMI® port**
* Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Processor – 1 x PCIe 4.0 x16 slot
Chipset – 1 x PCIe 3.0 x1 slot
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet: 1x Realtek 1Gb Ethernet
USB

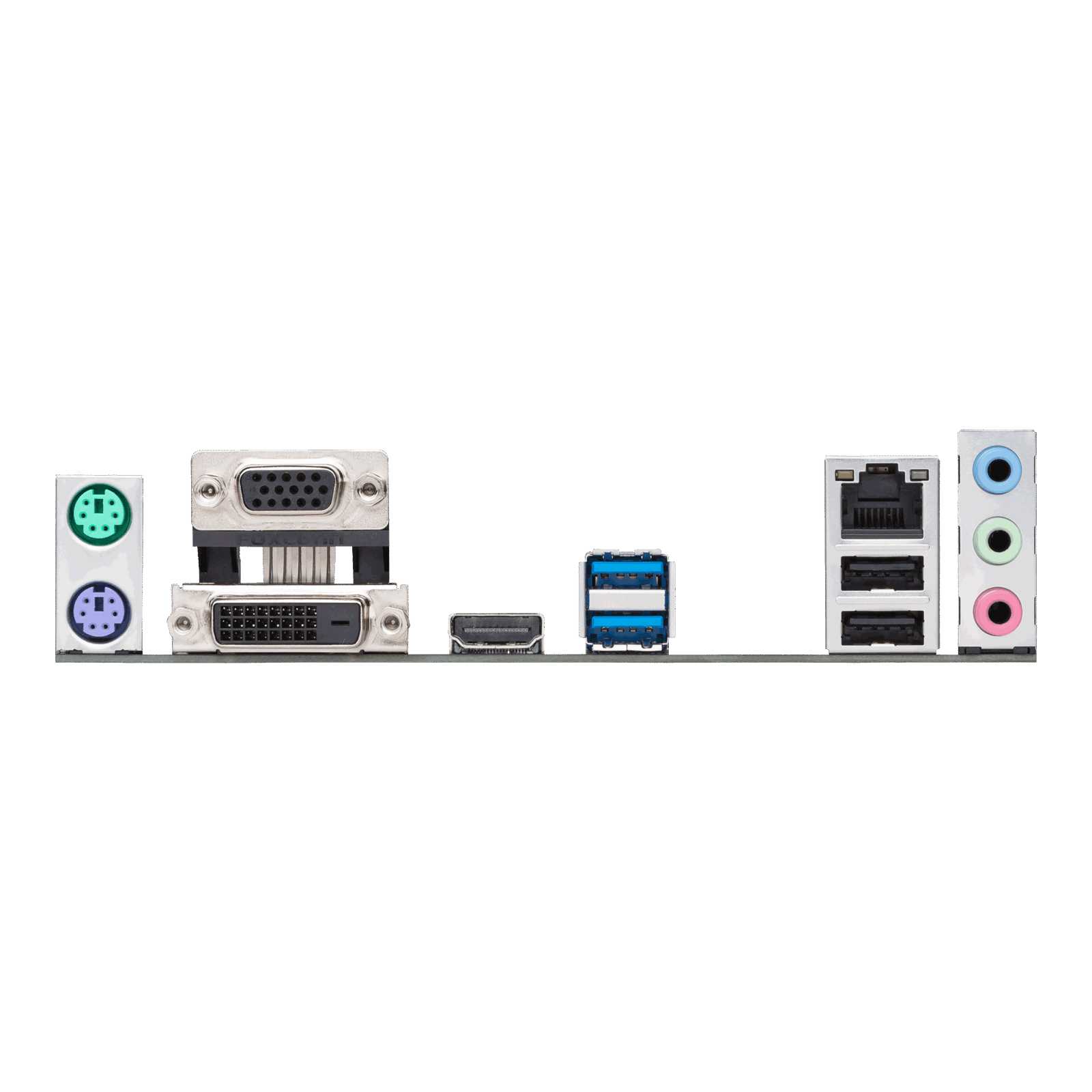

Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Form Factor: mATX Form Factor (22.6 x 19.3 cm)
Additional information
| Weight | 0,8 kg |
|---|---|
| Dimensions | 26 × 27 × 5,1 cm |
| Condition | |
| CPU Socket | LGA 1700 |
| CPU Manufacturer | Intel |
| Motherboard Chipset | Intel H610 |
| Form Factor | Micro ATX |
