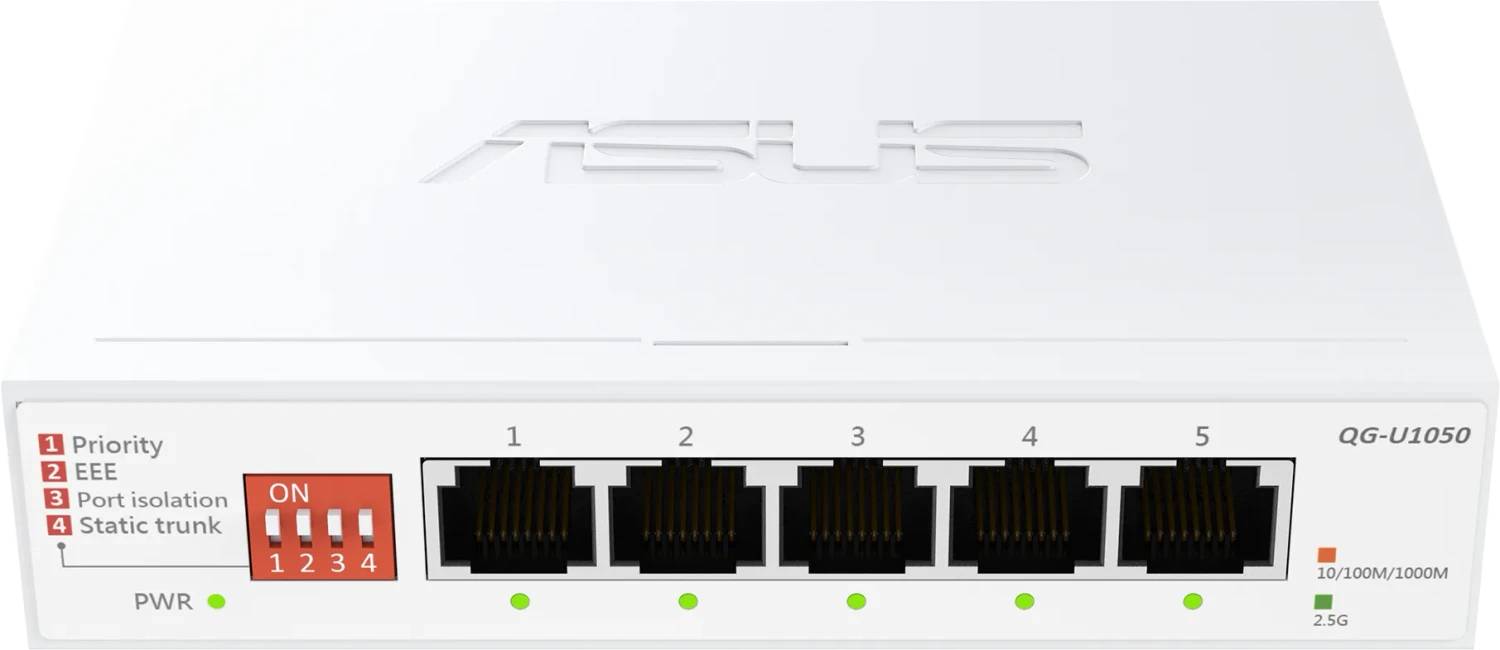

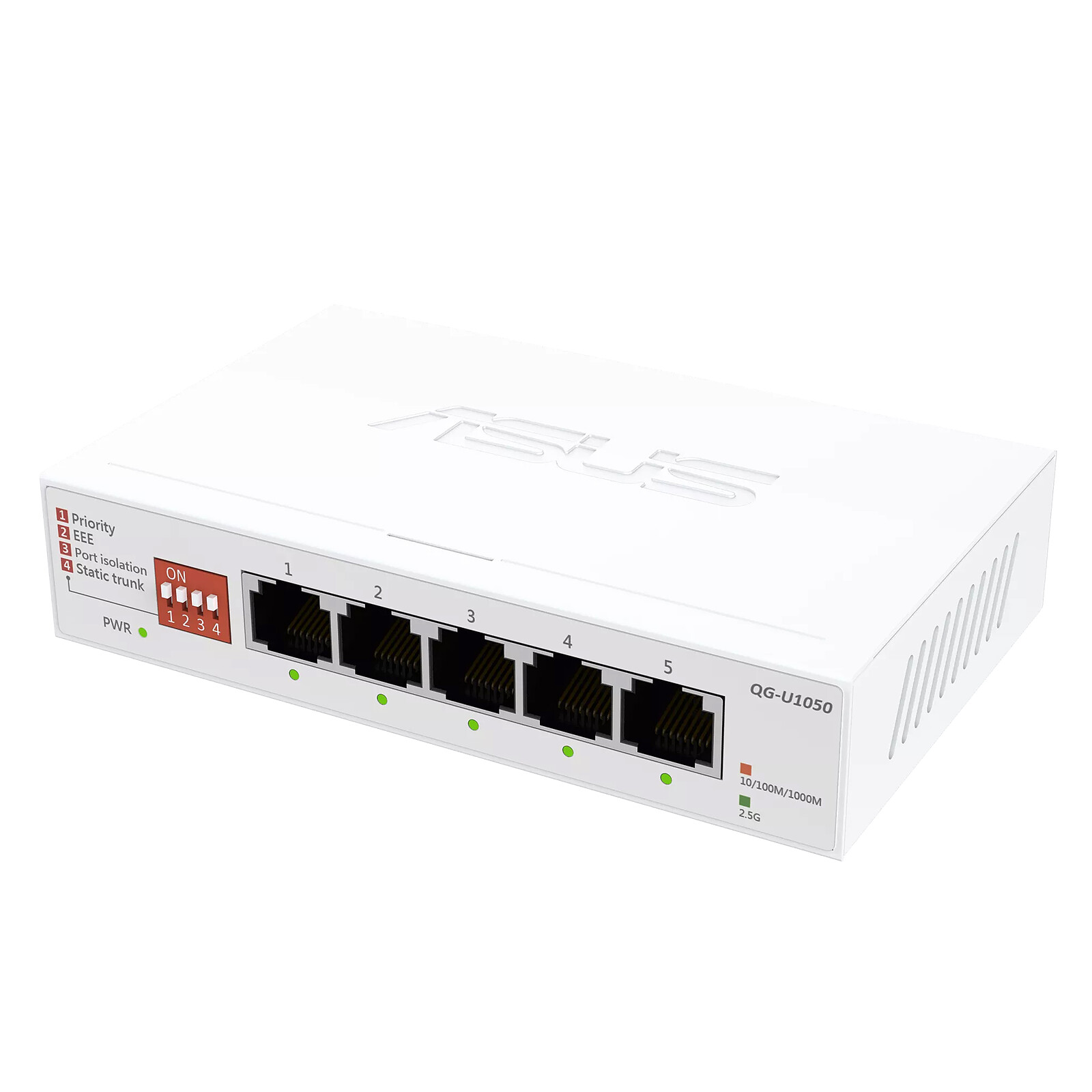

ASUS QG-U1050 5-Port 2.5G Ethernet Unmanaged Switch

Description

FEATURES
Upgraded 2.5G ports – Seamlessly upgrade to 2.5G by using standard CAT5e Ethernet cables to enjoy faster network performance.
Support four intelligent functions – priority, EEE, port isolation, and static trunk. One switch is all you need to safeguard and optimize your home or business network.
Plug and Play, Effortless Setup – Setting up your network has never been easier! Simply connect your devices, and you’re good to go—no complicated configurations required.
Versatile Networking Expansion – You can connect 2.5G-compatible devices, including NAS , AP, Gaming PCs, and 4K streaming devices to achieve a more comprehensive network setup.

TECHNICAL SPECIFICATIONS

Brand: ASUS
Ports: 5x 2.5G ports
Standards: IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3bz 2.5G BASE-T IEEE802.3az EEE IEEE802.3x Flow control
Color: White

Performance
MAC address Table: 16K
Packet buffer: 8Mbits
Jumbo Frame: 10K bytes
Forwarding Rate: 18.6Mpps (64-byte)

LED Indicator
Power LED
On: The switch is powered on.
Off: The switch is powered off or the power supply is abnormal.
Blinking: Loop detected.
Port LED (Link/ACT)
Off: Devices are disconnected or the link has failed.
Green On: 2.5Gbps connection
Amber On: 10/100/1000Mbps connection
Blinking: Devices are connected and data is transmitting or receiving. When a loop is detected, the port LED blinks rapidly.
Power Supply: External Power Adapter (12V/1A output)

Environmental
Operating Temperature: 0 ~ 40℃
Operating Humidity: 10% ~ 90% RH (non-condensing)

Package Content
ASUS QG-U1050 Switch
Power Adapter
Quick Start Guide
Warranty Card
Weight: 230 g
Dimensions: 121 x 75 x 26 mm
