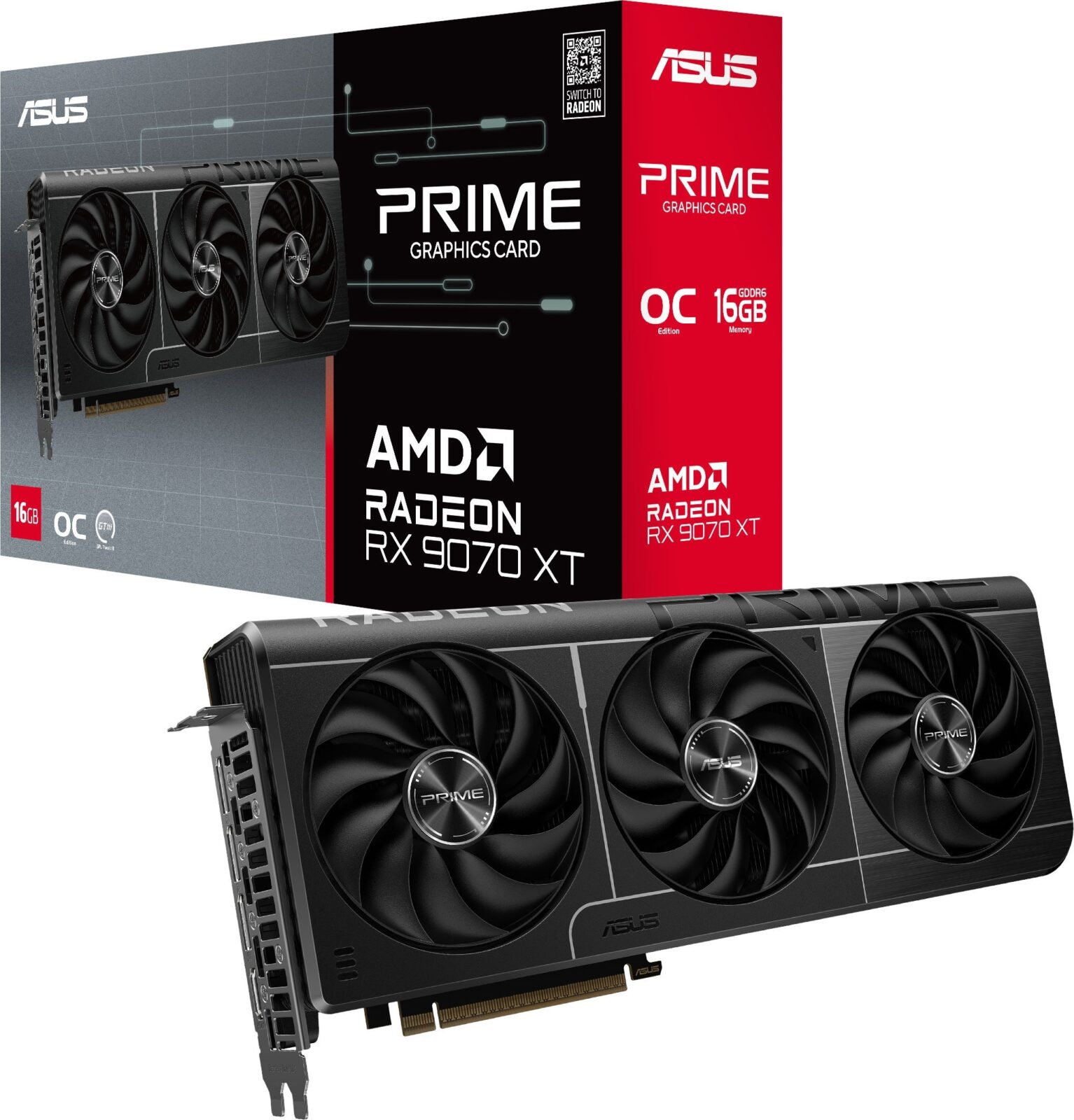

ASUS Radeon RX 9070 XT PRIME OC 16GB GDDR6 256-Bit PCIe 5.0 Desktop Graphics Card

Description

FEATURES
Game Clock: Up to 2460 MHz
Boost Clock: Up to 3010 MHz
GPU Tweak III OC Boost Clock: Up to 3030 MHz
Stream Processors: 4096
AMD RDNA 4 Architecture
3rd Gen Radeon Raytracing Accelerators
2nd Gen Radeon AI Accelerators
AMD HYPR-RX with Fluid Motion Frames
AMD Fidelity FX Super Resolution 4.0 Upscaling Technology
AV1 Decode / Encode Engines
Video Memory: 16GB GDDR6
Infinity Cache: 64MB
Memory Bus Width: 256-bit
3x DisplayPort 2.1, 1x HDMI 2.1 Ports
Multi-Display Capability: 4x Displays
ASUS PRIME Cooling System with Triple Axial-Tech Fans
ASUS MaxContact Design with PTM GPU Thermal Pad
Ventilated Exoskeleton & Metal Back Plate
Dual BIOS Performance & Quiet Modes
ASUS GPU Tweak III Utility
AMD Radeon Software Adrenaline Utility

TECHNICAL SPECIFICATIONS

Brand: ASUS
Series: PRIME Series
Model: Radeon RX 9070 XT PRIME OC (PRIME-RX9070XT-O16G)

Chipset
GPU: Radeon RX 9070 XT
Chipset Manufacturer: AMD
Interface: PCIe 5.0 x16
Compute Units: 64 Compute Units
Ray Accelerators: 64 units, gen 3
Stream Processors: 4096 Unified
AI Accelerators: 128 accelerators, gen 2
Game Clock: Up to 2460 MHz
Boost Clock: Up to 3010 MHz
GPU Tweak III OC Game Clock: Up to 2480 MHz
GPU Tweak III OC Boost Clock: Up to 3030 MHz
GPU Architecture: AMD RDNA 4 Architecture
GPU Design: TSMC 4nm Monolithic Die

Memory
Infinity Cache: 64MB
Effective Memory Clock: 20Gbps
Memory Size: 16GB
Memory Interface: 256-bit
Memory Type: GDDR6
3D API Support
DirectX: Direct3D 12_2 Ultimate
OpenGL: OpenGL 4.6
OpenCL: OpenCL 2.2
Vulkan: Vulkan 1.3
Shader Model: Shader Model 6.7

Connectivity

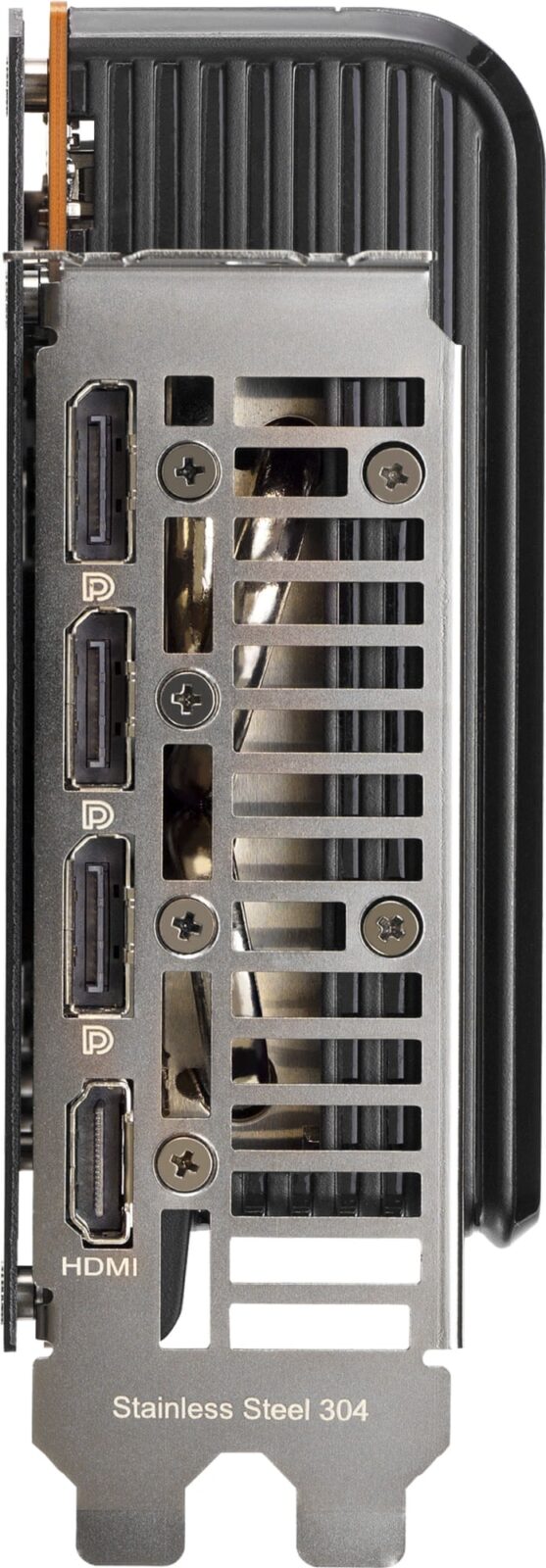

Ports: 3x DisplayPort 2.1 with HDCP 2.3 (UHBR20)
1x HDMI 2.1 with HDCP 2.3 (FRL 48Gbps)
HDMI 4K Support Yes, Up to UltraHD 4K 120Hz
VR Ready: Yes, Radeon VR Ready Premium

General
Features: ASUS PRIME Cooling System with Triple Axial-Tech Fans
ASUS MaxContact Design with PTM GPU Thermal Pad
Dual BIOS Performance & Quiet Modes
Ventilated Exoskeleton & Metal Back Plate
Dual Ball Bearing Fans
AMD FreeSync Technology
DisplayPort 2.1
HDMI 2.1 VRR
HDMI 4K Support
DisplayPort 2.1 8K Support
Simultaneous AV1 & HEVC Encode and Decode.
8K60 AV1 / H265 / HEVC Decode
8K60 AV1 / H265 / HEVC Encode
Video Streaming up to 8K
AMD HYPR-RX Game Optimisation
AMD Radeon FreeSync Premium
AMD Radeon Pro Drivers
AMD Radeon VR Ready Premium
AMD FidelityFX Super Resolution
AMD Radeon Image Sharpening
AMD Radeon Anti-Lag
AMD Radeon Chill
AMD Radeon Software
Hardware-Accelerated Ray Tracing

Power Requirements
Total Graphics Power (TGP): 304W
Minimum Recommended Power Supply: 750W
Power Connector: 3x 8-Pin PCI PEG connectors

General
Form Factor: ATX
Slot Width: 2.5 Slot
Dimensions: 312 x 130 x 50mm (L x H x W)
Operating System Support: Windows 11 64-bit
Ubuntu x86 64-Bit
Linux x86_64
Accessories: 1x Thank you card
1x Speedsetup Manual
