Description
FEATURES
ATX Form Factor
AMD X870 Chipset
Socket AM5
AMD Ryzen 9000 & 8000 & 7000 Series CPUs Supported
4x DDR5 DIMM Slots, Supports Up to 192GB
Supports up to DDR5-8000MHz+(OC)
1x PCIe 5.0 x16 slot (supports x16 mode)
1x PCIe 4.0 x16 slot (supports x8/x4 mode)
1x PCIe 4.0 x16 slot (supports x4 mode)
4x M.2 Slots and 2x SATA 6Gb/s Ports
2x USB 4 (40Gbps) Type-C Ports (With DP-Alt-Mode)
5x USB 10Gbps Type-A Ports, 1x USB 10Gbps Type-C Ports
4x USB 5Gbps Port
1x HDMI Port,1x DisplayPort, 1 x Wi-Fi Module
Fast Ethernet: 1x Intel 2.5Gb Port
1x Optical S/PDIF out port, 1x BIOS FlashBack Button
1x Clear CMOS Button
802.11be 2×2 Tri-Band WiFi 7
Bluetooth v5.4
16+2+2 Power Stages
ASUS Control Center Express
AI Overclocking
AI Cooling II
ASUS GlidEx
TECHNICAL SPECIFICATIONS
Brand: ASUS
Series: Gaming Motherboards

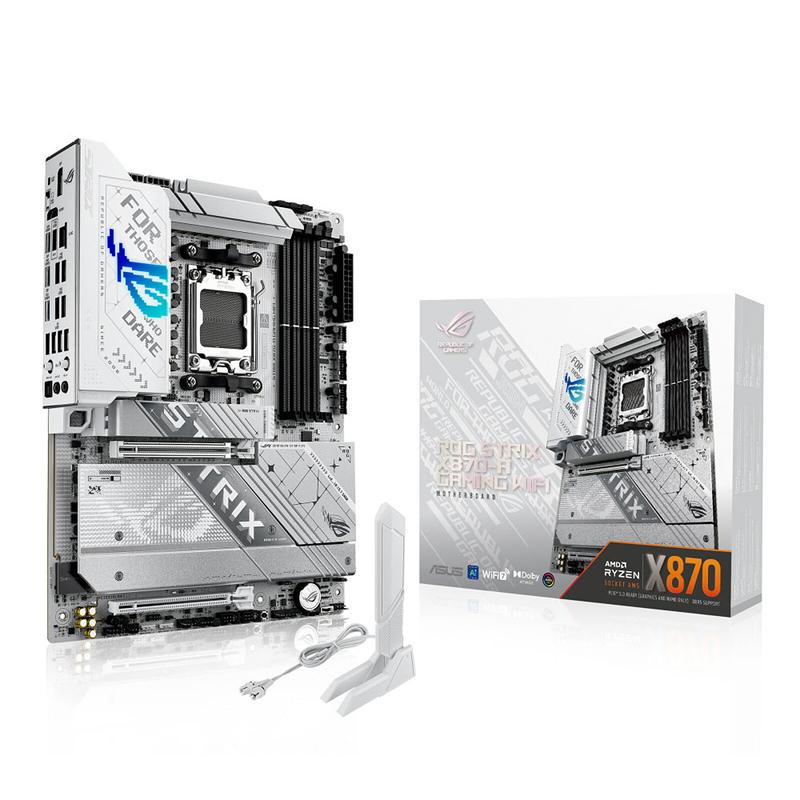

Model: ROG STRIX X870-A GAMING WIFI
CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000, 7000 Series Desktop Processors*
Refer to www.asus.com for CPU support list
Chipset: AMD X870
Memory: 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000 MT/s (OC) with Ryzen 9000, 8000, 7000 Series Processors
ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Refer to www.asus.com for memory support list
Graphics: 1 x DisplayPort**
1 x HDMI port***
2 x USB4 (40Gbps) ports support USB Type-C display outputs****
Refer to AMD CPU specifications
Supports max. 8K@30Hz as specified in DisplayPort 1.4
Supports 4K@60Hz as specified in HDMI 2.1
Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Refer to www.asus.com for supported peripherals
Storage: 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors**
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (not supported)****
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Supports AMD RAIDXpert2 Technology
Ethernet: 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth: Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency bands**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth v5.4***
Rear USB: Total 12 ports
2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)*
6 x USB 10Gbps ports (5 x Type-A, 1 x USB Type-C with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
Front USB: Total 9 ports
1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
Impedance sense for front and rear headphone outputs
Supports Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
Supports up to 32-Bit/384 kHz playback on front panel
The LINE OUT port on the rear panel does not support spatial audio

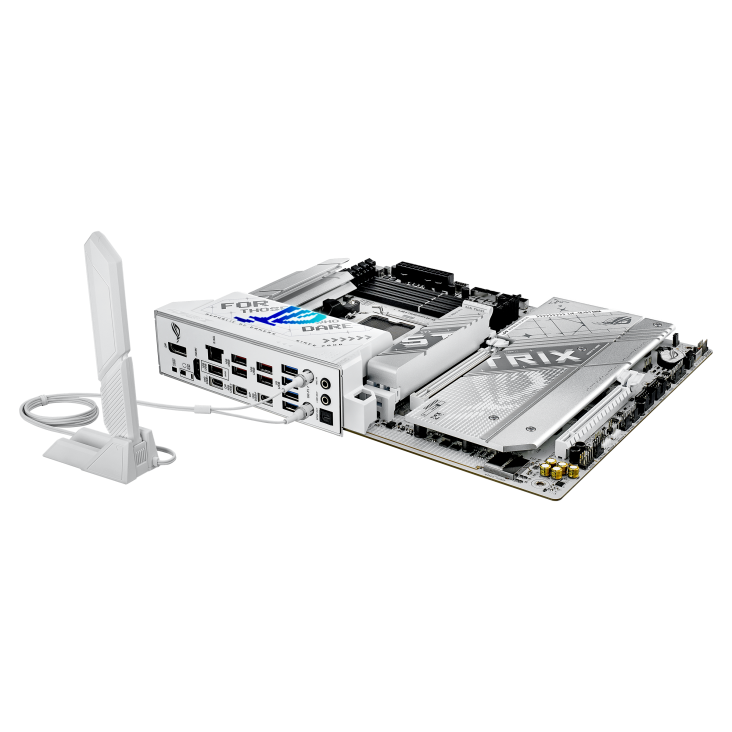

Back Panel I/O Ports: 2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A, 1 x USB Type-C with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors: Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related: 1 x 24-pin Main Power connector
2 x 8-pin 12V CPU Power connectors
Storage Related: 4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB: 1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous: 3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features: Extreme Engine Digi
5K Black metallic capacitors
ASUS Q-Design: M.2 Q-Latch
M.2 Q-Release
M.2 Q-Slide
PCIe Slot Q-Release Slim (with PCIe SafeSlot)
Q-Antenna
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution: M.2 heatsink backplate
M.2 heatsink
ASUS EZ DIY: BIOS FlashBack button
BIOS FlashBack LED
Clear CMOS button
ProCool II
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura Sync: Addressable Gen 2 headers
Software Features: ROG Exclusive Software
ROG CPU-Z
Dolby Atmos
AIDA64 Extreme (60 days free trial)
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
GameFirst
HWiNFO
Power Saving
ASUS Driver Hub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS: AI Overclocking Guide
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
Dynamic OC Switcher
FlexKey
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE

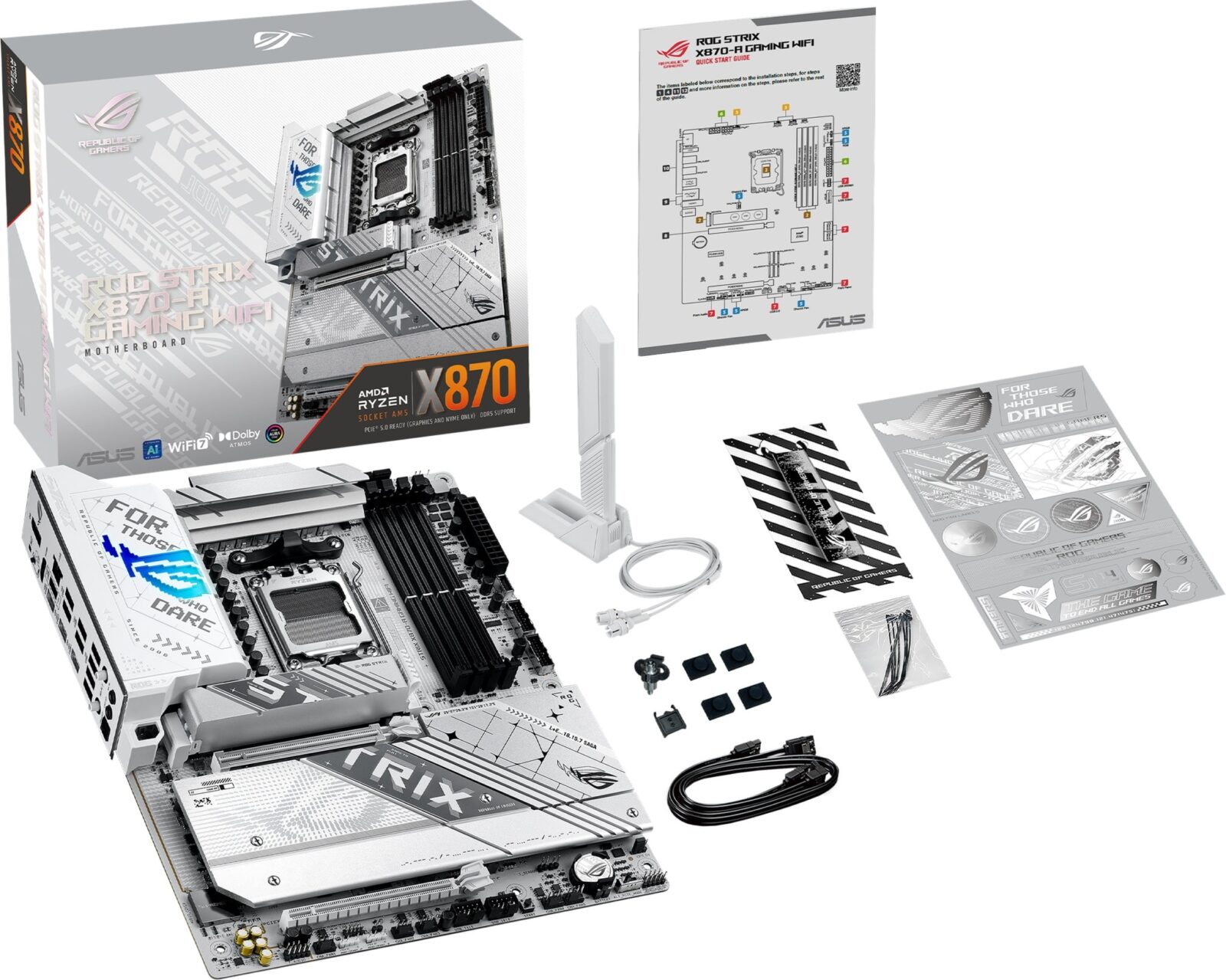

Accessories: 2 x SATA 6Gb/s cables
Additional Cooling Kit: 1 x Thermal pad for M.2 22110
Miscellaneous: 1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber packages
Documentation: 1 x Quick start guide
Operating System: Windows 11
Form Factor: ATX Form Factor, 30.5 cm x 24.4 cm
