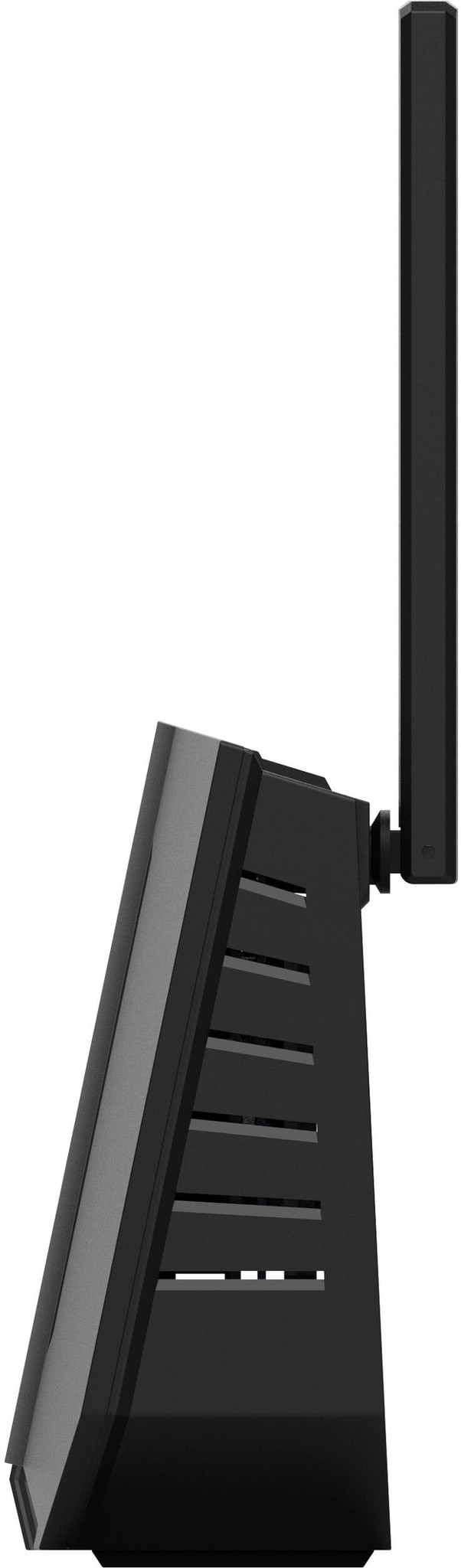

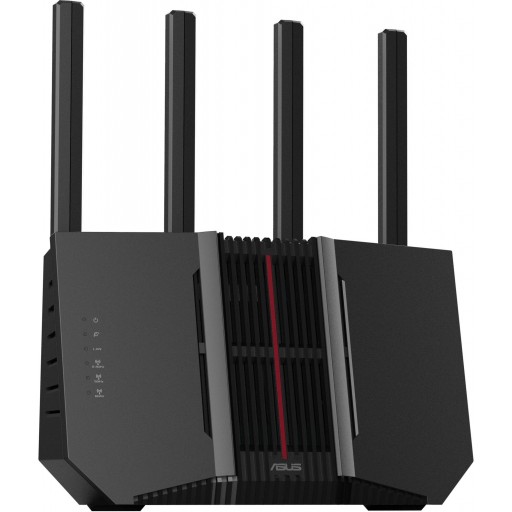

ASUS RT-BE92U WiFi 7 Tri-Band AiMesh 10 Gigabit Wireless Router

Description

FEATURES
Network Standard: IEEE 802.11a/b/g/n/ac/ax/be
Antennae: 4x External
1x USB 3.2 Gen 1
1x RJ45 10 Gigabit WAN/LAN
1x RJ45 2.5 Gigabit WAN/LAN
3x RJ45 2.5 Gigabit LAN
Buttons: WPS, Reset, Power
1GB RAM Memory
Ultrafast Wifi 7 – Enjoy Speeds Up To 9700 Mbps (1032+2882+5764 Mbps)
Superior WiFi – 6 GHz Band
Comprehensive MLO Support
Ultra-Wide 320 MHz Channels
Efficient 4K-QAM Transmission
ASUS AiMesh Support
ASUS Instant Guard And AI Protection

TECHNICAL SPECIFICATIONS

Brand: ASUS
Series: AI Mesh Routers
Model: 90IG08F0-MO9A0V
Network Standard: IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment: BE9700 ultimate BE performance : 1032 2882 5764 Mbps
WiFi Data Rate: WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
Antenna: External antenna x 4
Transmit / Receive: 2.4GHz 3×3
5GHz 2×2
6GHz 2×2
Processor: 2.0GHz quad-core processor
Memory: 256 MB Flash and 1 GB DDR4 RAM
Boosts Speed: OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
Operating Frequency: 2.4 GHz
5 GHz
6 GHz
Operating Mode: Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

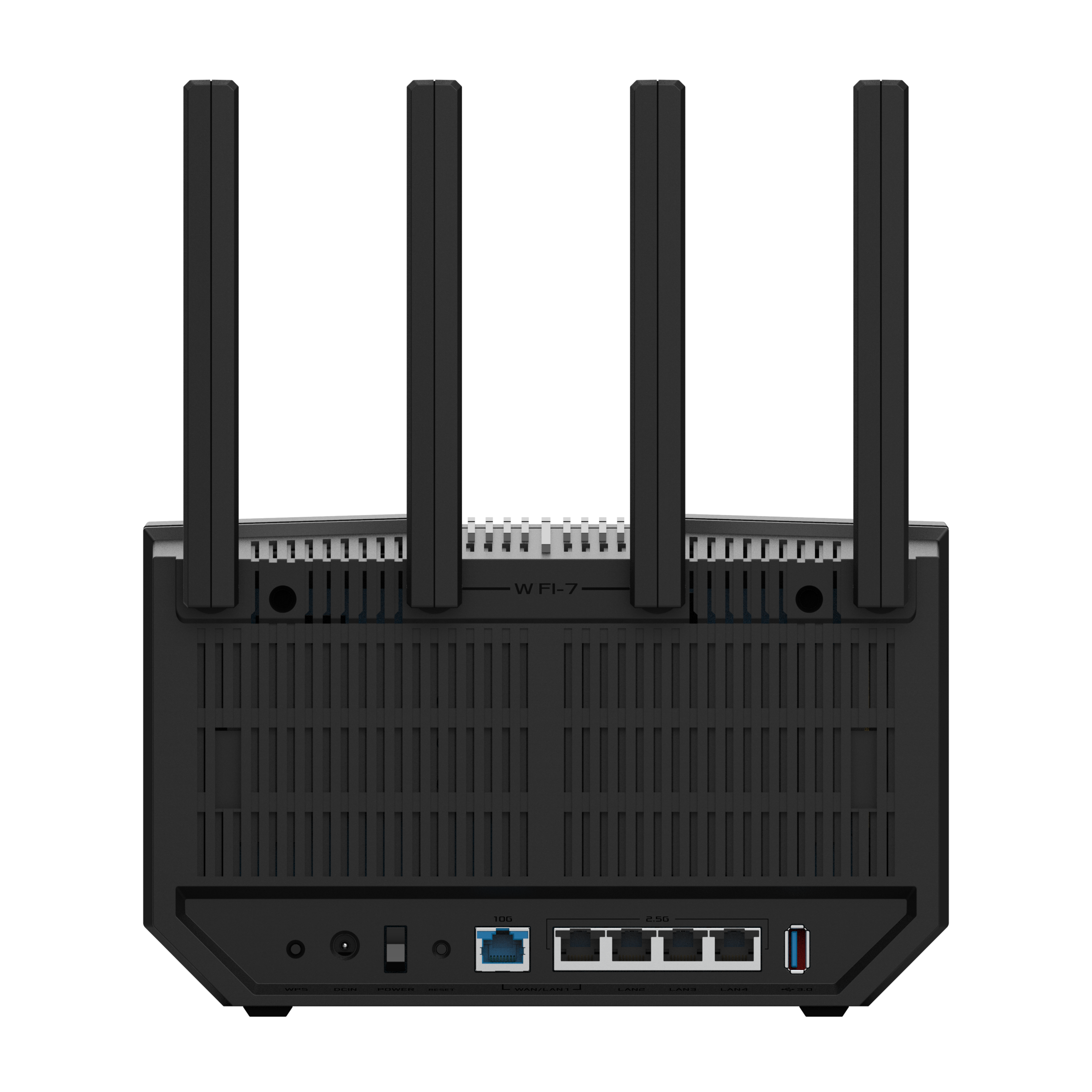

I/O Ports: 1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
3 x 2.5 Gbps for LAN
USB 3.2 Gen1 x1
Buttons: WPS Button
Reset Button
Power Switch
LED Indicator: Power x1
WAN x1
LAN x1
2.4GHz x1
5GHz x1
6GHz x1
Power Supply: AC Input: 110V240V(5060Hz)
DC Output: 12 V with max. 3 A current
Package Content: RT-BE92U WiFi 7 Tri-band Router
wall mount kit
RJ-45 cable
Power Adapter
Quick Start Guide
Warranty Card
Product Dimensions: 247.18 x 101.59 x 287.47 mm / 9.73 x 4.00 x 11.32 inch
AiMesh: AiMesh
Primary AiMesh Router
AiMesh Node
Parental Control: Allow you to block access to unwanted websites and apps.
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
Maximum Parental Control Profile : 64
Maximum Parental Control Content Cilter Rule : 64
Guest Network: You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings.
Maximum Guest Network Rule : 2.4 GHz 5 GHz : 3
Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-Personal
Security: AiProtection
VPN
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
Maximum Firewall Keyword Filter : 64
Maximum Firewall Network Service Filter : 32
Maximum Firewall URL Filter : 64
AiProtection: AiProtection Pro
Router Security Assessment
Malicious Site Blocking
Two-Way IPS
Infected Device Prevention and Blocking
VPN: Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Traffic Control: Adaptive QoS
Bandwidth Monitor
Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
Real-time Traffic Monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic Analysis Period : Daily, Weekly, Monthly
Website History
WAN: Internet Connection Type :
PPPoE
PPTP
L2TP
Automatic IP
Static IP
IPSec
Dual WAN
3G / 4G LTE dongle
4G / 5G Auto Mobile Tethering
Port forwarding
Maximum Port Forwarding Rule : 64
Port triggering
Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough :
PPTP Pass-Through
L2TP Pass-Through
IPSec Pass-Through
RTSP Pass-Through
H.323 Pass-Through
SIP Pass-Through
PPPoE Relay
LAN: DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
Wireless: MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application: 4G / 5G Auto Mobile Tethering
File System :
HFS
NTFS
vFAT
ext2
ext3
ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
User Interface: WEB: ASUSWRT
APP: ASUS Router APP
Administration: Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
