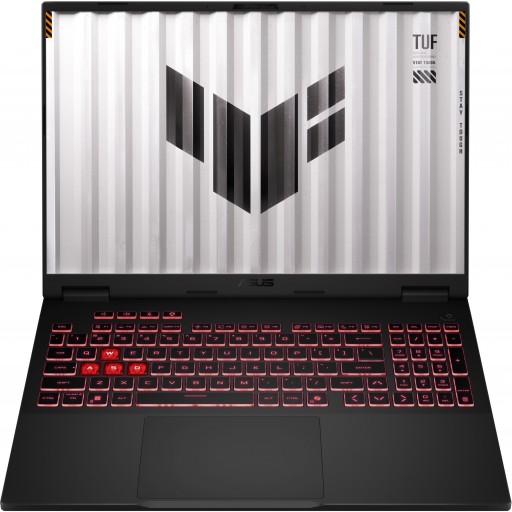

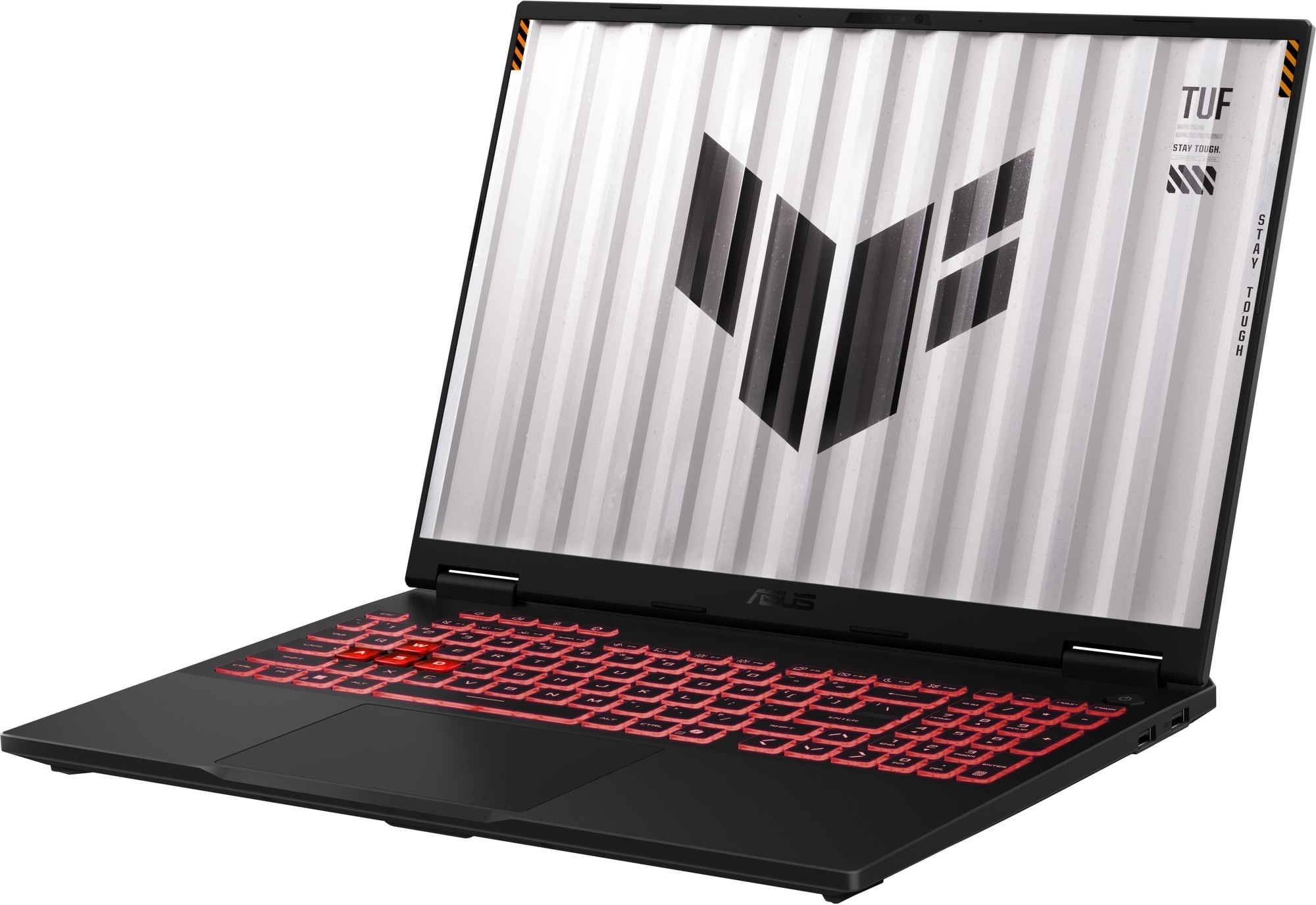

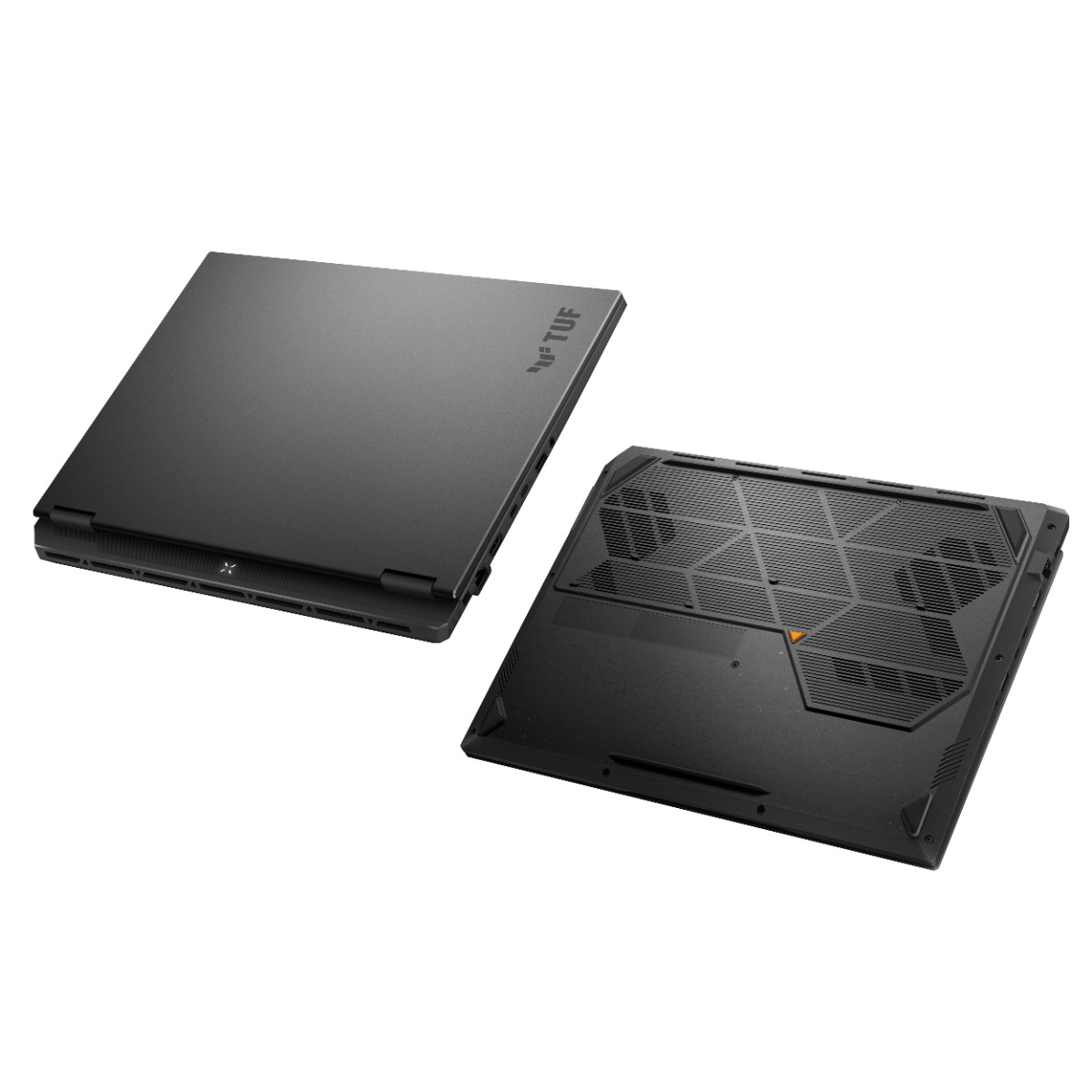

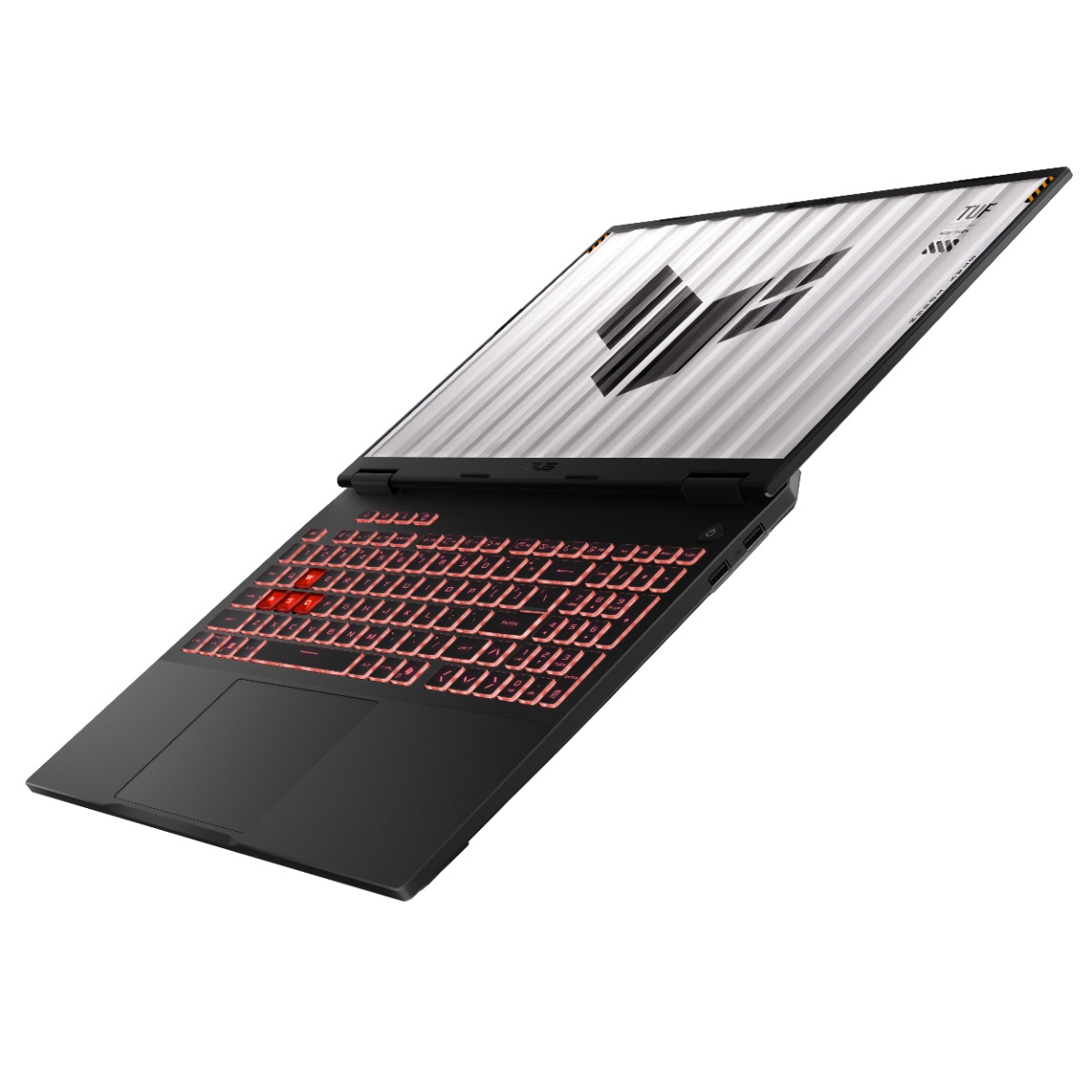

ASUS TUF Gaming A16 16″ WQXGA (2560×1600) Jaeger Grey Laptop

Description

FEATURES
AMD Ryzen 9 8940HX Processor (64MB L3)
Up to 5.30GHz Boost Clock
Up to 798 TOPS AI Performance (GPU)
16 Cores, 32 Threads
AMD Radeon 610M Graphics with NVIDIA Optimus Advanced
16″ WQXGA (2560×1600) 240Hz IPS-Level Display
16GB (1x16GB SO-DIMM) DDR5-5600 Memory
NVIDIA GeForce RTX 5070 8GB GDDR7 Graphics
NVIDIA GeForce Game Ready & Studio Drivers
NVIDIA DLSS 4.0 Technology
NVIDIA RTX Real-Time Ray Tracing Technology
NVIDIA Studio AI Acceleration
1TB M.2 2280 PCIe 4.0 x4 NVMe SSD
1x USB 10Gbps Type-C Port with DisplayPort
1x USB 10Gbps Type-C Port with DisplayPort (G-Sync) & Power Delivery
3x USB 10Gbps Type-A Ports
1x HDMI 2.1 (FRL, G-Sync) Port
1x 3.5mm Combination Audio Jack
Gigabit Ethernet RJ-45 LAN Port
WiFi 6E Tri-Band Adapter, Bluetooth 5.4
TUF Gaming Single-Zone RGB LED Backlit Keyboard
1080P Full HD Webcam with Windows Hello
Stereo Speakers with Dolby Atmos
90Whr Li-Ion Battery, Fast Charging
280W AC Adapter
Windows 11 Pro 64-bit
Colour: Jaegar Grey

TECHNICAL SPECIFICATIONS

Brand: ASUS
Series: TUF Gaming
Model: TUF Gaming A16 (FA608PP-91610G0W / 90NR0MD1-M002N0)

Processor
Model: Ryzen 9 8940HX
Chipset Manufacturer: AMD
Boost Clock: 5.30GHz
Core Arrangement: 16x Zen 4 Cores
Core Count: 16 cores
Thread Count: 32 threads
Cache: 64MB L3
Lithography: TSMC 5nm FinFET (CPU Cores), TSMC 6nm FinFET (I/O Die)

AI Acceleration
Model: NVIDIA GeForce RTX 5070
Performance: Up to 798 AI TOPs
Frameworks Supported: WindowsML, DirectML, ONNX with CUDA, Sparsity, WebGPU, CUDA, RTX AI Toolkit, TensorRT

Memory
Total Installed: 16GB (2x8GB SO-DIMM)
Type: DDR5
Memory Speed: 5600 MHz
Maximum Capacity: 64GB (2x32GB SO-DIMM) DDR5-5600
2x SO-DIMM Modules On-Board, Both Occupied

Graphics
Integrated: AMD Radeon 610M Graphics
Discrete: NVIDIA GeForce RTX 5070 Graphics
GPU Architecture: NVIDIA Blackwell
Execution Units: 4608 CUDA Cores
Boost Clock: 2347MHz at 115W Dynamic Boost
Memory: 8GB GDDR7
GPU Switching: NVIDIA Optimus Advanced, MUX Switched
Variable Refresh Support: Yes, NVIDIA G-Sync (Internal Display, HDMI 2.1 FRL)

Display
Size: 16″
Panel Type: IPS-Level (In-Plane Switching)
Native Resolution: WQXGA (2560×1600)
Refresh Rate: 240Hz (Variable)
Colour Gamut: 72% NTSC, 100% sRGB, 75.35% Adobe RGB
VRR: Supports G-Sync

Storage
Installed: 1x 1TB PCIe 4.0 x4 NVMe M.2 SSD
Supported: 1x M.2 2280 PCIe 4.0 NVMe SSD Slot (Occupied)
1x M.2 2280 PCIe 5.0 NVMe SSD Slot (Vacant)

Connectivity
Ports: 1x USB 10Gbps Type-C Port with DisplayPort (G-Sync)
1x USB 10Gbps Type-C Port with DisplayPort & Power Delivery (G-Sync)
3x USB 10Gbps Type-A Ports
1x HDMI 2.1 (FRL, G-Sync) Port
1x 3.5mm Combination Audio Jack
1x Gigabit Ethernet RJ-45 LAN Port

Audio
Speakers: 2x 2W Stereo speakers, supports Dolby Atmos
Microphones: Array digital noise canceling microphones

Networking
Ethernet: Gigabit Ethernet RJ-45 LAN Port
Wi-Fi: WiFi 6E 2×2 MIMO Dual-Band Adapter
Bluetooth: Bluetooth 5.4
LTE: N/A

Integrated Input Devices
Keyboard: ASUS TUF Gaming 1-Zone RGB LED Backlit Chiclet Keyboard
Pointing Device: ASUS Precision Touchpad
Fingerprint Reader: N/A

General
Webcam: 1080P Full HD Webcam with Windows Hello
Operating System: Windows 11 Home 64-Bit
Battery: 90Wh Li-Ion Integrated with Fast Charging
Power: 280W AC Adapter, Input: 100~240C AC 50/60Hz
Dimensions: 354 x 269 x 27.3mm (W x D x H)
Weight: 2.20kg
Colour: Jaegar Grey
