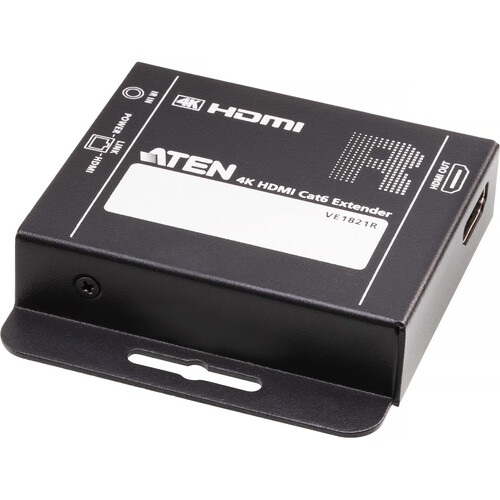

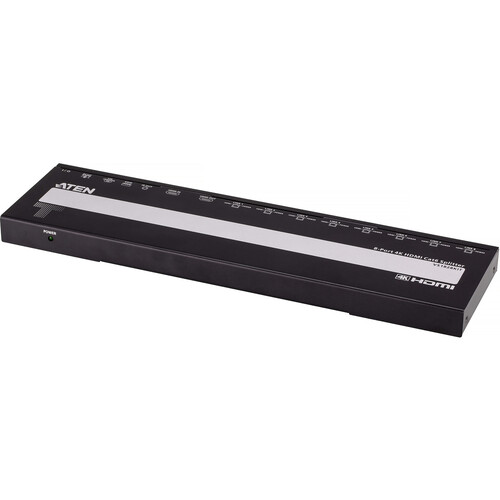

ATEN VS1828KIT 8-Port 4K HDMI Cat6 Splitter with 8 Receivers

Description

FEATURES

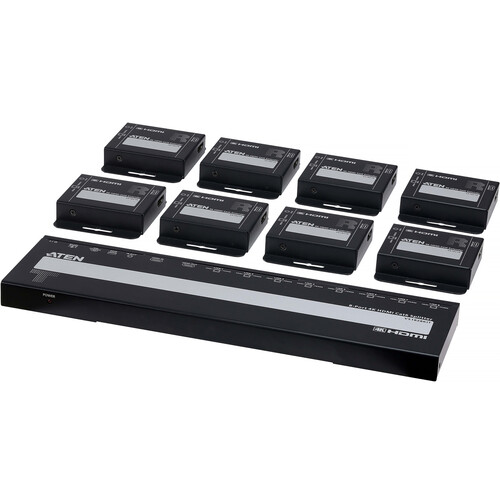

A kit that includes 1 splitter and 8 receivers to distribute 1 HDMI source to 8 displays up to 40m away via a single Cat 6 cable
Supports up to 4K @ 30 Hz (4:4:4) for crystal-clear video presentation
Power over Cable (PoC) functionality from splitter to receivers to avoid cluttered cable installation
User-adjustable EDID switch on splitter for output video resolutions and audio capabilities configuration

TECHNICAL SPECIFICATIONS

Product Code: VS1828KITspacer
Function: VE1821R

Video Input
Interfaces: N/A
Impedance: N/A
Max. Distance: N/A

Video Output
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Ω
Max. Distance: 3 m

Video
Max. Data Rate: 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock: 340 MHz
Compliance: HDMI (3D, Deep Color, 4K)
HDCP1.4 Compatible
Max. Resolutions / Distance: Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910) , 1080p@35m (Cat5e), 50m (Cat 6/2L-2910)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio
Input: N/A
Output: 1 x HDMI Type A Female (Black)

Control
IR Channel: 1 x Mini Stereo Jack Female (Black)
(NOTE 1)

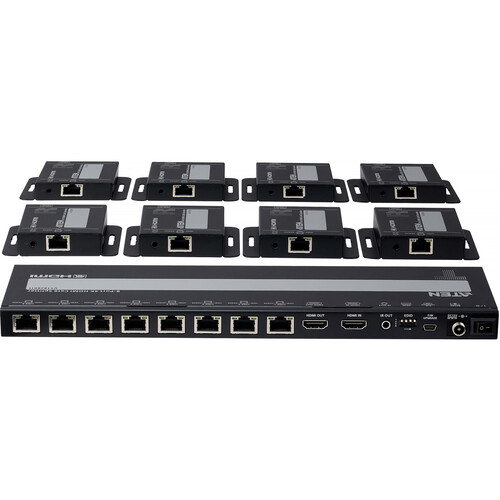

Connectors
Unit To Unit: 1 x RJ-45 Female
Power: 1 x RJ-45 Female
(Power over Cable, power supply from VS1828T)
Maintenance: N/A

Switches
Mode Switch: N/A
Power: N/A
Power Consumption: 19.2WBTU/h
Note:
– The measurement in Watts indicates the typical power consumption of the device with no external loading.
– The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature: 0 – 40°C
Storage Temperature: -20 – 60°C
Humidity: 20 – 90% RH, Non-Condensing

Physical Properties
Housing: Metal
Weight: 0.12 kg ( 0.28 lb )
Dimensions (L x W x H) with bracket: 7.95 x 6.80 x 1.65 cm
(3.13 x 2.68 x 0.65 in.)
Dimensions (L x W x H) without bracket: 5.75 x 6.80 x 1.65 cm
(2.26 x 2.68 x 0.65 in.)
Note NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter.
NOTE 2: The maximum power consumption assumes that all receivers in the package are installed.
Input Resolutions: 640×480 @ 60/67/72/75 Hz
720×400 @ 70 Hz
1024×768 @ 60/70/75 Hz
1280×800 @ 60 Hz
1280×1024 @ 60/75 Hz
1400×1050 @ 60 Hz
1440×900 @ 60 Hz
1600×1200 @ 60 Hz
1680×1050 @ 60 Hz
1920×1080 @ 60 Hz
1920×1200@ 60 Hz
Function: VS1828T

Video Input
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Ω
Max. Distance: 3 m

Video Output
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Ω
Max. Distance: 3 m

Video
Max. Data Rate: 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock: 340 MHz
Compliance: HDMI (3D, Deep Color, 4K)
HDCP1.4 Compatible
Max. Resolutions / Distance: Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910) , 1080p@35m (Cat5e), 50m (Cat 6/2L-2910)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio
Input: 1 x HDMI Type A Female (Black)
Output: 1 x HDMI Type A Female (Black)

Control
IR Channel: 1 x Mini Stereo Jack Female (Black)
(NOTE 1)

Connectors
Unit To Unit: 8x RJ-45 Female
Power: 1 x DC Jack (Black) with locking
Maintenance: Micro USB for F/W upgrade

Switches
Mode Switch: EDID Mode Selection
Power: Power ON/OFF
Power Consumption: 19.2WBTU/h
Note:
– The measurement in Watts indicates the typical power consumption of the device with no external loading.
– The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental
Operating Temperature: 0 – 40°C
Storage Temperature: -20 – 60°C
Humidity: 20 – 90% RH, Non-Condensing

Physical Properties
Housing: Metal
Weight: 0.56 kg ( 1.24 lb )
Dimensions (L x W x H) with bracket: N/A (Housing comes without bracket)
Dimensions (L x W x H) without bracket: 29.50 x 8.20 x 1.80 cm
(11.61 x 3.23 x 0.71 in.)
Note NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter.
NOTE 2: The maximum power consumption assumes that all receivers in the package are installed.
Input Resolutions: 1080p 60 Hz
480p 60 Hz (4:3)/(16:9)
720p 60 Hz
1080i 60 Hz
640×480 60Hz (4:3)
576p 50 Hz (4:3)/(16:9)
720p 50 Hz
1080i 50 Hz
1080p 24/25/30/50 Hz
3840x2160p 24/25/30 Hz
4096x2160p 24/25/30 Hz
