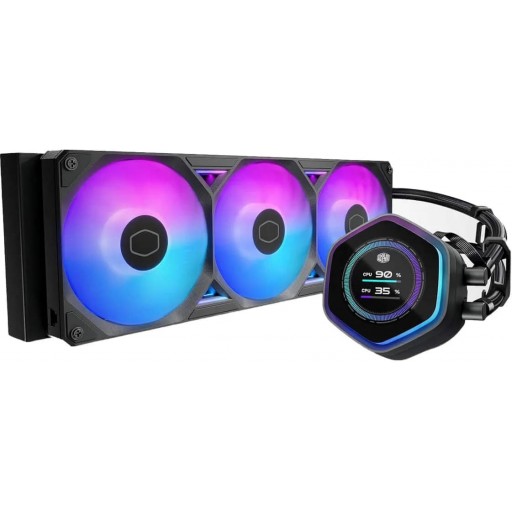

Cooler Master MasterLiquid Atmos II LCD 360mm Black All-In-One Liquid CPU Cooler

Description

FEATURES
MasterLiquid Atmos II LCD Fan Series
SickleFlow Edge ARGB PWM Fans
360mm Radiator
Aluminium Radiator

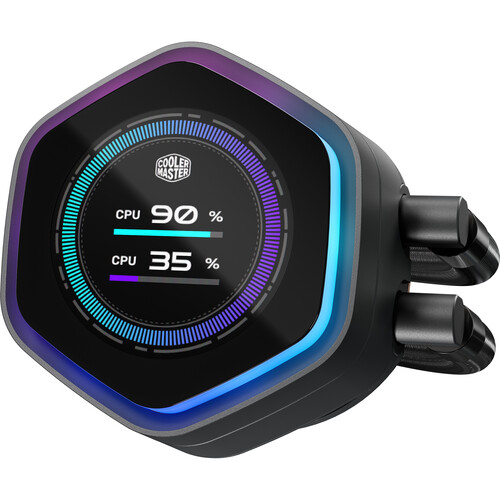

2.1″ LCD Panel for Enhanced Personalization
Ultra-low Profile Pump Design​
Quick & Easy Installation
Intel: LGA 1851, 1700, 1200, 1150, 1151, 1155, 1156
AMD: AM5, AM4

TECHNICAL SPECIFICATIONS

Brand: Cooler Master
Series: MasterLiquid Atmos II LCD Fan
Model: MLX-D36M-A25SZ-L1
Compatibility: Intel LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
AMD AM5 / AM4
Radiator Size: 360mm
Radiator Dimension: 394mm x 119.2mm x 27mm
Radiator Material: Aluminium
Tube Length: 400mm

Pump Specifications
Pump Dimensions: 92.5mm x 87mm x 38.5mm
Pump Power Consumption: 3.84 W
Pump Rated Voltage: 12 VDC
Pump Speed: 3400 ± 300 RPM
Pump Connector: 3-Pin ARGB + 4-Pin PWM
Pump Life Expectancy: >210,000 Hours
Pump Noise Level: 25 dBA (Max)

Fan Specifications
Fan Dimensions: 361mm x 122mm x 26.5mm
Included Fans: 1x 120mm Gen2 ARGB Fans
Fan Speed: 690 ~ 2500 RPM
Max Air Flow: 190 CFM
Max Static Pressure: 3.61 mmH2O
Noise: 38.5 dB(A)
Connector: 7-Pin PWM + ARGB
Fan MTTF: >160,000 Hours

LCD Specifications
LCD Exterior Color: Black
LCD Dimensions: 85mm x 79.2mm x 18.7mm
LCD Connector: USB Type-C to Motherboard 9 pin
LCD Screen Size: 2.1 inches / Diameter 53.3 mm
LCD Screen Resolution: 480 x 480 px
LCD Screen Luminance: 300 cd/m²
LCD Screen Refresh Rate: 60 Hz
LCD Screen Orientation: Software-MasterCtrl adjustable
LCD Rated Voltage: 5 VDC
LCD Rated Current: 0.3 A
LCD Safety Current: 0.5 A
LCD Power Consumption: 1.5 W
