Name: Corsair FRAME 4000D WOOD RS Tempered Glass White Oak Steel E-ATX Mid Tower Desktop Chassis - Zaps Online
Brand: Corsair
SKU: CC-9011341-WW
Price: 2520 ZAR
Availability: InStock

Corsair FRAME 4000D WOOD RS Tempered Glass White Oak Steel E-ATX Mid Tower Desktop Chassis

R2520

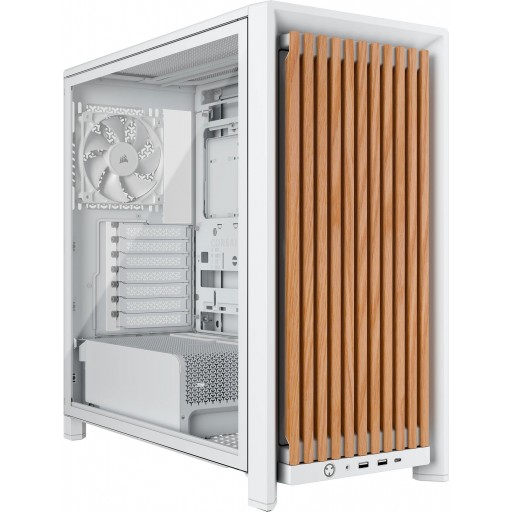

The Corsair FRAME 4000D Wood RS is a premium modular mid-tower PC case engineered for airflow-focused builds and advanced customization. Featuring a real oak-accented front panel, four pre-installed RS120 PWM fans, support for multiple 360mm radiators, and compatibility with large GPUs and eATX motherboards, it is designed to simplify high-end PC building. The spacious interior, integrated GPU anti-sag arm, and advanced cable routing system help create a cleaner and more efficient setup for gamers, creators, and enthusiasts.

In stock

Description

FEATURES

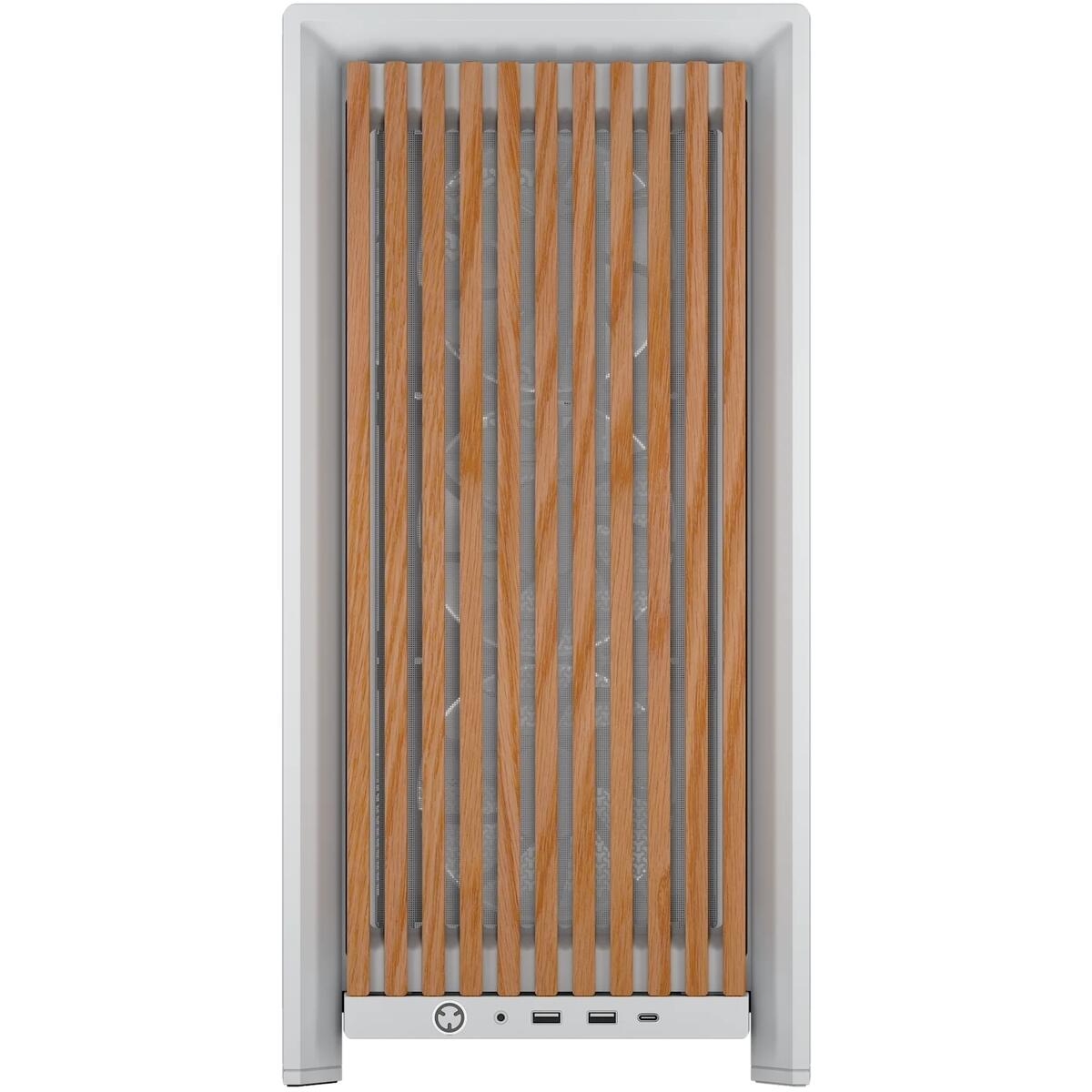

Real Wood (Oak) Front Panel
Mid-Tower E-ATX Form Factor
Steel, Solid Wood, Tempered Glass & Plastic Construction
Supports E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards
Supports Reverse Hidden Connector Motherboards
4x Pre-Installed Corsair RS120 Daisy-Chain PWM Fans
Corsair InfiniRail Adjustable Fan Mounting System
1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A
1x 3.5mm Audio Jack
7x Horizontal or 3x Vertical PCI-E Slots
Drive Bays: 1x 3.5″ Internal, 2x 2.5″ Internal
Supports Up to 13x 120mm or 7x 140mm Fans
Supports 2x 200mm Front Fans
Supports Up to 360mm Radiators (Top, Front, Side)
Built-in GPU Anti-Sag Stabilization Arm
GPU Clearance: Up to 430mm
CPU Cooler Clearance: Up to 170mm
PSU Clearance: Up to 220mm

TECHNICAL SPECIFICATIONS

Brand: Corsair
Series: FRAME 4000D WOOD RS
Model: CC-9011340-WW
Colour: White/Oak
Case Size: Mid-Tower
Materials: Steel, Solid Wood, Tempered Glass, Plastic
Left Side Panel: Tempered Glass
Right Side Panel: Steel

Physical Details
Dimensions: 486mm (H) x 490mm (L) x 239mm (W)
Weight: 11.82kg
Motherboard Support: Mini-ITX
MicroATX
ATX
E-ATX (up to 305mm x 277mm)
Expansion Slots: 7x Horizontal
3x Vertical
Drive Bays: 1x Internal 3.5″
2x Internal 2.5″
PSU Support: ATX

Clearance
CPU Cooler Height: Up to 170mm
PSU Length: Up to 220mm
GPU Length: Up to 430mm
Cable Routing Space: 37mm

Front I/O
USB Ports: 1x USB 3.2 Gen 2×2 Type-C
2x USB 3.2 Gen 1 Type-A
Audio: 1x Audio In/Out
Front I/O Motherboard Connections: 1x USB 3.2 Gen 2×2 Type-E
1x USB 3.2 Gen 1 20-Pin
1x HD Audio
1x F_PANEL

Pre-Installed Fans
Included Fans: 4x RS120 PWM (RS Series)

Fan Support
Top: 3x 120mm, 2x 140mm
Front: 3x 120mm, 2x 140mm, 2x 200mm
Bottom: 3x 120mm
Side: 3x 120mm, 2x 140mm
Rear: 1x 120mm, 1x 140mm

Radiator Support
Radiator Compatibility: 120mm, 140mm, 240mm, 280mm, 360mm
Top: 360mm, 280mm, 240mm
Front: 360mm, 280mm, 240mm
Bottom: None
Side: 360mm, 280mm, 240mm
Rear: 140mm, 120mm
Compatible Liquid Coolers: H60, H100, H115, H150, NAUTILUS, TITAN

Features
Front Panel: Real Wood (Oak)
Fan Mounting System: Corsair InfiniRail (Adjustable up to 200mm Front, 140mm Roof)
GPU Anti-Sag: GPU Anti-Sag Stabilization Arm Included
Cable Shroud: Yes
Dust Filtration: Yes
Reverse Connector Motherboard Support: Yes
Vertical GPU Mount Support: Supported (Riser Card Sold Separately)
