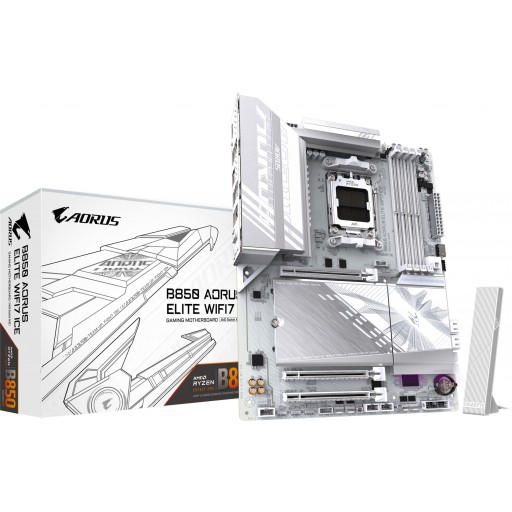

Gigabyte B850 AORUS ELITE WIFI7 ICE AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

Description

FEATURES
ATX Form Factor
AMD B850 Chipset
AMD Socket AM5
4x DDR5 DIMM Slots, Supports Up to 256GB
Supports DDR5 Up To 8200MHz (O.C)
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x1 Mode)
3x PCIe M.2 Slots, 4x SATA 3 6Gb/s Ports
1 x Q-Flash Plus button
1x DisplayPort, 2x antenna connectors (2T2R)
1x USB 3.2 Gen2 Type-C Port
5x USB 3.2 Gen 1 Type-A Ports, 4x USB 2.0 Type-A Ports, 2x USB 3.2 Gen1 Type-A Ports
1x RJ-45 port, 1x Optical S/PDIF Out Connector, 2x Audio Jacks
Twin Digital 14+2+2 Phase VRM Design
AMD EXPO Memory Module Support
X3D Turbo Mode
Advanced Full-Metal Thermal Design
Realtek 2.5GbE LAN Chip
Realtek Wi-Fi 7 RTL8922AE Tri-Band Wi-Fi 7 (PCB rev. 1.0)
Bluetooth v5.4
Realtek Audio Codec
Gigabyte Ultra-Durable Design

TECHNICAL SPECIFICATIONS

Brand: Gigabyte
Series: Gaming Motherboards
Model: B850 A ELITE WF7 ICE (B850-AORUS-ELITE-WIFI7-ICE)
CPU: AMD Socket AM5
AMD Ryzen 9000 Series Processors
AMD Ryzen 8000 Series Processors
AMD Ryzen 7000 Series Processors
Chipset: AMD B850
Memory: DDR5 8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C), 7400(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C), 6200(O.C), 6000(O.C), 5800(O.C), 5600(O.C), 5200, 4800, 4400 MT/s
4 x DDR5 DIMM sockets
Up to 256 GB system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO)
Support for Extreme Memory Profile (XMP) memory modules
The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to “Memory Support List” on GIGABYTE’s website for more information.
Onboard Graphics: Integrated Graphics Processor with AMD Radeon Graphics
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
Supports DisplayPort 1.4 version and HDR.
1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
Supports HDMI 1.4 version.
Graphics specifications may vary depending on CPU support.
Audio: Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Realtek Wi-Fi 7 RTL8922AE
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard
Wi-Fi 7 features require Windows 11 SV3 to function properly (no driver support for Windows 10).
Wi-Fi 7 channels on the 6 GHz band availability depends on individual country’s regulations.
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
The PCIEX16 slot can only support a graphics card or an NVMe SSD.
If only one graphics card is to be installed, install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage Interface: 1 x M.2 connector (M2A_CPU), integrated in the CPU
Supports Socket 3, M key, type 25110/22110/2580/2280 SSDs
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU
Supports Socket 3, M key, type 25110/22110/2580/2280 SSDs
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Storage Interface: 1 x M.2 connector (M2C_SB), integrated in the Chipset
Supports Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset: USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Actual support may vary by CPU.)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

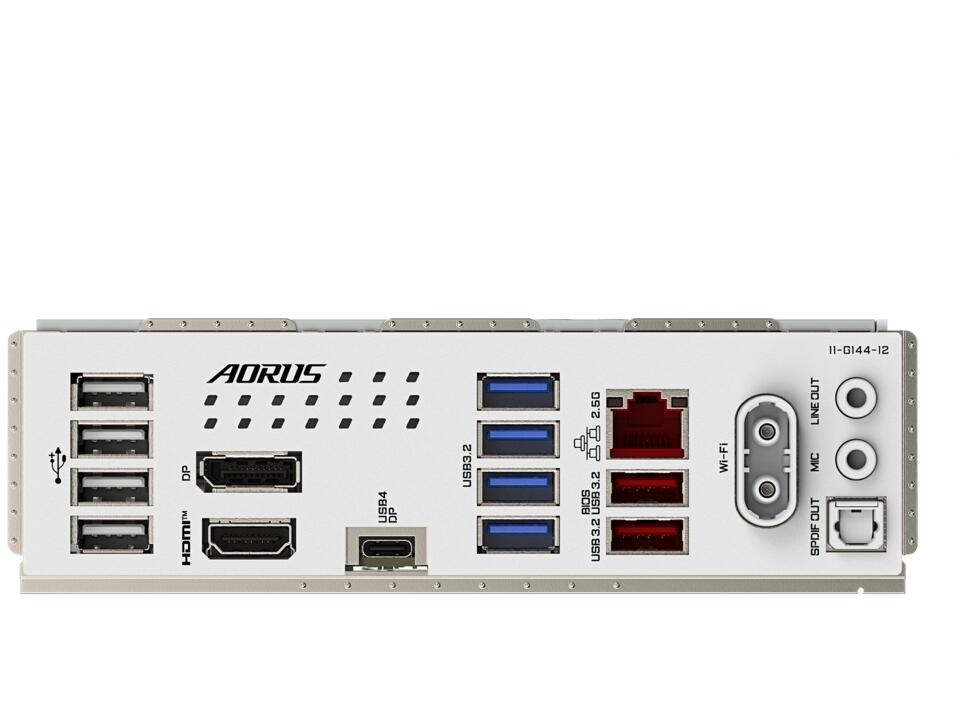

Back Panel Connectors: 1 x DisplayPort (Actual support may vary by CPU.)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
I/O Controller: iTE I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS: 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software: Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System: Support for Windows 11 64-bit
Form Factor: ATX Form Factor, 30.5cm x 24.4cm
