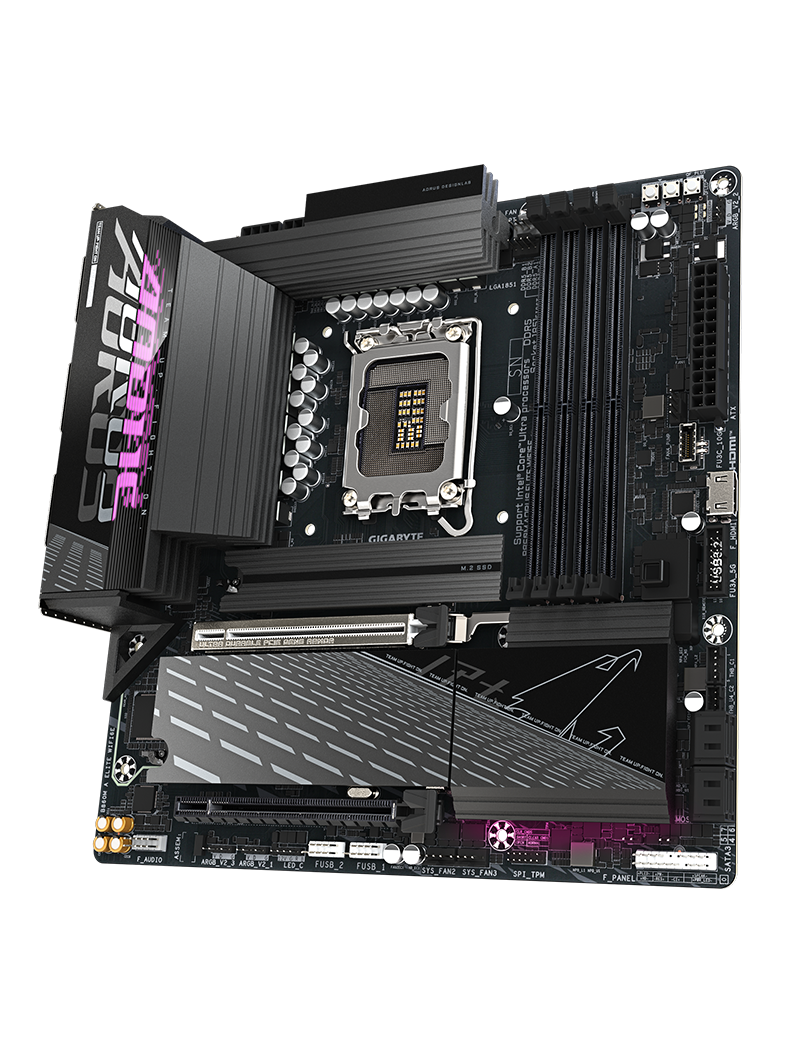

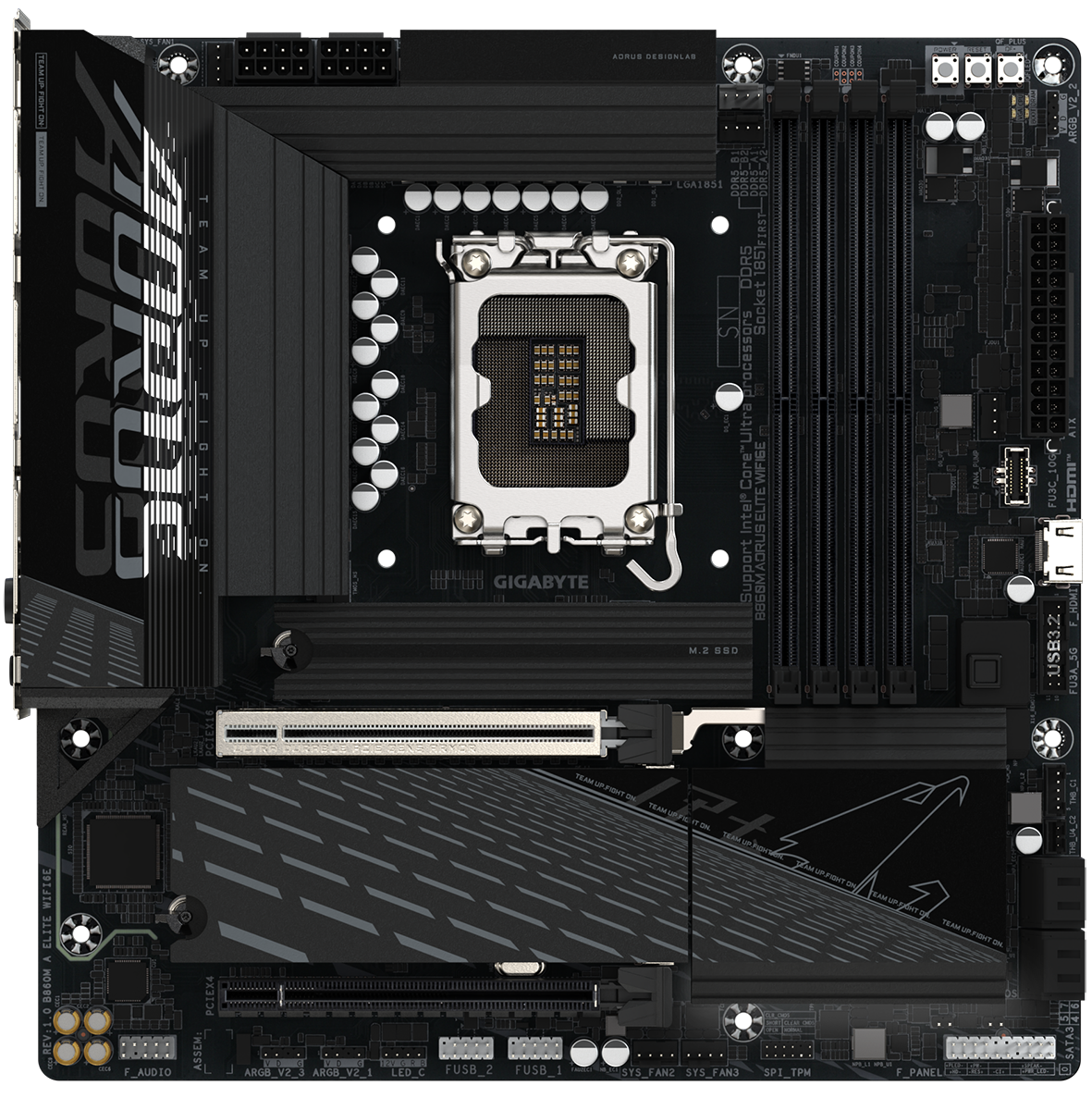

Gigabyte B860M AORUS ELITE WIFI6E Intel B860 LGA 1851 Arrow Lake Micro-ATX Desktop Motherboard
R4290
Elevate your compact PC build with the Gigabyte B860M AORUS ELITE WIFI6E, engineered for the latest Intel® Core™ Ultra Series (Series 2) processors on the new LGA 1851 socket. This Micro-ATX motherboard combines cutting-edge performance with advanced connectivity, featuring DDR5 memory support, PCIe 5.0 expansion, and dual M.2 slots for ultra-fast storage solutions.
In stock
Description
FEATURES
Micro-ATX Form Factor
Intel B860 Chipset, Socket LGA 1851
Supports Intel Core Ultra Series 2 Processors
4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
Supports Up to DDR5-9200 (OC)
Supports CUDIMM DDR5 Modules
Supports Intel XMP 3.0 Memory Modules
1x PCIe 5.0 x16 Slot (x16 Physical)
1x PCIe 4.0 x4 Slot (x16 Physical)
1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
1x M.2 2580/2280 PCIe 4.0 x4 NVMe SSD Slot
1x M.2 25110/2580 PCIe 4.0 x4 NVMe SSD Slots
4x SATA 3.0 Ports
Supports Front-Panel USB 10Gbps Type-C Port
1x USB 40Gbps Type-C Port with DisplayPort Alt Mode
2x USB 10Gbps Type-A Ports
4x USB 5Gbps Type-A Ports
4x USB 2.0 Type-A Ports
1x HDMI 2.1 (TMDS), 1x DisplayPort 2.1 Port
2x 3.5mm Audio Jacks, 1x Optical S/PDIF Audio Port
2x Antenna Connectors
Realtek 2.5 Gigabit Ethernet RJ-45 LAN
WiFi 6E Tri-Band Adapter, Bluetooth 5.3
Realtek High Definition Audio CODEC
12+1+2 Twin Hybrid VRM Solution
Gigabyte PCIe EZ-Latch Plus
Gigabyte Q-Flash Plus BIOS Button
ASUS Q-LED Diagnostic LEDs
Gigabyte RGB Fusion
Gigabyte Control Center App
Supports Windows 11 64-Bit
TECHNICAL SPECIFICATIONS
Brand: Gigabyte
Series: AORUS ELITE Series
Model: B860M AORUS ELITE WIFI6E (GA-B860M-A-ELITE-WIFI6E)
CPU Support: Intel Socket LGA 1851 for Core Ultra Series Processors (Series 2)
Chipset: Intel B860 Express
Memory Support
Intel Core Ultra Series Processors (Series 2): Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Video
HDMI: 1x HDMI 2.1 TMDS port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3, and HDR
1x HDMI 1.4 TMDS port, supporting a maximum resolution of Full HD 1080P @ 30Hz (Internal connector)
DisplayPort: 1x DisplayPort 2.1 port, supporting a maximum resolution of 8K @ 30Hz, Support for HDCP 2.3, and HDR
1x USB 4 40Gbps Type-C with DisplayPort Alt Mode, supporting a maximum resolution of 8K @ 30Hz, Support for HDCP 2.3, and HDR
Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct: 1x PCIe 5.0 x16 Physical, x16 Electrical slot
Intel B860 Chipset: 1x PCIe 4.0 x16 Physical, x4 Electrical slot
Storage
CPU Direct: 1x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Intel B860 Chipset: 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB)
4x SATA 6Gb/s ports
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Networking
LAN: Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps
WiFi: WiFi 6E 2×2 MIMO Tri-Band Adapter
Bluetooth: Bluetooth 5.3
Audio
Codec: Realtek 7.1 Surround Sound CODEC
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, Impedence sense for front-panel headphones

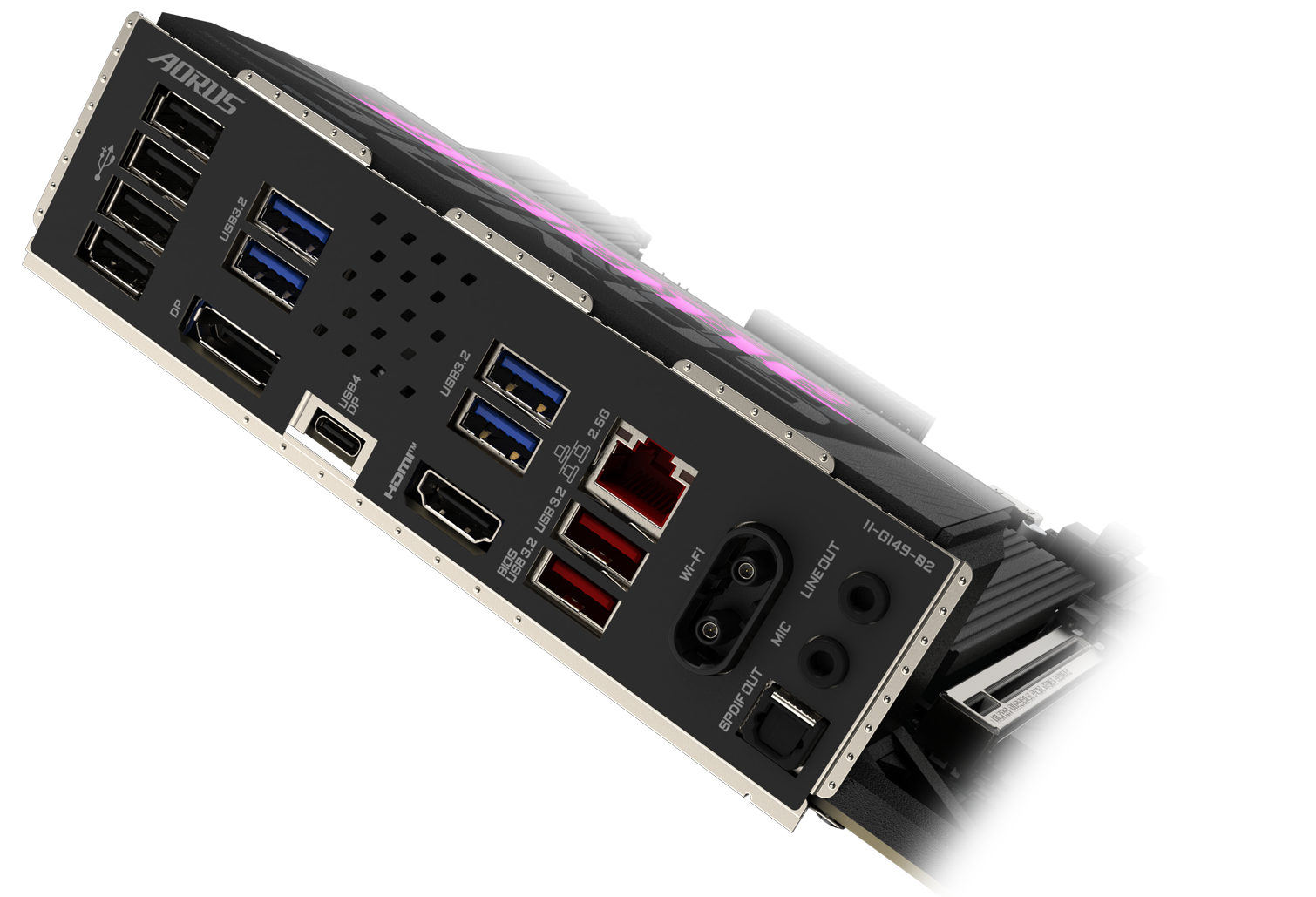

Connectivity
Ports: 1x USB 40Gbps Type-C Port with DisplayPort Alt Mode
2x USB 10Gbps Type-A Ports
4x USB 5Gbps Type-A Ports
4x USB 2.0 Type-A Ports
1x HDMI 2.1 (TMDS)
1x DisplayPort 2.1 Port
2x 3.5mm Audio Jacks
1x Optical S/PDIF Audio Port
2x Antenna Connectors
1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN
General
Internal Connectors: 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x CPU fan header
1x CPU fan/water cooling pump header
3x system fan headers
1x system fan/water cooling pump header
3x addressable RGB Gen2 LED strip headers
1x RGB LED strip header
3x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C header, with USB 3.2 Gen 2 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
2x Thunderbolt add-in card connectors
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1x HDMI port*
1x power button
1x reset button
1x Q-Flash Plus button
1x reset jumper
1x Clear CMOS jumper
Buttons: 1x Q-Flash Plus Button
LED Displays: Gigabyte EZ-Debug Diagnostic LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
BIOS: 256Mb Flash ROM, UEFI AMI BIOS
Remote Management: WOL by PME, PXE
Form Factor: Micro-ATX Form Factor, 244 x 244 mm (H x W)
Operating System Support: Windows 11 64-bit

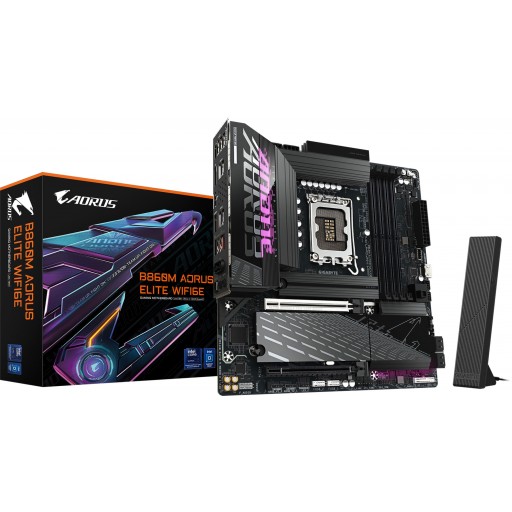

Box Contents: User’s Manual
Quick Installation Guide
One antenna MN
Two SATA cables
One G Connector
Three packs of M.2 thick/thin rubber pads
Additional information
| Weight | 1,7 kg |
|---|---|
| Dimensions | 27,4 × 27 × 7,1 cm |
| Condition | |
| CPU Socket | LGA 1851 |
| CPU Manufacturer | Intel |
| Motherboard Chipset | Intel B860 |
| Form Factor | Micro ATX |
