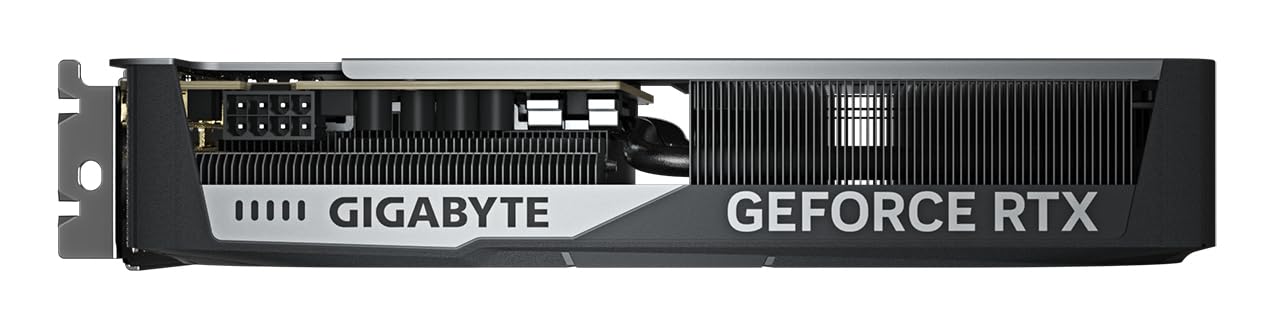

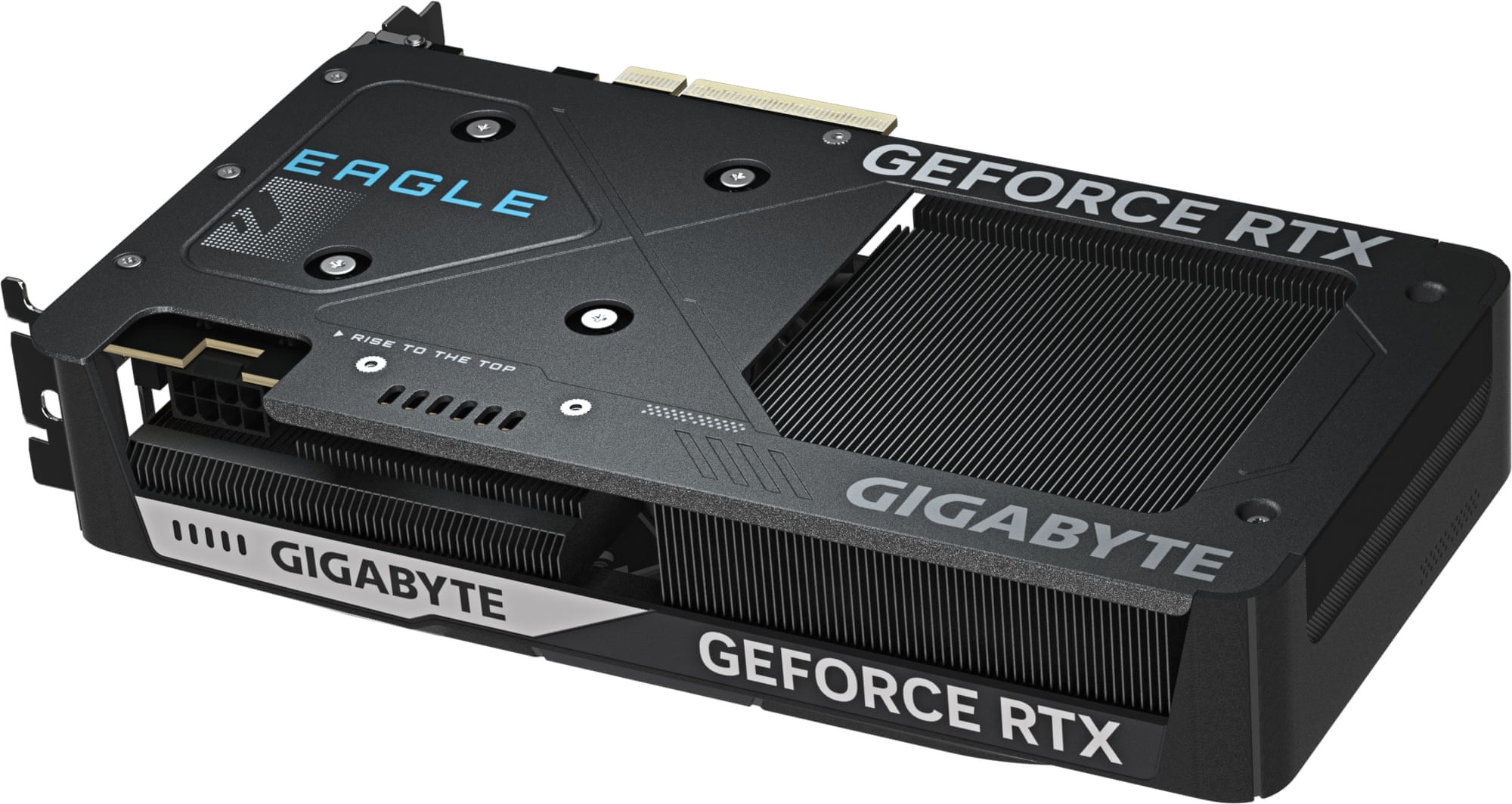

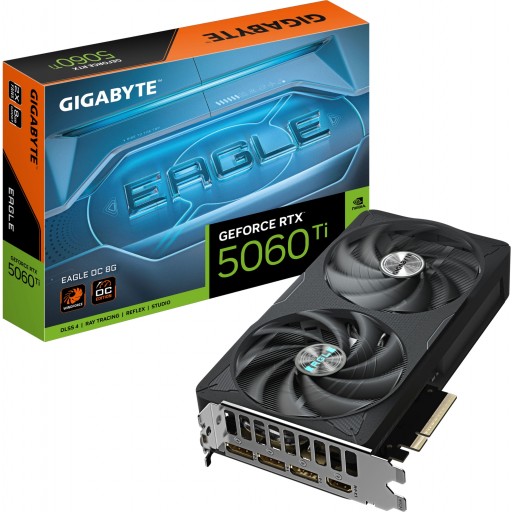

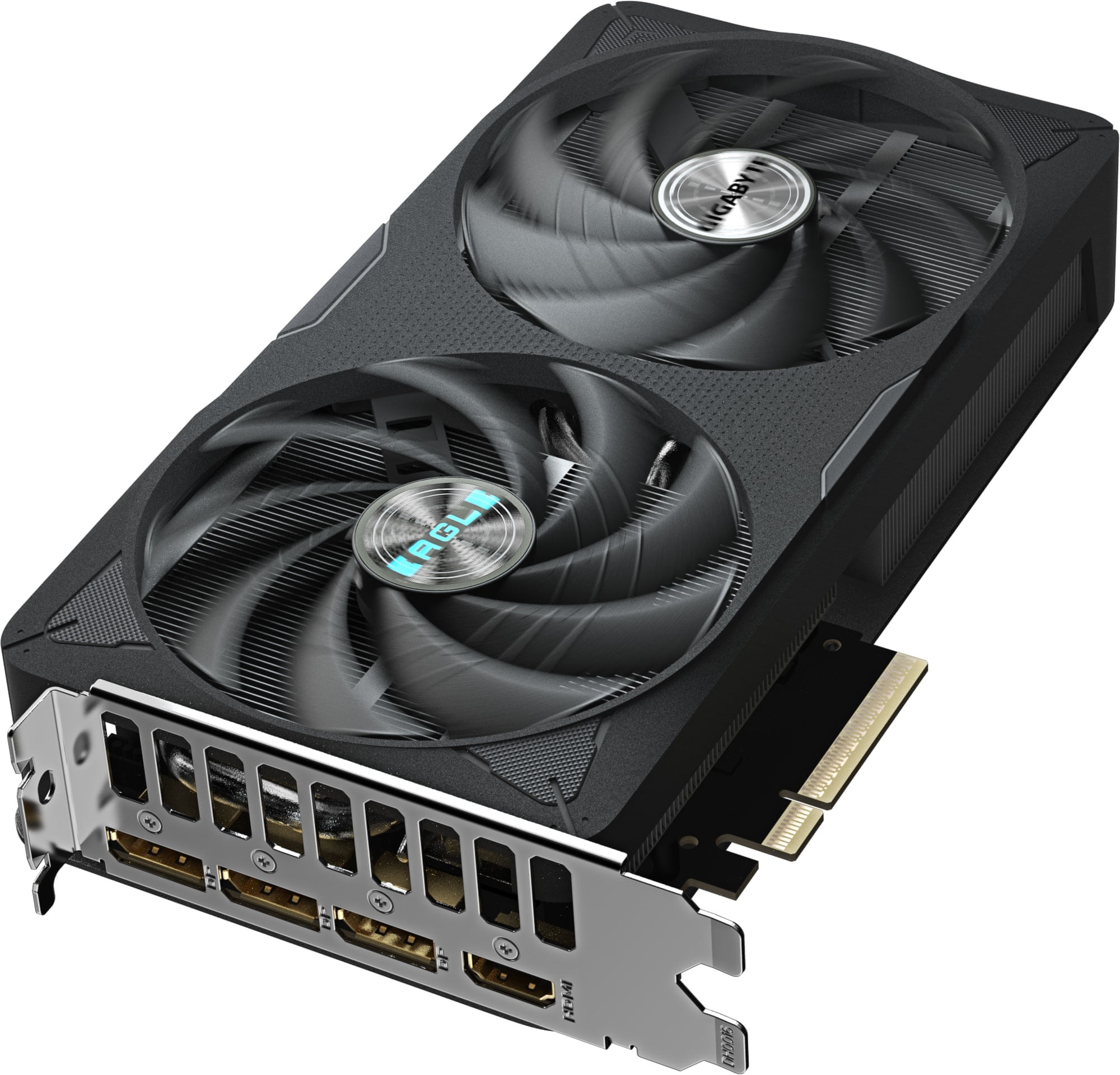

Gigabyte GeForce RTX 5060 Ti EAGLE OC 8G 8GB GDDR7 128-bit PCIe 5.0 Desktop Graphics Card
R9550
Unlock unparalleled gaming prowess with GIGABYTE’s NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
In stock
Description
FEATURES
Base Clock: 2410 MHz
Boost Clock: Up to 2617 MHz
CUDA Cores: 4608 Cores
4th Gen Ray Tracing Cores
5th Gen Tensor Cores
NVIDIA Blackwell Architecture
NVIDIA RTX Real-Time Ray Tracing Technology
NVIDIA Optical Flow Accelerator Technology
NVIDIA DLSS 4.0 AI Upscaling Technology
NVIDIA Reflex 2.0 & Frame Warp Technology
NVIDIA G-Sync Ultimate VRR Technology
NVIDIA GeForce Game Ready & Studio Drivers
AV1 Decode / Encode Engines
Video Memory: 16GB GDDR7
Memory Clock: 28Gbps
Memory Bus Width: 128-bit

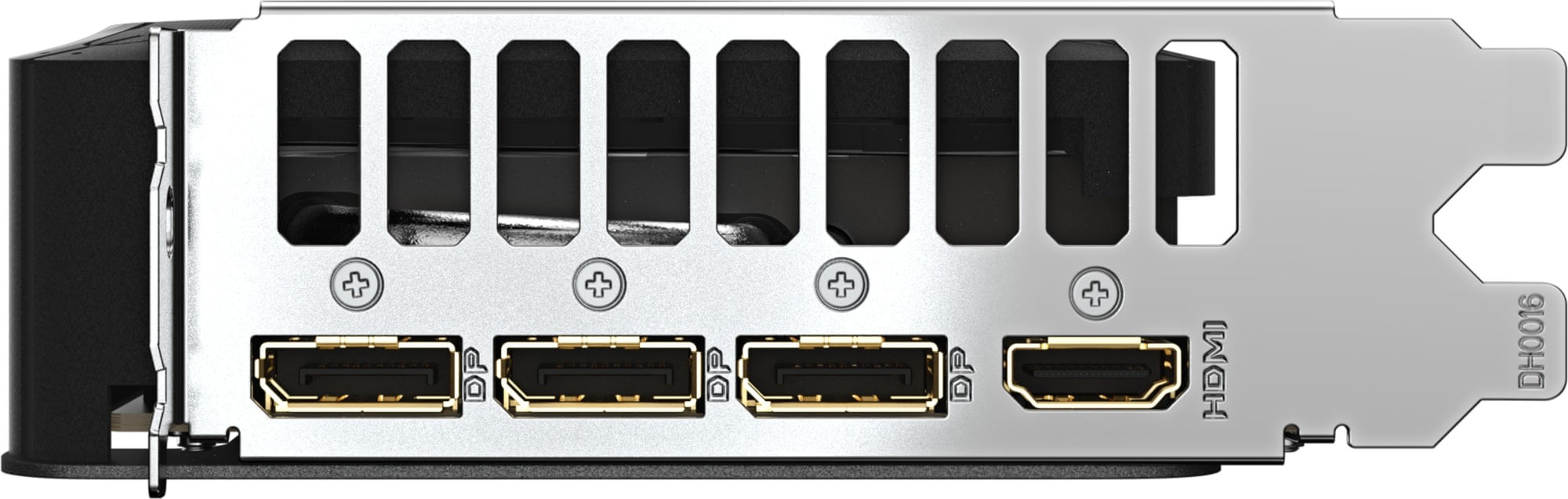

3x DisplayPort 2.1a, 1x HDMI 2.1b Ports
Multi-Display Capability: 4x Displays
Server-Grade Thermal Conductive Gels
Gigabyte WINDFORCE 2X Cooling System with Hawk Fans
Gigabyte Control Center Software
Gigabyte AI TOP Utility
Supports Windows 11, Linux
TECHNICAL SPECIFICATIONS
Brand: Gigabyte
Series: EAGLE Series
Model: GeForce RTX 5060 Ti EAGLE OC 8G (GV-N506TEAGLE OC-8GD)
Chipset
GPU: GeForce RTX 5060 Ti
Chipset Manufacturer: NVIDIA
Interface: PCIe 5.0 x8
Base Clock: 2410 MHz
Boost Clock: Up to 2617 MHz
CUDA Cores: 4608 Cores
GPU Architecture: NVIDIA Blackwell
Memory
Effective Memory Clock: 28Gbps
Memory Size: 16GB
Memory Interface: 128-bit
Memory Type: GDDR7
3D API
DirectX: Microsoft DirectX 12.1 Ultimate
OpenGL: OpenGL 4.6
Vulkan: Vulkan 1.4 API
Connectivity
Ports: 1x HDMI 2.1b
3x DisplayPort 2.1a
HDCP Support: Yes, 2.3
Multi-Monitor Support: Up to 4x simultaneous
Maximum Digital Resolution: 7680 x 4320
VR Ready: Yes
General
SLI Support: N/A
Features: Gigabyte WINDFORCE 2X Cooling System with 100mm Hawk Fans
Gigabyte AI TOP Utility
Server-Grade Thermal Conductive Gels & Composite Metal Grease
Gigabyte Control Center
NVIDIA Optical Flow Accelerator Technology
4th Gen Ray Tracing Cores
5th Gen Tensor Cores
PCI Express Gen 5
Real-Time Ray Tracing Technology
NVIDIA DLSS 4.0 with Frame Generation and Frame Warp
NVIDIA GeForce Game Ready & Studio Drivers
NVIDIA G-Sync Premium
NVIDIA Reflex 2
NVIDIA Broadcast
NVIDIA AV1 Encoder
NVIDIA Omniverse 3D Design
NVIDIA Canvas
NVIDIA GPU Boost
NVIDIA Encoder, 9th Generation
NVIDIA Decoder, 6th Generation
Power Requirements
Recommended Power Supply: 650W
Power Connector: 1x 8-pin PCI PEG Connector
Physical Aspects
Form Factor: ATX
Slot Width: 2 Slot
Dimensions: 215 x 122 x 40mm (L x W x H)
RGB: N/A
Boxed Accessories: Quick guide
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 12,2 × 21,5 × 4 cm |
| Condition | |
| GPU Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU Memory Size | 8 GB |
