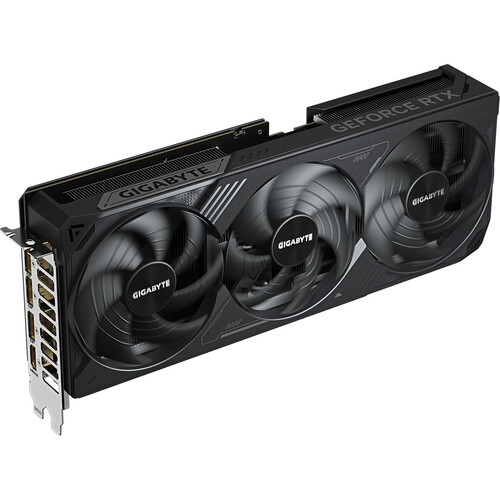

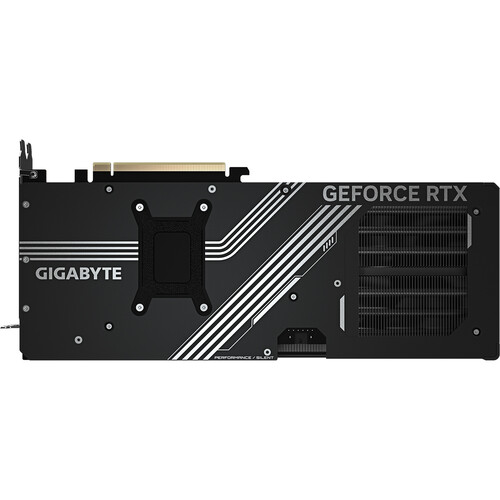

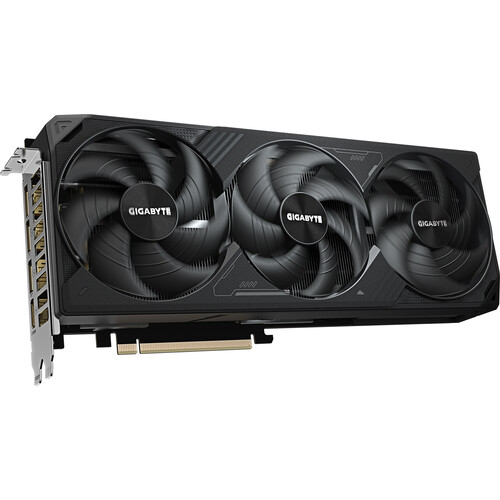

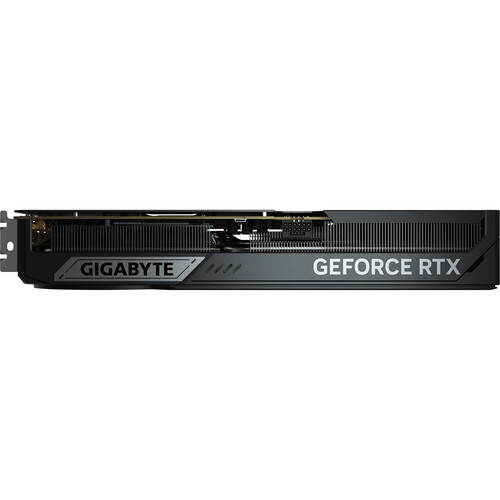

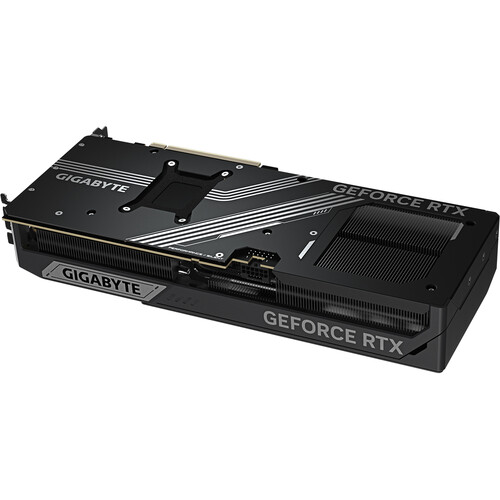

Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12G 12GB GDDR7 192-bit PCIe 5.0 Desktop Graphics Card

Description

FEATURES
Boost Clock: Up to 2542 MHz
CUDA Cores: 6144 Cores
4th Gen Ray Tracing Cores
5th Gen Tensor Cores
NVIDIA Blackwell Architecture
NVIDIA RTX Real-Time Ray Tracing Technology
NVIDIA Optical Flow Accelerator Technology
NVIDIA DLSS 4.0 AI Upscaling Technology
NVIDIA Reflex 2.0 & Frame Warp Technology
NVIDIA G-Sync Ultimate VRR Technology
NVIDIA GeForce Game Ready & Studio Drivers
AV1 Decode / Encode Engines
Video Memory: 12GB GDDR7
Memory Clock: 28Gbps
Memory Bus Width: 192-bit

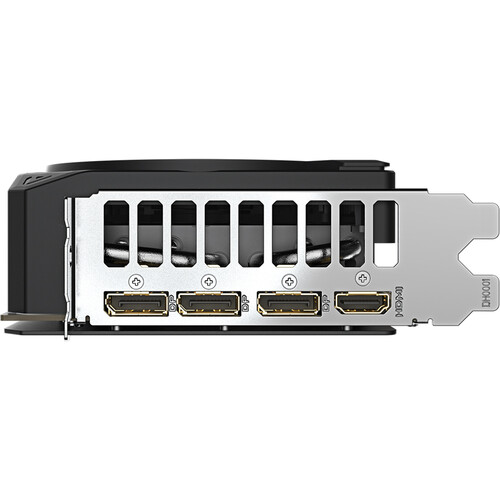

3x DisplayPort 2.1b, 1x HDMI 2.1b Ports
Multi-Display Capability: 4x Displays
Maximum Digital Resolution: Up to 7680×4320
WINDFORCE Cooling System
Hawk Fan
Server-grade Thermal Conductive Gel
NVIDIA SFF-ready

TECHNICAL SPECIFICATIONS

Brand: Gigabyte
Series: WINDFORCE OC SFF
Model: GeForce RTX 5070 WINDFORCE OC SFF 12G (GV-N5070WF3OC-12GD)

Chipset
GPU: GeForce RTX 5070
Chipset Manufacturer: NVIDIA
Interface: PCIe 5.0 x16
Core Clock: 2542 MHz
CUDA Cores: 6144
GPU Architecture: NVIDIA Blackwell

Memory
Effective Memory Clock: 28Gbps
Memory Size: 12GB
Memory Interface: 192-bit
Memory Type: GDDR7
3D API
DirectX: Microsoft DirectX 12.1 Ultimate
OpenGL: OpenGL 4.6
Vulkan: Vulkan 1.4 API

Connectivity
Ports: 3x DisplayPort 2.1b
1x HDMI 2.1b
Multi-Monitor Support: 4
Maximum Digital Resolution: 7680 x 4320
VR Ready: Yes

General
SLI Support: N/A
Features: NVIDIA Optical Flow Accelerator Technology
4th Gen Ray Tracing Cores
5th Gen Tensor Cores
PCI Express Gen 5
Real-Time Ray Tracing Technology
NVIDIA DLSS 4.0 with Frame Generation and Frame Warp
NVIDIA GeForce Game Ready & Studio Drivers
NVIDIA G-Sync Premium
NVIDIA Reflex 2
NVIDIA Broadcast
NVIDIA AV1 Encoder
NVIDIA Omniverse 3D Design
NVIDIA Canvas
NVIDIA GPU Boost
NVIDIA Encoder, 9th Generation
NVIDIA Decoder, 6th Generation
WINDFORCE Cooling System
Hawk Fan
Server-grade Thermal Conductive Gel
NVIDIA SFF-ready
Large Copper Plate
Composite Copper Heat Pipe

Power Requirements
Recommended Power Supply: 750W
Power Connector: 1x 16-Pin

Physical Aspects
Form Factor: ATX
Slot Width: 50mm
Dimensions: 282mm x 110mm x 50mm
