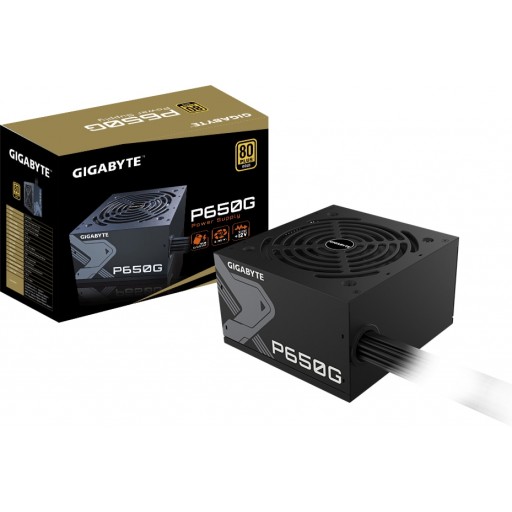

Gigabyte GP-P650G P650G 650W 80 Plus Gold Non-Modular Black Desktop Power Supply
R1060
Bring reliable power to your build with the P650G 650W 80 PLUS Gold Power Supply from Gigabyte. Boasting a 650W output via a single +12V rail, this PSU utilizes Intel ATX12V Version 2.31 standards and a flat non-modular cable design. Connect to components via four PCIe, six SATA, and three 4-pin peripheral connectors. A floppy connector is also present for legacy drives.
In stock
Description
FEATURES
650W Maximum Power
Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
80 Plus Gold Certified
Powerful Single +12V Rail
120mm Hydraulic Bearing (HYB) Cooling Fan
Complies With Intel Form Factor ATX 12V Specification
High Quality Japanese Capacitors
Non-Modular Design
OVP, OPP, SCP, UVP, OCP, OTP
Compact Design
Flat Black Cables
TECHNICAL SPECIFICATIONS
Brand: Gigabyte
Series: GP-PG Series
Model: GP-P650G
Maximum Power: 650W
80 Plus Efficiency: 80 Plus Gold
90% at typical load
Colour: Black
Fan: 120mm Hydraulic Bearing (HYB) Fan
Modular Design: Non-Modular
Connectors
24 Pin ATX: 1x ATX/MB 20+4 Pin
EPS (CPU): 2 CPU/EPS 4+4 Pin
PCIe: 4x PCI-e 6+2 Pin
SATA: 6x SATA
Four-Pin Peripheral: 3x 4 Pin Peripheral
Cable Length
ATX Cable: 1x 600mm
EPS Cable: 1x 600mm + 150mm
PCIe Cable: 2x 500mm + 150mm
SATA Cable: 2x 500mm + 150mm + 150mm
Four-Pin Peripheral Cable: 1x 500mm + 150mm + 150mm
Input
Input Voltage: 100-240 Vac(full range)
AC Input: 9A – 4A
Input Frequency Range: 60Hz – 50Hz
Output
Rail: +3.3V, +5V, +12V, -12V, +5Vsb
Max Output: 18A, 15A, 54A, 0.3A, 3A
General
MTBF: >100,000 Hours
Safety Certification: OVP, OPP, SCP, UVP, OCP, OTP
Cable Type: Flat Black Cables
Dimensions: 150mm x 140mm x 86mm
Additional information
| Weight | 2,2 kg |
|---|---|
| Dimensions | 24,5 × 20,1 × 11,7 cm |
| Condition |
