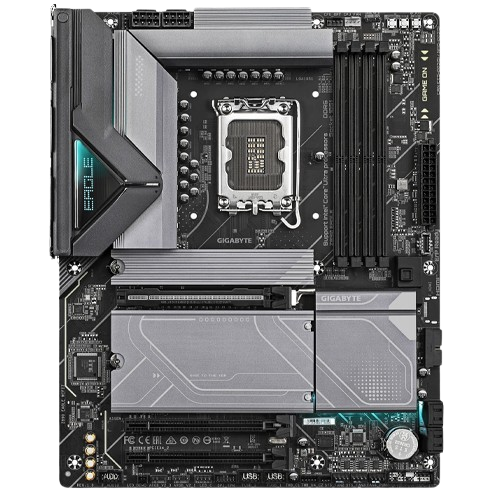

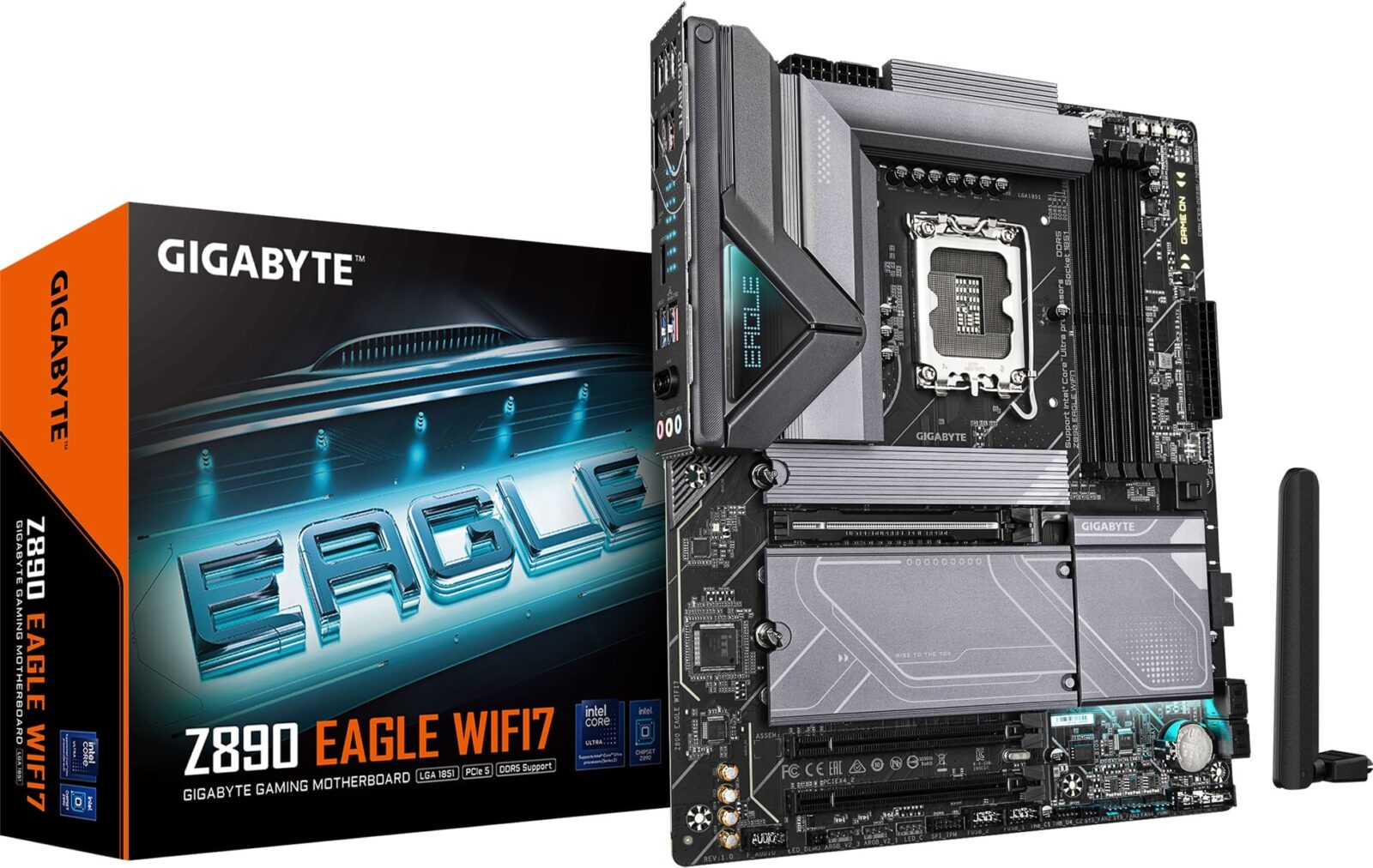

Gigabyte Z890 EAGLE Intel Z890 Arrow Lake LGA1851 ATX Desktop Motherboard

Description

FEATURES
ATX Form Factor
Intel Z890 Chipset
Intel Socket LGA1851
4x DIMM Slots, Max. 256GB, DDR5
Supports up to DDR5-8800MHz+(OC)
Supports Memory Overclocking and Intel XMP 3.0
1x PCIe 5.0 x16 Slot (supports up to x16)
2x PCIe 4.0 x16 Slots (supports up to x4)
Total Supports 4x M.2 Slots and 4x SATA 6Gb/s Ports
1x USB 4 Type-C Port (DisplayPort alt mode)
2x USB 3.2 Gen 2 Type-A ports, 3x USB 3.2 Gen 1 Type-A Ports
4x USB 2.0/1.1 ports
Realtek 2.5GbE LAN Chip
Realtek Audio Codec
Digital Twin 14+1+2 Phases VRM Solution
60A DrMOS Power Stage
D5 Bionic Corsa: for Infinite Memory Performance
VRM Thermal Armor Advanced & M.2 Thermal Guard
Gigabyte RGB FUSION
1x RGB LED Header, 3x ARGB LED Headers
AORUS AI Auto-Overclocking Software
AI Perfdrive: Optimal & Customized BIOS Preset Profiles
PCIe UD Slot X 10X Strength PCIe 5.0 x16 slot

TECHNICAL SPECIFICATIONS

Brand: Gigabyte
Series: EAGLE
Model: Z890 EAGLE
CPU: LGA1851 socket: Support for Intel Core Ultra Processors
L3 cache varies with CPU
* Please refer to “CPU Support List” for more information.
Chipset: Intel Z890 Express Chipset
Memory: Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support:
– 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 2.1 version
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 2.1 version
(Graphics specifications may vary depending on CPU support.)
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Storage Interface CPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
CPU:
– 1 x USB4 USB Type-C port on the back panel
Chipset:
– 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors: 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x CPU fan header
1x CPU fan/water cooling pump header
3x system fan headers
1x system fan/water cooling pump header
3x addressable RGB Gen2 LED strip headers
1x RGB LED strip header
4x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C header, with USB 3.2 Gen 2 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
2x Thunderbolt add-in card connectors
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1x power button
1x Q-Flash Plus button
1x reset button
1x reset jumper
1x Clear CMOS jumper

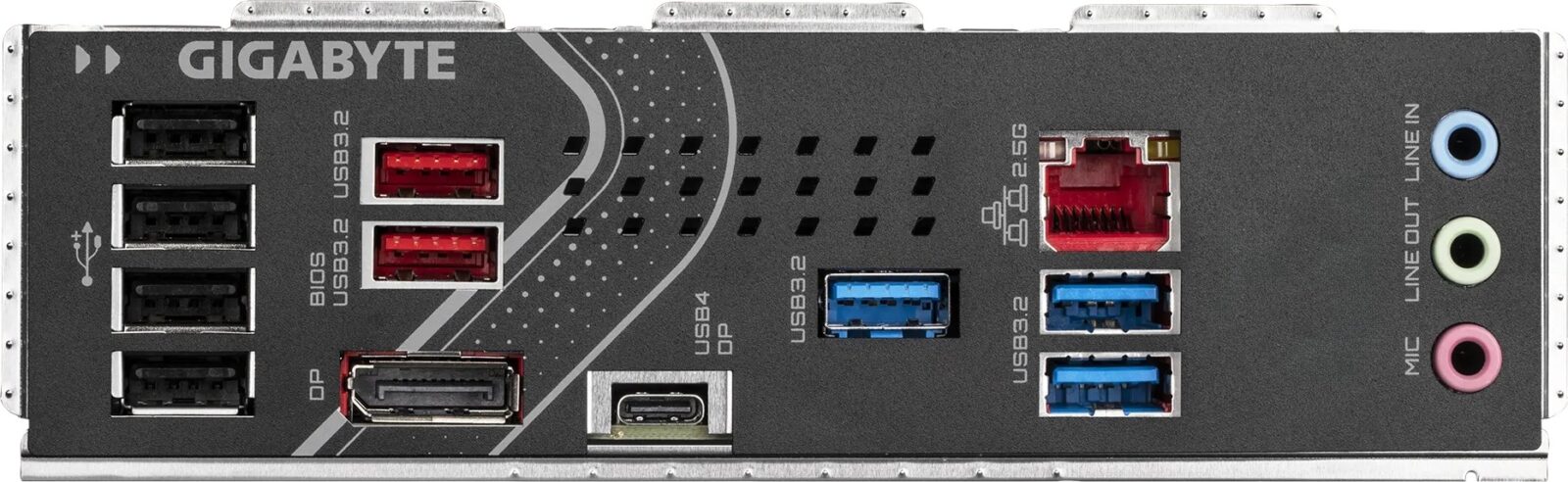

Back Panel Connectors: 1 x USB4 USB Type-C port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS: 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: ATX Form Factor
30.5cm x 24.4cm
