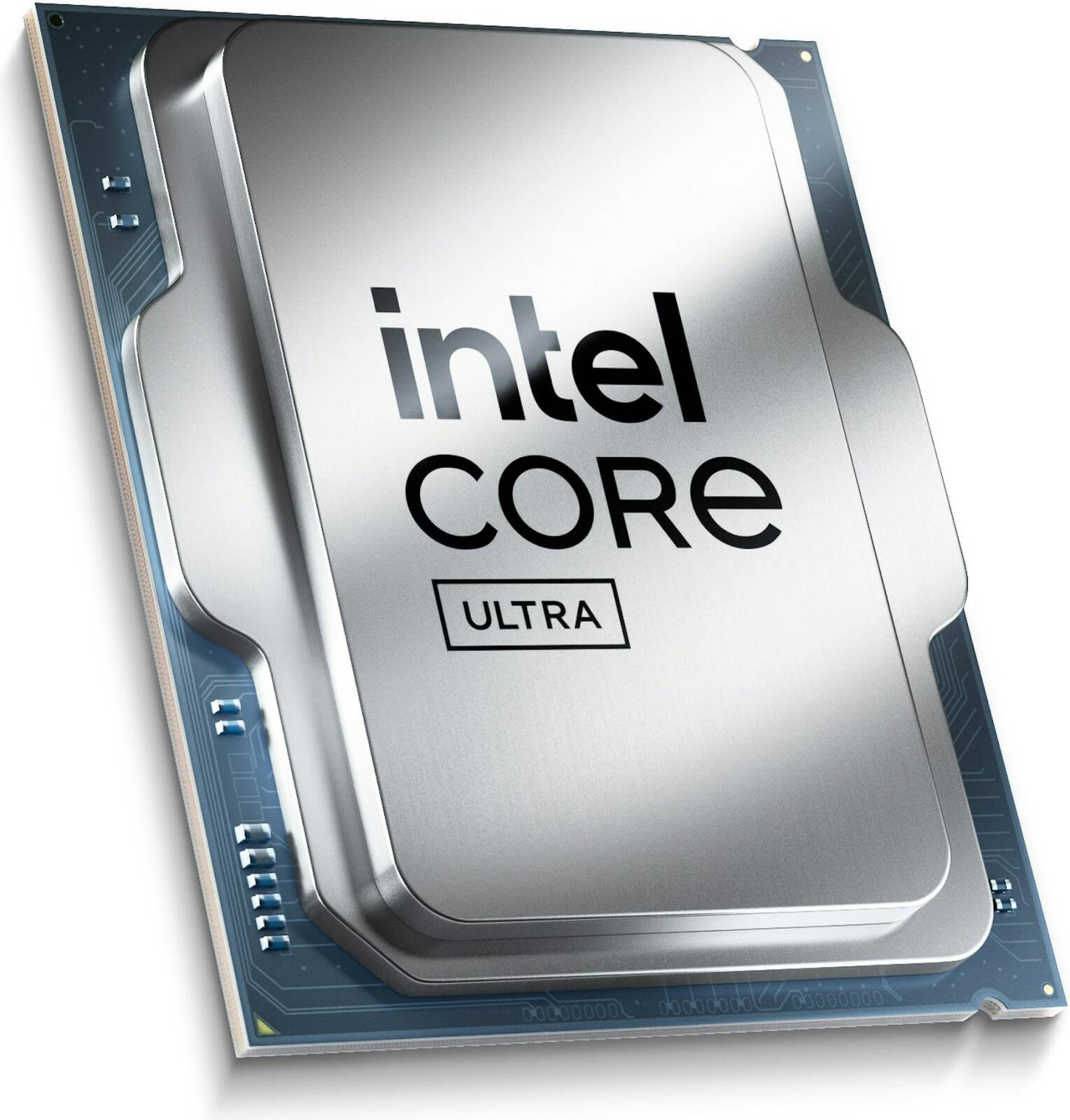

Intel Core Ultra 7 265 20-Core 5.30GHz Arrow Lake-S Socket Socket LGA1851 Desktop CPU

Description

FEATURES
Intel 15th Generation Arrow Lake-S Processor
8 P-Cores, 12 E-Cores
20 Cores, 20 Threads
30MB Intel Smart Cache
Intel Integrated Graphics
Intel AI Boost AI Accelerator NPU
Intel Turbo Boost Max Technology 3.0 Frequency: 5.3GHz
P-Core Max Turbo Clock: Up to 5.20GHz
E-Core Max Turbo Clock: Up to 4.60GHz
P-Core Base Clock: 2.4GHz
E-Core Base Clock: 1.8GHz
Socket LGA 1851 Compatible

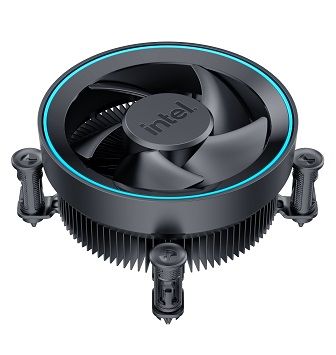

Intel Laminar Cooler RM2 Included
Base Power: 65W
Turbo Power: Up to 182W

TECHNICAL SPECIFICATIONS

Brand: Intel
Series: 15th Gen Arrow Lake S
Model: Core Ultra 7 265 (BX80768265)

CPU Specifications
Total Cores: 20
Performance-cores: 8
Efficient-cores: 12
Total Threads: 20
Max Turbo Frequency: 5.3GHz
Intel Turbo Boost Max Technology 3.0 Frequency: 5.3GHz
Performance-core Max Turbo Frequency: 5.2GHz
Efficient-core Max Turbo Frequency: 4.6GHz
Performance-core Base Frequency: 2.4GHz
Efficient-core Base Frequency: 1.8GHz
Cache: 30MB Intel Smart Cache
Total L2 Cache: 36MB
Processor Base Power: 65W
Maximum Turbo Power: 182W
Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography: TSMC N3B

Memory Specifications
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 6400 MT/s
Max # of Memory Channels: 2
ECC Memory Supported: Yes

GPU Specifications
GPU Name: Intel Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.95 GHz
GPU Peak TOPS (Int8): 8
Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Xe-cores: 4
Max Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP): 8K @ 60Hz
Max Resolution (eDP – Integrated Flat Panel): 4K @ 60Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3
Intel Quick Sync Video: Yes
# of Displays Supported: 4
Device ID: 0x7D67
Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes

NPU Specifications
NPU Name: Intel AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel Thunderbolt 4: Yes
Scalability: 1S Only
PCI Express Revision: 5.0 And 4.0
PCI Express Configurations: Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
Max # of PCI Express Lanes: 24

Package Specifications
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2022C
Max Operating Temperature: 105 °C

Advanced Technologies
Intel Volume Management Device (VMD): Yes
Intel Gaussian & Neural Accelerator: 3.5
Intel Thread Director: Yes
Intel Speed Shift Technology: Yes
Intel Thermal Velocity Boost: Yes
Intel Turbo Boost Max Technology 3.0: Yes
Intel Turbo Boost Technology: 2.0
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes

Security & Reliability
Intel vPro Eligibility: Intel vPro Enterprise, Intel vPro Platform
Intel Hardware Shield Eligibility: Yes
Intel Threat Detection Technology (TDT): Yes
Intel Active Management Technology (AMT): Yes
Intel Standard Manageability (ISM): Yes
Intel Remote Platform Erase (RPE): Yes
Intel One-Click Recovery: Yes
Intel Control-Flow Enforcement Technology: Yes
Intel Total Memory Encryption – Multi Key: Yes
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Trusted Execution Technology: Yes
Execute Disable Bit: Yes
Intel OS Guard: Yes
Intel Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel Stable IT Platform Program (SIPP): Yes
Intel Virtualization Technology with Redirect Protection: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
