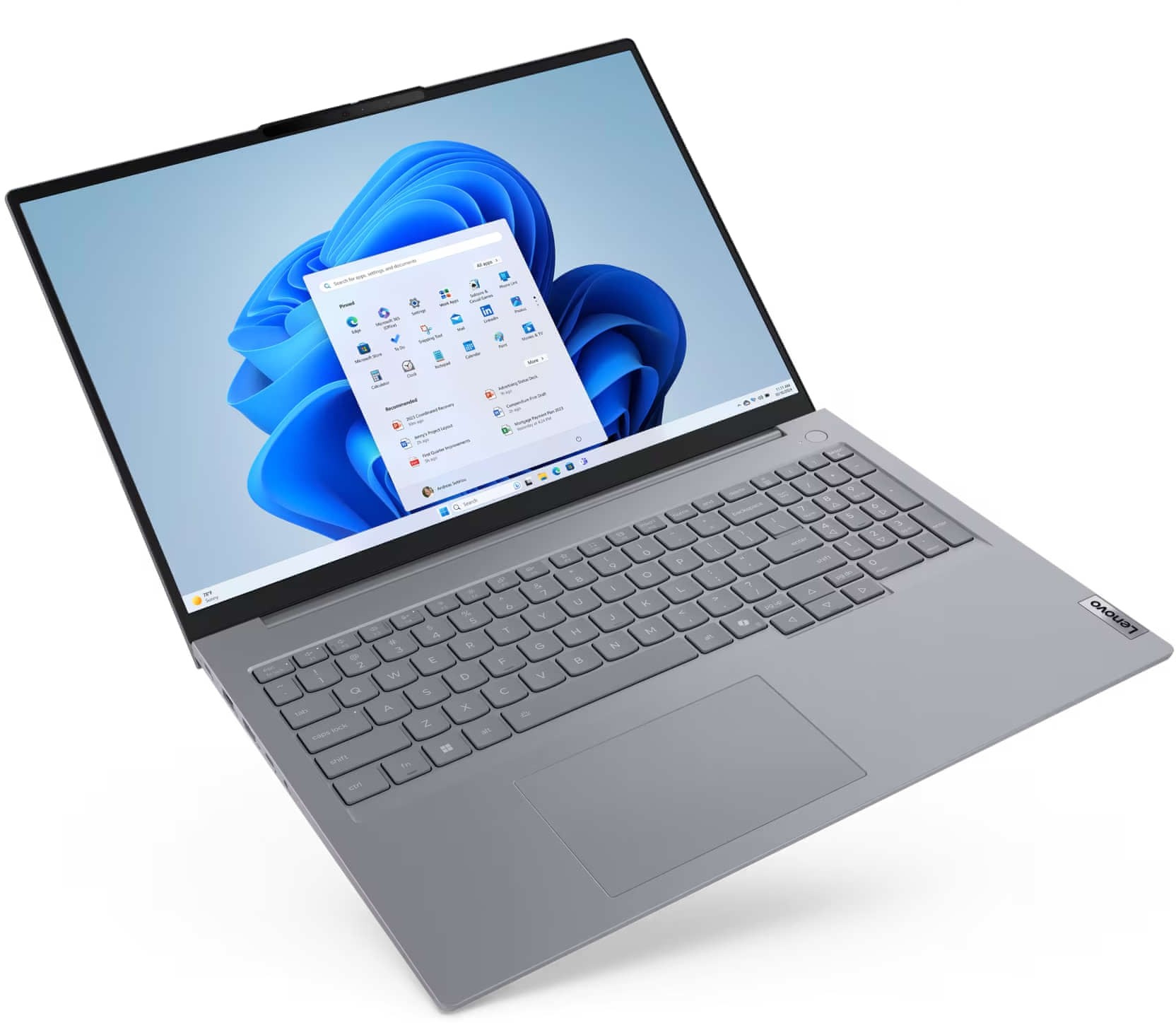

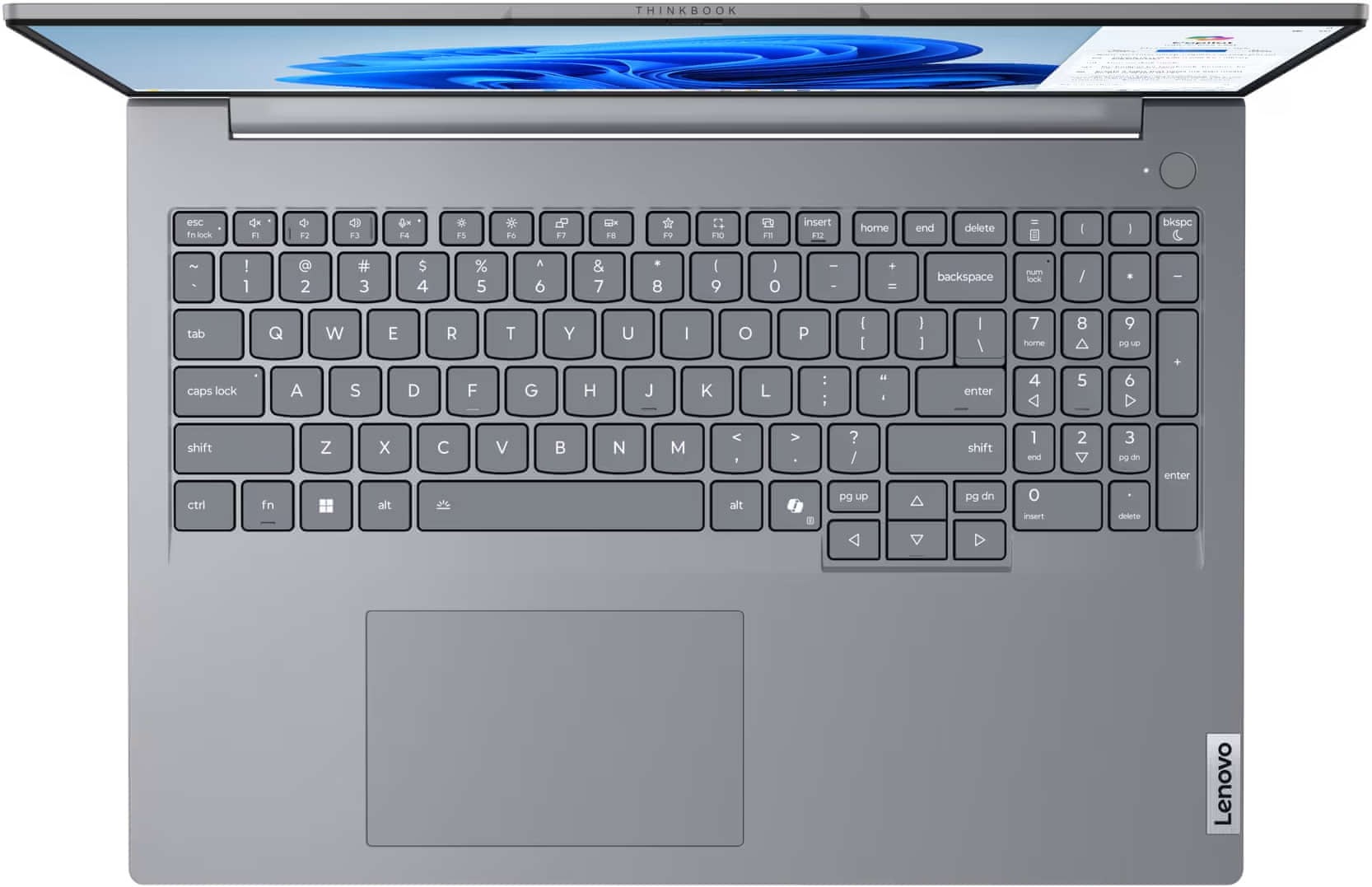

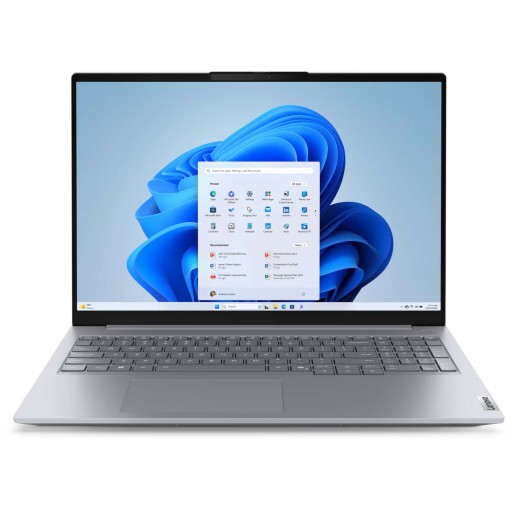

Lenovo ThinkBook 16 G8 IAL 16″ WUXGA (1920×1200) Arctic Grey Laptop

Description

FEATURES
Intel Core Ultra 7 255H Processor (24MB Cache)
Up to 5.10GHz Boost Clock
6 Performance Cores, 8 Efficient Cores, 2 Low Power Efficient Cores
16 Total Cores, 16 Threads
Integrated Intel AI Boost NPU, up to 13 TOPS
Intel Arc 140T GPU
16″ IPS WUXGA (1920×1200) IPS Anti-Glare Display
16GB (1x16GB SO-DIMM) DDR5-5600MHz Memory
Up to 64GB Max Capacity (2x DDR5 SO-DIMM Slots)
512GB PCIe 4.0×4 NVMe M.2 SSD
2x M.2 2280 PCIe 4.0 x4 Slots (1x Occupied)
1x Thunderbolt 4 / USB4 40Gbps Type-C (with USB PD 3.0 and DisplayPort 2.1)
1x USB 3.2 Gen 2 Type-C (with USB PD 3.0 and DisplayPort 1.4)
1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 1 Type-A (Always On)
1x HDMI 2.1, 1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45), 1x SD card reader
802.11ax 2×2 Wi-Fi 6E, Bluetooth v5.3
45Wh Battery
Non-backlit English Keyboard
Windows Hello Fingerprint Reader
Glass-like Multi-touch Touchpad with PTP Support
Windows 11 Pro

TECHNICAL SPECIFICATIONS

Brand: Lenovo
Series: ThinkBook 16 G8 IAL
Model: 21SK001AZA

Processor
Model: Core Ultra 7 255H
Chipset Manufacturer: Intel
Max Turbo Frequency: 5.10GHz
Performance-core Max Turbo Frequency: 5.10GHz
Efficient-core Max Turbo Frequency: 4.40GHz
Low Power Efficient-core Max Turbo Frequency: 2.50GHz
Performance-cores: 6
Efficient-cores: 8
Low Power Efficient-cores: 2
Total Core Count: 16
Thread Count: 16
Cache: 24 MB
NPU: Integrated Intel AI Boost, up to 13 TOPS

Memory
Total Installed: 16GB (1x16GB SO-DIMM)
Type: DDR5
Speed: 5600MHz
Maximum Capacity: 2x DDR5 SO-DIMM Slots (1x SO-DIMM Slots)
Up to 64GB

Graphics
Type: Integrated
Model: Intel Arc 140T GPU Functions as Intel Graphics

Display
Size: 16″
Panel Type: IPS (In-Plane Switching)
Luminance: 300nits
Colour gamut: 45% NTSC
Screen Coating: Anti-glare
Refresh Rate: 60Hz
Native Resolution: WUXGA (1920×1200)

Storage
Installed: 1x 512GB PCIe 4.0×4 NVMe 2242 M.2 SSD
Supported: 2x M.2 2280 PCIe 4.0 x4 Slots (1x Occupied)

Input / Output
Ports: 1x USB 3.2 Gen 1 Type-A
1x USB 3.2 Gen 1 Type-A (Always On)
1x USB 3.2 Gen 2 Type-C (with USB PD 3.0 and DisplayPort 1.4)
1x Thunderbolt 4 / USB4 40Gbps Type-C (with USB PD 3.0 and DisplayPort 2.1)
1x HDMI 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x SD card reader

Audio
Audio controller: Realtek ALC3287 codec
Speakers: Stereo speakers, 2W x2
Dolby Audio
Microphone: Dual Array Microphone

Communications
Ethernet: Gigabit Ethernet
Wi-Fi: 802.11ax 2×2 Wi-Fi 6E
Bluetooth: Bluetooth v5.3

Integrated Input Devices
Keyboard: Non-backlit, English
Pointing Device: Buttonless glass-like Mylar Surface Multi-touch Touchpad
Supports Precision TouchPad (PTP)
Fingerprint Reader: Yes, Supports Windows Hello secure login

General
Operating System: Windows 11 Pro
Battery: 45Wh Battery
Dimensions: 356mm x 253.5mm x 17.5mm
Weight: 1.7Kg
