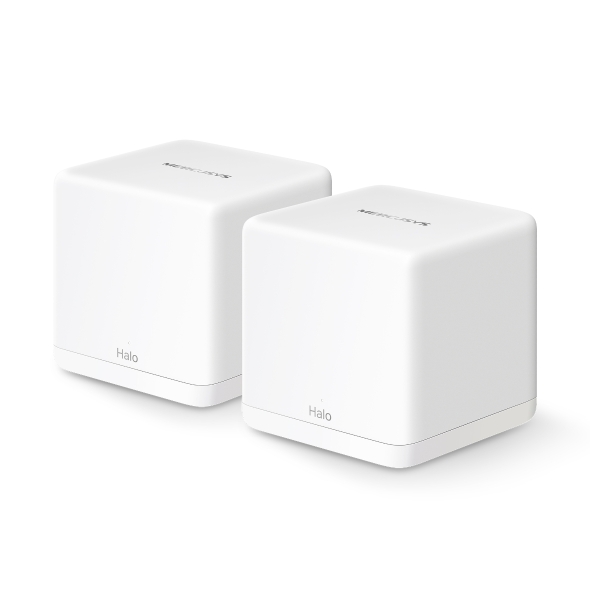

Mercusys Halo H60X AX1500 Whole Home Mesh WiFi 6 System – 2-Pack

Description

FEATURES
Superior Wi-Fi Speeds with MU-MIMO Technology
Dual Band WiFi 6 Speeds up to 1500 Mbps – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.†
Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.‡
Whole Home Coverage – Blanket up to 4,000 ft²/350 m² (ideal for 2-4 bedroom houses) with high-speed WiFi, eliminating WiFi dead zones at your home.†
Connect over 100 Devices – Provide fast and stable connections over 100 devices.†
Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.
Full Gigabit Ports – Gigabit ports for lightning-fast wired connections.

TECHNICAL SPECIFICATIONS

Wireless
Wireless Standards: Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: 1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
Reception Sensitivity:
2.4GHz:
11g 6Mbps:-96.5dBm
11g 54Mbps:-78dBm

5GHz:
11a 6Mbps:-96dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74.5dBm
11ac VHT40 MCS9:-70.5dBm
11ac VHT80 MCS9:-66.5dBm
11ax HE20 MCS11:-66dBm
11ax HE40 MCS11:-63dBm
11ax HE80 MCS11:-61dBm

Transmission Power: 2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security: WPA-PSK/WPA2-PSK/WPA3
Mesh protocol: 802.11k/v/r

Hardware
Dimensions: 3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm)

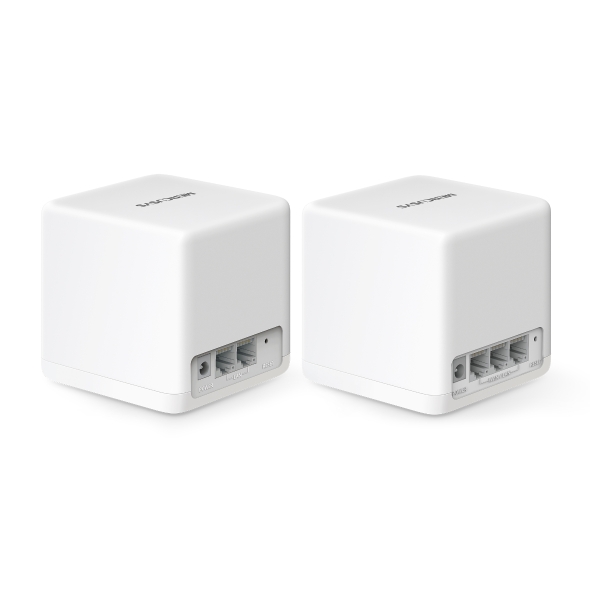

Interfaces:
Halo H60XR: 3× Gigabit WAN/LAN Ports
Halo H60XS: 2× Gigabit LAN Ports
Button: Reset button

Software
Operation Mode: Router, Access Point
Quality of Service: WMM
WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management: Local Management, Remote Management, Multi-Managers
Firewall Security: SPI Firewall
Protocols: Supports IPv4 and IPv6
Guest Network:
2.4 GHz Guest Network,
5 GHz Guest Network
DHCP: Server, Client

Others
Network Services Enabled by Default:
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443; Protocol: TCP

DHCP Server
IP address assignment (DHCP)
• Port: 67; Protocol: UD

DNS
DNS
• Port: 53; Protocol: TCP & UDP

App management
Manage and configure device through app
• Port: 20001; Protocol: TCP
• Port: 20002; Protocol: UDP

Package Contents
2-pack
1× Halo H60XR Unit+ 1× Halo H60XS Unit
1× RJ45 Ethernet Cable
2× Power Adapters
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
