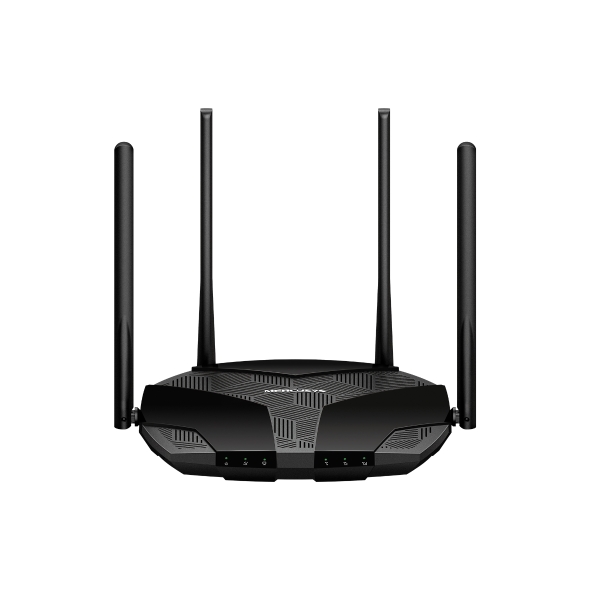

Mercusys MB235-4G 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

Description

FEATURES
4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.
Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
Simultaneous Connection – Enjoy and share internet access with up to 64 Wi-Fi devices.
Maximum Network Coverage – Enjoy stable and efficient connections to every device thanks to the four external antennas. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.
Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can’t get a 4G connection.
EasyMesh Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.

TECHNICAL SPECIFICATIONS

Cellular
Cellular Standards: Cat 6
300/50 Mbps DL/UL
Cellular Bands: EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
SIM: 1× Nano SIM Card Slot

Wireless
Wi-Fi Class: AC1200
Wi-Fi (2.4 GHz): 300 Mbps
Wi-Fi (5 GHz): 867 Mbps
Wireless Standards: IEEE 802.11ac/a/b/g/n
Max Channel Width: 80 MHz
Reception Sensitivity 11g 6 Mbps: -95 dBm
11g 54 Mbps: -77 dBm:
11n HT20 MCS7: -74 dBm
11n HT40 MCS7: -71 dBm
11a 6 Mbps: -92 dBm
11a 54 Mbps: -75 dBm
11ac VHT20 MCS8: -70 dBm
11ac VHT40 MCS9: -65 dBm
11ac VHT80 MCS9: -61 dBm
MAX Capacity: 64
Recommended Clients Limit: 32
Wireless Security: WPA-PSK / WPA2-PSK / WPA3-SAE
Wireless Functions: Smart connect
WPS
Wireless Schedule

Software
Operation Modes: 3G/4G Router
Wireless Router
Cellular Mode: 4G Mode
3G Mode
Cellular APN: Data Roaming
Band Search
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management
WAN Mode: Dynamic IP
Static IP
PPPoE
PPTP
L2TP
DHCP: Server
DHCP Client List
Address Reservation
NAT Forwarding: ALG
Virtual Server
Port Triggering
UPnP
DMZ
Protocols: IPv4
IPv6
Data Settings: Data Statistics
Data Limit
Guest Network: 2.4 GHz Guest Network
5 GHz Guest Network
Parental Controls: Time Control
Website Filtering
DDNS: DynDNS
NO-IP
SMS: Inbox
New Message
Outbox
Drafts
Easy Mesh: √
QoS: √
Security: IPv4 SPI Firewall
Access Control
IP & MAC Binding
IPv6 Firewall
ISP Feature: TR-069
System: Time & Language
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP Settings
LED Management: LED Control
Night Mode
Device Management: MERCUSYS APP
Web GUI
Cloud: Firmware Upgrade over the Cloud
Remote Management
Language: English
Deutsch
Español
Français
Italiano
Polski
Русский

Hardware
Dimensions (W X D X H): 209 × 171.9 × 41.7 mm
(8.2 × 6.8 × 1.6 in)
Interfaces: 1× GE LAN/WAN Port
3× GE LAN Ports
1× Nano SIM Card Slot

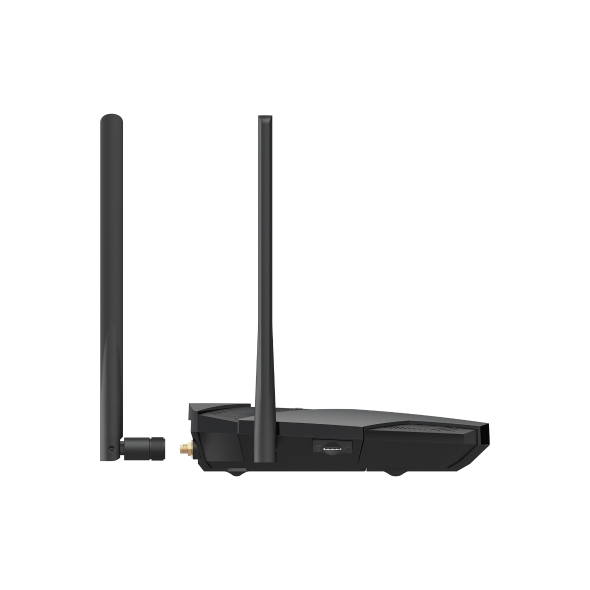

Antenna: 2 External Detachable 4G LTE Antennas
2 External Wi-Fi Antennas
Button: 1×WPS Button
1×Reset Button
External Power Supply: 12V/1A
Installation: Desktop
LED: 1× POWER
1× Internet
1× LAN
3× Signal
Retail Package Dimension: 305 × 274 × 60
Units per Carton: 8
Carton Dimension: 555 × 310 × 245

Other
Certifications: CE
Network Services Enabled by Default: Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP

DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP

DNS proxy
Processing DNS packets (DNS)
• Port: 53   Protocol: TCP/UDP

App management
Manage and configure device through app
• Port: 20002   Protocol: UDP
Package Contents: 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB235-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Environment
Operating Temperature: 0 °C~40 °C (32 °F~104 °F)
Storage Temperature: -40 °C~60 °C (-40 °F~140 °F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
