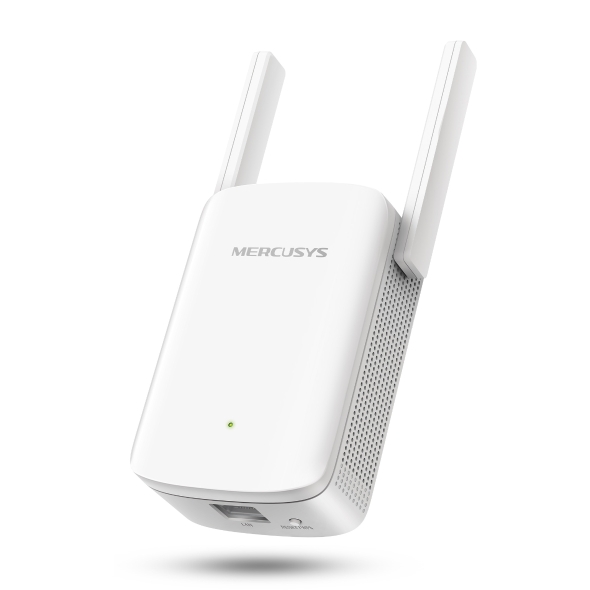

Mercusys ME60X AX1500 Wi-Fi 6 Range Extender
R510
The Mercusys ME60X is an AX1500 Wi-Fi 6 range extender designed to eliminate poor signal areas and provide consistent network coverage throughout your home or office. It operates on dual bands, offering speeds up to 1.5 Gbps (1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz), which is suitable for 4K streaming and online gaming. Equipped with Wi-Fi 6 technology, the ME60X supports OFDMA for more efficient data transmission to multiple devices simultaneously.
In stock
Description
FEATURES
Dual Band Speeds up to 1500 Mbps – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.â€
Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity.
Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles.
Works with Any Routers – To Extend WiFi to Where You Need It Most. ‡
Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds.
Built-In Access Point Mode – Works as RE mode and AP mode.
Manage Your Network with App – Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
TECHNICAL SPECIFICATIONS
WIRELESS
Wi-Fi Class: AX1500
Wi-Fi (2.4 GHz): 300Mbps
Wi-Fi (5 GHz): 1201Mbps
Wireless Standards: 802.11ax/ac/a/b/g/n
Max Channel Width: 80MHz
Reception Sensitivity: 5 GHz:
11ax HE80 MCS0: -88 dBm
11ax HE80 MCS11: -58 dBm
11a 6Mbps: -94 dBm
11a 54Mbps: -76 dBm
11ac VHT80 MCS0: -91dBm
11ac VHT80 MCS9: -63dBm
2.4 GHz:
11g 6Mbps: -95 dBm
11g 54Mbps: -77 dBm
11n HT40: -72dBm
Max Wi-Fi Modulation: 1024 QAM
Wireless Security: WPA, WPA2, WPA3-PSK
Wireless Functions: EasyMesh
Beamforming
SOFTWARE
Operation Modes: RE/AP
WAN Mode: /
DHCP: Server
DHCP Client List
NAT Forwarding: /
Protocols: IPv4/IPv6
IPTV: /
Guest Network: 2.4G Guest Network
5G Guest Network
Parental Controls: /
DDNS: /
Easy Mesh: EasyMesh Compatible
QoS: /
Security: Access Control
ISP Feature: /
System Time Settings
LED Control
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
Diagnostics: /
LED Management: LED Control
Night Mode
Device Management: MERCUSYS APP
Webpage
Cloud: MERCUSYS ID
Auto Update
Online Update
Language: Bulgarian
Czech
Danish
German
Greek
English
Spanish
Finnish
French
Hungarian
Indonesian
Italian
Japanese
Korean
Dutch
Norwegian
Polish
Portuguese
Portuguese – Brazil
Romanian
Russian
Slovak
Swedish
Turkish
Ukrainian
Vietnamese
Chinese – Taiwan
Advanced Features /
HARDWARE
Dimensions (W X D X H): 84.7×39×112 mm
Interfaces: 1 Gigabit Ethernet Port
Antenna: 2× External Antennas
Button: 1× RESET/WPS Button
Power Supply: 10W
Installation: /
LED: 1× SYS
Retail Package Dimension: 152*123*102.5 mm
Units per Carton: 32
Carton Dimension: 500*315*415 mm
OTHERS
Network Services Enabled by Default: Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
App management
Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 20002   Protocol: UDP

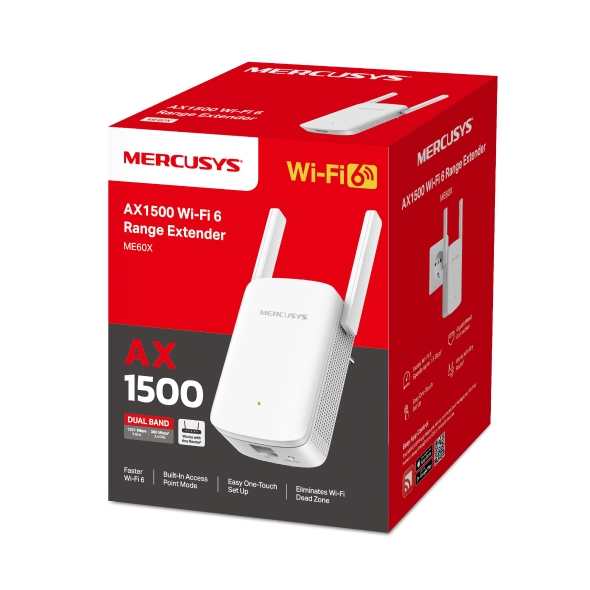

Package Contents: • Wi-Fi Range Extender ME60X
• Quick Installation Guide
Environment: • Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
Additional information
| Weight | 0,4 kg |
|---|---|
| Dimensions | 15,2 × 12,3 × 10,3 cm |
| Condition |
