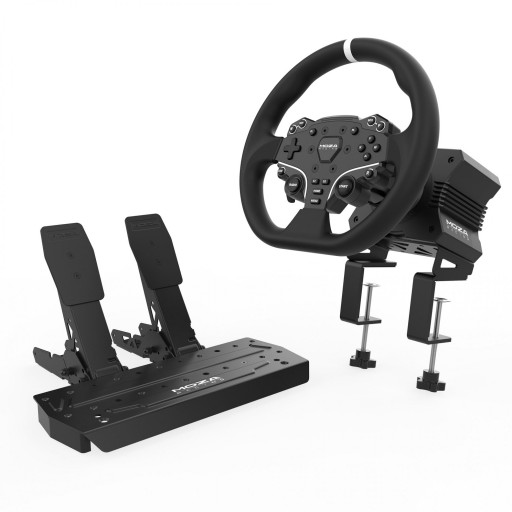

MOZA R5 Bundle Direct Drive Wheel Base With Standalone ES Steering Wheel & SR-P Pedals
R12880
Experience the next level of racing with the MOZA R5 Bundle. With its impressive 5.5 Nm torque direct drive, customizable driving modes, and robust aluminum, leather, and steel construction, it’s designed to provide unparalleled immersion and durability. The MOZA Pit House control center offers convenient device monitoring, settings adjustment, and preset loading. Elevate your racing setup today and embrace a new era of performance and precision.
In stock
Description
FEATURES
R5 Direct Drive Wheel Base
Direct Drive System
Platform: PC
Peak Torque: 5.5Nm
Housing Material: Aviation Grade Aluminium Alloy
Max Wheel Rotation: Limitless
Encoder Resolution: 32768 ppr (15-bits)
USB Refresh Rate: 1000Hz
ES Steering Wheel
Microfiber Leather Grips
Face Plate Material: Aluminium Alloy
Buttons: 22
Intelligent Telemetry
Fully Adjustable RPM LEDs through MOZA Pit House
Release Method: MOZA Quick Release
SR-P Pedal
Materials: High-strength Steel
Brake Sensor: Load Cell & Angle Sensor
Max Capacity: 100Kg
Sensors: Throttle Angle Sensor
Angle Sensor Resolution: 16-bit (65536ppr)
Adjustable Pedal Spacing
Adjustable Pedal Plate Height
Pedal Connection Port: USB
TECHNICAL SPECIFICATIONS
Brand: MOZA
Series: R5 Bundle

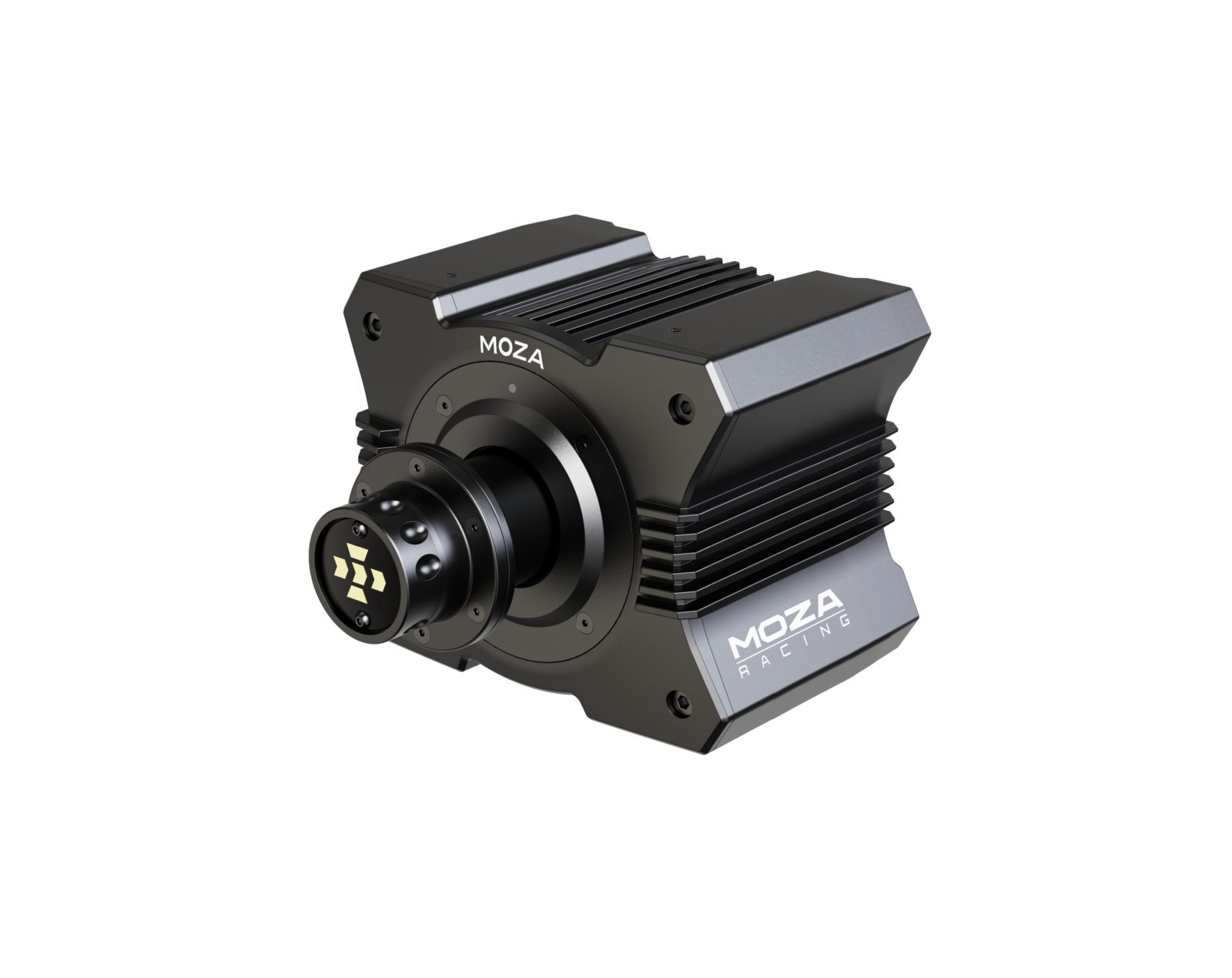

R5 Direct Drive Wheel Base
Platform: PC
Force Feedback Drive System: Direct Drive
Communication Method: Wired
Max Wheel Rotation: Limitless
Housing Material: Aviation Grade Aluminium Alloy
Colour: Black
Peak Torque: 5.5Nm
Peak Power: 84W
Input Voltage: 110V~220V AC – 12V DC
USB Refresh Rate: 1000Hz
Encoder Resolution: 32768 ppr (15-bits)
Indicator: Yes
App Functions: Supported
Quick Release: Supported
Connection Ports: Power, DC Input, Pedal, USB, Dash
Accessories: User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method Bottom mount (optional 40-66mm adapter plate)
Side Mount Option: With Optional Side Mount Bracket
Optional Features: Desk Clamp
Emergency Stop Switch
Dimension: 174mm x 157mm x 124mm
Weight: 3.45Kg
ES Steering Wheel
Grips: Microfiber Leather
Face Plate Material: Aluminium Alloy
Dial Material: Aluminium Alloy
Size: 11 Inches
Buttons: 22
LED Lamp Beads: 10
Features: Intelligent Telemetry
Fully Adjustable: RPM Leds through MOZA Pit House
Release Method: MOZA Quick Release
SR-P Pedal
Materials: High-strength Steel
Colour: Black
Brake Sensor: Load Cell & Angle Sensor
Max Capacity: 100Kg
Sensors Throttle: Angle Sensor
Angle Sensor Resolution: 16-bit (65536ppr)
Pedal Spacing: Adjustable
Pedal Plate Height: Adjustable
Pedal Connection Port: USB
Pedal Travel Software Adjustment: Yes
Pedal Travel Reverse Function: Yes
Anti-Slipping Pad: Included
Dimensions: 410mm x 310mm x 170mm
Weight: 4.3Kg
Additional information
| Weight | 12,4 kg |
|---|---|
| Dimensions | 40,5 × 41,5 × 25,5 cm |
