TECHNICAL SPECIFICATIONS

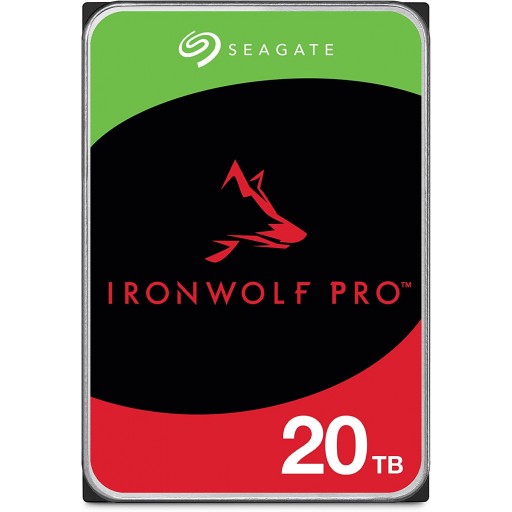

Brand: Seagate
Series: IronWolf Pro
Model: ST20000NT001
Capacity: 20TB
Interface: SATA 6Gb/s
Features
Drive Bays Supported: Unlimited
Recording Technology: CMR
Drive Design (Air or Helium): Helium
Workload Rate Limit (WRL): 550
Rotational Vibration (RV) Sensors: Yes
256MB
Reliability/Data Integrity
Mean Time Between Failures (MTBF): 2,500,000 Hours
Nonrecoverable Read Errors per Bits Read, Max: 1 per 10E15
Power-On Hours (per year): 8760
Sector Size (Bytes per Logical Sector): 512E
Performance
Spindle Speed: 7200RPM
Interface Access Speed: 6.0 Gb/s
Max. Sustained Transfer Rate OD: 285MB/s
Rotational Vibration @ 10-1500 Hz: 12.5Rad/s
Power Consumption
Startup Current, Typical (12V): 2.0A
Idle Power, Average: 5.5W
Average Operating Power: 7.7W
Standby Mode, Typical: 1.0W
Sleep Mode, Typica: 1.0W
Power Supply Requirements: 12V and 5V
Environmental/Temperature
Operating Temperature: 0°C – 65°C
Nonoperating Temperature: -40°C – 70°C
General
Vibration, Nonoperating: 10Hz to 500Hz: 2.27Grms
Acoustics, Idle (typical, measured in Idle 1 state): 20dBA
Acoustics, Seek (typical): 26dBA
Shock, Operating 2ms (Read/Write): 40Gs
Shock, Nonoperating, 1ms and 2ms: 200Gs
Dimensions: 26.11mm x 101.85mm x 146.9mm
Weight: 670g
