Description
FEATURES
Storage Capacity: 24TB
Optimised for NAS with AgileArray
CMR Recording Technology
Form Factor: 3.5″
Interface: SATA 3.0 6Gb/s
Cache: 512MB
550TB Per Year Workload
2.5 Million Hours MTBF
Rotational Vibration (RV) Sensors
Drive Bays Supported: Unlimited
TECHNICAL SPECIFICATIONS

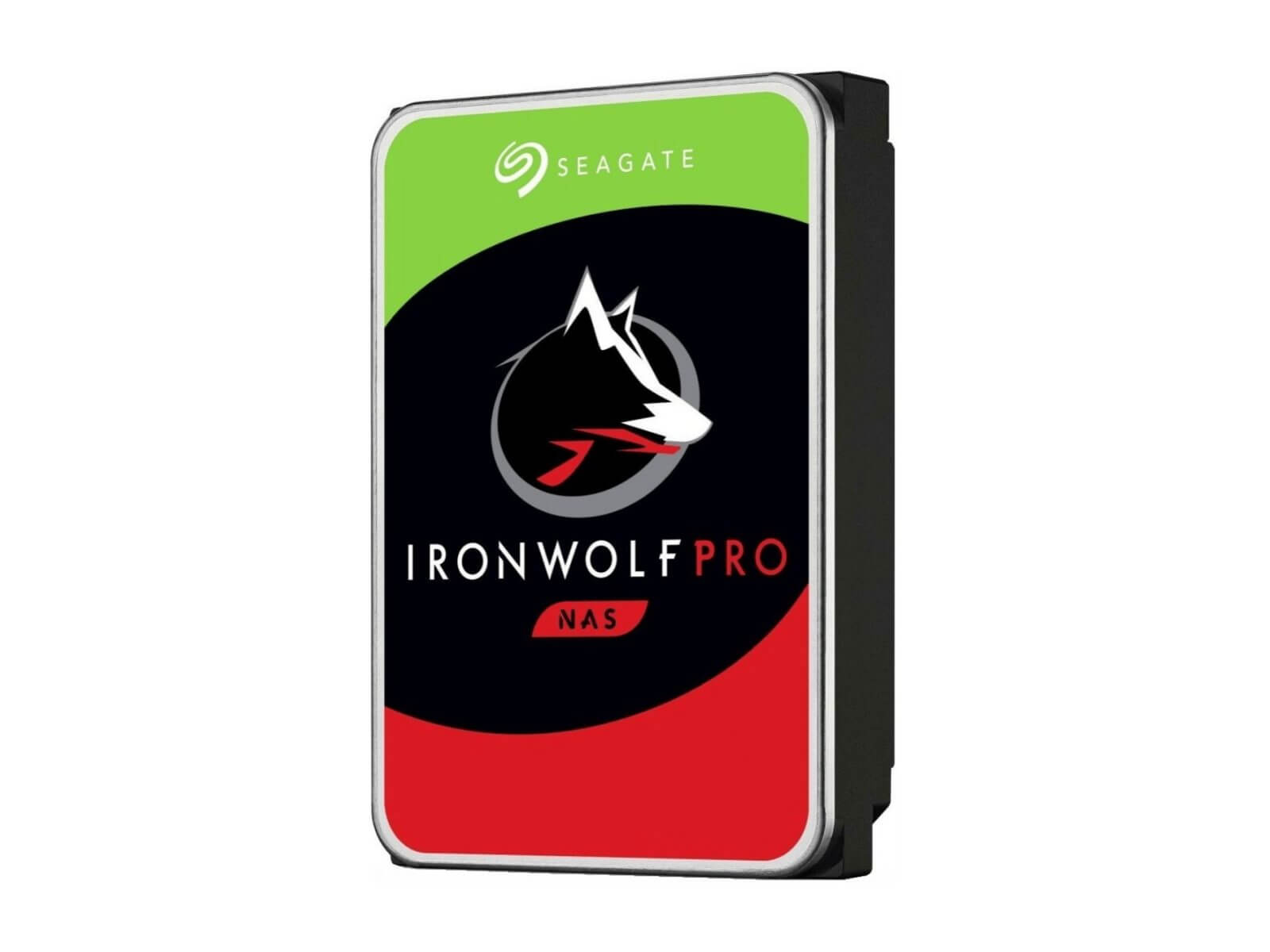

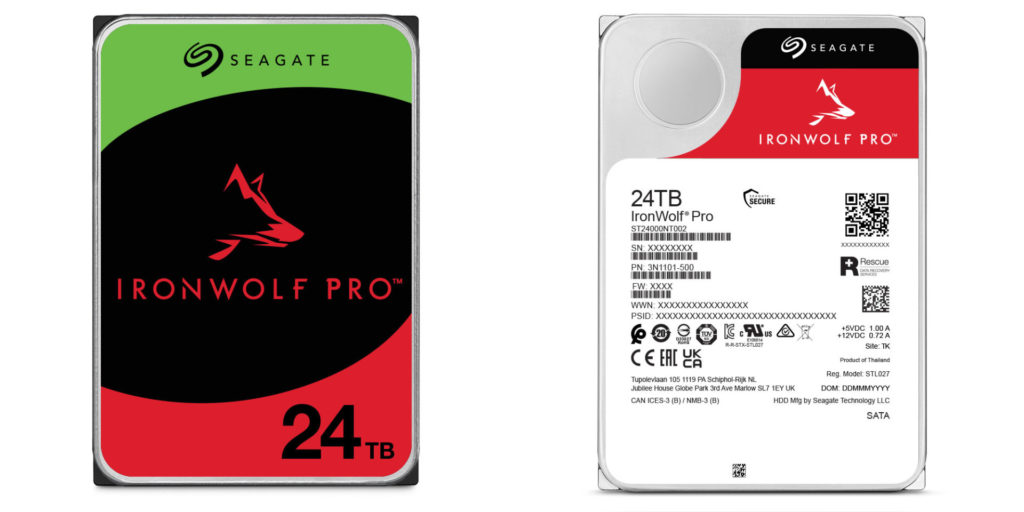

Brand: Seagate
Series: IronWolf Pro
Model: ST24000NT002
Capacity: 24TB
Drive Bays Supported: Unlimited
Recording Technology: CMR
Drive Design (Air or Helium): Helium
Workload Rate Limit (WRL): 550
Rotational Vibration (RV) Sensors: Yes
Cache (MB): 512 MB
Reliability/Data Integrity
Mean Time Between Failures (MTBF): 2500000 hr
Non-recoverable Read Errors per Bits Read, Max: 1 per 10E15
Power-On Hours (per year): 8,760
Sector Size (Bytes per Logical Sector): 512E
Performance
Spindle Speed: 7200RPM
Interface Access Speed: 6.0Gb/s
Max. Sustained Transfer Rate OD: 285MB/s
Rotational Vibration @ 10-1500 Hz: 12.5rad/s
Power Consumption
Startup Current, Typical: 2.0A
Idle Power, Average: 6.3W
Average Operating Power: 7.8W
Standby Mode, Typical: 1.1W
Sleep Mode, Typical: 1.1W
Power Supply Requirements: +12 V and +5 V
Environmental
Operating Temperature: 5°C – 65°C
Non-operating Temperature: -40°C – 70°C
Vibration, Non-operating: 10 Hz to 500 Hz: 2.27 Grms
Acoustics, Idle (typical, measured in Idle 1 state): 20dBA
Acoustics, Seek (typical): 26dBA
Shock, Operating 2 ms (Read/Write): 40GS / 40GS
Shock, Non-operating, 1 ms and 2 ms: 200Gs
General
Dimensions: 26.11mm x 101.85mm x 146.99mm
Weight: 685g
