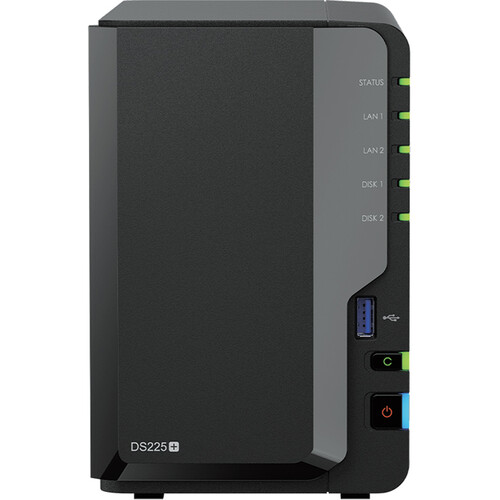

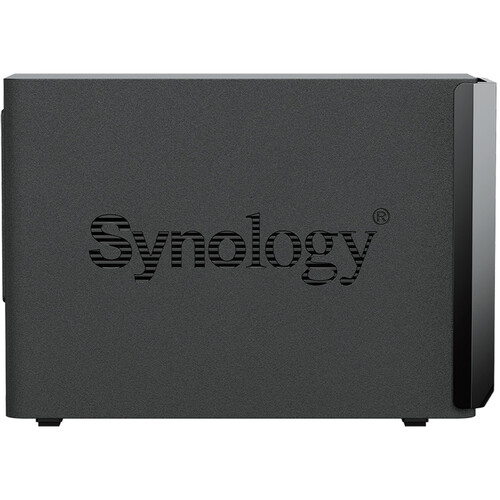

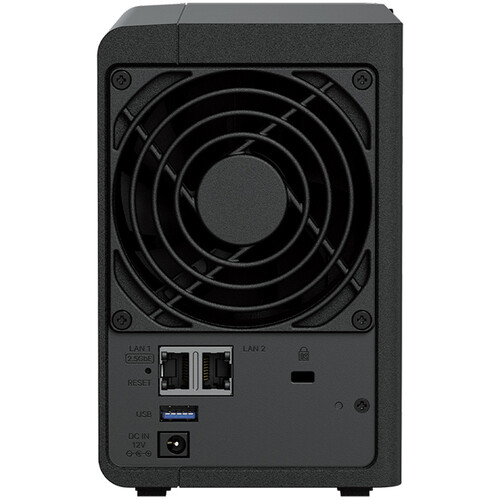

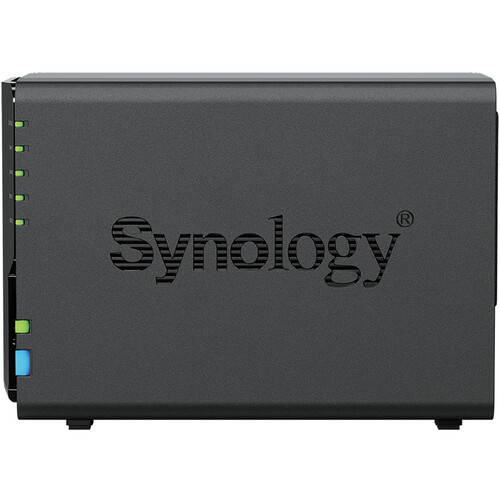

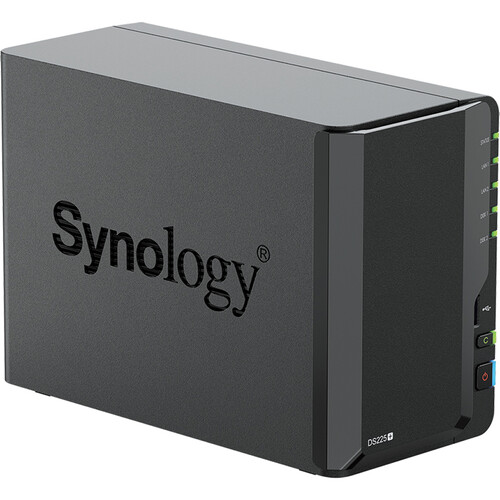

Synology DiskStation DS225+ 2-Bay NAS Enclosure
R7690
Built with a quad-core processor, a hardware encryption engine, and Btrfs file system support, the DiskStation DS225+ 2-Bay NAS Enclosure from Synology is a compact NAS designed to centralize data management, offering a comprehensive suite of tools through Synology DiskStation Manager (DSM) for managing, sharing, and protecting files and photos, backing up devices and data, and serving as the core of a smart surveillance system.
In stock
Description
FEATURES
2 x 3.5/2.5″ SATA HDD/SSD Drive Bays
2.0 GHz Intel Celeron J4125 Quad-Core
2GB DDR4 RAM
1 x 2.5GbE Port | 1 x 1GbE Port
2 x USB-A 3.2 Gen 1 Ports
RAID 0, 1, Basic, Hybrid, and JBOD
Hardware Encryption Engine
92mm Cooling Fan
Synology DiskStation Manager OS
TECHNICAL SPECIFICATIONS
Computing
CPU: Quad-Core: 2 to 2.7 GHz
Processor: Intel Celeron J4125
Memory: 2 GB DDR4
RAM Configuration / Capacity: 2 GB Onboard / 1 Slot Supporting up to 4 GB (SO-DIMM)
Drives
RAID: Yes: Supported RAID Modes: 0 / 1 / JBOD / Basic / Hybrid
Transfer Rates: 282 MB/s (Read)
217 MB/s (Write)
General
Number of Bays: 2x 2.5″/3.5″ SATA III (Hot-Swap)
Inputs/Outputs: 1x RJ45 2.5GbE
1x RJ45 Gigabit Ethernet:2x USB-A 3.0 / 3.1/3.2 Gen 1
Media Card Slots: No
PCI Expansion: No
Networking
Link Aggregation and Failover Support: Yes
iSCSI Support: Yes: 2 LUN / 2 Target
Software
Installed Operating System: No
OS Compatibility: Windows
macOS
Linux
Mobile App Compatible: Yes: Android & iOS
Security
Encryption: Yes, AES-NI (Hardware-Based)
Security Features: Kensington Security Slot
VPN Connections: 4 (Server)
Electrical
Input Power: 100 to 240 VAC, 50 / 60 Hz
Power Consumption: 16.98 W (Typical)
6.08 W (Standby)
PSU: 1 x 60 W
Physical
Operating Conditions: 32 to 104°F / 0 to 40°C at 8 to 80% Humidity
Storage Conditions: -5 to 140°F / -20 to 60°C at 5 to 95% Humidity
Certifications: BIS, BSMI, CCC, CE, EAC, FCC, KC, RCM, RoHS, UKCA, VCCI
Cooling: 1x 92 mm Fan
Noise Level: 19.6 dBA
Dimensions: 9.1 x 6.5 x 4.3″ / 232.2 x 165 x 108 mm
Weight: 2.9 lb / 1.3 kg
Packaging Info
Package Weight: 4.89 lb
Box Dimensions (LxWxH): 12.7 x 10.8 x 4.8″
