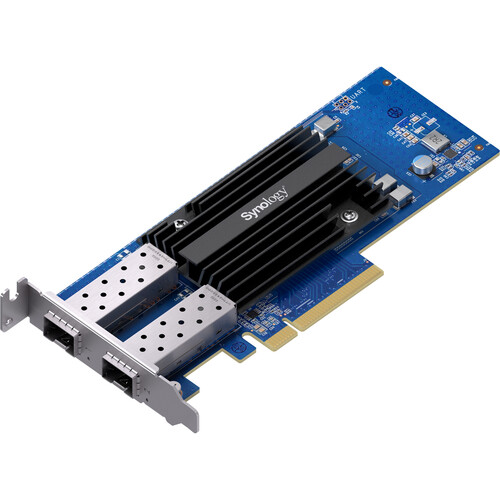

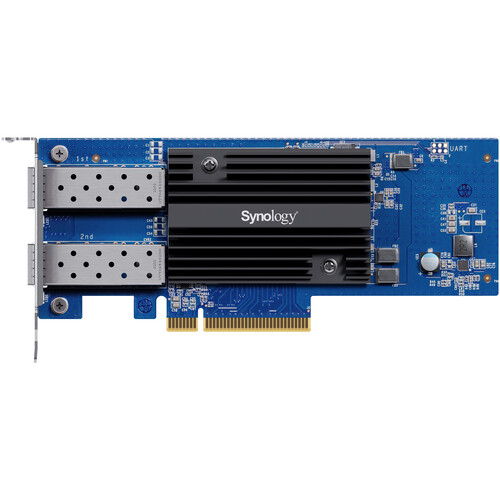

Synology E25G30-F2 2-Port 25G SFP28 to PCIe 3.0 Adapter Card

Description

FEATURES
For Select Synology Devices
2 x 25G SFP28 Slots
PCIe 3.0 x8 Interface
Supports SR and LR Transceivers
CPU Offloading Technology
Backward Compatible with 10G SFP+

TECHNICAL SPECIFICATIONS

General
Host Bus Interface: PCIe 3.0 x8
Bracket Height: Low Profile and Full Height
Size (Height x Width x Depth): 69 mm x 168 mm x 17.3 mm
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Relative Humidity: 5% to 95% RH

Network
IEEE Specification Compliance
IEEE 802.3ad Link Aggregation
IEEE 802.3ae 10Gbps Ethernet
IEEE 802.3by 25Gbps Ethernet
Data Transfer Rates: 25 Gbps/10 Gbps

Supported Features:
TCP Segmentation Offload (TSO)
Receive Side Scaling (RSS)
Generic Segmentation Offload (GSO)
1.5 – 9 KB Jumbo Frame
TCP/UDP Checksum Offload
Transmit side scaling (TSS)
SR-IOV
Large receive offload (LRO)
Notes: As mixed link speeds are not supported, both network ports must be configured with the same link speed.

Compatibility
Applied Models:
FS series:FS6400, FS3600, FS3410, FS3400, FS2500
HD series:HD6500
SA series:SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D
UC series:UC3400, UC3200
DP series:DP7200, DP7400
25 series:RS2825RP+, DS1825+
23 series:RS2423RP+, RS2423+, DS1823xs+
22 series:RS822RP+, RS822+, DS3622xs+, DS2422+
21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
19 series:RS1619xs+
18 series:RS3618xs
17 series:DS3617xs
Notes:
DSM version requirement: 7.1.1-42962 Update 5 or later version
For models with an AMD Ryzen V1000 CPU, DSM version 7.2.1-69057 or above is required.
