TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+
R1895
Professional 10-port Gigabit unmanaged switch with 8-port PoE+Plug and Play, with PoE transmission for monitoring up to 250 m.Dedicated 8 PoE+ ports (123 W budget) for numerous applications802.3af/at PoE+ compliance supports up to 30 W at each PoE port. The 123 W PoE power budget for the 8× PoE+ ports opens up a wide range of applications, such as monitoring offices, residential homes and small businesses.
In stock
Description
FEATURES
9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

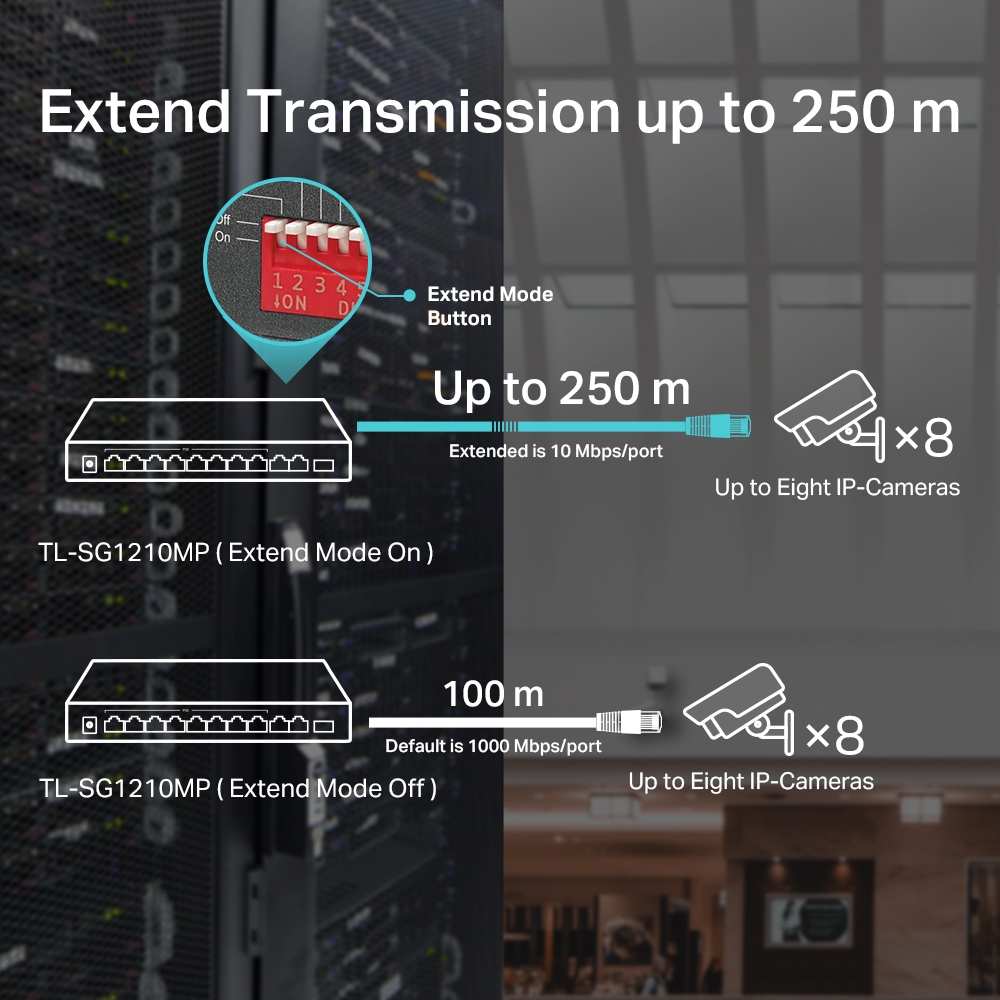

Up to 250 m data and power transmission range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

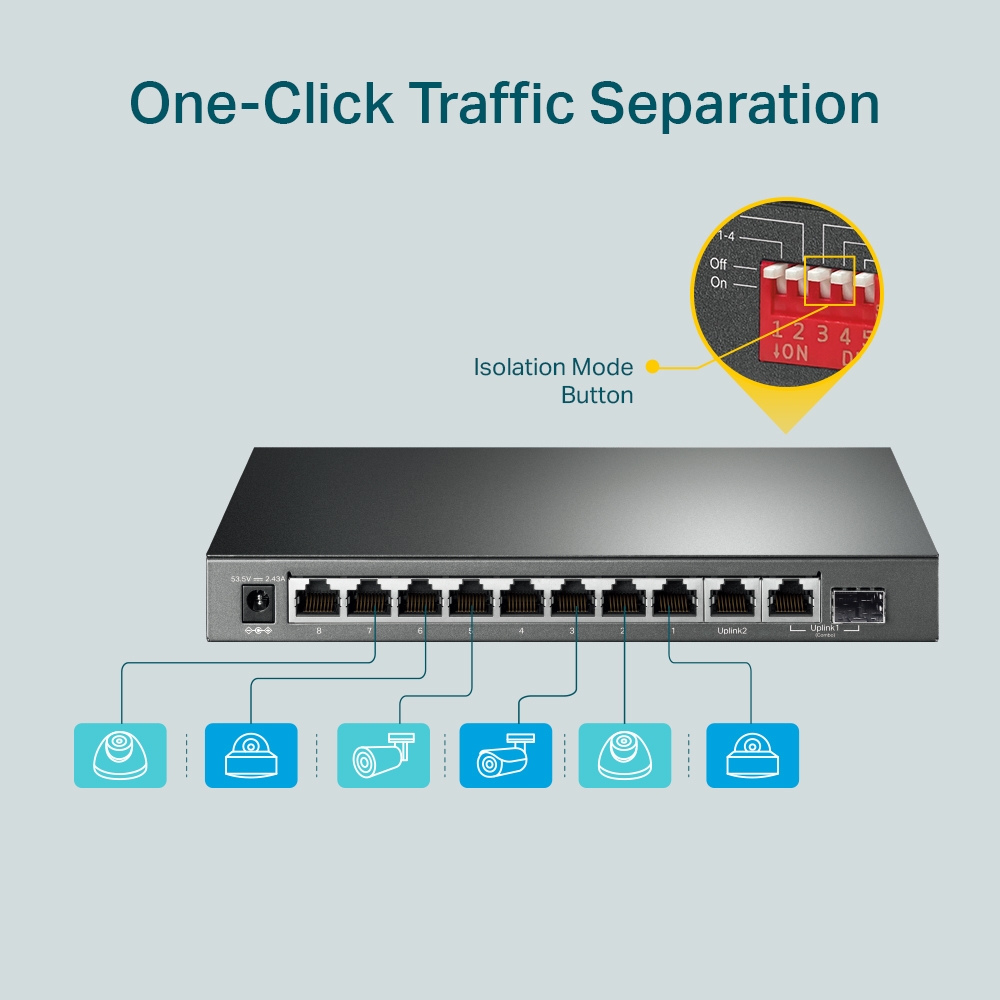

Isolation Mode allows one-click client traffic separation for higher security and performance

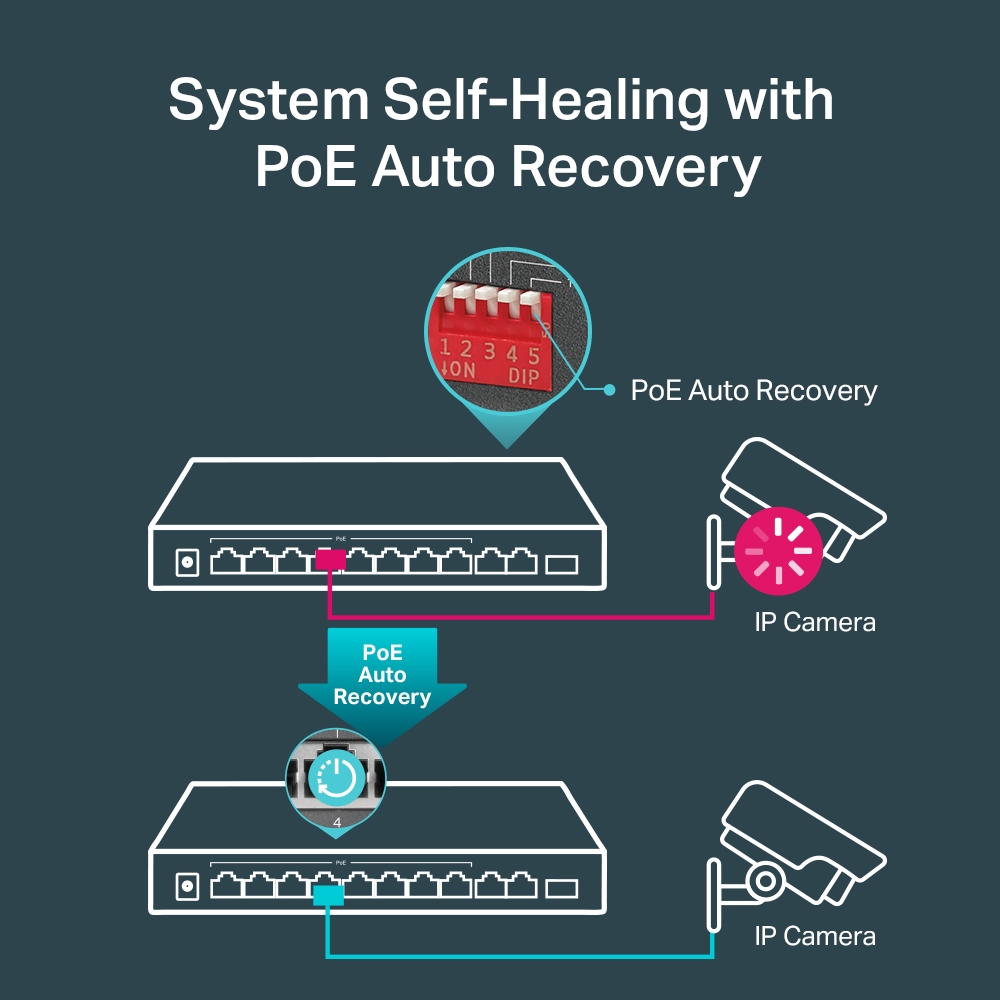

Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
Plug and play with no configuration required
Fanless design reduces power consumption and works silently in its location
TECHNICAL SPECIFICATIONS
HARDWARE FEATURES
Interface:
• 9× 10/100/1000 Mbps RJ45 Ports
• 1× 1000 Mbps Combo SFP/RJ45 Port
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: Yes
External Power Supply: External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate: 14.88 Mpps
PoE Ports (RJ45):
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 123 W
Mac Address Table: 4K
Jumbo Frame: 16 KB
Switching Capacity: 20 Gbps
Dimensions ( W x D x H ): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption:
• 7.93 W (220V / 50Hz with no PD connected)
• 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation:
• 27.04 BTU/h (220V / 50Hz with no PD connected)
• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)
SOFTWARE FEATURES
Transmission Method: Store-And-Forward
Advanced Functions:
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–4 / 5-8)
• PoE Auto Recovery (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification: FCC, CE, RoHS
Package Contents:
• TL-SG1210MP
• Power Adapter
• Installation Guide
Environment:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Additional information
| Weight | 1,5 kg |
|---|---|
| Dimensions | 12,6 × 21 × 2,6 cm |
| Condition |
