Name: TP-Link 16-Port Gigabit Easy Smart PoE Switch - Zaps Online
Brand: TP-Link
SKU: TL-SG1016PE
Price: 2255 ZAR
Availability: InStock

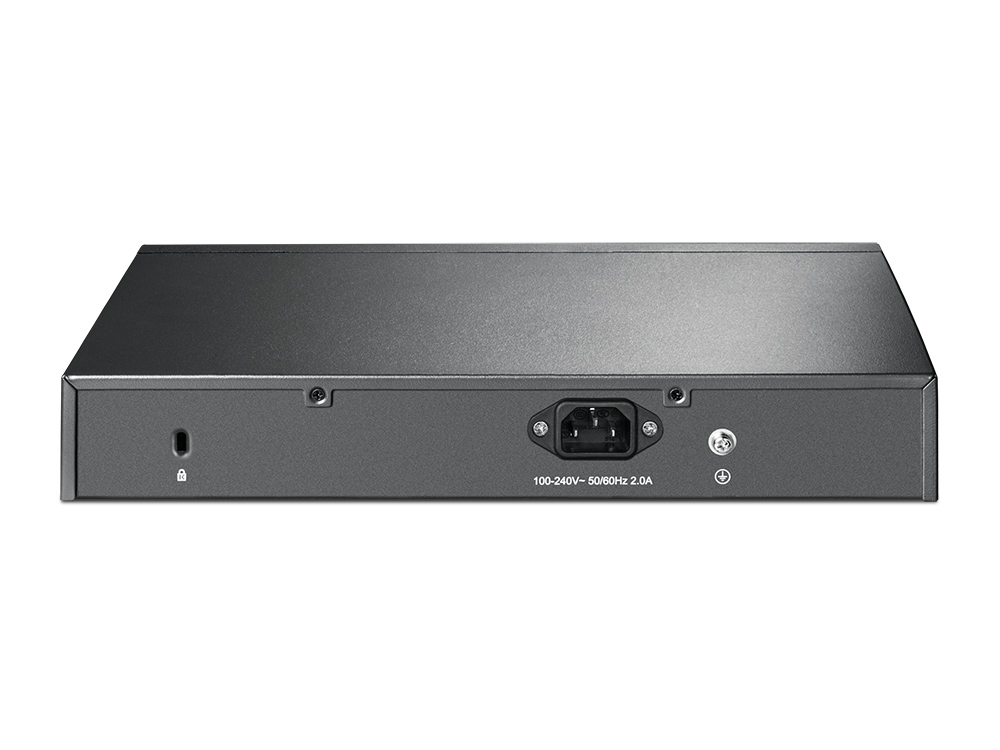

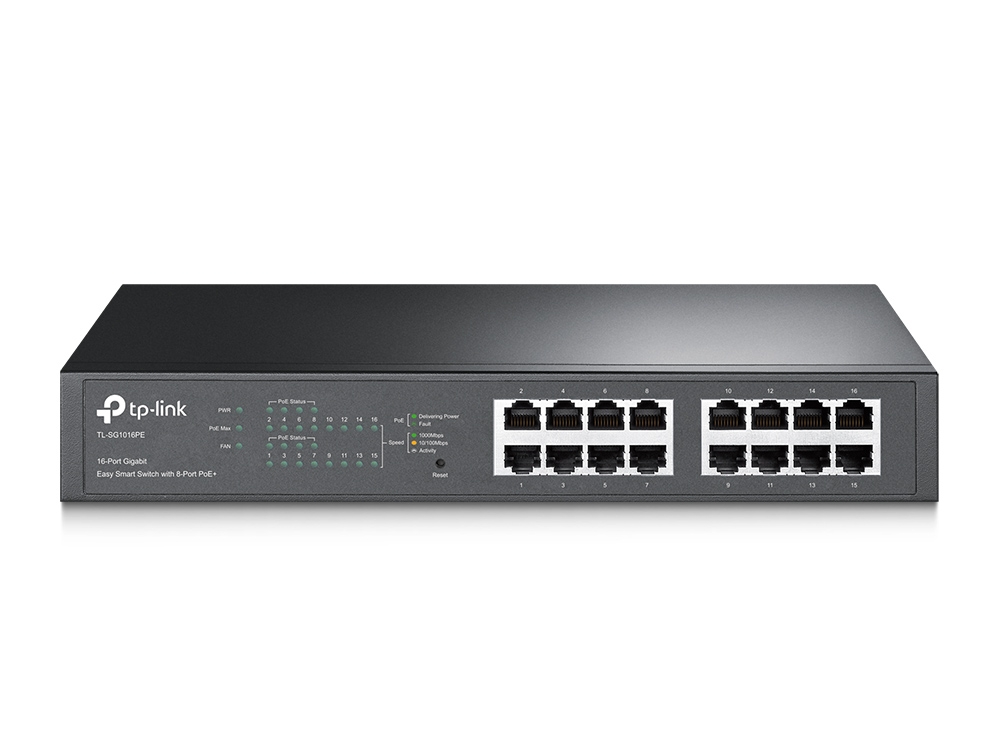

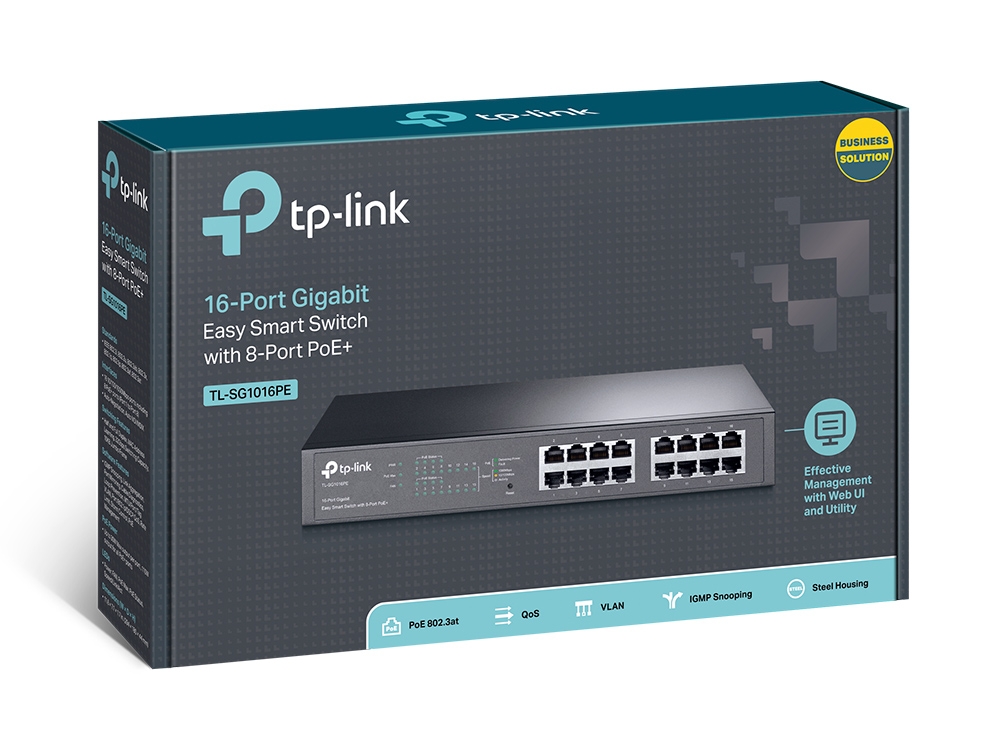

TP-Link 16-Port Gigabit Easy Smart PoE Switch

R2255

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 124W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones.

In stock

Description

FEATURES
16-Port Gigabit Easy Smart PoE Switch
Colour: Black
Switching Capacity: 32Gbps
Interface: 16x 10/100/1000Mbps RJ45 Ports
Transmission Method: Store-And-Forward

TECHNICAL SPECIFICATIONS

Brand: TL-Link
Series: Easy Smart Switches
Model: TL-SG1016PE
Colour: Black
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface: 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media: 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
100BASE-TX: UTP Category 5, 5e Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
1000BASE-T: UTP Category 5, 5e, 6 or Above Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
Fan Quantity: 1
PoE Ports (RJ45): Standard: 802.3 at (30W)
PoE Ports: Port 1 – Port 8
Total PoE Power Budget: 110W
Switching Capacity: 32 Gbps
Packet Forwarding Rate: 23.8 Mbps
MAC Address Table: 8K
Packet Buffer Memory: 4.1 Mb
Jumbo Frame: 9 KB
Quality of Service: Support Port-Based/802.1p/DSCP Priority
Support 4 Priority Queues
Rate Limit
Storm Control
L2 Features: IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN: Supports Up to 128 VLANs Simultaneously (Out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management: Web-Based GUI
Easy Smart Configuration Utility
Transmission Method: Store-And-Forward
Mounting: 13″ and 19″ 1U Rack Mountable
Power Consumption (Maximum): 14.7W (No PD Load)
131.4W (With 110W PD Load)
Heat Dissipation (Maximum): 50.2 BTU/h (No PD Load)
448.4 BTU/h (With 110W PD Load)
Compliance: FCC,RoHS
Operating Temperature: 0 – 40°C
Storage Temperature: -40 – 70°C
Dimensions: 294 x 180 x 44 mm
Package Contents: TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
