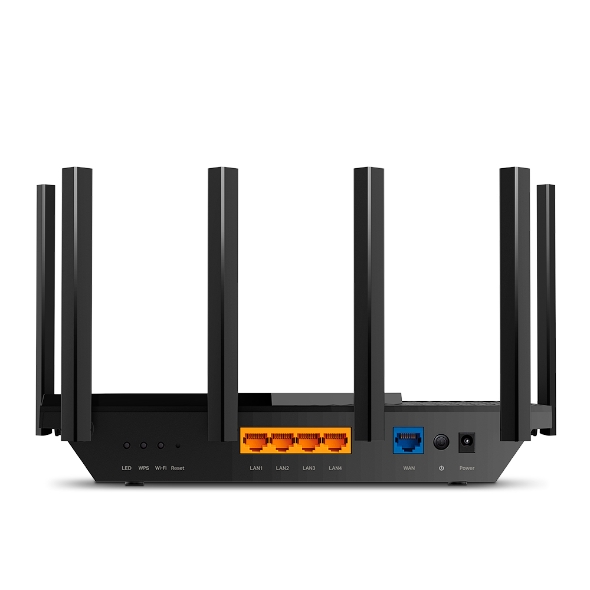

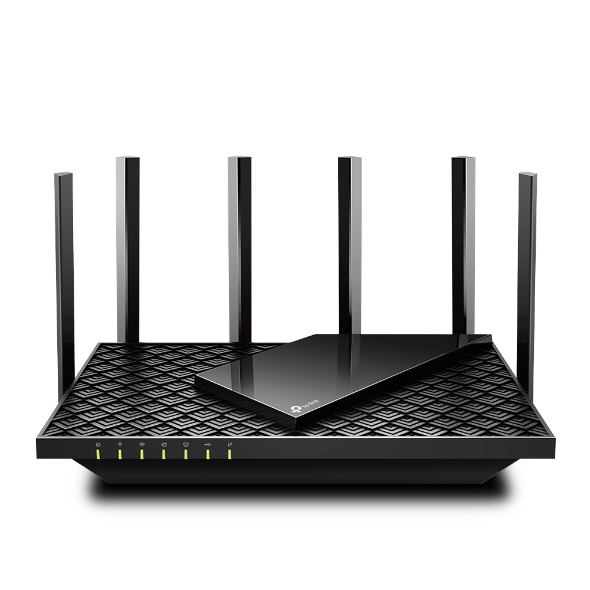

TP-Link Archer AX72 AX5400 Dual Band Gigabit Wi-Fi 6 Router
R2285
TP-Link AX72 AX5400 Dual-Band Gigabit Wi-Fi 6 Router is a great choice for users who are looking for a fast and reliable router that can handle a lot of traffic. It supports the latest Wi-Fi 6 standard, which offers speeds of up to 2402Mbps on the 5GHz band and 574Mbps on the 2.4GHz band. It also has a number of other features that make it a great choice for demanding users, such as OFDMA and MU-MIMO: These technologies allow the router to communicate with multiple devices simultaneously, which can improve performance and reduce latency. It is also a good choice for users who live in large homes or apartments, as it offers good range and reliability.
In stock
Description
FEATURES
Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.â€
Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.
Connect More Devices§ – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.‡**
Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
HomeShield – TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.
USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
Easy Setup – Set up the router in minutes with the Tether app.
TECHNICAL SPECIFICATIONS
WIRELESS
Standards and Protocols: Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds: AX5400
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range: 3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity: High
Dual-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
6 Streams
Connect your devices to more bandwidth
Working Modes: Router Mode
Access Point Mode
SECURITY
Network Security: SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network: 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server: • OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
VPN Client: • Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor: 1 GHz Dual-Core CPU
Ethernet Ports: 1× Gigabit WAN Port
4× Gigabit LAN Ports

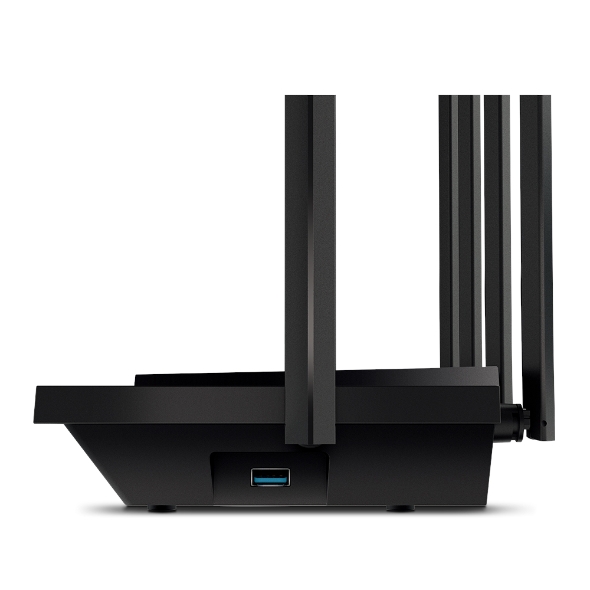

USB Support: 1× USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons: Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power: 12 V ⎓ 2.5 A
SOFTWARE
Protocols: IPv4
IPv6
Service Kits: HomeShield
Learn More>
OneMeshâ„¢: OneMeshâ„¢ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMeshâ„¢ helps you create a more flexible network that covers your entire home with TP-Link OneMeshâ„¢ products.
Learn More>
All OneMesh Products>
Parental Controls: HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types: Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service: QoS by Device
Cloud Service: Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding: Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server
IPTV: IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP: Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Features: Tether App
Webpage
OTHER
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power: CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity: 2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
5GHz:
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm
PHYSICAL
Dimensions (W×D×H): 10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm)
Package Content: Wi-Fi Router Archer AX72
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Additional information
| Weight | 1,5 kg |
|---|---|
| Dimensions | 33 × 27 × 12 cm |
