Tp-Link Archer BE220 BE3600 Dual-Band Wi-Fi 7 Router

Description

FEATURES
3.6 Gbps Dual-Band WiFi 7: BE3600 Dual-Band WiFi delivers WiFi speeds up to 3.6 Gbps.†‡
Full Gigabit Ports: 1× 1 Gbps WAN port + 4× 1 Gbps LAN ports offer high-speed data transmissions.§
Maximized Coverage: 4× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.*
Easy Setup and Use: Network management has never been easier with the Tether app.
TP-Link HomeShield: Enhanced security defends against the latest cyber threats.**
Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers.

TECHNICAL SPECIFICATIONS

WIRELESS
WiFi Speeds:
BE3600
• 5 GHz: 2882 Mbps (802.11be)
• 2.4 GHz: 688 Mbps (802.11be)
WiFi Range: 3 Bedroom Houses
4× External Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity: High
Dual-Band
Allocate devices to different bands for optimal performance
2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth
Advanced Features:
• Multi-Link Operation (MLO)
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network
Wireless Mode:
• Router Mode
• Access Point Mode

SECURITY
Network Security:
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network:
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
VPN Server:
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server
VPN Client:
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client
WiFi Encryption:
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

HARDWARE

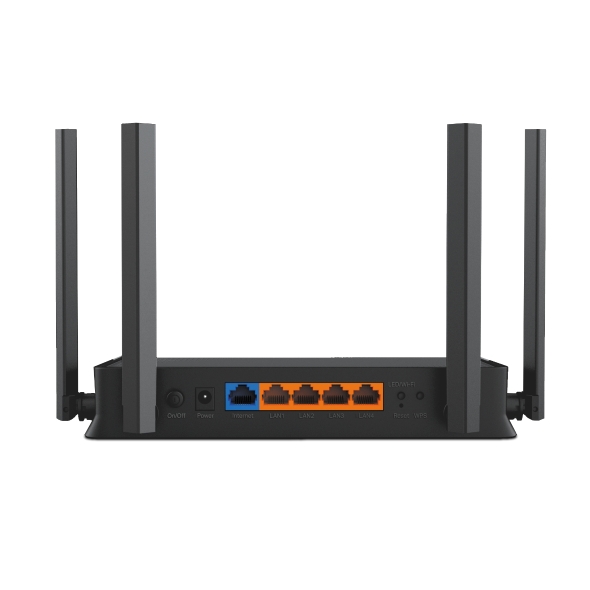

Ethernet Ports:
• 1× 1 Gbps WAN
• 4× 1 Gbps LAN
Buttons:
• Power On/Off Button
• LED/Wi-Fi Button
• WPS Button
• Reset Button
Power: 12 V ⎓ 2 A (US)
12 V ⎓ 1.5 A (EU)

SOFTWARE
Protocol:
• IPv4
• IPv6
Service Kit: HomeShield
Learn More>
EasyMesh: Compatible with EasyMesh
Parental Controls: HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Type:
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service: QoS by Device
Cloud Service:
• Auto Firmware Upgrade
• TP-Link ID
• DDNS
NAT Forwarding:
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV:
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP:
• Address Reservation
• DHCP Client List
• Server
DDNS:
• TP-Link
• NO-IP
• DynDNS
Management Features:
• Tether App
• Webpage

OTHER
Network Services Enabled by Default: Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DNS
DNS
• Port: 53   Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
App management
Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 30001   Protocol: TCP
• Port: 20002   Protocol: UDP
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications: CE, FCC, RoHS

Environment
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
