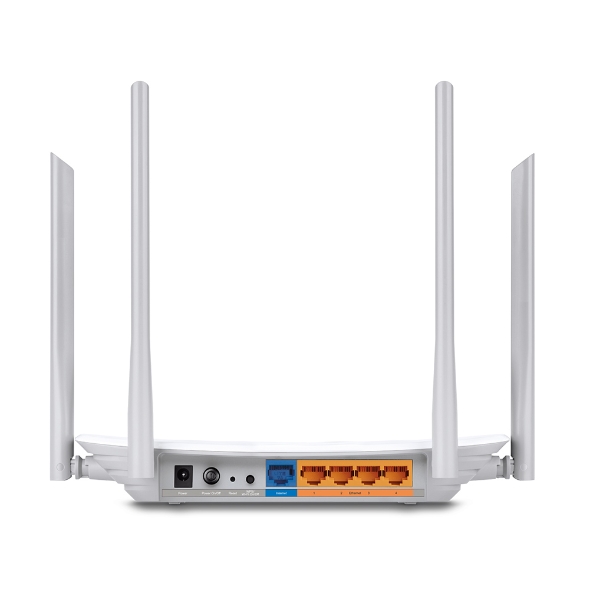

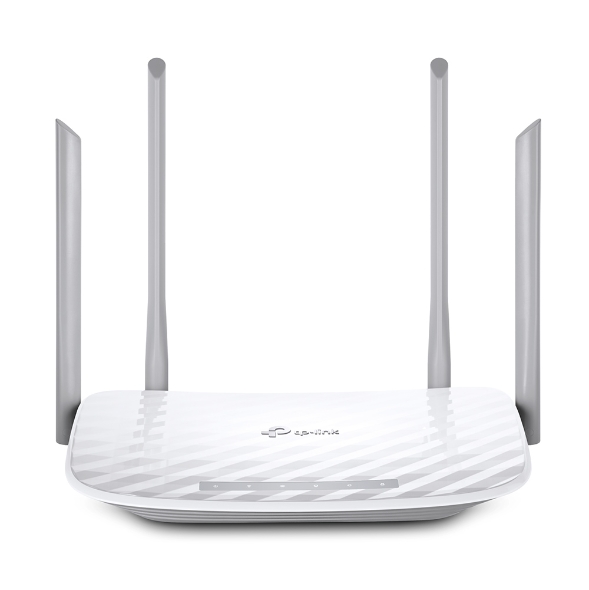

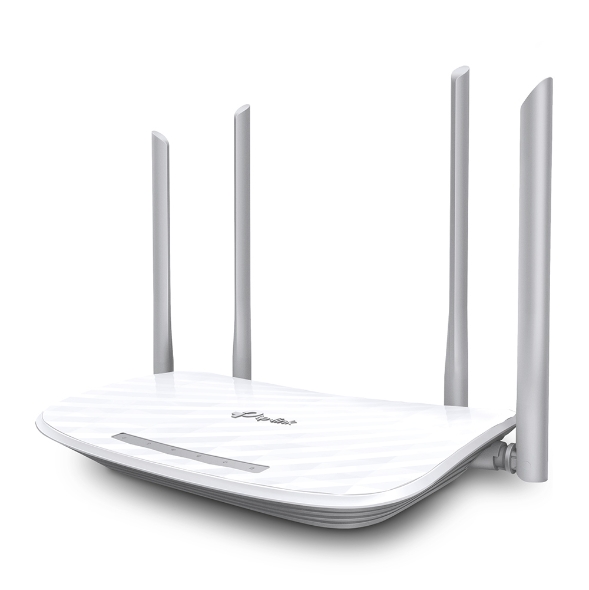

TP-Link Archer C50 AC1200 Wireless Dual Band Router

Description

FEATURES
Supports 802.11ac standard
Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
4 external antennas provide stable wireless connections and optimal coverage
Easy network management at your fingertips with TP-Link Tether
Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
Supports Access Point mode to create a new Wi-Fi access point

TECHNICAL SPECIFICATIONS

WIRELESS
Standards and Protocols: Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range: 3 Bedroom Houses
4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity: Medium
Dual-Band
Allocate devices to different bands for optimal performance
2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes: Router Mode
Access Point Mode
Range Extender Mode

SECURITY
Network Security: SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network: 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

HARDWARE
Processor: Single-Core CPU
Ethernet Ports: 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons: WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power: 9 V ⎓ 0.85 A

SOFTWARE
Protocols: IPv4
IPv6
EasyMesh: Mesh networking creates smooth, fast, stable roaming. Archer C50 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.
Learn More>
Parental Controls: URL Filtering
Time Controls
WAN Types: Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service: QoS by Device
NAT Forwarding: Port Forwarding
Port Triggering
DMZ
UPnP
IPTV: IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP: Address Reservation
DHCP Client List
Server
DDNS NO-IP
DynDNS
Management Features: Tether App
Webpage
Check Web Emulator>

OTHER
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power: CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity: 5GHz:
11a 54M: -73dBm
11ac VHT20 MCS8: -68dBm
11ac VHT40 MCS9: -64dBm
11ac VHT80 MCS9: -60dBm
2.4GHz:
11g 54M: -76dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm

PHYSICAL
Dimensions (W×D×H): 9.1 × 5.7 × 1.5 in
(229.9 × 144.2 × 36.9 mm)
Package Content: Wi-Fi Router Archer C50
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
