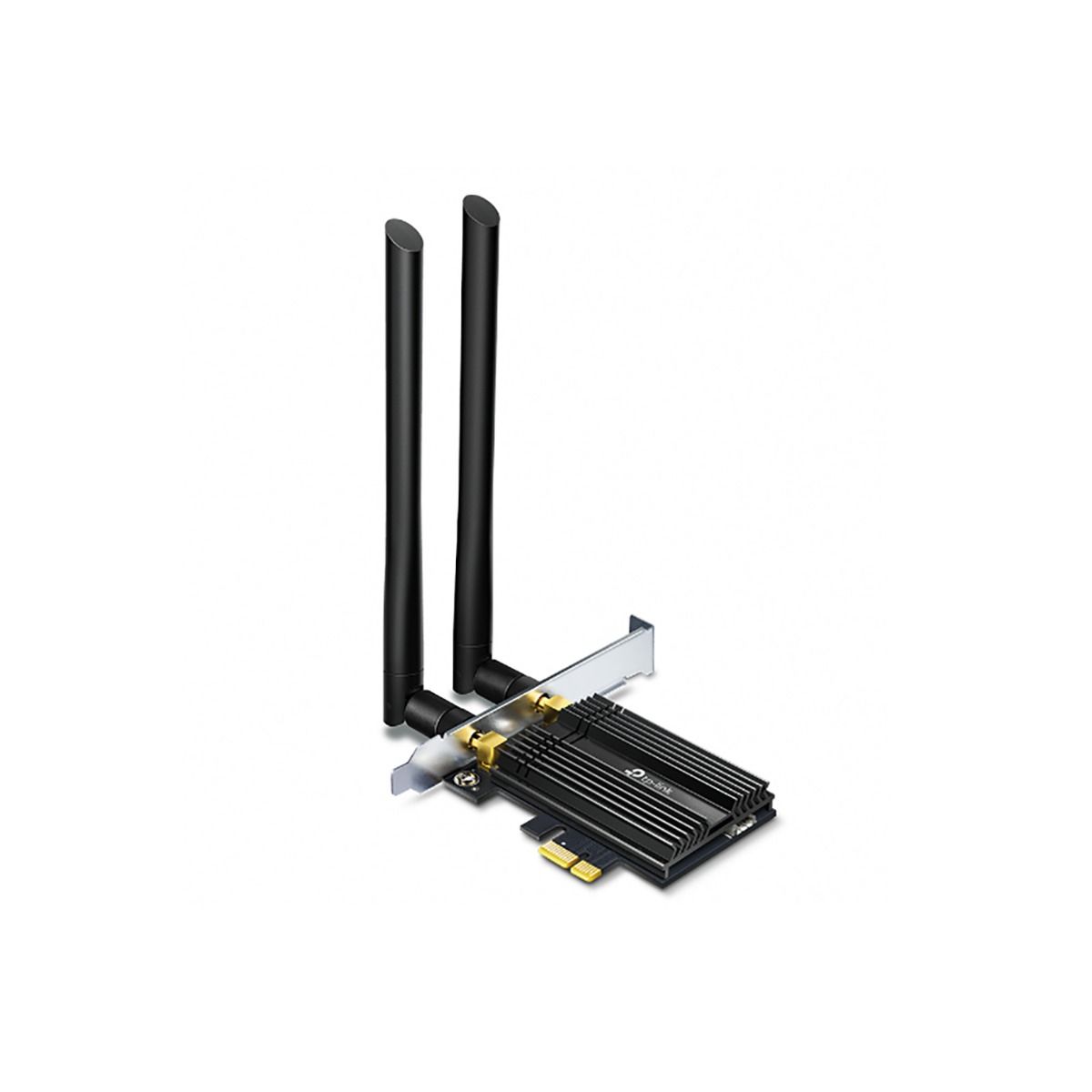

Tp-Link Archer TX50E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter

Description

FEATURES
AX3000 Wi-Fi 6 Speeds: Reach incredible speeds up to 2.4 Gbps (2402 Mbps on 5 GHz or 574 Mbps on 2 4 GHz), ultra-low latency and uninterrupted connectivity using Wi-Fi 6 technology such as 1024-QAM and 160 MHz bandwidth.†‡
Minimized Lag for Your PC: Revolutionary OFDMA and MU-MIMO technology reduces lag so you can enjoy ultra-responsive real-time gaming or an immersive VR experience on even the busiest of networks. ‡
Broader Range: Two powerful signal-boost high-gain antennas greatly increase range for a smoother online experience further away.
Bluetooth 5.0 for Greater Speeds and Range: Archer TX50E achieves 2x faster speeds and 4x broader range so you can connect your favorite devices such as game controllers, headphones, and keyboards for the ultimate setup.***
Cutting-Edge WPA3: Protect your network with the latest WPA3 security protocol so your information is secure from hackers.**
Premium quality & Performance: Gold plating and a customized heat sink improve connection stability and efficiency ensuring ultimate performance.
Support Compatibility: Supports Windows 11/10 (64bit) only – Driver installation required via Website or included CD

TECHNICAL SPECIFICATIONS

HARDWARE FEATURES
Dimensions ( W x D x H ): 3.7 x 4.8 x 0.8 in
(95.2 x 120.8 x 21.5 mm)
Antenna: Two High-Gain Dual Band Antennas
Chipset: Intel Wi-Fi 6 Chipset

WIRELESS FEATURES
Wireless Standards: IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0
WLAN Signal Rate: 5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity: 5 GHz :
11ax HT160：-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160：-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
WLAN Transmit Power: 5 GHz : 27dBm(FCC)
2.4 GHz : 26dBm(FCC)
WLAN Modes: Infrastructure mode
Wireless Security: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Bluetooth Profiles: Archer TX50E support the native BT profiles implemented in Windows 10.
For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles

OTHERS
Certification: FCC, RoHS

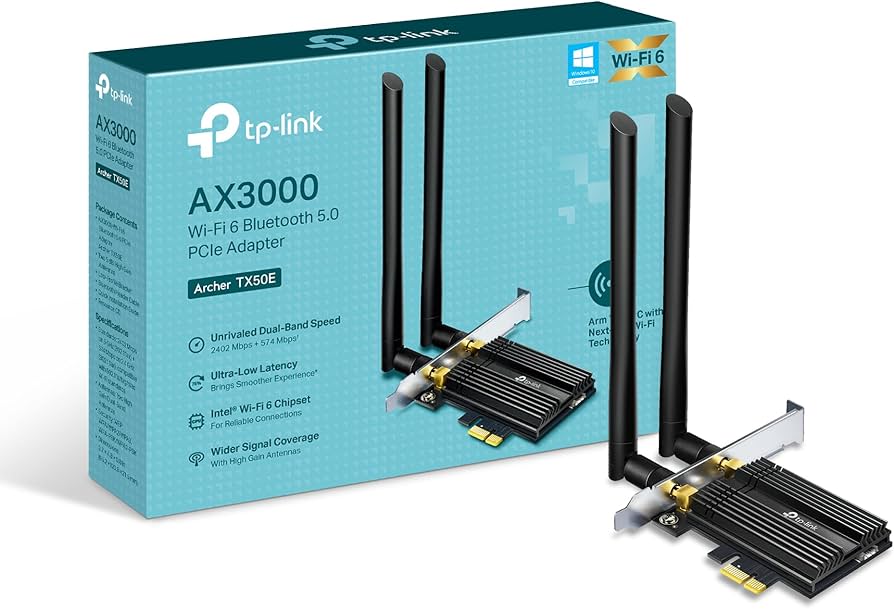

Package Content: Archer TX50E
Two 5 dBi High-Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
System Requirements: Windows 11/10(64-bit) only
Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
