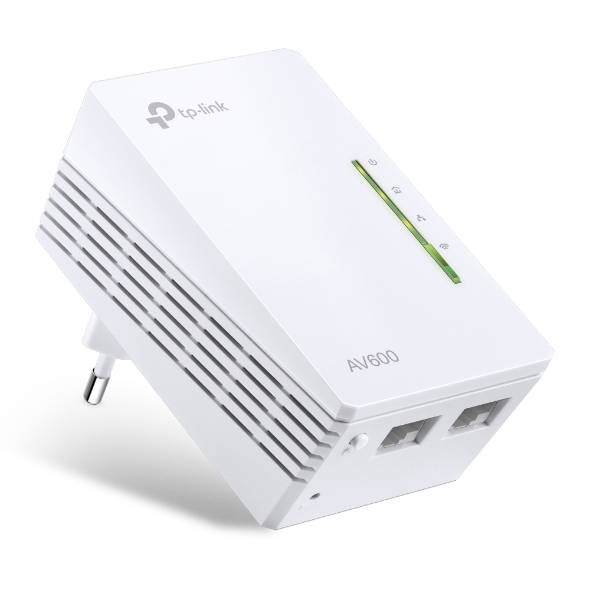

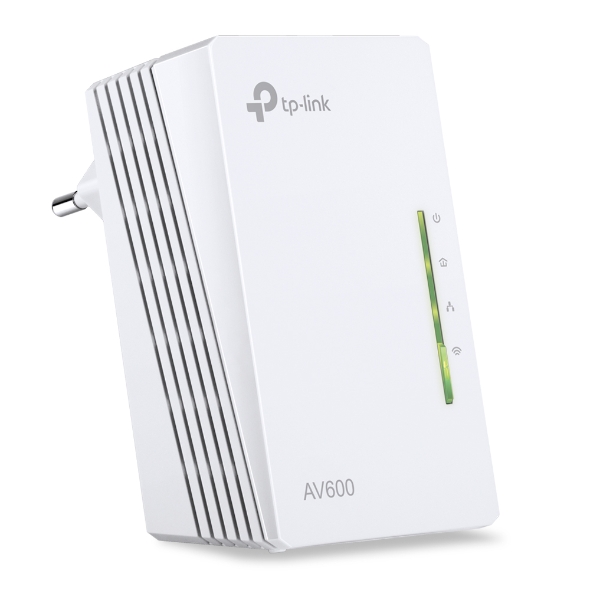

TP-Link TL-WPA4220 V5 AV600 Wi-Fi Powerline Extender
R700
Based on the Powerline technology, your network extension is never limited to the primary coverage of your router. With advanced HomePlug AV600, the TL-WPA4220 KIT transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired and wireless network to anywhere there is a power outlet.
In stock
Description
FEATURES
HomePlug AV2 Standard – Provides fast powerline transfer speeds of up to 600 Mbps*
300 Mbps Wi-Fi – Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office*
Plug and Play – Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
2 Ethernet Ports – Provides reliable high-speed wired connection for game consoles, smart TVs and more
One-Touch Wi-Fi Configuration – One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
Wi-Fi Auto-Sync – Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
Easy Management – Gives you easy control of your network through a powerful web interface, the user-friendly tpPLC Utility and the intuitive tpPLC mobile app
TECHNICAL SPECIFICATIONS
HARDWARE FEATURES
Standards and Protocols: HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n

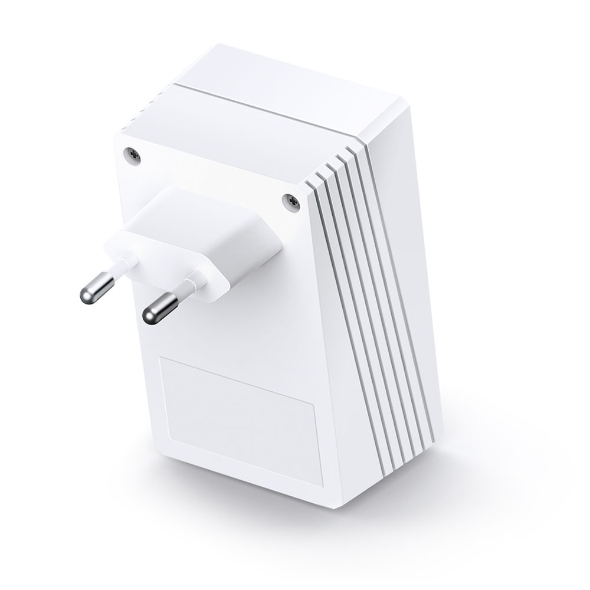

Plug Type: EU
Interface: 2*10/100Mbps Ethernet Port
Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
Max. Power Consumption:
Maximum: 5.6W
Typical: 5.2W
LED: Power, Powerline, Ethernet, Wi-Fi
Dimensions ( W x D x H ): 2.1 × 1.6 ×3.7 in (54 × 40 × 94 mm)
Range: Up to 300 meters/1000 feet over existing electrical wiring
WIRELESS FEATURES
Frequency: 2.4-2.4835GHz
Signal Rate:
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity:
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security: 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Features: Enable/DisableWireless Radio,WMM, Wireless Statistics
Transmission Power: CE:<20dBm(2.4GHz)
FCC:<30dBm
SOFTWARE FEATURES
Modulation Technology: OFDM (PLC)
Encryption:
Powerline Security: 128-bit AES Encryption
Wireless Security: WPA-PSK / WPA2-PSK, WEP Encryptions
OTHERS
Certification: CE, RoHS

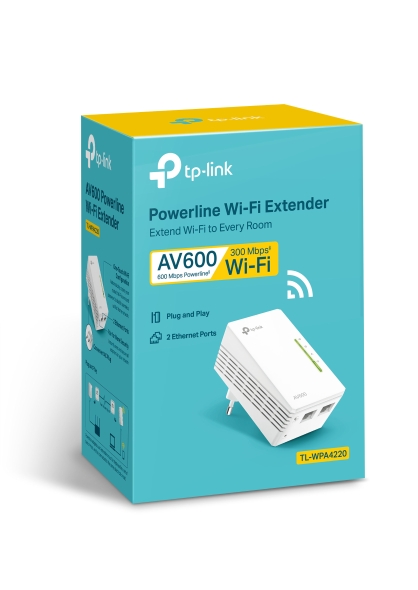

Package Content:
● AV600 Powerline Wi-Fi Extender: 1 × TL-WPA4220
● 1 × Ethernet Cable
● 1 × Quick Installation Guide
System Requirements: System Requirements:
Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
· System Requirements for tpPLC Utility:
Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
Environment:
Operating Temperature: 0 °C~40 °C (32 °F~104 °F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Additional information
| Weight | 0,4 kg |
|---|---|
| Dimensions | 15,3 × 10,2 × 9,1 cm |
| Condition |
