Description
FEATURES
300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
Three antennas greatly increase the wireless robustness and stability
Easy wireless security encryption at a push of WPS button
IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
Compatible with IPv6 -the more recent Internet Protocol version
TP-LINK Tether App allows quick installation and easy management using any mobile device
TECHNICAL SPECIFICATIONS
SECURITY
Network Security: SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network: 1× 2.4 GHz Guest Network
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
WIRELESS
Standards: Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: N300
2.4 GHz: 300 Mbps (802.11n)
WiFi Range: 2 Bedroom Houses
3× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity: Legacy
Working Modes: Router Mode

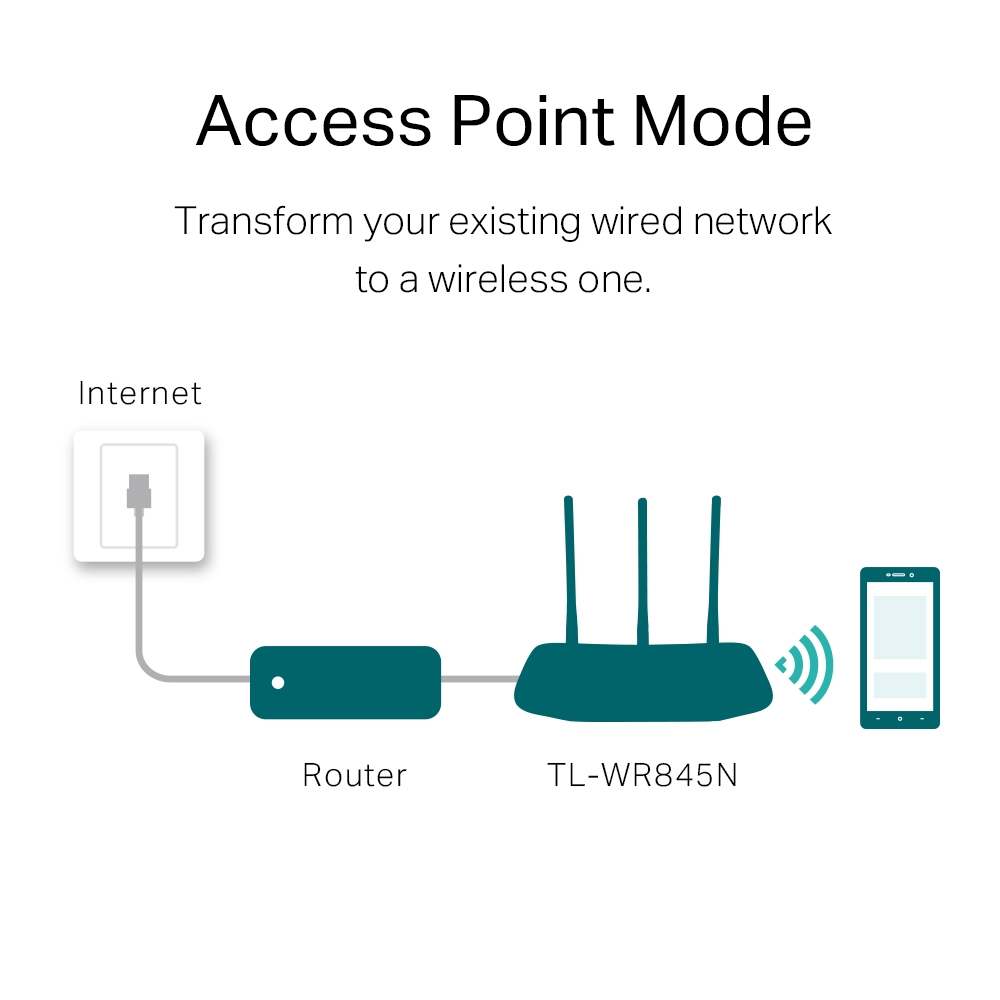

Access Point Mode

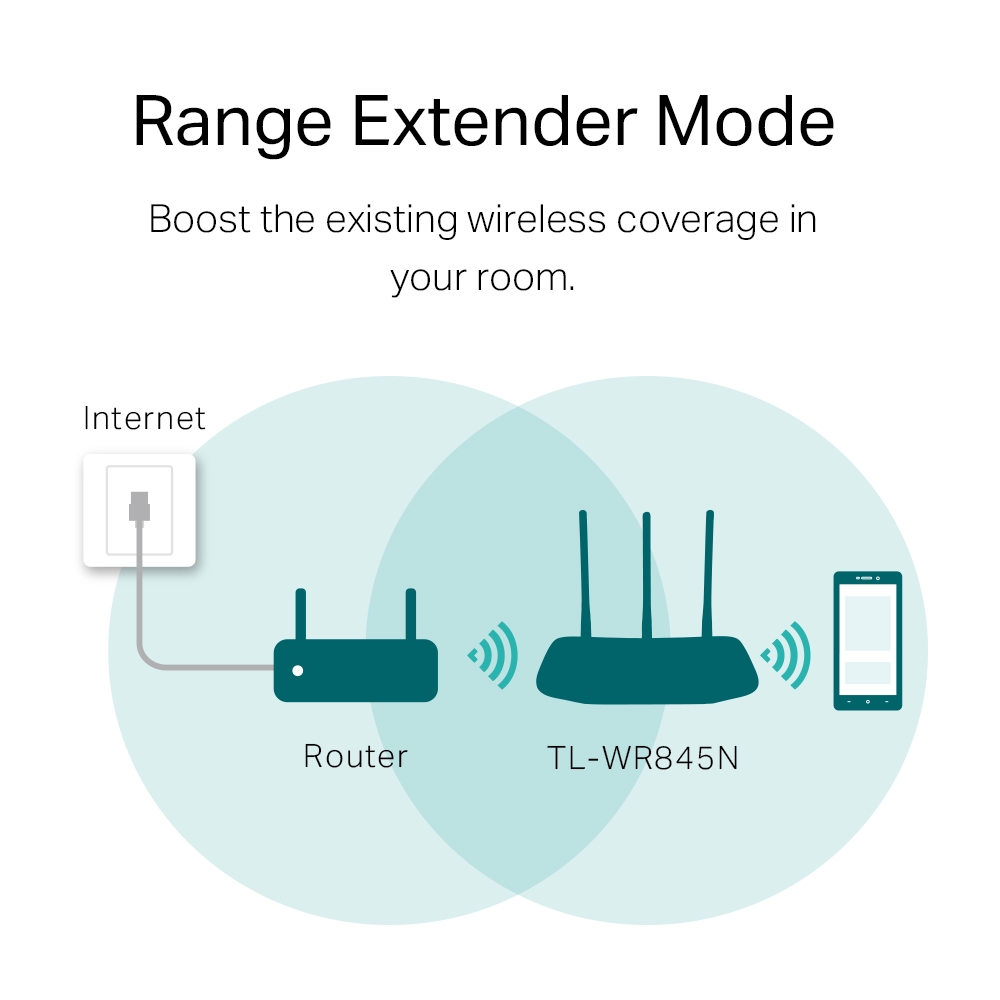

Range Extender Mode
WISP Mode
HARDWARE
Processor: Single-Core CPU
Ethernet Ports: 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons: WPS Button
Reset Button
Power: 9 V ⎓ 0.6 A
SOFTWARE
Protocols: IPv4
IPv6
Parental Controls: URL Filtering
Time Controls
WAN Types: Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service: QoS by Device
NAT Forwarding: Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV: IGMP Proxy
IGMP Snooping
DHCP: Address Reservation
DHCP Client List
Server
DDNS: NO-IP
DynDNS
Management: Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4GHz)
FCC:
<30dBm
WiFi Reception Sensitivity: 270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -93dBm@8% PER
6M: -95dBm@10% PER
1M: -98dBm@8% PER
PHYSICAL
Dimensions (W×D×H): 9.1 × 5.7 × 1.4 in
(230 × 144 × 35 mm)

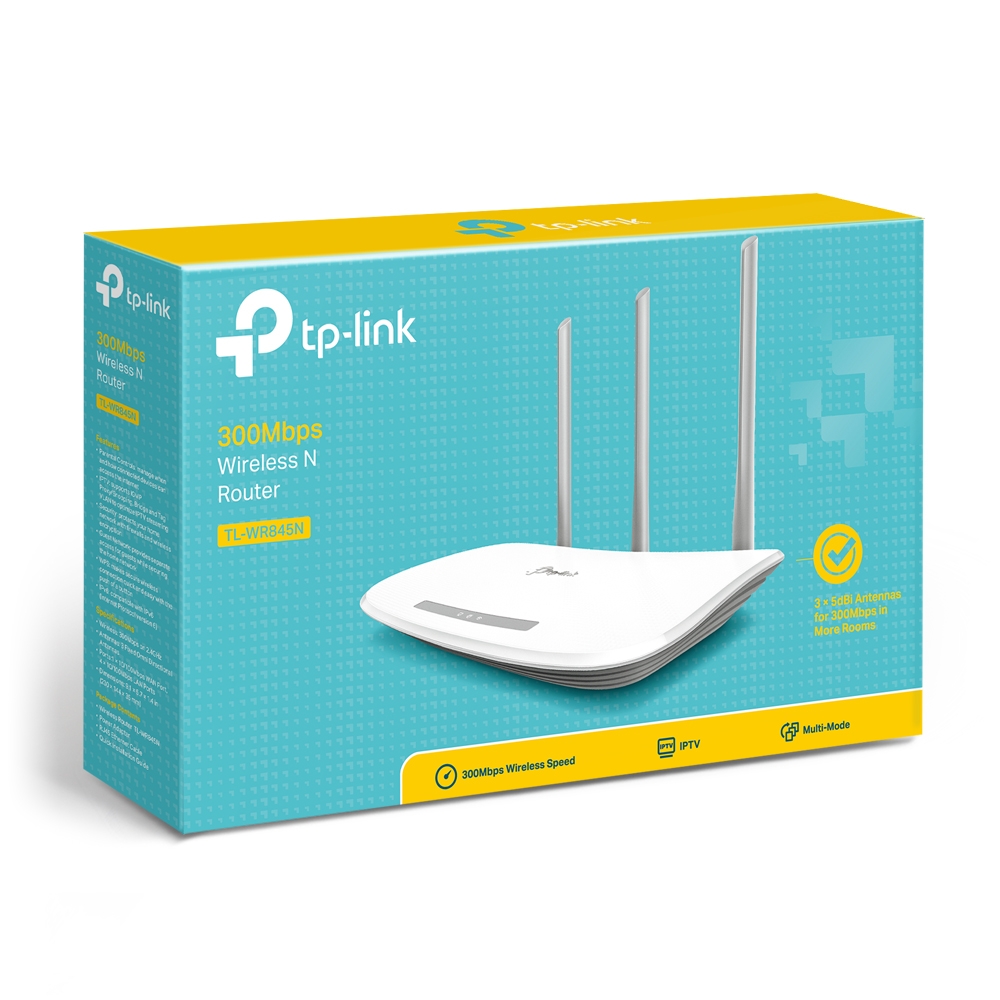

Package Contents: Wi-Fi Router TL-WR845N
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
