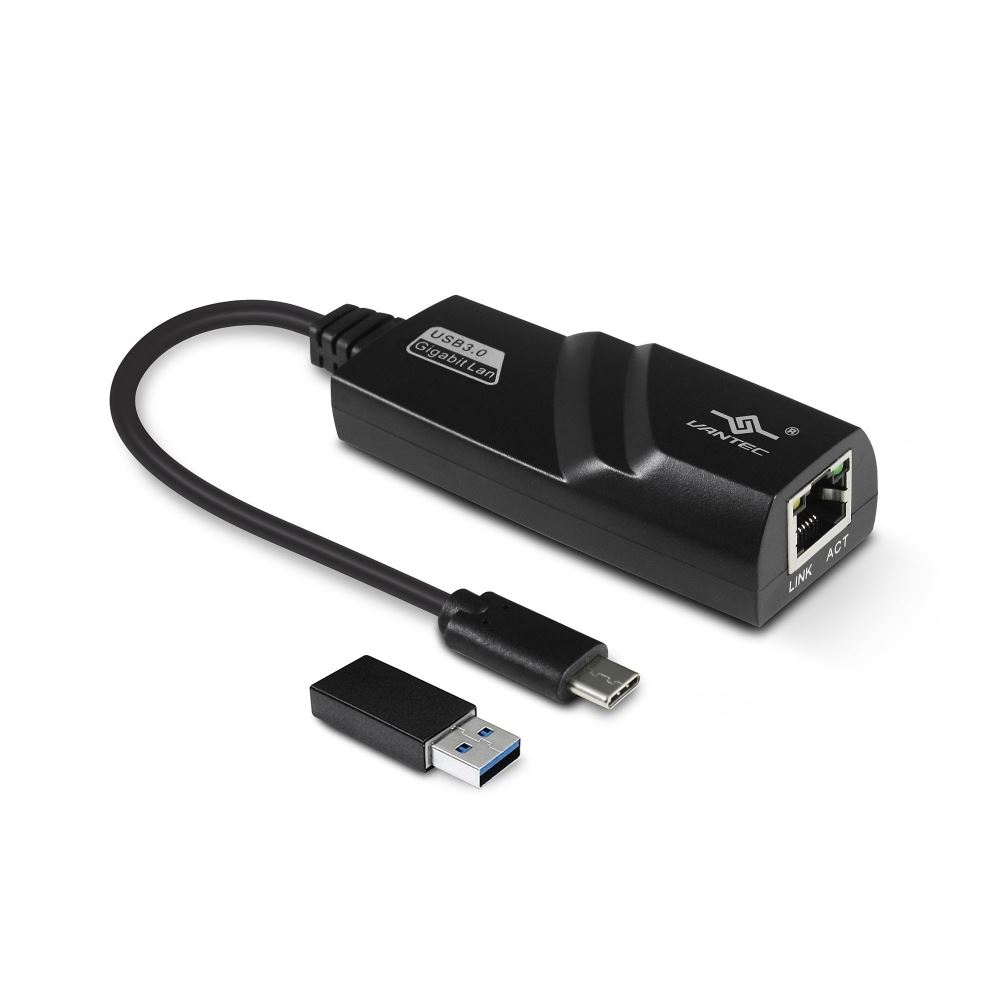

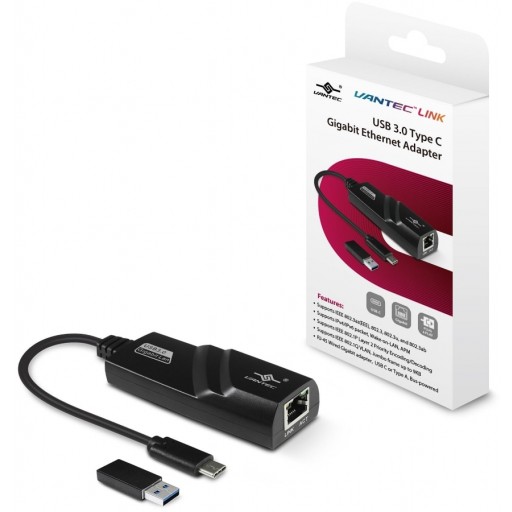

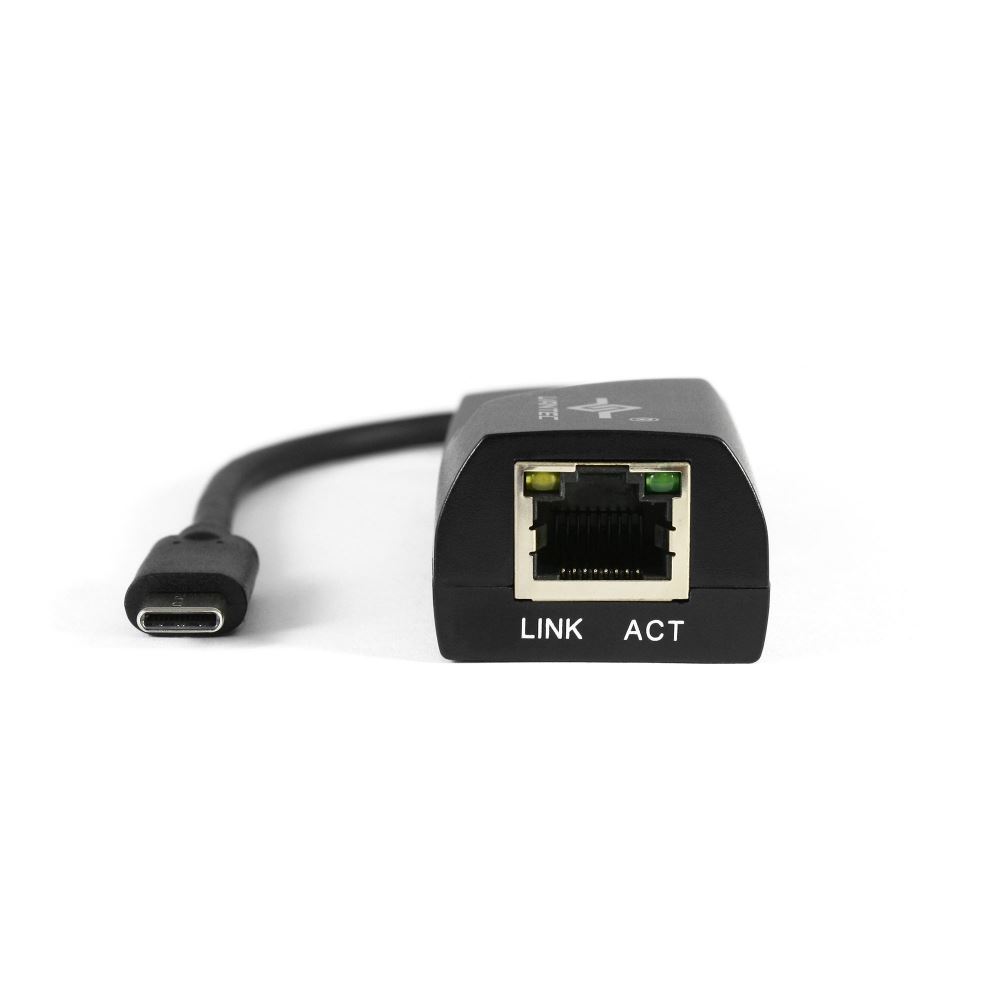

VANTEC USB 5Gb/s Type-C Gigabit Ethernet RJ-45 Black Network Adapter
R385
The Vantec Link USB 3.0 Type C Gigabit Ethernet Adapter enables you to add a wired network port using an existing USB C or USB Type-A port (with provided C to A adapter) to your laptop or desktop. It connects to the USB C or USB Type-A port and provides an RJ-45 connector that supports 10/100/1000BASE-T network faster when wireless connectivity is unreliable or inconsistent. It is packed with features and is perfect for laptops with USB C or USB Type-A ports such as the latest MacBook Pro, Chromebook Pixel with Thunderbolt 3 (USB C) ports.
In stock
Description
FEATURES
USB Type-C to Ethernet Adapter
Supports Gigabit Ethernet Networks
Thunderbolt USB Type-C Compatible
Supports USB 3.0 & USB 2.0 Protocols
Supports USB Type-C & Type-A Ports
Link Speed: 10/100/1000Mb/s

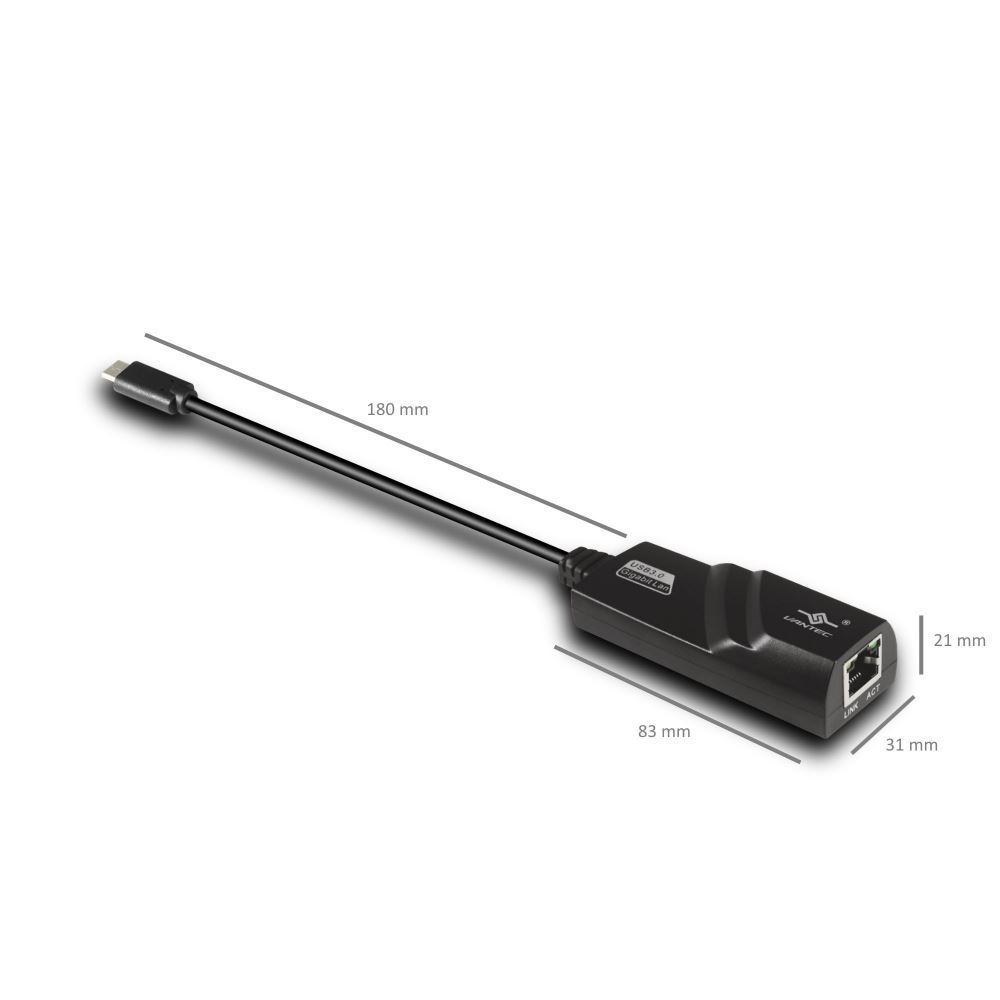

Dimensions: 83 x 31 x 21mm (Housing)
Cable Length: 180mm
Supports Windows 7, Windows 8, Windows 10
Supports macOS 10.6 or Later
Supports Linux x86-64
Colour: Black
TECHNICAL SPECIFICATIONS
Brand: VANTEC
Series: USB Type-C Adapters
Model: CB-CU310GNA
Protocol Support: USB 3.0 (Compatible with USB 3.1, USB 3.1 Gen 1/2, USB 2.0)
Supports CDC-ECM
Interface: USB Type-C
Network Suppport: RJ45 Ethernet (10/100/1000Mbps)
Compliance: Supports Full Duplex flow control (IEEE 802.3x)
Fully compliant with IEEE 802.3 and IEEE 802.3u
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports IEEE 802.3az-2010 (EEE)
Microsoft AOAC (Always On Always Connected)
Supports 16-set 128-byte Wake-Up Frame pattern exact matching
Supports link change wake up
Supports Microsoft WPD (Wake Packet Detection)
Supports Protocol Offload (ARP & NS)
Supports Intel CPPM (Converged Platform Power Management)
Supports L1 with 3ms BESL (USB 2.0) Dynamic LTM messaging (USB 3.0)
Supports U1/U2 (USB 3.0)
Supports selective suspend
Network Features: Auto-Negotiation with Next Page capability
Supports USB 3.0, 2.0
Supports CDC-ECM
Supports LPM (Link Power Management)
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Supports Wake-On-LAN, Realtek ‘RealWoW!’, Wake-On-WAN
Supports ECMA-393 ProxZ Zy for sleeping hosts
Supports power down/link down power saving
Power: USB Bus Powered
Materials: ABS Plastic
Metal Alloy
Copper
General
Colour: Black
Dimensions: 83 x 31 x 21mm (housing)
Weight: 45 grams
Operating System Support: Microsoft Windows 7, 8, 10
macOS 10.6 or later
Linux x86_64
Chromebook
Additional information
| Weight | 0,2 kg |
|---|---|
| Dimensions | 15 × 10 × 3 cm |
