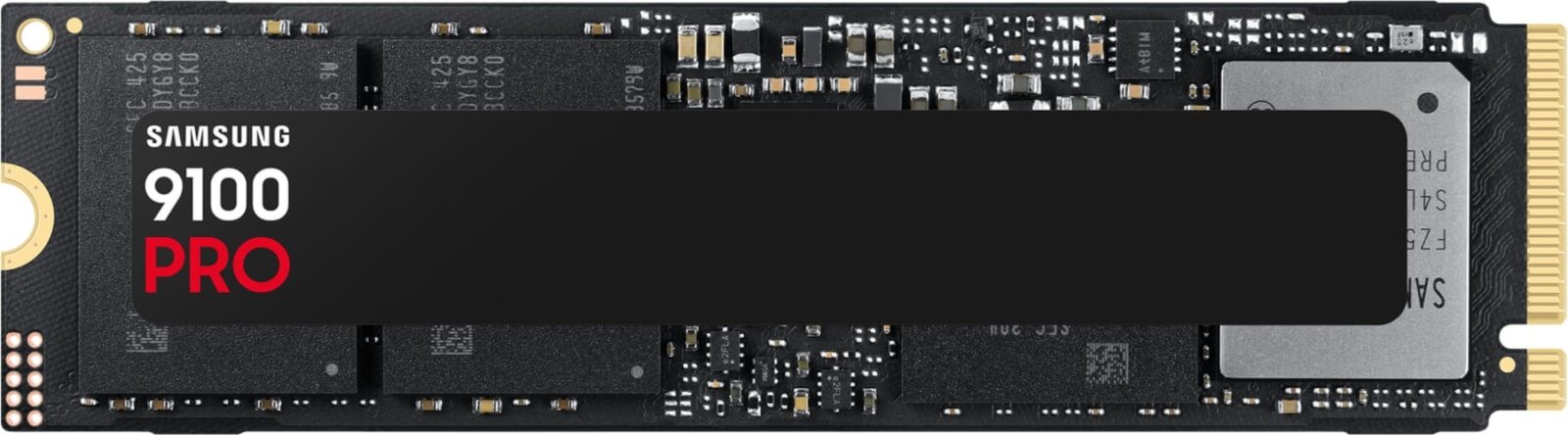

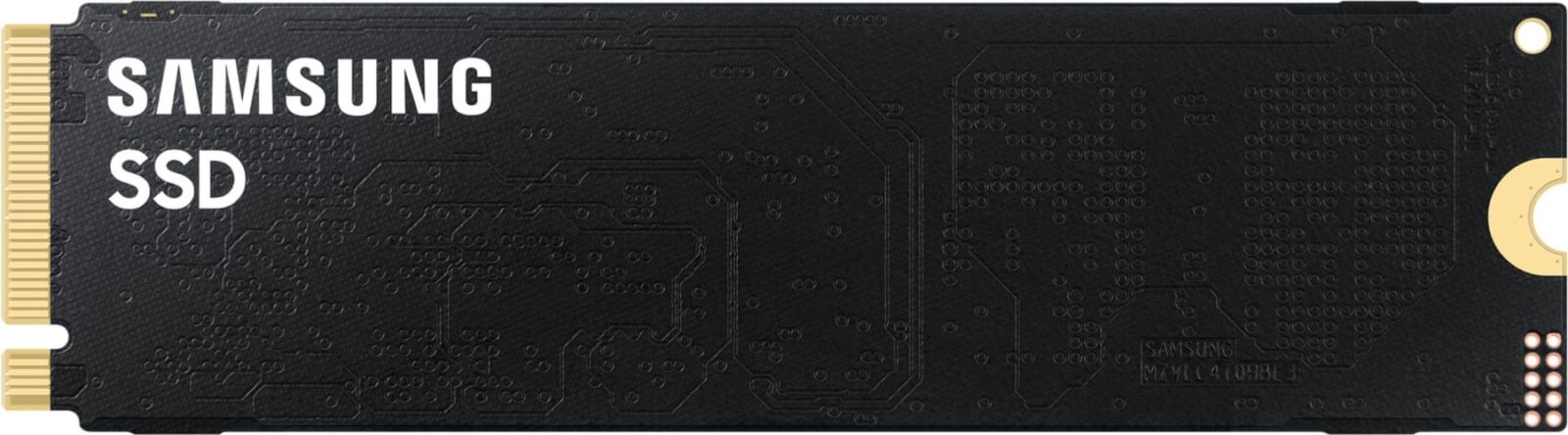

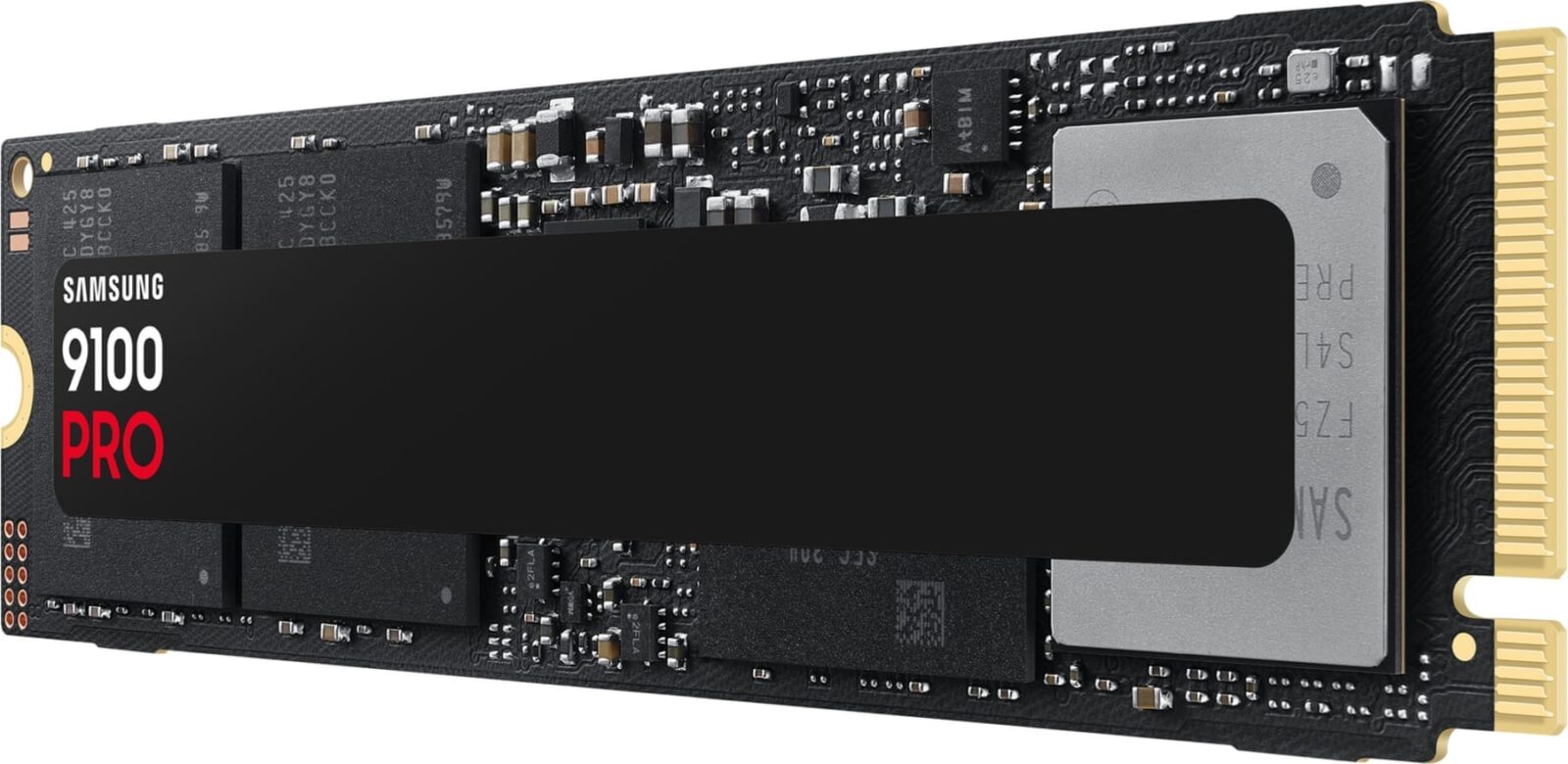

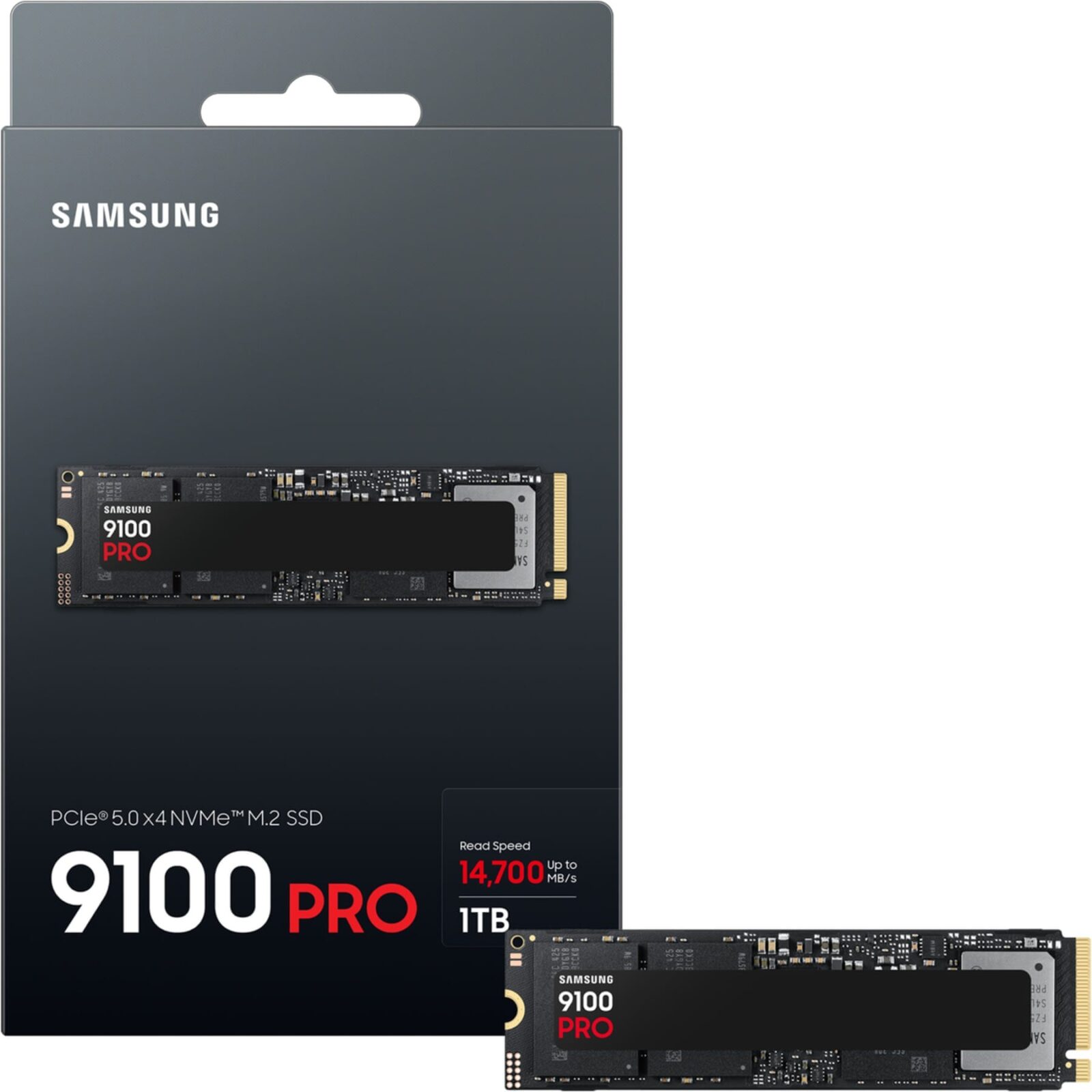

Samsung 9100 PRO 1TB M.2 2280 PCIe 5.0 x4 NVMe Solid State Drive
R9360
Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,700/13,300 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.
In stock
Description
FEATURES
1TB Solid State Drive
Graphene Thermal Pad
Samsung V-NAND TLC Flash
Samsung Controller
Form Factor: M.2 2280
Interface: PCIe 5.0 x4
Protocol: NVMe 2.0
Sequential Read Speed: Up to 14,700MB/s
Sequential Write Speed: Up to 13,300MB/s
Endurance Rating: 600TBW
MTTF: Up to 1.6 Million Hours
Colour: Black
1GB LPDDR4X Cache with Host Memory Buffer
Supports LDPC, TRIM, S.M.A.R.T
Supports AES 256-bit Encryption, Opal 2.0
Samsung Magician SSD Utility
TECHNICAL SPECIFICATIONS
Brand: Samsung
Series: 9100 PRO Series
Model: 9100 PRO 1TB (MZ-VAP1T0BW)
Capacity: 1TB (1000GB)
Interface: PCIe 5.0 x4 NVMe
Flash Type: Samsung V-NAND TLC
Controller: Samsung In-House Controller
Drive Performance
Sequential Read Speed: Up to 14,700MB/s
Sequential Write Speed: Up to 13,300MB/s
4K Random Read IOPS: 1.85 million IOPS
4K Random Write IOPS: 2.6 million IOPS
Endurance Rating: 600TBW
Power
Average Power Consumption: 7.6W Read / 7.2W Write
Idle Power Consumption: 4.0mW (PS3, APST enabled)
3.3mW (PS4, ASPM L1.2)
General
Features: Host Memory Buffer
1GB LPDDR4X DRAM Cache
Supports LDPC (Low Density Parity Check Code)
Supports AES 256-bit Encryption, Opal 2.0
Pre-Installed Graphene Heatspreader
MTTF: Up to 1.5 Million Hours
Operating Temperatures: 0°C to 70°C
Non-Operating Temperatures: -40°C to 85°C
Shock Resistance: 1,500 G @ 0.5msec Half Sine
Certifications: CE, FCC, BSMI, KC, EAC, RCM, morocco, UKCA, RoHS
PS5 Compatibility: Yes, compatible (heatsink may be required for optimal operation)
Dimensions: 80.15 x 22.15 x 2.38mm (L x W x H)
Weight: N/A
Additional information
| Weight | 0,1 kg |
|---|---|
| Dimensions | 2 × 10 × 14,5 cm |
| Condition | |
| HDD/SSD Interface | M.2 PCI-Express 5.0 |
| Storage Size | 1 TB |
Frequently Asked Questions
Q: How much data can this drive hold?
A: This drive provides 1 TB of total storage space for your files, games, and operating system.
Q: How does this drive connect to my system?
A: It connects via a M.2 PCI-Express 5.0 connector interface. Make sure your motherboard has a matching slot or cable connection.
